Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#117440) — 575 parça

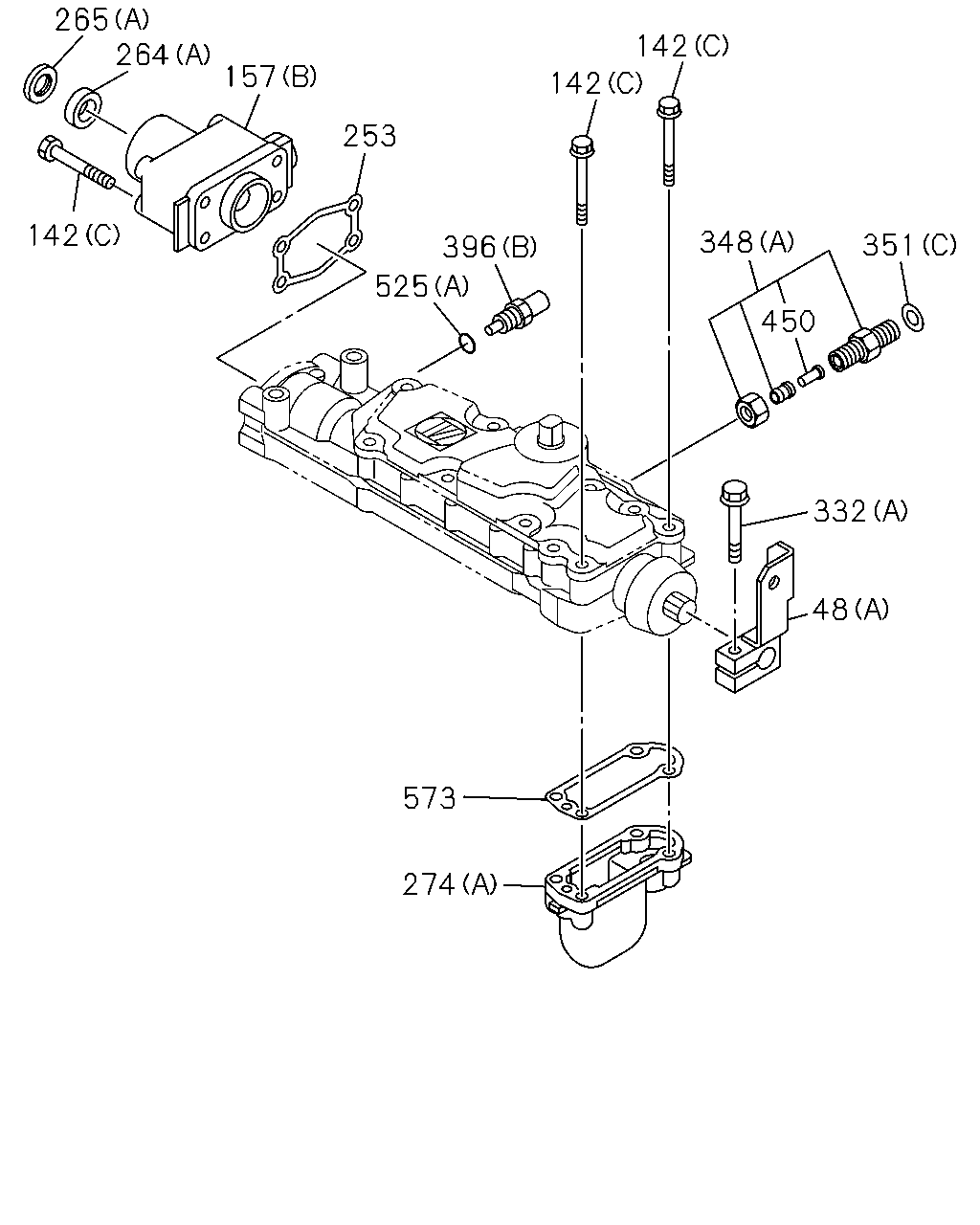

265 142 264 157 253 396 525 573 274 48 332 450 351 348 142 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33651-661-1	01	1	1304-
48	LEVER; 4TH,SHIFT SHIFT PATTERN SINGLE-H<EDY> (A)	8-98081-185-1	01	1	1304-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75	1-09089-015-0	02	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-486-0	06	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-34129-116-0	04	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-467-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C)	1-33549-476-0	17	1	1304-1305
157	BOX; QUAD,TRANS PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-612-0	01	1	1304-1305
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-612-0	01	1	1306-
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-570-0	01	1	1304-
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-574-0	01	1	1304-1305
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-604-0	01	1	1306-
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-445-0	01	1	1304-
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-568-0	01	1	1304-1305
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33544-054-0	01	1	1304-
264	SEAL; DUST,SHAFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-327-0	01	1	1304-
264	SEAL; DUST,SHAFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-119-0	01	1	1304-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-328-0	01	1	1304-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-118-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-579-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-531-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-535-0	01	1	1304-
332	BOLT; 4TH,SHIFT LEVER SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X40 FLANGE	0-28650-840-0	01	1	1304-
332	BOLT; 4TH,SHIFT LEVER SHIFT PATTERN SINGLE-H<EDY> (A) M10X45 W/PL WASHER	8-98038-710-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (F) M12 STRAIGHT	1-09654-246-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-139-0	02	1	1304-1305
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-593-0	02	1	1306-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (A)	1-09660-466-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (B)	1-09661-174-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (C)	1-09661-481-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (D)	8-94338-417-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (E)	8-98068-125-0	01	1	1304-
351	GASKET; CONNECTOR (D) ID=12.2	1-09630-084-0	01	1	1304-1312
351	GASKET; CONNECTOR (D) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-554-0	01	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-578-0	08	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-578-0	04	1	1304-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33519-189-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1306-
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33529-085-0	02	1	1304-
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33529-067-0	01	1	1304-1305
450	INSERT; SHIFT ARM SHIFT PATTERN SINGLE-H<EDY> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1304-
525	RING; DETENT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33119-286-0	01	1	1304-
525	RING; DETENT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-497-0	01	1	1304-
573	GASKET; SERVO UNIT SHIFT PATTERN SINGLE-H<EDY>	1-33549-332-0	01	1	1304-

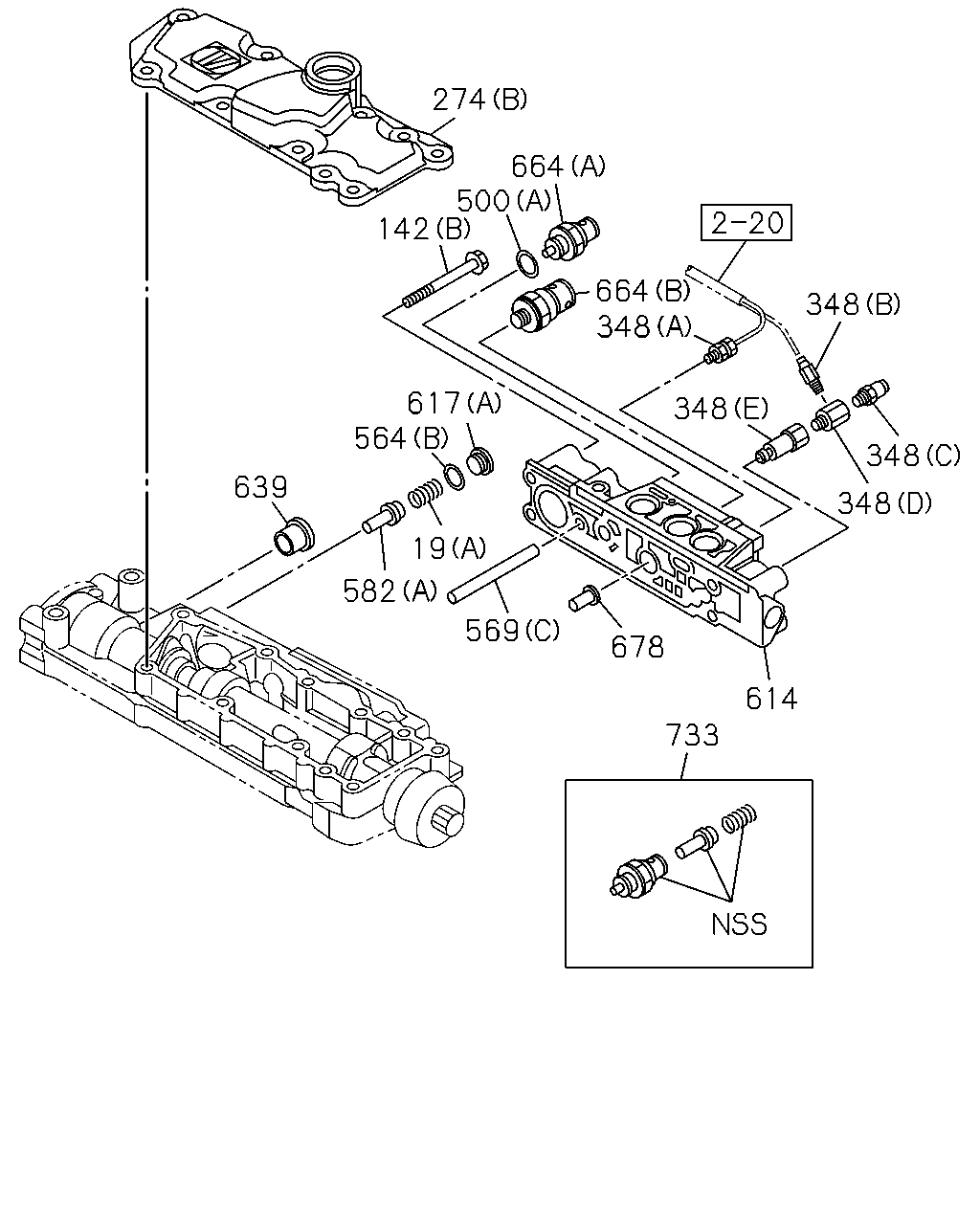

274 664 500 142 664 348 348 348 617 564 639 19 582 569 678 733 348 348 614

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33539-028-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33539-030-0	02	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (F)	1-33539-092-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-221-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-022-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (B)	1-33539-027-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (C)	1-33539-098-0	01	1	1304-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75	1-09089-015-0	02	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-486-0	06	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-34129-116-0	04	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-467-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C)	1-33549-476-0	17	1	1304-1305
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-579-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-531-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-535-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (F) M12 STRAIGHT	1-09654-246-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-139-0	02	1	1304-1305
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-593-0	02	1	1306-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (A)	1-09660-466-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (B)	1-09661-174-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (C)	1-09661-481-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (D)	8-94338-417-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (E)	8-98068-125-0	01	1	1304-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33119-299-0	01	1	1304-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-249-0	01	1	1304-
564	SEAL; RING SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-249-0	02	1	1304-
564	SEAL; RING (A)	1-33549-578-0	01	1	1304-
564	SEAL; RING SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0	1-82449-010-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33529-128-0	02	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33529-106-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-452-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (C)	1-33549-468-0	01	1	1304-
582	BOLT; SPRING GUIDE SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-487-0	02	1	1304-
582	BOLT; SPRING GUIDE SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-471-0	01	1	1304-
614	VALVE ASM SHIFT PATTERN SINGLE-H<EDY>	1-33549-549-0	01	1	1304-
617	PLUG PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1304-1305
617	PLUG SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1306-
617	PLUG PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33539-109-0	01	1	1304-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-171-0	02	1	1304-1305
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-619-0	02	1	1306-
617	PLUG SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33119-171-0	01	1	1304-1305
617	PLUG SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-34129-061-0	01	1	1304-1305
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-34129-061-0	01	1	1304-1305
639	CAP SHIFT PATTERN SINGLE-H<EDY>	1-33549-576-0	01	1	1304-
664	SWITCH SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-587-0	01	1	1304-
664	SWITCH SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-470-0	01	1	1304-
678	TAPPET SHIFT PATTERN SINGLE-H<EDY>	1-33549-466-0	01	1	1304-
733	REPAIR KIT PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33549-617-0	01	1	1304-1305
733	REPAIR KIT SHIFT PATTERN SINGLE-H<EDY>	1-33549-617-0	01	1	1306-

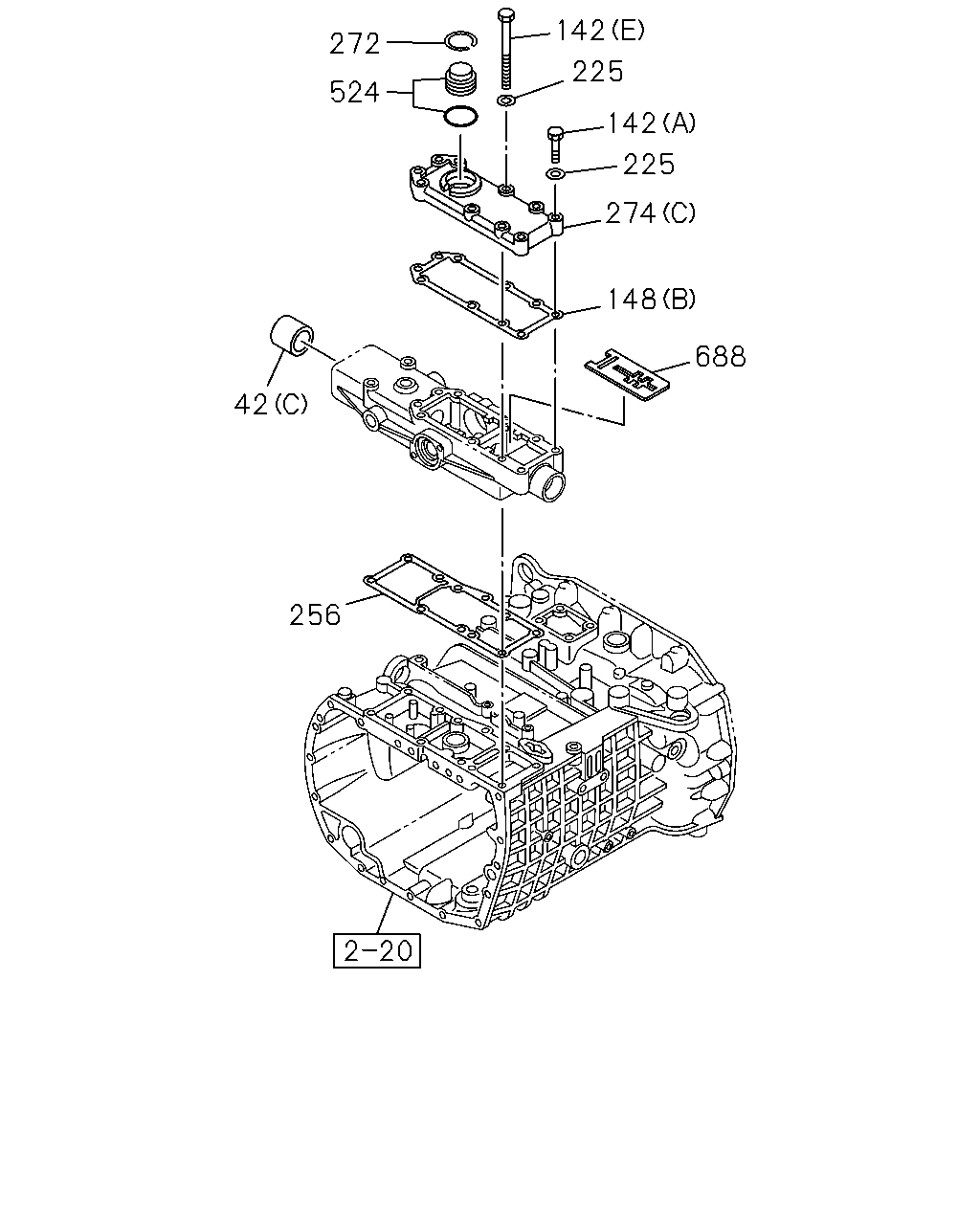

272 142 524 225 225 142 274 148 688 42 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-111-0	01	1	1304-1305
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-589-0	01	1	1306-
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-538-0	01	1	1304-
42	CAP; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-548-0	01	1	1304-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75	1-09089-015-0	02	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-486-0	06	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-34129-116-0	04	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-467-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C)	1-33549-476-0	17	1	1304-1305
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33542-064-0	01	1	1304-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A)	1-33544-056-0	01	1	1304-
225	WASHER; LK,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-159-0	14	1	1304-1305
225	WASHER; LK,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-583-0	14	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ>	1-33542-065-0	01	1	1304-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY>	1-33542-062-0	01	1	1304-
272	RING; SNAP,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ>	1-44519-217-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-579-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-531-0	01	1	1304-
274	COVER; SHAFT,QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-535-0	01	1	1304-
524	DETENT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-501-0	01	1	1304-
688	SHIFT; INTERLOCK SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-572-0	01	1	1304-

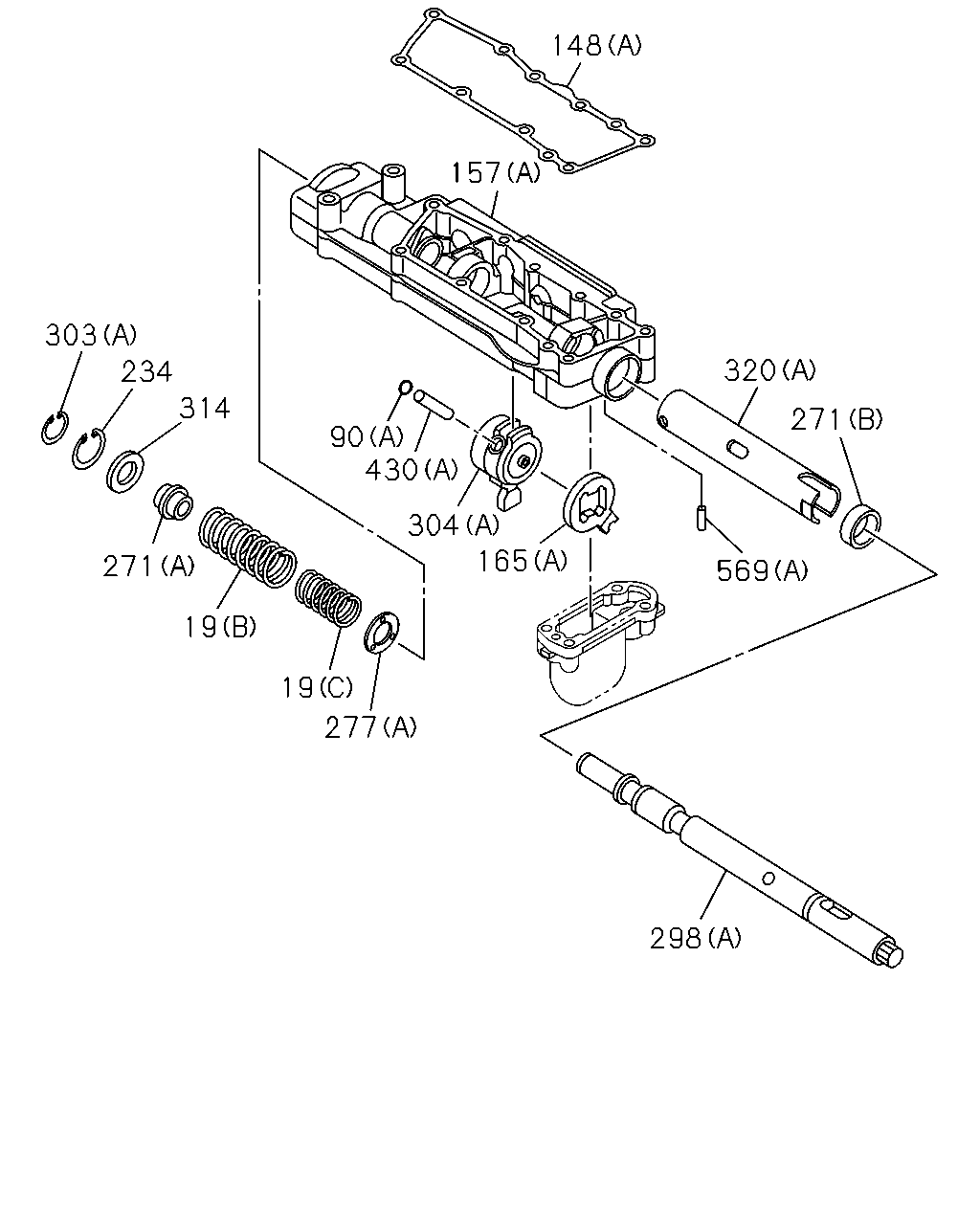

148 320 569 298 271 165 304 430 90 157 303 271 19 19 277 314 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33539-028-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33539-030-0	02	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (F)	1-33539-092-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-221-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-022-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (B)	1-33539-027-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (C)	1-33539-098-0	01	1	1304-
90	RING; SNAP,SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-494-0	02	1	1304-
90	RING; SNAP,SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (A)	1-33529-109-0	01	1	1304-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33542-064-0	01	1	1304-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A)	1-33544-056-0	01	1	1304-
157	BOX; QUAD,TRANS PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-612-0	01	1	1304-1305
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-612-0	01	1	1306-
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-570-0	01	1	1304-

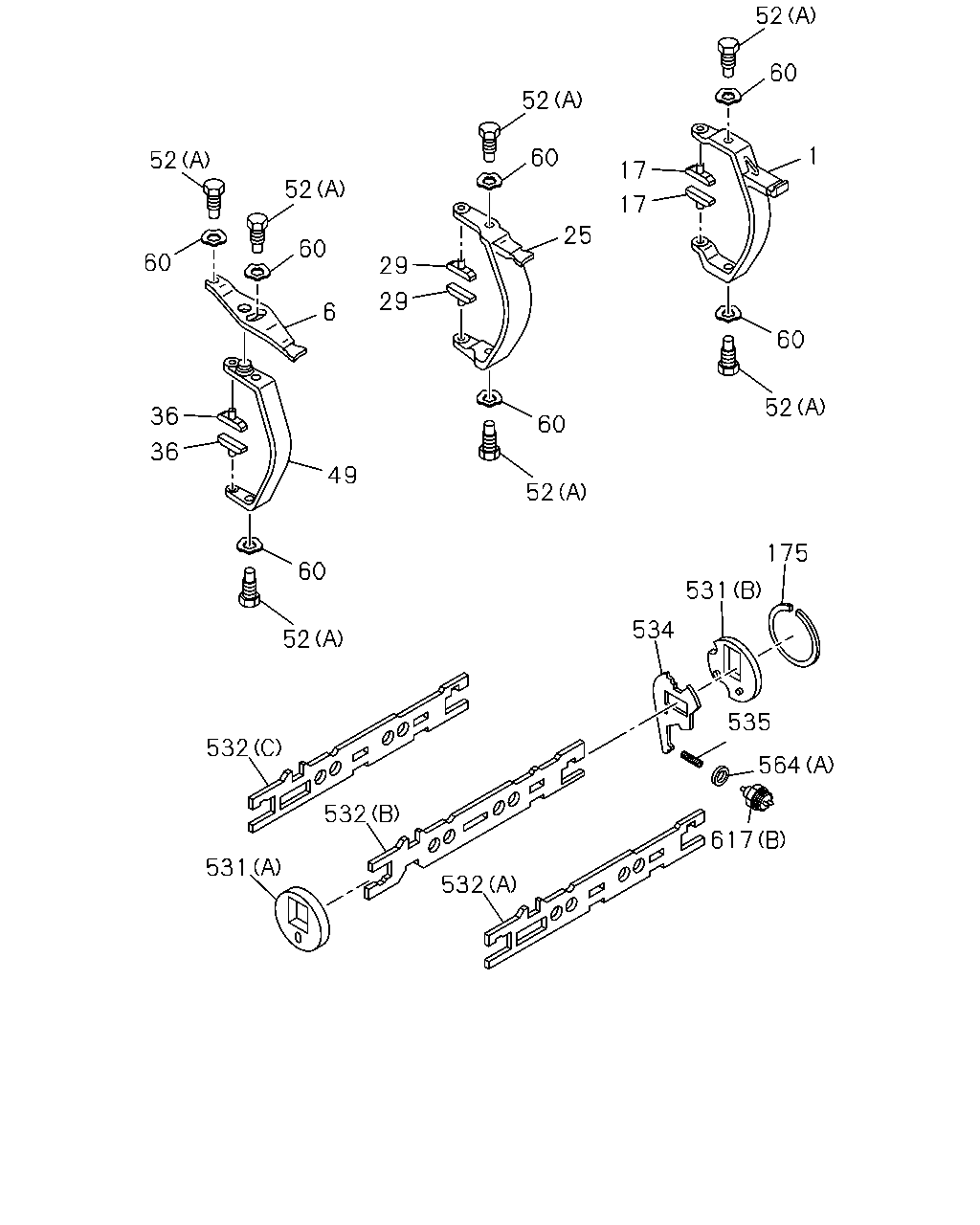

157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-574-0	01	1	1304-1305
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-604-0	01	1	1306-
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-445-0	01	1	1304-
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-568-0	01	1	1304-1305
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-488-0	01	1	1304-
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-489-0	01	1	1304-
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-490-0	01	1	1304-1305
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-603-0	01	1	1306-
165	LEVER; SHIFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-533-0	01	1	1304-
234	RING; SNAP SHIFT PATTERN SINGLE-H<EDY>	1-44519-224-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-124-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-537-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-099-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-318-0	01	1	1304-
277	PLATE; SPRING SEAT PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-112-0	01	1	1304-1305
277	PLATE; SPRING SEAT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-112-0	01	1	1306-
277	PLATE; SPRING SEAT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33539-039-0	02	1	1304-1305
277	PLATE; SPRING SEAT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33539-042-0	01	1	1304-1305
277	PLATE; SPRING SEAT SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33539-026-0	01	1	1304-1305
298	SHAFT; SHIFT LEVER SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33522-211-0	01	1	1304-
298	SHAFT; SHIFT LEVER SHIFT PATTERN SINGLE-H<EDY> (A)	1-33522-207-0	01	1	1304-
303	RING; SNAP,SHAFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33539-040-0	02	1	1304-
303	RING; SNAP,SHAFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-101-0	01	1	1304-
304	BLOCK; SHIFT SHAFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-492-0	01	1	1304-
304	BLOCK; SHIFT SHAFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-532-0	01	1	1304-
314	WASHER; SHAFT SHIFT PATTERN SINGLE-H<EDY>	1-33539-100-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN DOUBLE-H<EDZ> (C)	8-98065-840-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN SINGLE-H<EDY> (B)	1-33619-524-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-447-0	01	1	1304-
430	PIN; SPR,SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-493-0	01	1	1304-
430	PIN; SPR,SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-449-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33529-128-0	02	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33529-106-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-452-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (C)	1-33549-468-0	01	1	1304-

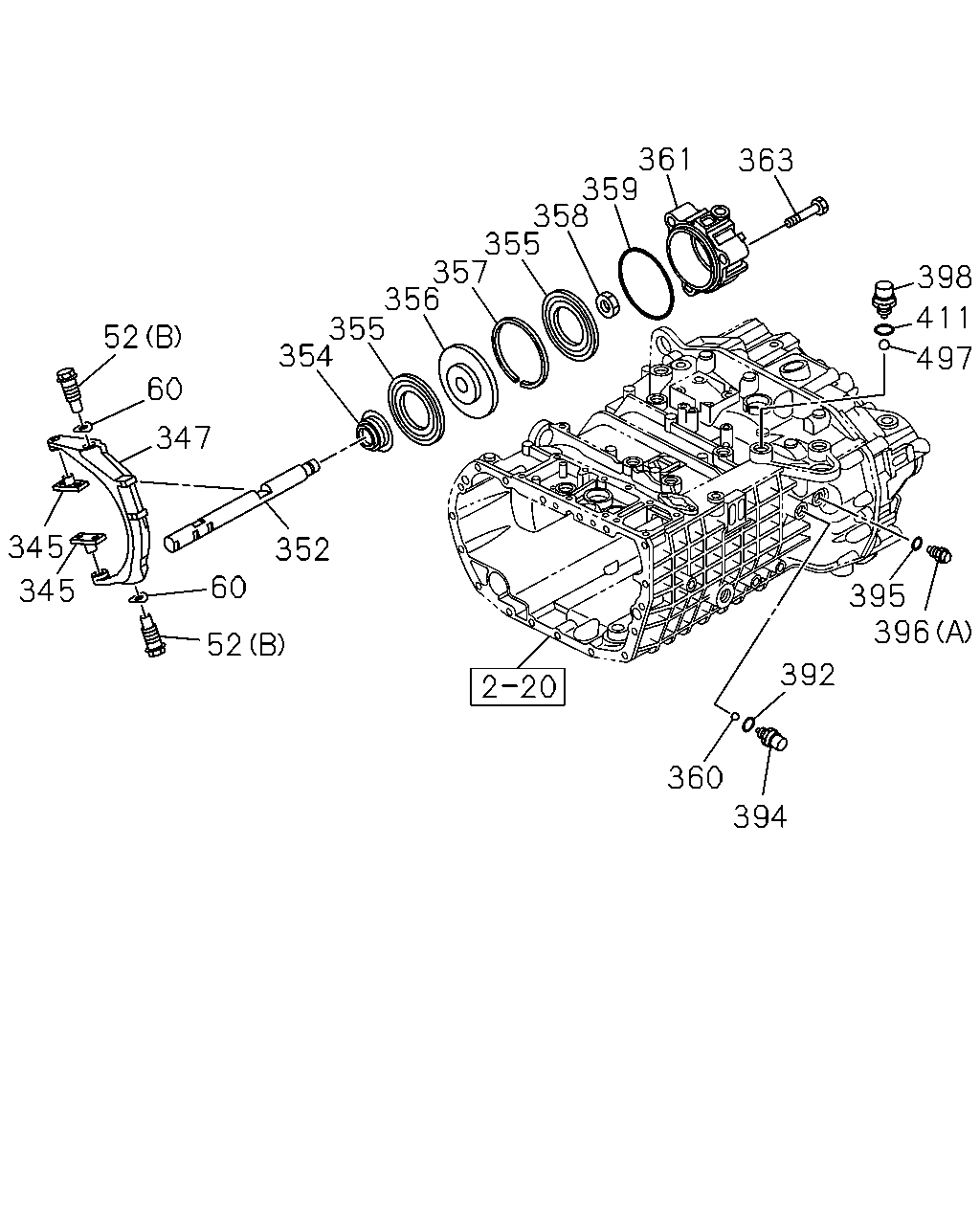

52 60 347 345 345 60 352 52 354 355 356 357 355 358 359 361 363 398 497 411 395 396 392 360 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33519-190-0	07	1	1304-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
52	BOLT; SHIFT ARM PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33519-196-0	02	1	1304-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33519-084-0	07	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33519-084-0	07	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33519-187-0	02	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33519-187-0	02	1	1304-1305
60	WASHER; LK SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-085-0	07	1	1304-1305
60	WASHER; LK SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-085-0	07	1	1304-1305
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1304-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1304-
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33531-497-0	01	1	1304-1305
352	ROD; SHIFT,RANGE CHANGE	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33531-495-0	01	1	1304-1305
352	ROD; SHIFT,RANGE CHANGE SHIFT PATTERN DOUBLE-H<EDZ>	1-33531-495-0	01	1	1304-1305
354	SEAL; AIR CYL	1-33519-045-0	01	1	1304-
355	CUP; PISTON,AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-088-0	02	1	1304-1305
355	CUP; PISTON,AIR CYL SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-088-0	02	1	1304-1305
356	PISTON; AIR CYL PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33519-197-0	01	1	1304-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
356	PISTON; AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-087-0	01	1	1304-1305
356	PISTON; AIR CYL SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-087-0	01	1	1304-1305
357	RING; GUIDE,AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-090-0	01	1	1304-1305
357	RING; GUIDE,AIR CYL SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-090-0	01	1	1304-1305
358	NUT; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33519-188-0	01	1	1304-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
358	NUT; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-049-0	01	1	1304-1305
358	NUT; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-049-0	01	1	1304-1305
359	GASKET; AIR CYL	1-33519-093-0	01	1	1304-
360	BALL; AIR CYL	1-33119-252-0	01	1	1304-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1304-
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> M10X70	1-33119-616-0	03	1	1304-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
363	BOLT; AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1304-1305
363	BOLT; AIR CYL SHIFT PATTERN DOUBLE-H<EDZ> M10X70	1-33119-522-0	03	1	1304-1305
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1304-
394	SWITCH; RANGE CHANGE SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-627-0	01	1	1306-
394	SWITCH; RANGE CHANGE	1-33119-587-0	01	1	1304-1305
394	SWITCH; RANGE CHANGE SHIFT PATTERN SINGLE-H<EDY>	1-33119-587-0	01	1	1306-
395	GASKET; PLUNGER	1-33549-497-0	01	1	1304-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33519-189-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1306-
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33529-085-0	02	1	1304-
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33529-067-0	01	1	1304-1305
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1304-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1304-
497	BALL; SWITCH	1-33119-252-0	01	1	1304-

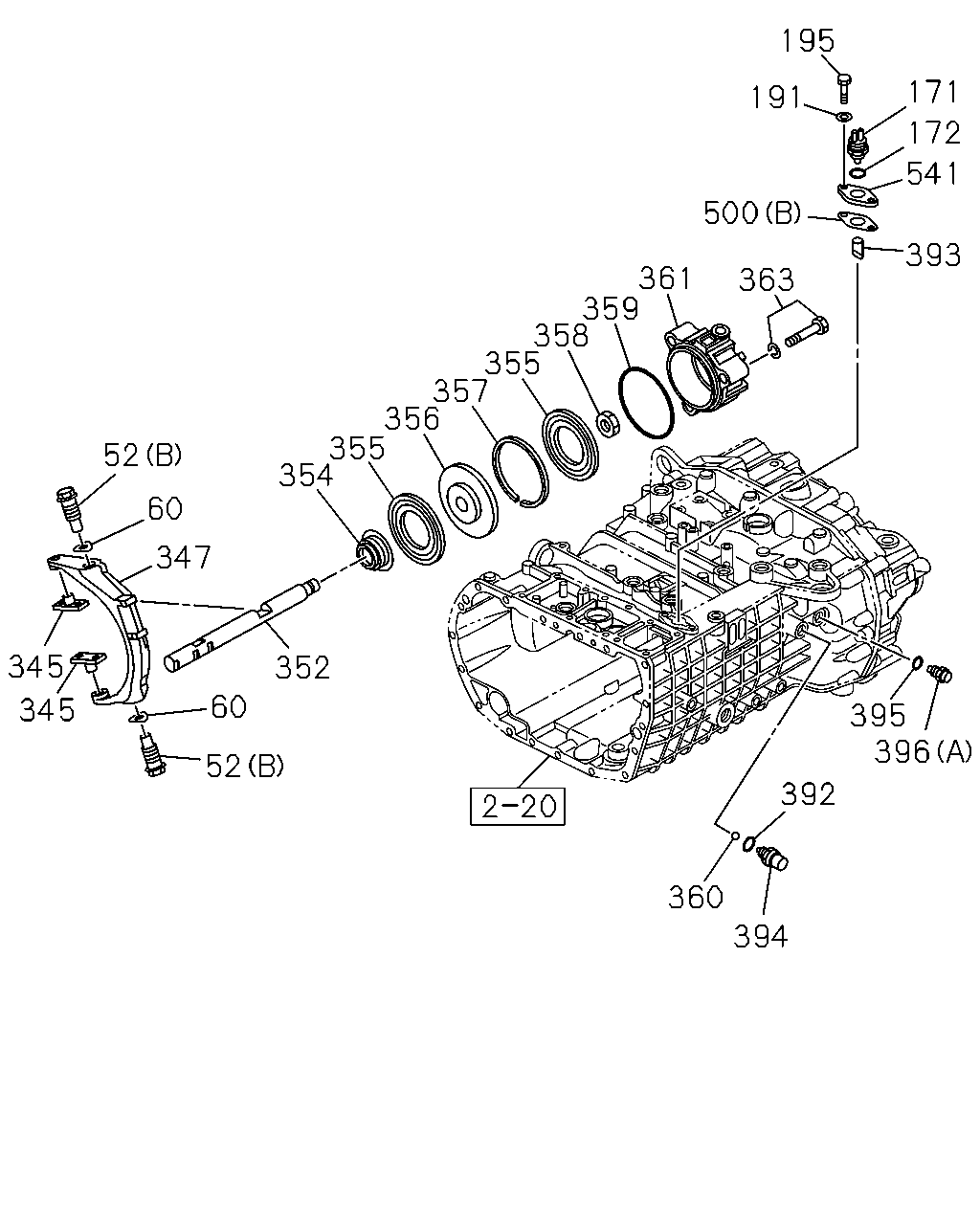

52 347 60 60 52 352 345 345 360 394 392 395 396 363 354 355 357 355 358 359 361 500 191 195 171 541 393 172 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33519-190-0	07	1	1304-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
52	BOLT; SHIFT ARM PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33519-196-0	02	1	1304-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33519-084-0	07	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33519-084-0	07	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33519-187-0	02	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33519-187-0	02	1	1304-1305
60	WASHER; LK SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-085-0	07	1	1304-1305
60	WASHER; LK SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-085-0	07	1	1304-1305
171	SWITCH; NEUTRAL SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-587-0	01	1	1304-1305
171	SWITCH; NEUTRAL SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-627-0	01	1	1306-
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-249-0	01	1	1304-
191	WASHER; LK SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-577-0	02	1	1304-1305
191	WASHER; LK SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-583-0	02	1	1306-
195	BOLT SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-593-0	02	1	1304-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1304-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1304-
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33531-497-0	01	1	1304-1305
352	ROD; SHIFT,RANGE CHANGE	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33531-495-0	01	1	1304-1305
352	ROD; SHIFT,RANGE CHANGE SHIFT PATTERN DOUBLE-H<EDZ>	1-33531-495-0	01	1	1304-1305
354	SEAL; AIR CYL	1-33519-045-0	01	1	1304-
355	CUP; PISTON,AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-088-0	02	1	1304-1305
355	CUP; PISTON,AIR CYL SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-088-0	02	1	1304-1305
356	PISTON; AIR CYL PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33519-197-0	01	1	1304-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
356	PISTON; AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-087-0	01	1	1304-1305
356	PISTON; AIR CYL SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-087-0	01	1	1304-1305
357	RING; GUIDE,AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-090-0	01	1	1304-1305
357	RING; GUIDE,AIR CYL SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-090-0	01	1	1304-1305
358	NUT; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33519-188-0	01	1	1304-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
358	NUT; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-049-0	01	1	1304-1305
358	NUT; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-049-0	01	1	1304-1305
359	GASKET; AIR CYL	1-33519-093-0	01	1	1304-
360	BALL; AIR CYL	1-33119-252-0	01	1	1304-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1304-
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> M10X70	1-33119-616-0	03	1	1304-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
363	BOLT; AIR CYL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1304-1305
363	BOLT; AIR CYL SHIFT PATTERN DOUBLE-H<EDZ> M10X70	1-33119-522-0	03	1	1304-1305
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1304-
393	PIN; SW SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-298-0	01	1	1304-
394	SWITCH; RANGE CHANGE SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-627-0	01	1	1306-
394	SWITCH; RANGE CHANGE	1-33119-587-0	01	1	1304-1305
394	SWITCH; RANGE CHANGE SHIFT PATTERN SINGLE-H<EDY>	1-33119-587-0	01	1	1306-
395	GASKET; PLUNGER	1-33549-497-0	01	1	1304-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33519-189-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1306-
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33529-085-0	02	1	1304-
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33529-067-0	01	1	1304-1305
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33119-299-0	01	1	1304-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-249-0	01	1	1304-
541	PLATE; SWITCH SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-300-0	01	1	1304-

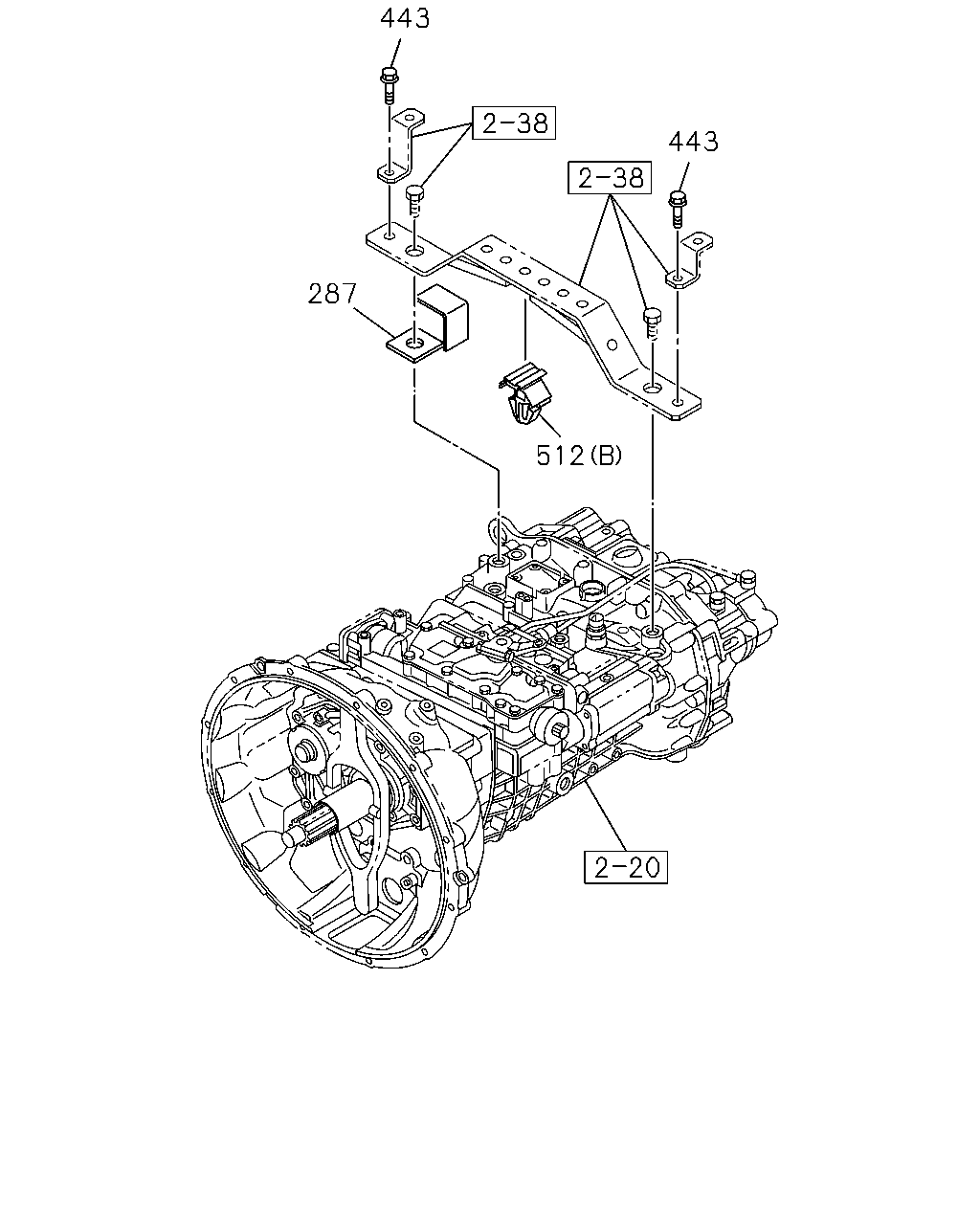

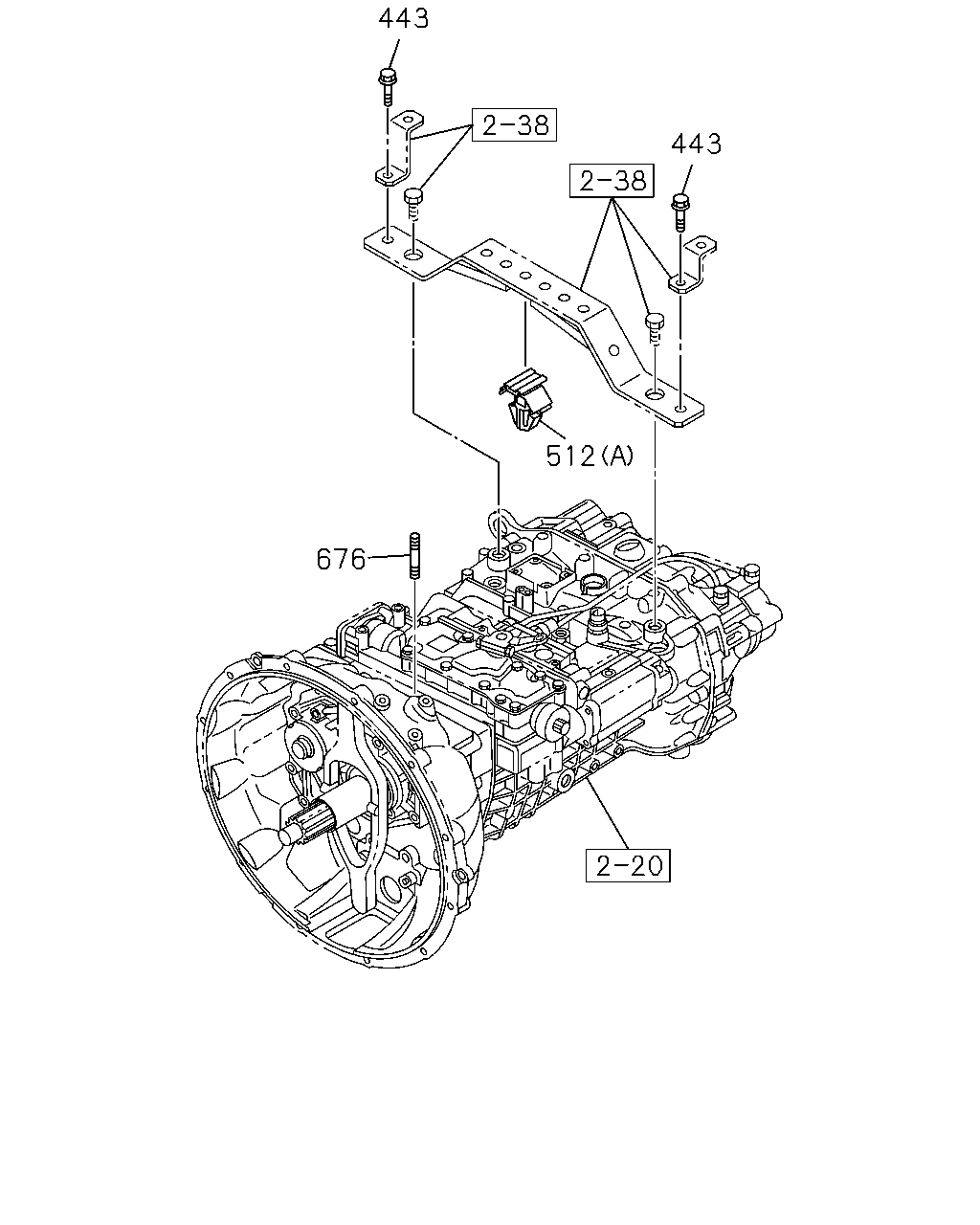

443 443 512 676

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
443	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> M8X20 FLANGE	0-28650-820-0	02	1	1304-
512	CLIP; PIPE SHIFT PATTERN DOUBLE-H<EDZ> (B) OD=9 H=6	1-09709-178-0	04	1	1304-
512	CLIP; PIPE SHIFT PATTERN SINGLE-H<EDY> (A) OD=9 H=6	1-09709-178-0	05	1	1304-
676	STUD SHIFT PATTERN SINGLE-H<EDY> M8X14,M8X14 L=33	1-09300-058-1	01	1	1304-

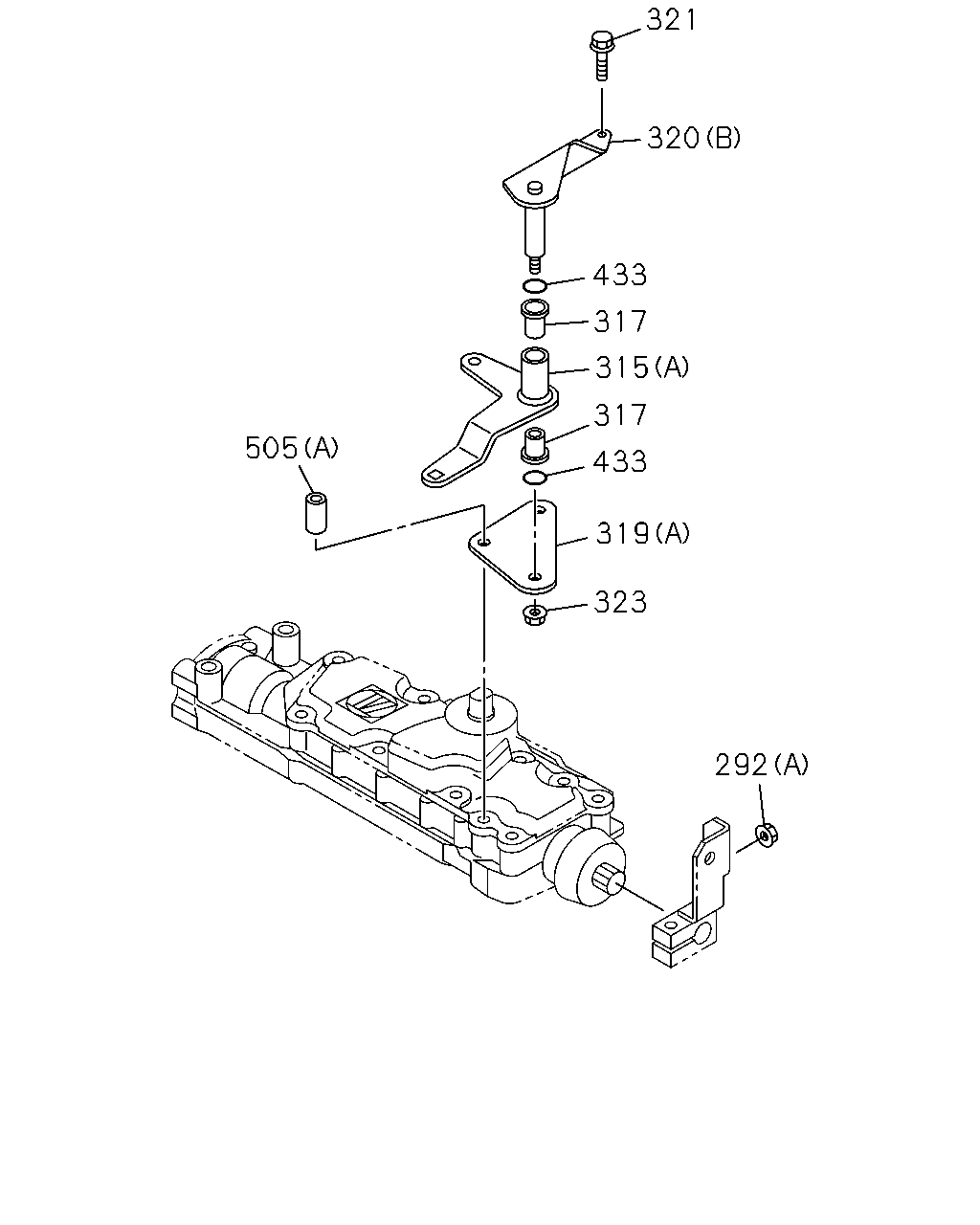

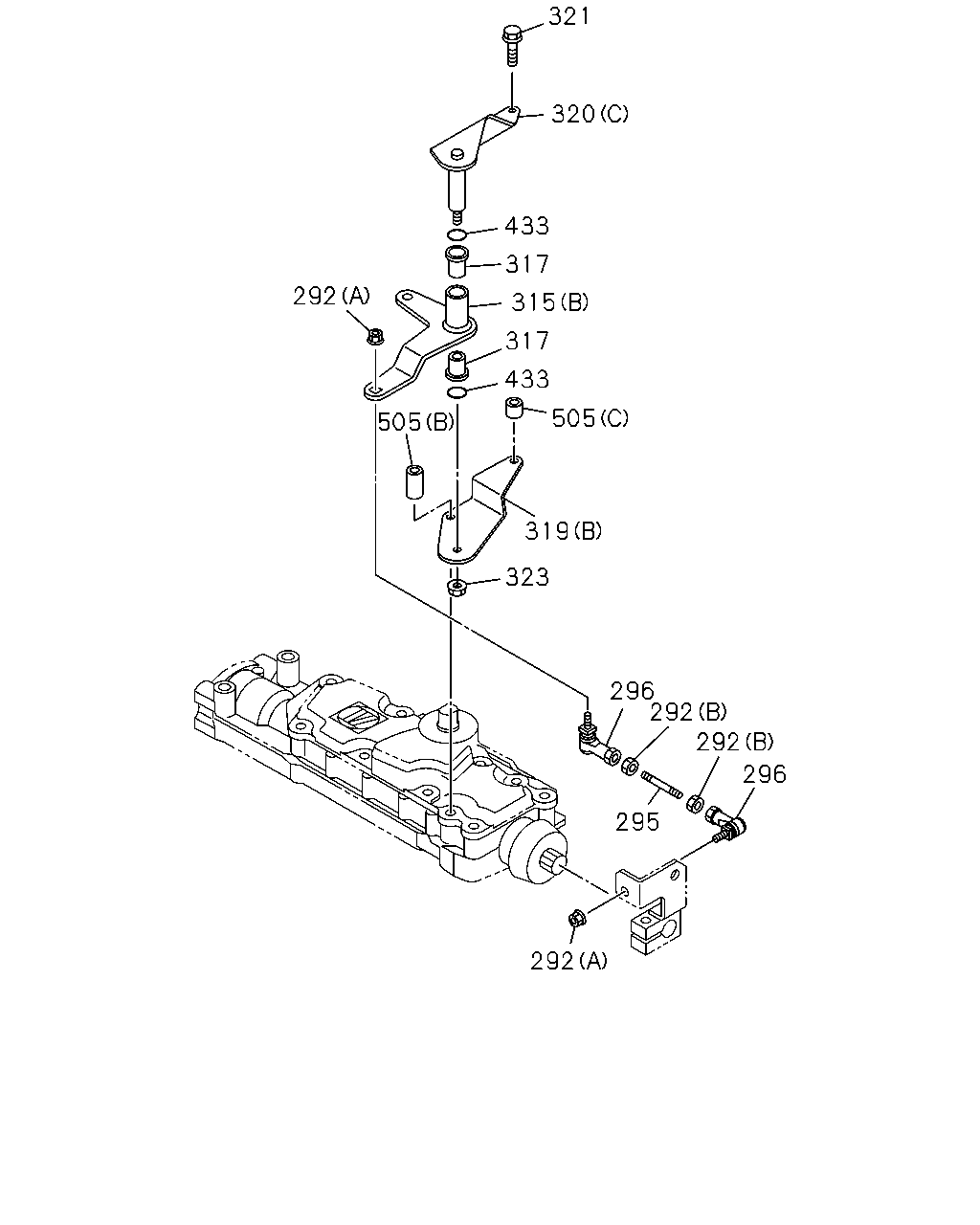

321 320 433 315 317 317 505 505 323 296 292 292 296 295 292 292 319 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	1304-
292	NUT; LINK ROD SHIFT PATTERN DOUBLE-H<EDZ> (B) M8	0-91111-508-0	02	1	1304-
295	ROD; LINK,RELAY LEVER SHIFT PATTERN DOUBLE-H<EDZ> M8 L=50	9-08400-805-0	01	1	1304-
296	ROD END SHIFT PATTERN DOUBLE-H<EDZ> L=45.5	1-09760-118-1	02	1	1304-
315	LEVER; SELECT SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98061-898-0	01	1	1304-
315	LEVER; SELECT SHIFT PATTERN SINGLE-H<EDY> (A)	8-98087-673-0	01	1	1304-
317	BUSHING; LEVER	1-09330-119-0	02	1	1304-
319	BRACKET; SELECT LEVER SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98065-843-0	01	1	1304-
319	BRACKET; SELECT LEVER SHIFT PATTERN SINGLE-H<EDY> (A)	1-33657-612-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN DOUBLE-H<EDZ> (C)	8-98065-840-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN SINGLE-H<EDY> (B)	1-33619-524-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-447-0	01	1	1304-
321	BOLT; BRKT,RELAY LEVER M8X110 FLANGE	0-28055-811-0	02	1	1304-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91180-110-0	01	1	1304-
433	GASKET; BUSHING	1-09623-594-0	02	1	1304-
505	SPACER; BRKT SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5	9-14149-173-0	01	1	1304-
505	SPACER; BRKT SHIFT PATTERN DOUBLE-H<EDZ> (C) L=28	9-83625-376-0	01	1	1304-
505	SPACER; BRKT SHIFT PATTERN SINGLE-H<EDY> (A)	1-11349-149-0	02	1	1304-

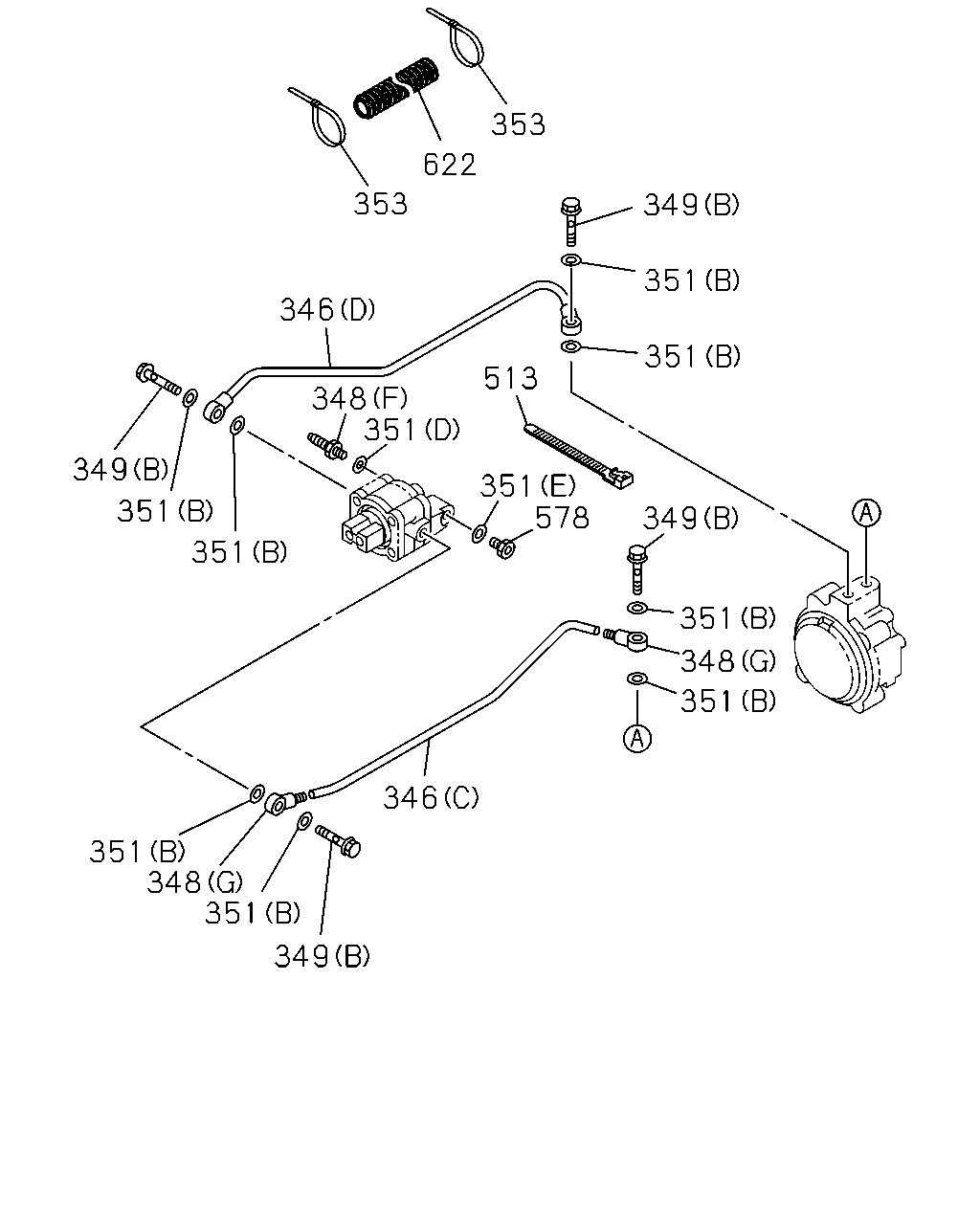

349 351 348 351 346 351 348 351 349 578 351 351 351 349 353 622 353 346 513 351 348 349 351 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-400-0	01	1	1304-1305
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-618-0	01	1	1306-
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-443-0	01	1	1304-1305
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-598-0	01	1	1306-
346	HOSE; AIR SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-473-0	01	1	1304-
346	HOSE; AIR SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-474-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (F) M12 STRAIGHT	1-09654-246-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-139-0	02	1	1304-1305
348	CONNECTOR; AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-593-0	02	1	1306-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (A)	1-09660-466-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (B)	1-09661-174-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (C)	1-09661-481-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (D)	8-94338-417-0	01	1	1304-
348	CONNECTOR; AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (E)	8-98068-125-0	01	1	1304-
349	BOLT; EYE,AIR HOSE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A) M14	1-33549-592-0	02	1	1304-1305
349	BOLT; EYE,AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (A) M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-573-0	04	1	1304-1305
349	BOLT; EYE,AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (B) M14	1-33549-592-0	04	1	1306-
349	BOLT; EYE,AIR HOSE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-573-0	02	1	1304-1305
351	GASKET; CONNECTOR (D) ID=12.2	1-09630-084-0	01	1	1304-1312
351	GASKET; CONNECTOR (D) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-554-0	01	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-578-0	08	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-578-0	04	1	1304-
353	CLIP; AIR HOSE	1-33549-530-0	02	1	1304-
513	CLIP; BAND SHIFT PATTERN DOUBLE-H<EDZ> L=250	5-09707-030-1	06	1	1304-
513	CLIP; BAND SHIFT PATTERN SINGLE-H<EDY> L=250	5-09707-030-1	05	1	1304-
578	CONNECTOR SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-553-0	01	1	1304-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1304-

602 525 264 157 265 225 142 253 582 564 617 396 242 239 332 48 396 241 240 157 690 689 469 252 617 225 564 582 244 271 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33651-661-1	01	1	1304-
48	LEVER; 4TH,SHIFT SHIFT PATTERN SINGLE-H<EDY> (A)	8-98081-185-1	01	1	1304-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75	1-09089-015-0	02	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-486-0	06	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-34129-116-0	04	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-467-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C)	1-33549-476-0	17	1	1304-1305
157	BOX; QUAD,TRANS PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-612-0	01	1	1304-1305
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-612-0	01	1	1306-
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-570-0	01	1	1304-
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-574-0	01	1	1304-1305
157	BOX; QUAD,TRANS SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-604-0	01	1	1306-
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-445-0	01	1	1304-
157	BOX; QUAD,TRANS SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-568-0	01	1	1304-1305
225	WASHER; LK,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-159-0	14	1	1304-1305
225	WASHER; LK,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-583-0	14	1	1306-
239	BOLT; CUT OFF VALVE SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-302-0	04	1	1304-1305
239	BOLT; CUT OFF VALVE SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-585-0	04	1	1306-
240	GASKET; CUT OFF VALVE SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-198-0	01	1	1304-
241	VALVE; CUT OFF SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-495-0	01	1	1304-
242	WASHER; CUT OFF VALVE SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-159-0	04	1	1304-1305
242	WASHER; CUT OFF VALVE SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-583-0	04	1	1306-
244	WASHER; LK,COVER SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-159-0	04	1	1304-1305
244	WASHER; LK,COVER SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-583-0	04	1	1306-
252	BOLT; SIDE COVER SHIFT PATTERN DOUBLE-H<EDZ> M8X35	1-33119-271-0	04	1	1304-1305
252	BOLT; SIDE COVER SHIFT PATTERN DOUBLE-H<EDZ> M8X35	1-33549-586-0	04	1	1306-
252	BOLT; SIDE COVER SHIFT PATTERN DOUBLE-H<EDZ> M8X30	1-33549-172-0	02	1	1304-1305
252	BOLT; SIDE COVER SHIFT PATTERN DOUBLE-H<EDZ> M8X30	1-33549-581-0	02	1	1306-
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33544-054-0	01	1	1304-
264	SEAL; DUST,SHAFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-327-0	01	1	1304-
264	SEAL; DUST,SHAFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-119-0	01	1	1304-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-328-0	01	1	1304-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-118-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-124-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-537-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-099-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-318-0	01	1	1304-
332	BOLT; 4TH,SHIFT LEVER SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X40 FLANGE	0-28650-840-0	01	1	1304-
332	BOLT; 4TH,SHIFT LEVER SHIFT PATTERN SINGLE-H<EDY> (A) M10X45 W/PL WASHER	8-98038-710-0	01	1	1304-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33519-189-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (B)	1-33529-132-0	01	1	1306-
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33529-085-0	02	1	1304-
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33519-073-0	01	1	1304-1305
396	PLUNGER; SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33529-067-0	01	1	1304-1305
469	COVER; SPRING,QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-216-0	01	1	1304-
525	RING; DETENT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33119-286-0	01	1	1304-
525	RING; DETENT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-497-0	01	1	1304-
564	SEAL; RING SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-249-0	02	1	1304-
564	SEAL; RING (A)	1-33549-578-0	01	1	1304-
564	SEAL; RING SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0	1-82449-010-0	01	1	1304-
573	GASKET; SERVO UNIT SHIFT PATTERN SINGLE-H<EDY>	1-33549-332-0	01	1	1304-
582	BOLT; SPRING GUIDE SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-487-0	02	1	1304-
582	BOLT; SPRING GUIDE SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-471-0	01	1	1304-
602	PLUNGER; DETENT SHIFT PATTERN DOUBLE-H<EDZ>	1-34539-113-0	01	1	1304-1305
602	PLUNGER; DETENT SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-618-0	01	1	1306-
617	PLUG PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1304-1305
617	PLUG SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1306-
617	PLUG PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33539-109-0	01	1	1304-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-171-0	02	1	1304-1305
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-619-0	02	1	1306-
617	PLUG SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33119-171-0	01	1	1304-1305
617	PLUG SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-34129-061-0	01	1	1304-1305
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-34129-061-0	01	1	1304-1305
689	GASKET; COVER SHIFT PATTERN DOUBLE-H<EDZ>	1-33542-063-0	01	1	1304-
690	PIN; STOP SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-496-0	01	1	1304-

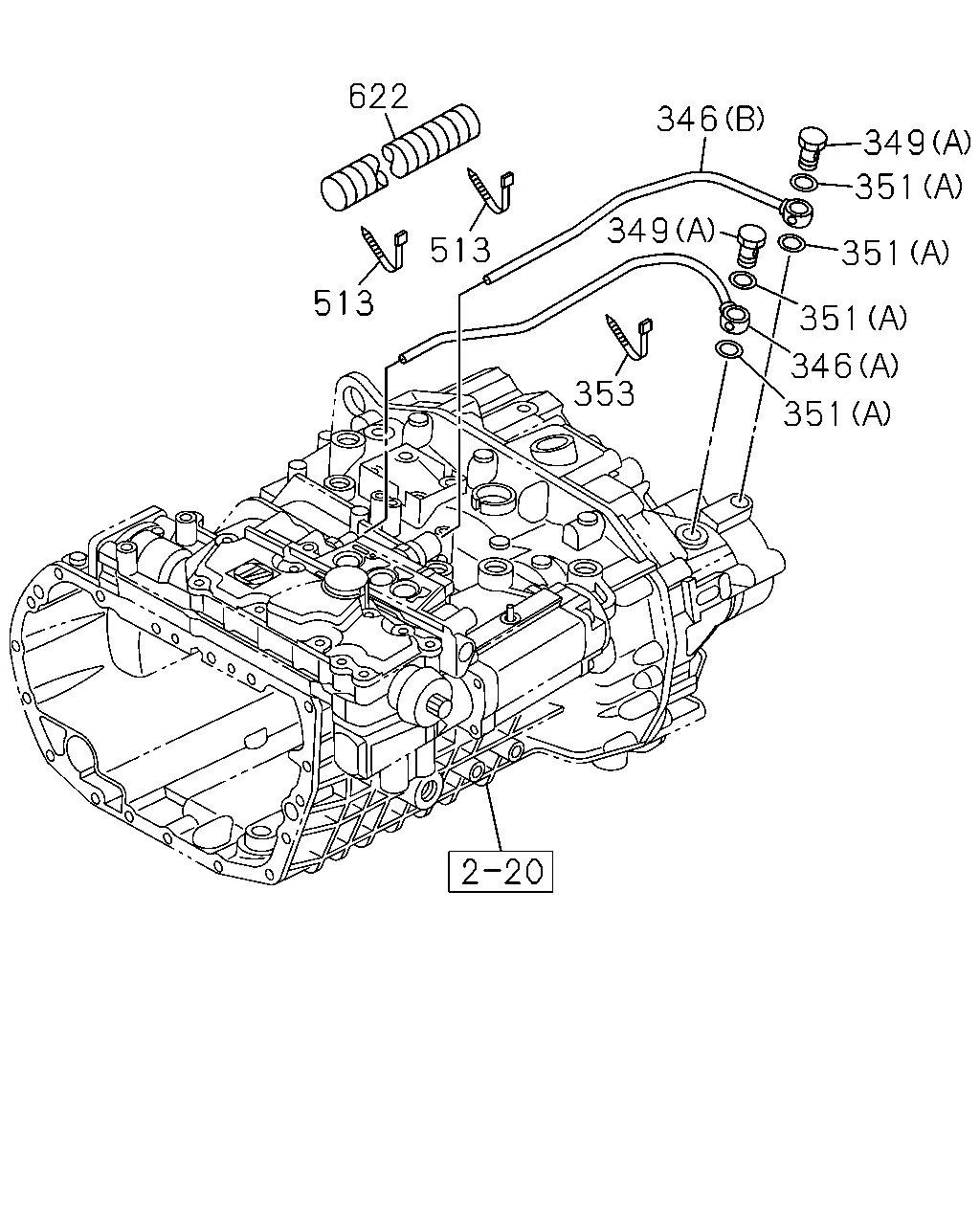

622 346 349 351 351 349 351 351 346 353 513 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-400-0	01	1	1304-1305
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-618-0	01	1	1306-
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-443-0	01	1	1304-1305
346	HOSE; AIR SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-598-0	01	1	1306-
346	HOSE; AIR SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-473-0	01	1	1304-
346	HOSE; AIR SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-474-0	01	1	1304-
349	BOLT; EYE,AIR HOSE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A) M14	1-33549-592-0	02	1	1304-1305
349	BOLT; EYE,AIR HOSE SHIFT PATTERN SINGLE-H<EDY> (A) M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-573-0	04	1	1304-1305
349	BOLT; EYE,AIR HOSE SHIFT PATTERN DOUBLE-H<EDZ> (B) M14	1-33549-592-0	04	1	1306-
349	BOLT; EYE,AIR HOSE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-573-0	02	1	1304-1305
351	GASKET; CONNECTOR (D) ID=12.2	1-09630-084-0	01	1	1304-1312
351	GASKET; CONNECTOR (D) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-554-0	01	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-578-0	08	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1304-
351	GASKET; CONNECTOR SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-578-0	04	1	1304-
353	CLIP; AIR HOSE	1-33549-530-0	02	1	1304-
513	CLIP; BAND SHIFT PATTERN DOUBLE-H<EDZ> L=250	5-09707-030-1	06	1	1304-
513	CLIP; BAND SHIFT PATTERN SINGLE-H<EDY> L=250	5-09707-030-1	05	1	1304-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1304-

165 165 289 165 90 42 271 430 298 569 90 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-111-0	01	1	1304-1305
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-589-0	01	1	1306-
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-538-0	01	1	1304-
42	CAP; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-548-0	01	1	1304-
90	RING; SNAP,SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-494-0	02	1	1304-
90	RING; SNAP,SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (A)	1-33529-109-0	01	1	1304-
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-488-0	01	1	1304-
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-489-0	01	1	1304-
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-490-0	01	1	1304-1305
165	LEVER; SHIFT SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-603-0	01	1	1306-
165	LEVER; SHIFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-533-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-124-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33549-537-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-099-0	01	1	1304-
271	BUSHING; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-318-0	01	1	1304-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-491-0	01	1	1304-
298	SHAFT; SHIFT LEVER SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33522-211-0	01	1	1304-
298	SHAFT; SHIFT LEVER SHIFT PATTERN SINGLE-H<EDY> (A)	1-33522-207-0	01	1	1304-
304	BLOCK; SHIFT SHAFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-492-0	01	1	1304-
304	BLOCK; SHIFT SHAFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-532-0	01	1	1304-
430	PIN; SPR,SHIFT ROD SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-493-0	01	1	1304-
430	PIN; SPR,SHIFT ROD SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-449-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33529-128-0	02	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33529-106-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-452-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (C)	1-33549-468-0	01	1	1304-

321 320 433 317 315 433 317 319 323 505 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	1304-
292	NUT; LINK ROD SHIFT PATTERN DOUBLE-H<EDZ> (B) M8	0-91111-508-0	02	1	1304-
315	LEVER; SELECT SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98061-898-0	01	1	1304-
315	LEVER; SELECT SHIFT PATTERN SINGLE-H<EDY> (A)	8-98087-673-0	01	1	1304-
317	BUSHING; LEVER	1-09330-119-0	02	1	1304-
319	BRACKET; SELECT LEVER SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98065-843-0	01	1	1304-
319	BRACKET; SELECT LEVER SHIFT PATTERN SINGLE-H<EDY> (A)	1-33657-612-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN DOUBLE-H<EDZ> (C)	8-98065-840-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN SINGLE-H<EDY> (B)	1-33619-524-0	01	1	1304-
320	SHAFT; LEVER SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-447-0	01	1	1304-
321	BOLT; BRKT,RELAY LEVER M8X110 FLANGE	0-28055-811-0	02	1	1304-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91180-110-0	01	1	1304-
433	GASKET; BUSHING	1-09623-594-0	02	1	1304-
505	SPACER; BRKT SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5	9-14149-173-0	01	1	1304-
505	SPACER; BRKT SHIFT PATTERN DOUBLE-H<EDZ> (C) L=28	9-83625-376-0	01	1	1304-
505	SPACER; BRKT SHIFT PATTERN SINGLE-H<EDY> (A)	1-11349-149-0	02	1	1304-

303 19 277 19 277 277 303 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33539-028-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33539-030-0	02	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (F)	1-33539-092-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN DOUBLE-H<EDZ> (G)	1-33549-221-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-022-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (B)	1-33539-027-0	01	1	1304-
19	SPRING; COIL COMP SHIFT PATTERN SINGLE-H<EDY> (C)	1-33539-098-0	01	1	1304-
277	PLATE; SPRING SEAT PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-112-0	01	1	1304-1305
277	PLATE; SPRING SEAT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-112-0	01	1	1306-
277	PLATE; SPRING SEAT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33539-039-0	02	1	1304-1305
277	PLATE; SPRING SEAT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33539-042-0	01	1	1304-1305
277	PLATE; SPRING SEAT SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33539-026-0	01	1	1304-1305
303	RING; SNAP,SHAFT SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33539-040-0	02	1	1304-
303	RING; SNAP,SHAFT SHIFT PATTERN SINGLE-H<EDY> (A)	1-33539-101-0	01	1	1304-

531 532 532 532 52 60 49 36 36 52 60 25 29 6 29 60 52 60 52 52 60 17 17 1 60 52 175 531 534 535 564 617 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1304-
6	LEVER; RELAY	1-33511-658-0	01	1	1304-
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1304-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1304-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1304-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1304-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1304-
52	BOLT; SHIFT ARM PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33519-190-0	07	1	1304-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
52	BOLT; SHIFT ARM PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33519-196-0	02	1	1304-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33519-084-0	07	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33519-084-0	07	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33519-187-0	02	1	1304-1305
52	BOLT; SHIFT ARM SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33519-187-0	02	1	1304-1305
60	WASHER; LK SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33519-085-0	07	1	1304-1305
60	WASHER; LK SHIFT PATTERN DOUBLE-H<EDZ>	1-33519-085-0	07	1	1304-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1304-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1304-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1304-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1304-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1304-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1304-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1304-
535	SPRING; LEVER	1-33539-049-0	01	1	1304-
564	SEAL; RING SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-249-0	02	1	1304-
564	SEAL; RING (A)	1-33549-578-0	01	1	1304-
564	SEAL; RING SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0	1-82449-010-0	01	1	1304-
617	PLUG PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1304-1305
617	PLUG SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1306-
617	PLUG PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33539-109-0	01	1	1304-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-171-0	02	1	1304-1305
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33119-619-0	02	1	1306-
617	PLUG SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33119-171-0	01	1	1304-1305
617	PLUG SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-34129-061-0	01	1	1304-1305
617	PLUG SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-34129-061-0	01	1	1304-1305

418 42 569 310 677 142 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-111-0	01	1	1304-1305
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33549-589-0	01	1	1306-
42	CAP; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-33549-538-0	01	1	1304-
42	CAP; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33549-548-0	01	1	1304-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (C) M8X80	1-33549-614-0	17	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75	1-09089-015-0	02	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-33549-486-0	06	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-34129-116-0	04	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33549-467-0	05	1	1304-1305
142	BOLT; QUAD BOX SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C)	1-33549-476-0	17	1	1304-1305
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ>	1-33542-065-0	01	1	1304-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY>	1-33542-062-0	01	1	1304-
310	PLATE; LOCK,SHIFT LEVER SHIFT PATTERN SINGLE-H<EDY>	1-33549-453-0	01	1	1304-
418	PIECE; DIST,QUAD BOX SHIFT PATTERN SINGLE-H<EDY>	1-33549-454-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN DOUBLE-H<EDZ> (D)	1-33529-128-0	02	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (A)	1-33529-106-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (B)	1-33549-452-0	01	1	1304-
569	PIN; QUADRANT BOX SHIFT PATTERN SINGLE-H<EDY> (C)	1-33549-468-0	01	1	1304-
677	PIN; PLATE SHIFT PATTERN SINGLE-H<EDY>	1-33549-452-0	01	1	1304-

512 287 443 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
287	COVER; AIR BREATHER SHIFT PATTERN DOUBLE-H<EDZ>	1-34141-026-0	01	1	1304-
443	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> M8X20 FLANGE	0-28650-820-0	02	1	1304-
512	CLIP; PIPE SHIFT PATTERN DOUBLE-H<EDZ> (B) OD=9 H=6	1-09709-178-0	04	1	1304-
512	CLIP; PIPE SHIFT PATTERN SINGLE-H<EDY> (A) OD=9 H=6	1-09709-178-0	05	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
