Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#117437) — 24 parça
◀

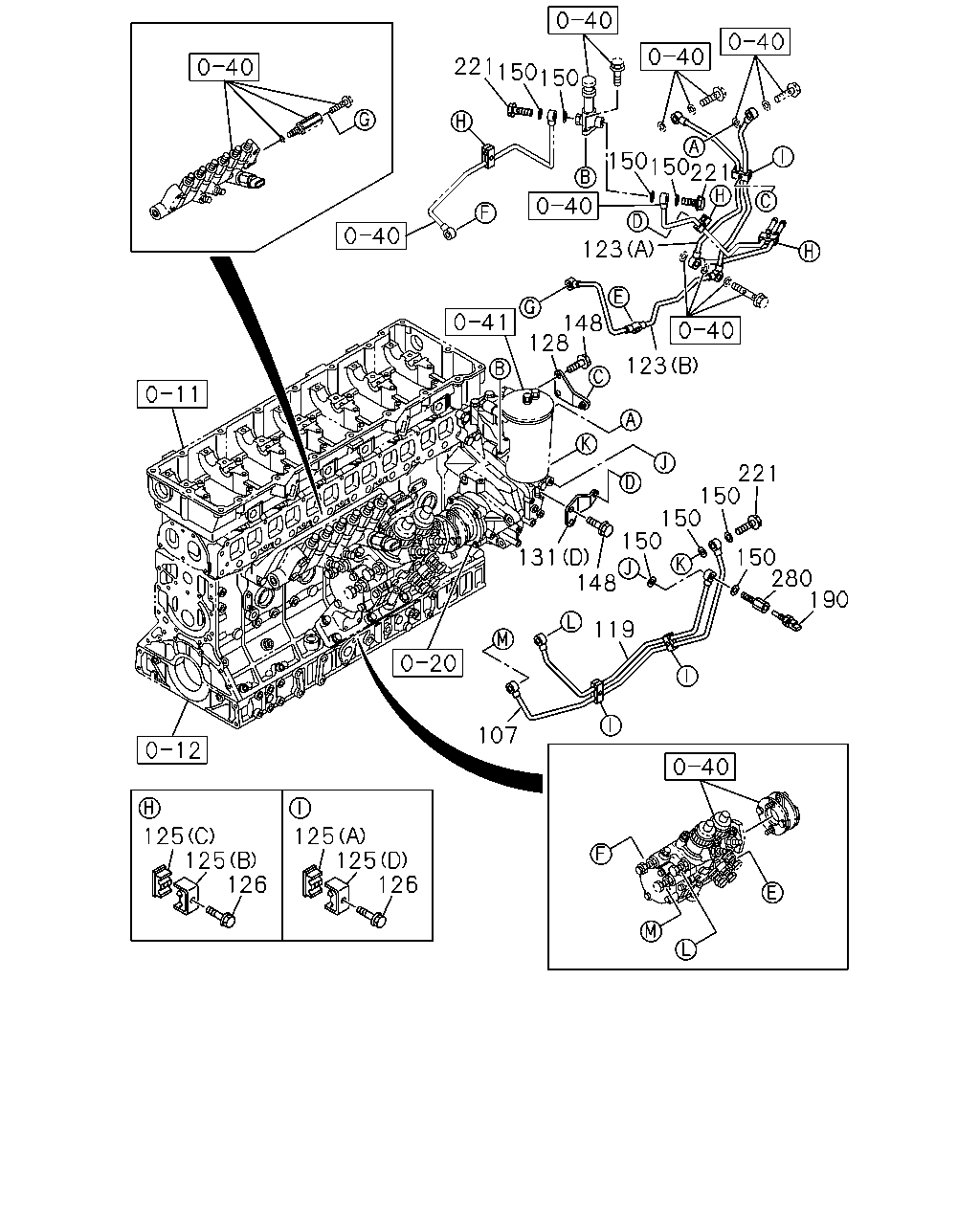

[042A] PIPING (19 parça)

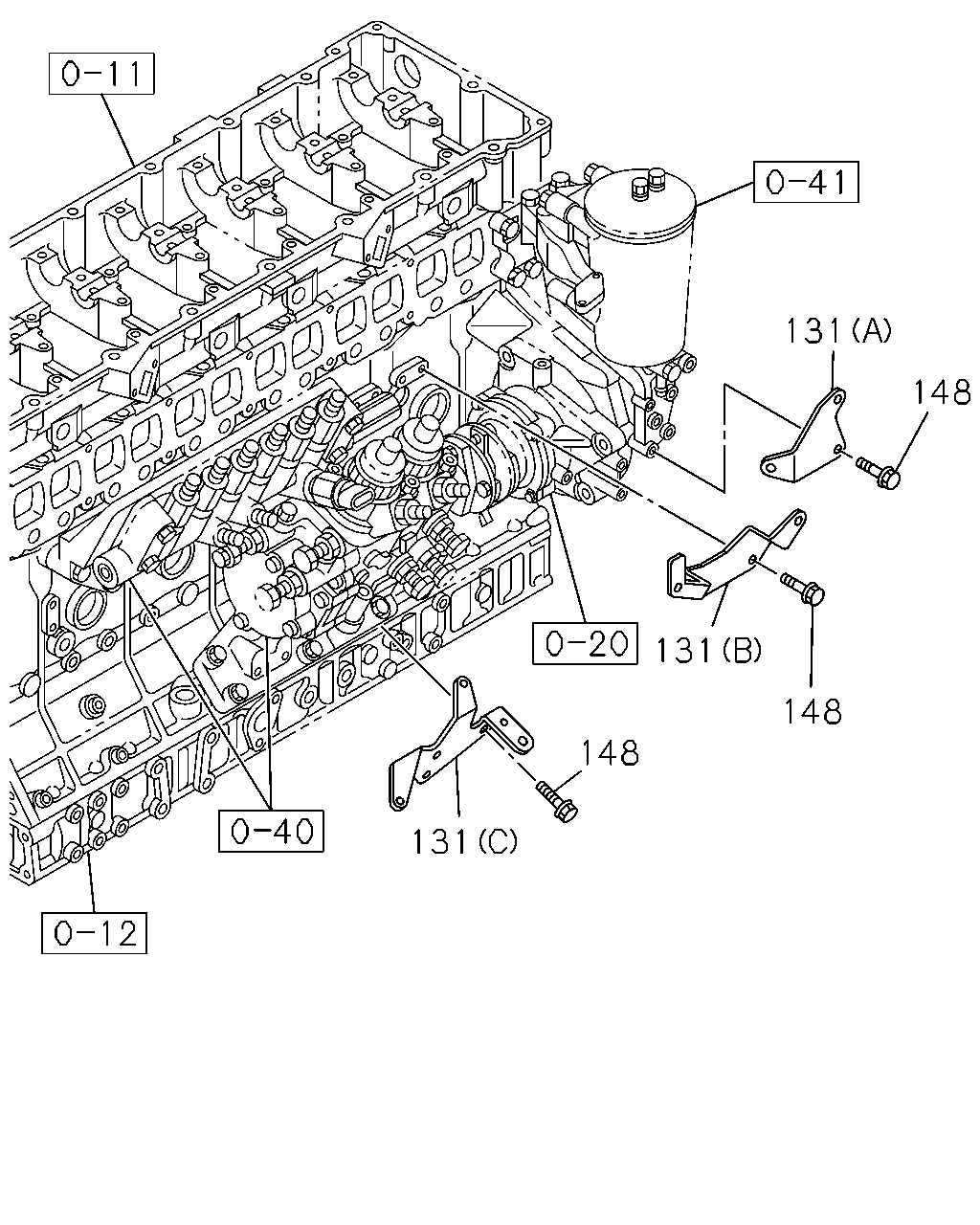

[042A] BRACKET (5 parça)
▶
125
125
126
125
125
126
107
119
148
131
150
150
150
280
190
150
221
123
128
148
123
221
150
150
150
150
221
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97606-621-1
01
1
1302-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97603-752-0
01
1
1302-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97606-623-0
01
1
1302-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-98170-939-0
01
1
1302-
125
CLIP; FUEL PIPE
(A)
1-09701-180-0
03
1
1302-
125
CLIP; FUEL PIPE
(B)
1-09701-193-1
03
1
1302-
125
CLIP; FUEL PIPE
(C)
1-09701-194-1
03
1
1302-
125
CLIP; FUEL PIPE
(D) ID=10 & 10 L=25
8-94393-280-3
03
1
1302-
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE THA
0-28650-635-0
06
1
1302-
128
BRACKET; FUEL RETURN CLIP
8-97606-626-0
01
1
1302-
131
BRACKET; FUEL PIPE CLIP
(A)
8-97603-874-0
01
1
1302-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97605-982-1
01
1
1302-
131
BRACKET; FUEL PIPE CLIP
(D)
8-97606-625-0
01
1
1302-
131
BRACKET; FUEL PIPE CLIP
(C)
8-97610-280-0
01
1
1302-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
11
1
1302-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
08
1
1302-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
1302-
221
BOLT; FUEL PIPE
M14X27 FLANGE
1-09675-086-0
03
1
1302-
280
ADAPTER; FUEL TEMP SEN
1-15419-716-1
01
1
1302-
131
148
148
131
148
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
131
BRACKET; FUEL PIPE CLIP
(A)
8-97603-874-0
01
1
1302-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97605-982-1
01
1
1302-
131
BRACKET; FUEL PIPE CLIP
(D)
8-97606-625-0
01
1
1302-
131
BRACKET; FUEL PIPE CLIP
(C)
8-97610-280-0
01
1
1302-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
11
1
1302-
