0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#117433) — 67 parça
◀
[038A] NO.3 (15 parça)
[038A] NO.2 (9 parça)
[038A] NO.1 (37 parça)
[038A] NO.4 (6 parça)
▶

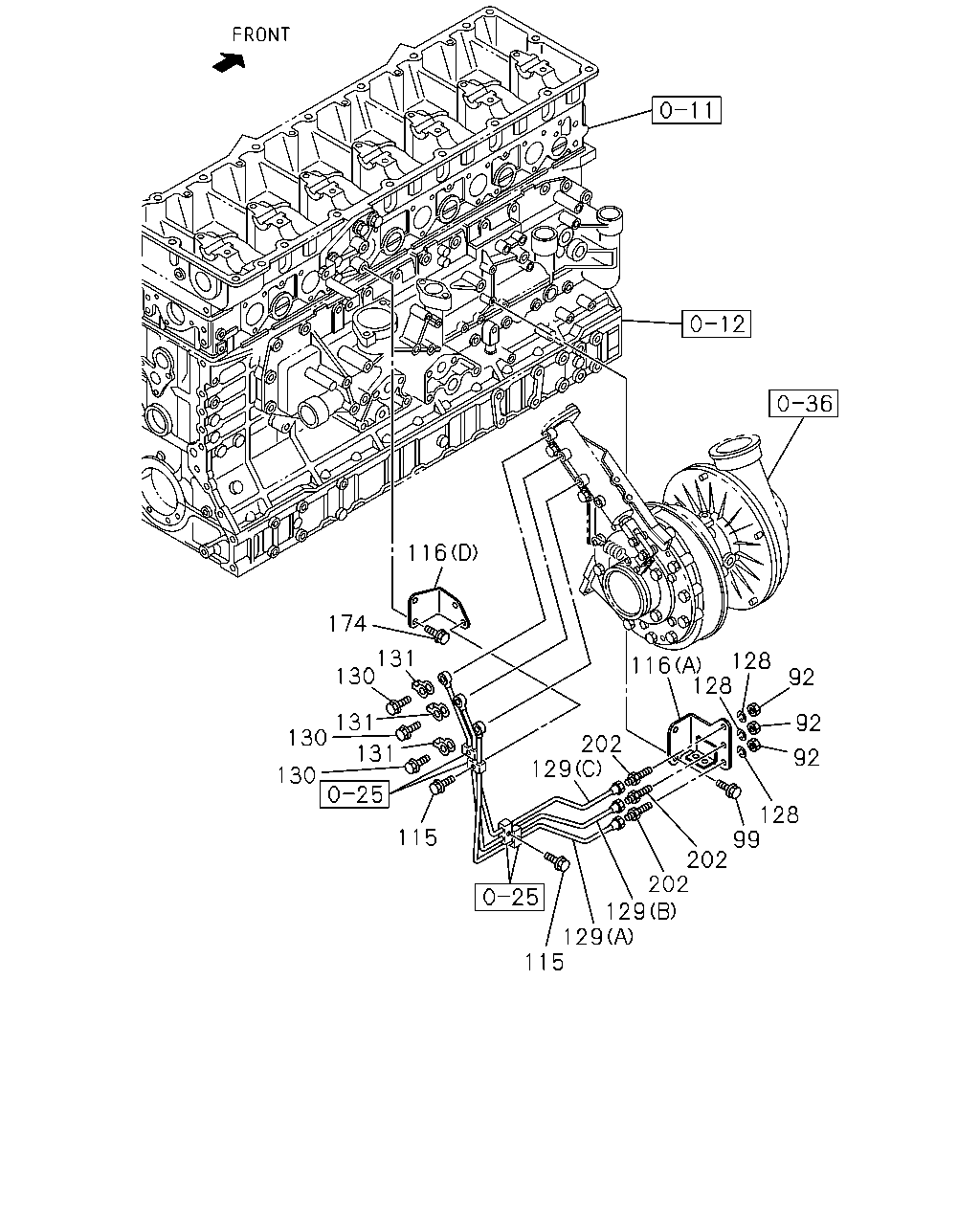

116
174
131
130
131
130
131
130
115
116
128
92
92
92
128
202
129
128
99
202
202
129
129
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
NUT; UNION
M12
9-09840-280-0
04
1
1302-
99
BOLT; BRKT AIR PIPE
M10X20 FLANGE THA
0-28151-020-0
02
1
1302-
115
BOLT; AIR PIPE
M6X30 FLANGE
0-28050-630-0
04
1
1302-
116
BRACKET; AIR PIPE
(A)
8-97603-755-2
01
1
1302-
116
BRACKET; AIR PIPE
(B)
8-97605-948-0
01
1
1302-
116
BRACKET; AIR PIPE
(D)
8-97605-950-0
01
1
1302-
116
BRACKET; AIR PIPE
(C)
8-98052-306-0
01
1
1302-
128
WASHER; LK,UNION
ID=12.2
0-91510-512-0
04
1
1302-
129
PIPE; AIR,VGS
(A)
8-97604-865-0
01
1
1302-
129
PIPE; AIR,VGS
(B)
8-97604-866-0
01
1
1302-
129
PIPE; AIR,VGS
(C)
8-97604-867-0
01
1
1302-
130
BOLT; EYE,AIR PIPE
M10X21 FLANGE
8-94396-711-0
03
1
1302-
131
GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2
8-97365-390-0
03
1
1302-
174
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
04
1
1302-
202
UNION; AIR PIPE
M12 L=62.5
0-92113-206-0
04
1
1302-

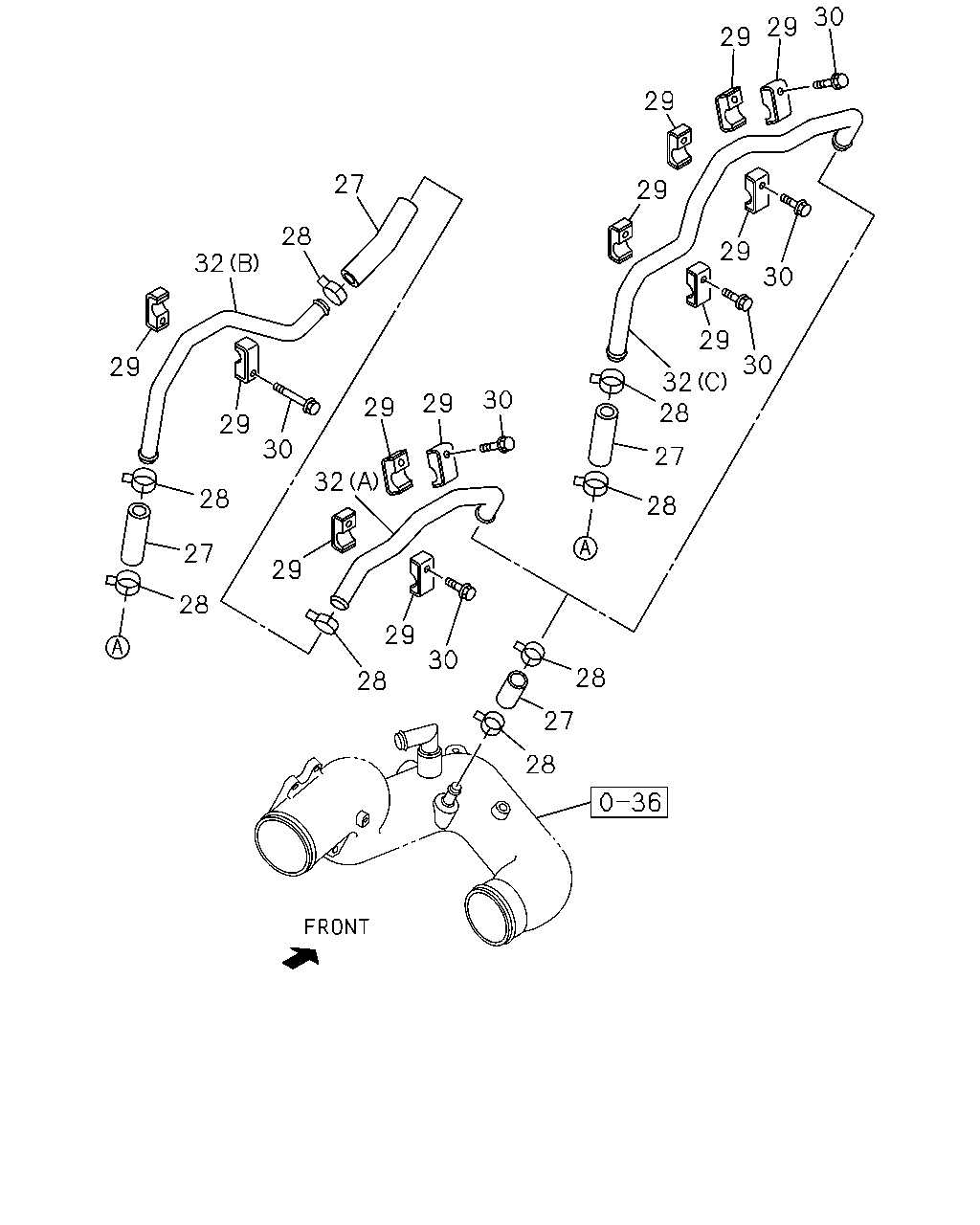

29
29
30
29
30
29
29
29
30
32
28
27
28
30
29
29
32
30
29
28
27
28
28
29
30
28
27
28
27
28
32
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; AIR CMPR,SUCTION
8-97613-266-0
03
1
1302-1409
27
HOSE; AIR CMPR,SUCTION
8-97613-266-0
02
1
1410-
28
CLIP; HOSE,AIR CMPR
ID=31.2
8-97237-146-0
06
1
1302-1409
28
CLIP; HOSE,AIR CMPR
ID=31.2
8-97237-146-0
04
1
1410-
29
CLIP; AIR PIPE
8-97603-362-1
06
1
1302-
30
BOLT; PIPE CLIP
M8X50 FLANGE THA
0-28050-850-0
03
1
1302-
32
PIPE; AIR,AIR CMPR
(A) THA
8-97613-954-0
01
1
1302-1409
32
PIPE; AIR,AIR CMPR
(C)
8-98277-382-0
01
1
1410-
32
PIPE; AIR,AIR CMPR
(B) THA
8-97613-955-0
01
1
1302-1409

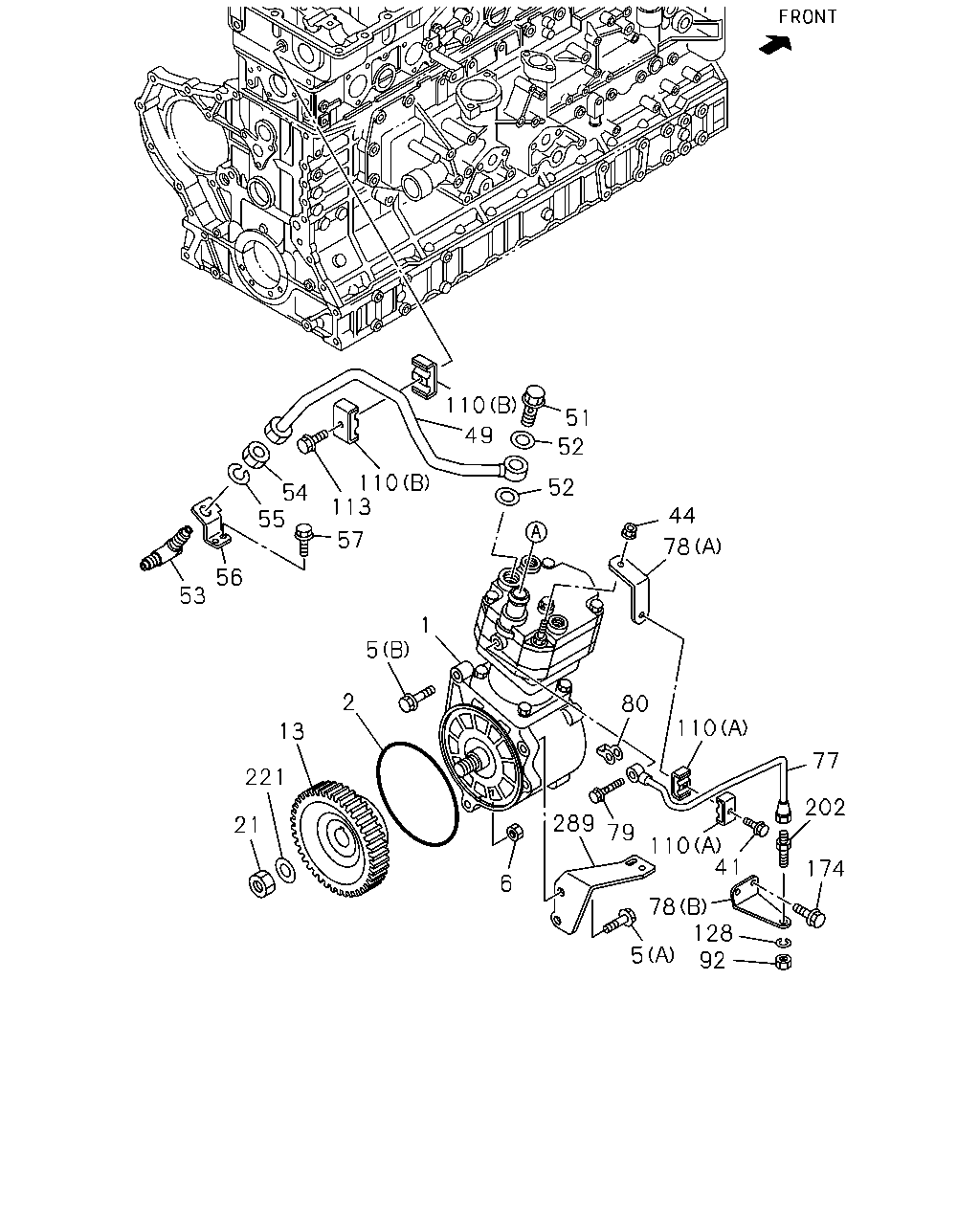

110
51
52
52
44
78
80
110
77
202
174
5
78
110
128
92
79
289
6
1
2
13
5
221
21
57
113
110
49
54
55
56
53
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98224-245-0
01
1
1302-1310
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98249-115-0
01
1
1311-1401
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98271-053-0
01
1
1402-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-449-0
01
1
1302-
5
BOLT; AIR CMPR FIX
(A) M12X50 FLANGE THA
0-28151-250-0
02
1
1302-
5
BOLT; AIR CMPR FIX
(B) M12X140 FLANGE
0-28156-214-0
01
1
1302-
6
NUT; AIR CMPR
M12 FLANGE THA
0-91180-112-0
01
1
1302-
13
GEAR; AIR CMPR DRIVE
8-97603-053-2
01
1
1302-
21
NUT; PUMP GEAR
M24
0-91110-524-0
01
1
1302-
41
BOLT; CLIP
M6X30 FLANGE
0-28050-630-0
01
1
1302-
44
NUT
M10 FLANGE THA
0-91180-110-0
01
1
1302-
49
PIPE; AIR,CHARGE
ENGINE REAR PTO<SV1>
8-98216-698-0
01
1
1302-
49
PIPE; AIR,CHARGE
EXC. ENGINE REAR PTO<SV1>
8-98216-696-0
01
1
1302-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1302-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1302-
53
UNION; CHARGE PIPE
8-98008-887-2
01
1
1302-
54
NUT; PIPE UNION
8-98049-390-0
01
1
1302-
55
WASHER; LK,PIPE UNION
ID=27.5
0-91510-527-0
01
1
1302-
56
BRACKET; AIR PIPE FIX
ENGINE REAR PTO<SV1>
8-97605-477-2
01
1
1302-
56
BRACKET; AIR PIPE FIX
EXC. ENGINE REAR PTO<SV1>
8-97603-937-2
01
1
1302-
57
BOLT; BRKT,AIR PIPE
ENGINE REAR PTO<SV1> M10X20 FLANGE THA
0-28151-020-0
02
1
1302-
57
BOLT; BRKT,AIR PIPE
EXC. ENGINE REAR PTO<SV1> M10X20 FLANGE THA
0-28151-020-0
01
1
1302-
77
PIPE; AIR,GOV
8-98145-567-0
01
1
1302-
78
BRACKET; PIPE,AIR GOV
(B)
8-97605-218-1
01
1
1302-
78
BRACKET; PIPE,AIR GOV
(A)
8-97613-275-1
01
1
1302-
79
BOLT; EYE,AIR PIPE TO CMPR
M10X25
9-09906-173-1
01
1
1302-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6
8-98231-393-0
01
1
1302-
92
NUT; UNION
M12
9-09840-280-0
04
1
1302-
110
CLIP; AIR PIPE
(B)
1-09701-284-0
02
1
1302-
110
CLIP; AIR PIPE
(A)
8-98039-293-0
02
1
1302-1405
110
CLIP; AIR PIPE
(A)
8-98148-996-2
02
1
1406-
113
BOLT; CLIP,AIR PIPE
M8X40 FLANGE THA
0-28050-840-0
01
1
1302-
128
WASHER; LK,UNION
ID=12.2
0-91510-512-0
04
1
1302-
174
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
04
1
1302-
202
UNION; AIR PIPE
M12 L=62.5
0-92113-206-0
04
1
1302-
221
WASHER; PL,GEAR
9-09164-624-0
01
1
1302-
289
BRACKET; CABLE
8-98055-448-3
01
1
1302-

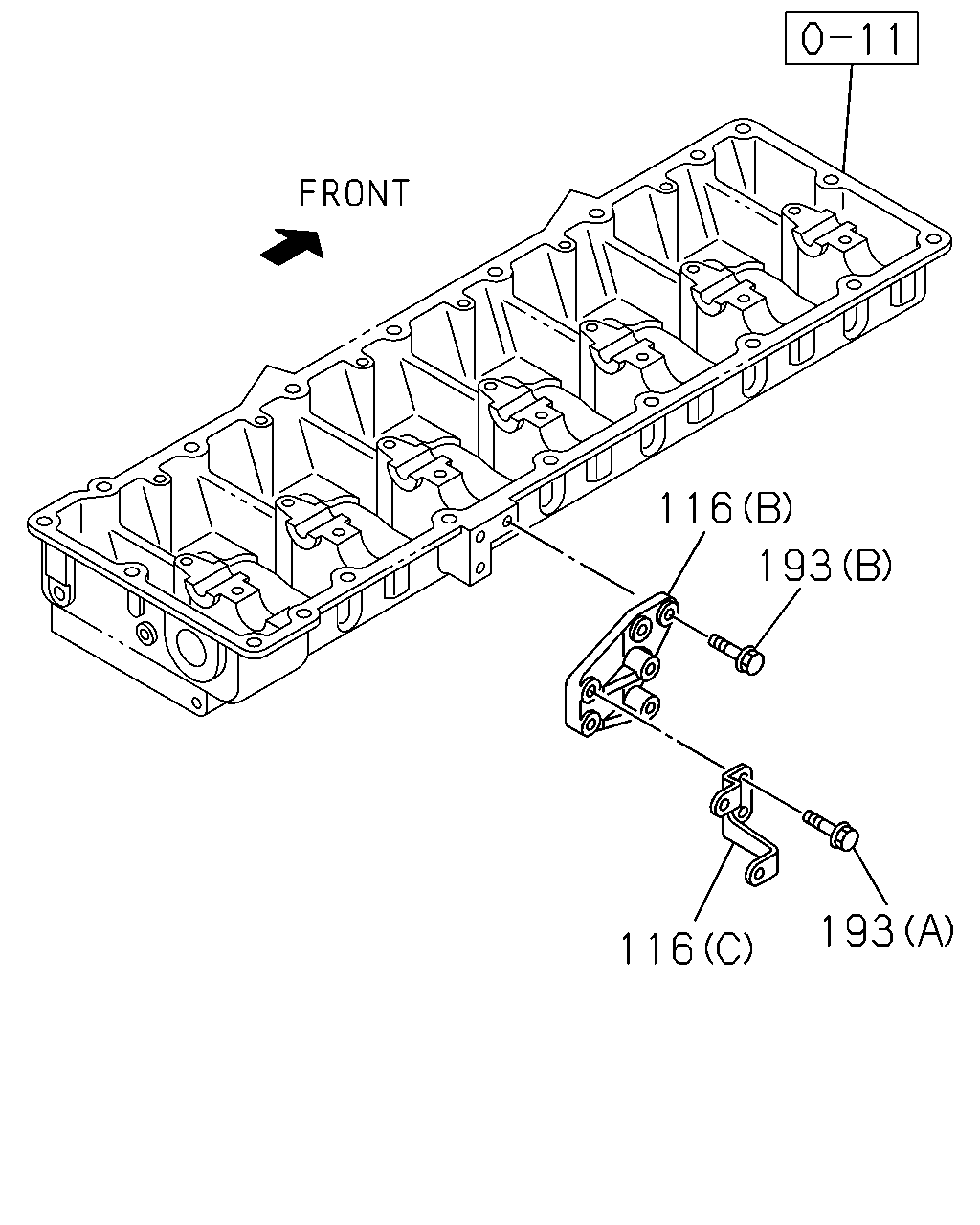

116
193
116
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
116
BRACKET; AIR PIPE
(A)
8-97603-755-2
01
1
1302-
116
BRACKET; AIR PIPE
(B)
8-97605-948-0
01
1
1302-
116
BRACKET; AIR PIPE
(D)
8-97605-950-0
01
1
1302-
116
BRACKET; AIR PIPE
(C)
8-98052-306-0
01
1
1302-
193
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28050-820-0
02
1
1302-
193
BOLT; BRKT
(B) M10X35 FLANGE THA
0-28751-035-0
03
1
1302-
