◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#11743) — 238 parça

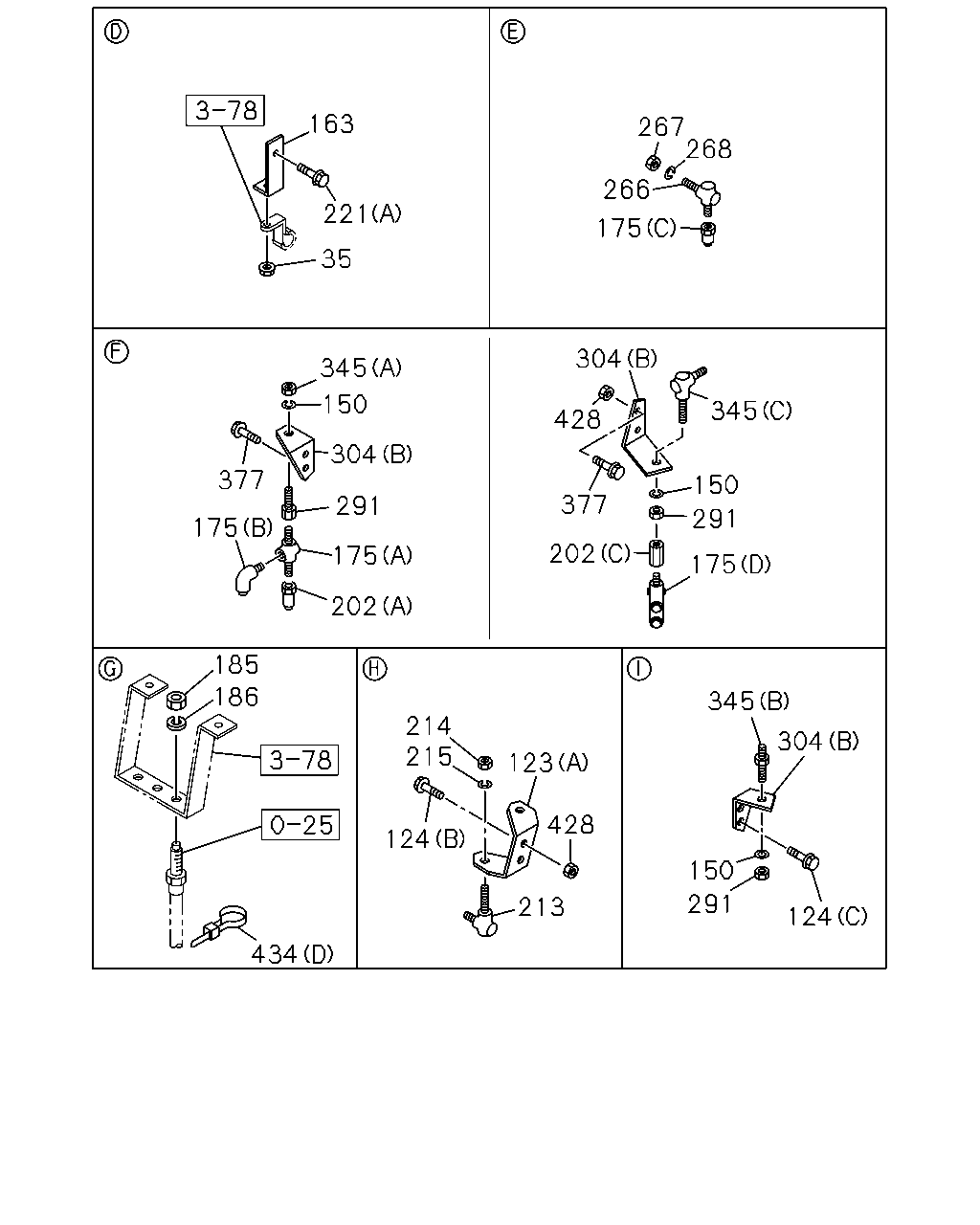

çizim 75284
267 268 266 221 175 35 304 345 428 150 345 304 377 150 377 291 202 291 175 175 175 202 185 186 345 214 215 304 123 124 428 150 291 213 124 434 163
BalonParca AdiParca NoAdetTipApplied Date
35 NUT; BRKT
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0106-0112
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0201-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-741-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0106-
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0106-0512
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
124 BOLT; BRKT
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0106-0512
124 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0106-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
163 BRACKET; AIR PIPE
AIR DRYER<PS7> 		1-34656-009-0 01 1 0106-0112
163 BRACKET; AIR PIPE 1-34656-009-0 01 1 0201-
175 CONNECTOR; AIR PIPE
(A) 		1-09650-070-3 01 1 0106-0112
175 CONNECTOR; AIR PIPE
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0106-
175 CONNECTOR; AIR PIPE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0106-0112
175 CONNECTOR; AIR PIPE
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0201-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0106-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0106-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
202 ADAPTER
(C) 		1-09660-879-0 01 1 0201-
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0201-
202 ADAPTER
FULLER M/T<X9B> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		9-09228-906-1 01 1 0106-0607
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		0-92138-906-0 01 1 0608-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		9-09225-206-1 01 1 0106-0607
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0106-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0106-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0106-0112
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0106-0607
266 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
267 NUT; UNION
M12 		9-09840-280-0 01 1 0106-
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0106-0603
268 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0106-
304 BRACKET; UNION
(B) 		1-47476-556-0 02 1 0106-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0106-
304 BRACKET; UNION
ZF M/T<X9E> (C) 		1-47477-757-1 01 1 0106-
345 UNION; AIR PIPE
(A) 		1-09654-280-1 01 1 0106-0112
345 UNION; AIR PIPE
(C) M12 2WAY 		1-09654-257-1 01 1 0201-0406
345 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0106-0406
345 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 02 1 0407-0607
345 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 02 1 0608-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0106-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(C) ID=17 		8-94449-734-1 01 1 0106-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=140 		5-09707-031-1 01 1 0106-
434 CLIP
FULLER M/T<X9B> (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0106-
434 CLIP
ZF M/T<X9E> (B) D=24 L=21 		1-09700-380-0 01 1 0106-

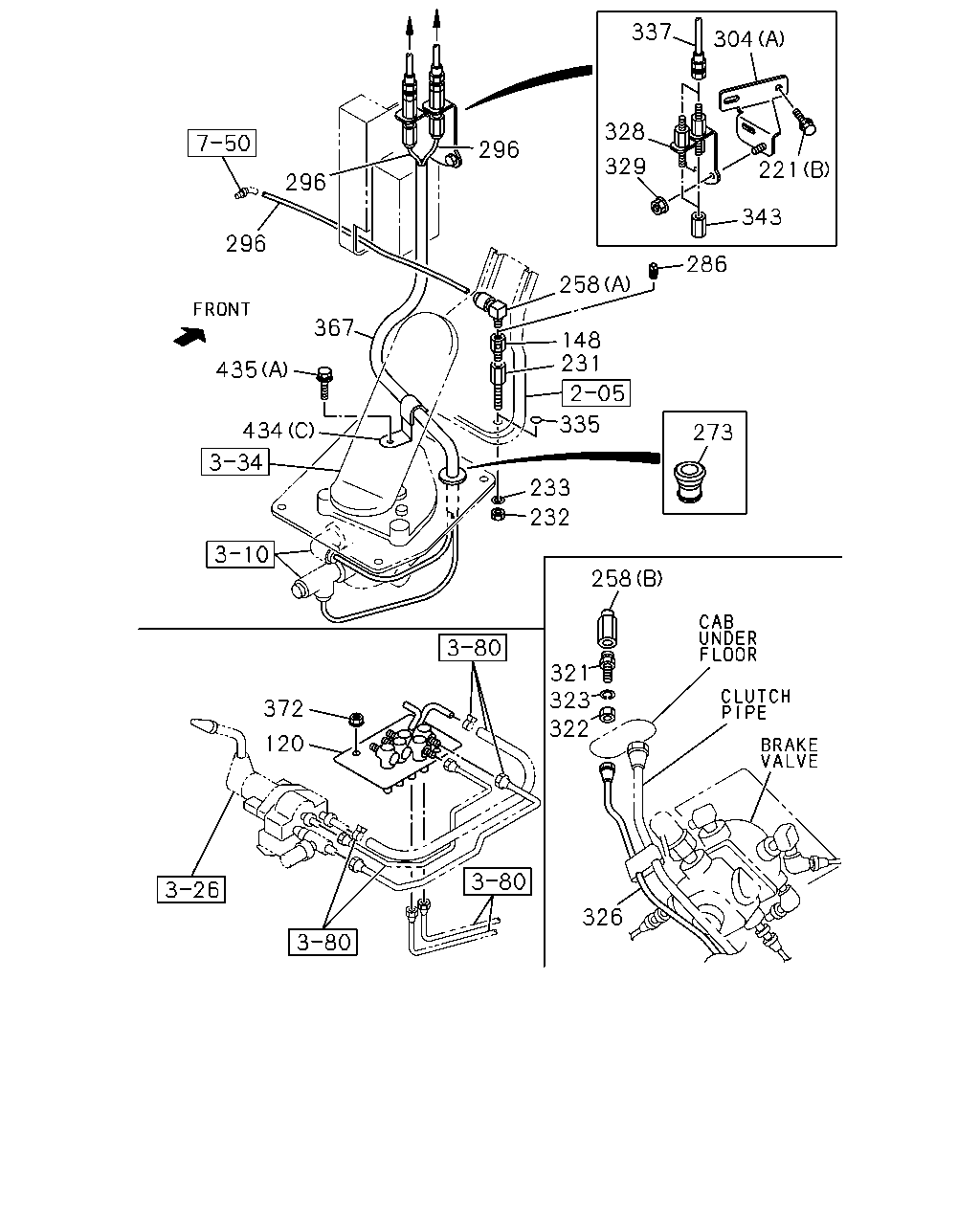

çizim 75781
337 304 328 26 296 329 221 343 296 286 258 367 148 231 335 435 434 273 233 232 258 321 323 322 372 120 326
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; CHECK VLV
AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0106-0112
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 0201-0512
26 NUT; CHECK VLV
M20 		0-91111-520-0 01 1 0601-
120 CONNECTOR; AIR PIPE 1-47470-402-3 01 1 0106-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U) 		8-94338-417-0 01 1 0106-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0106-0112
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0106-
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0106-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0106-
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0106-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0106-0603
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0106-0603
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0106-0302
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
273 GROMMET 1-09332-135-0 01 1 0106-
286 PLUG; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0106-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-0202
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0203-
304 BRACKET; UNION
(B) 		1-47476-556-0 02 1 0106-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0106-
304 BRACKET; UNION
ZF M/T<X9E> (C) 		1-47477-757-1 01 1 0106-
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-738-0 01 1 0106-
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-738-0 01 1 0106-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0106-
322 NUT; JOINT,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0106-
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0106-0603
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0106-0603
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
326 PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529 		1-47494-216-3 01 1 0106-
326 PIPE; AIR,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529 		1-47494-216-3 01 1 0106-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0106-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0603-
335 SEAL; UNION
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0106-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0106-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 0606-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0106-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0203-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(C) ID=17 		8-94449-734-1 01 1 0106-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=140 		5-09707-031-1 01 1 0106-
434 CLIP
FULLER M/T<X9B> (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0106-
434 CLIP
ZF M/T<X9E> (B) D=24 L=21 		1-09700-380-0 01 1 0106-
435 BOLT; CLIP
(A) M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 0106-
435 BOLT; CLIP
FULLER M/T<X9B> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-

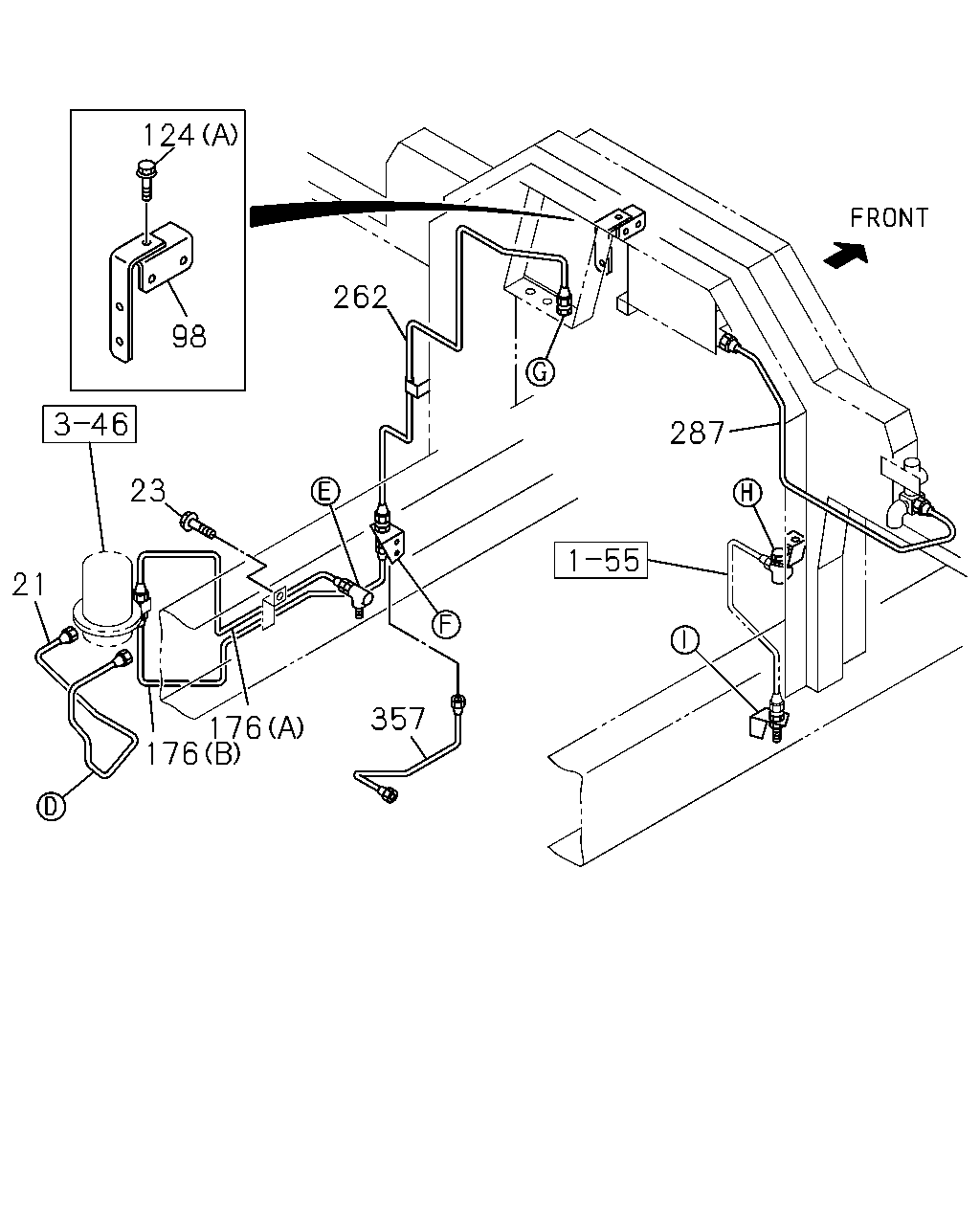

çizim 78250
124 262 98 287 23 21 357 176 176
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0106-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-375-0 01 1 0111-0302
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49124-042-0 01 1 0303-
23 BOLT; BRKT,AIR PIPE
AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 01 1 0106-0512
23 BOLT; BRKT,AIR PIPE
AIR DRYER<PS7> M8X35 FLANGE 		0-28650-835-0 01 1 0601-
98 BRACKET; AIR PIPE 1-47477-471-0 01 1 0106-
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0106-0512
124 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
124 BOLT; BRKT
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0106-0512
124 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> (A) 		1-49123-083-0 01 1 0106-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> (B) 		1-49123-084-0 01 1 0106-
262 PIPE; AIR,UNION TO FLEX 1-49122-366-0 01 1 0106-0112
262 PIPE; AIR,UNION TO FLEX 1-49123-421-0 01 1 0201-0202
262 PIPE; AIR,UNION TO FLEX 1-49123-506-0 01 1 0203-
287 PIPE; AIR,MAG VLV 1-49122-364-0 01 1 0106-0202
287 PIPE; AIR,MAG VLV
L=1314 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
357 PIPE; AIR,UNION TO UNION
EXC. AIR DRYER<PS7> 		1-49119-840-0 01 1 0106-

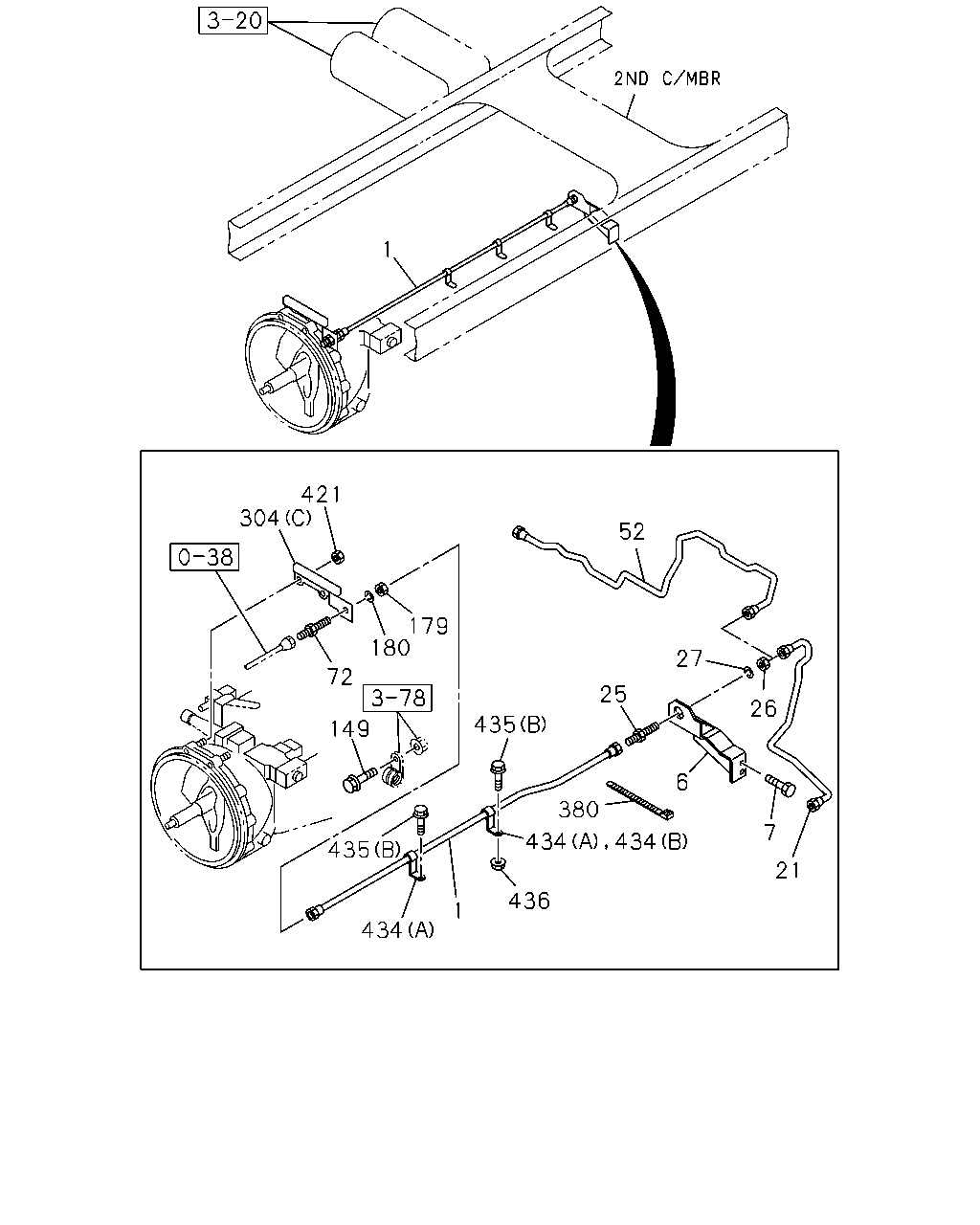

çizim 78497
1 421 304 52 179 180 27 72 25 26 435 6 380 7 434 435 21 436 1 434 149 434
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=1050 		1-09363-789-0 01 1 0106-
1 HOSE; FLEX,AIR TANK
ZF M/T<X9E> 		1-09363-856-0 01 1 0106-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0106-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0106-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-375-0 01 1 0111-0302
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49124-042-0 01 1 0303-
25 VALVE; CHECK
AIR DRYER<PS7> 		1-48320-042-0 01 1 0106-0112
25 VALVE; CHECK 1-48320-042-1 01 1 0201-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0106-0112
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 0201-0512
26 NUT; CHECK VLV
M20 		0-91111-520-0 01 1 0601-
27 WASHER; LK,CHECK VLV
AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 0106-0112
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 0201-0603
27 WASHER; LK,CHECK VLV
ID=20.2 		0-91510-520-0 01 1 0604-
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49122-974-0 01 1 0201-
72 UNION; AIR PIPE 1-09654-318-1 01 1 0106-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
179 NUT; UNION
M22 		9-09111-422-0 01 1 0106-0512
179 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0106-0603
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0604-
304 BRACKET; UNION
(B) 		1-47476-556-0 02 1 0106-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0106-
304 BRACKET; UNION
ZF M/T<X9E> (C) 		1-47477-757-1 01 1 0106-
380 BAND; FLEX HOSE
ZF M/T<X9E> L=175 		1-09707-178-0 01 1 0305-
421 NUT; BRKT
ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 0106-0602
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(C) ID=17 		8-94449-734-1 01 1 0106-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=140 		5-09707-031-1 01 1 0106-
434 CLIP
FULLER M/T<X9B> (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0106-
434 CLIP
ZF M/T<X9E> (B) D=24 L=21 		1-09700-380-0 01 1 0106-
435 BOLT; CLIP
(A) M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 0106-
435 BOLT; CLIP
FULLER M/T<X9B> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
436 NUT; CLIP
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0106-0107
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0108-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-

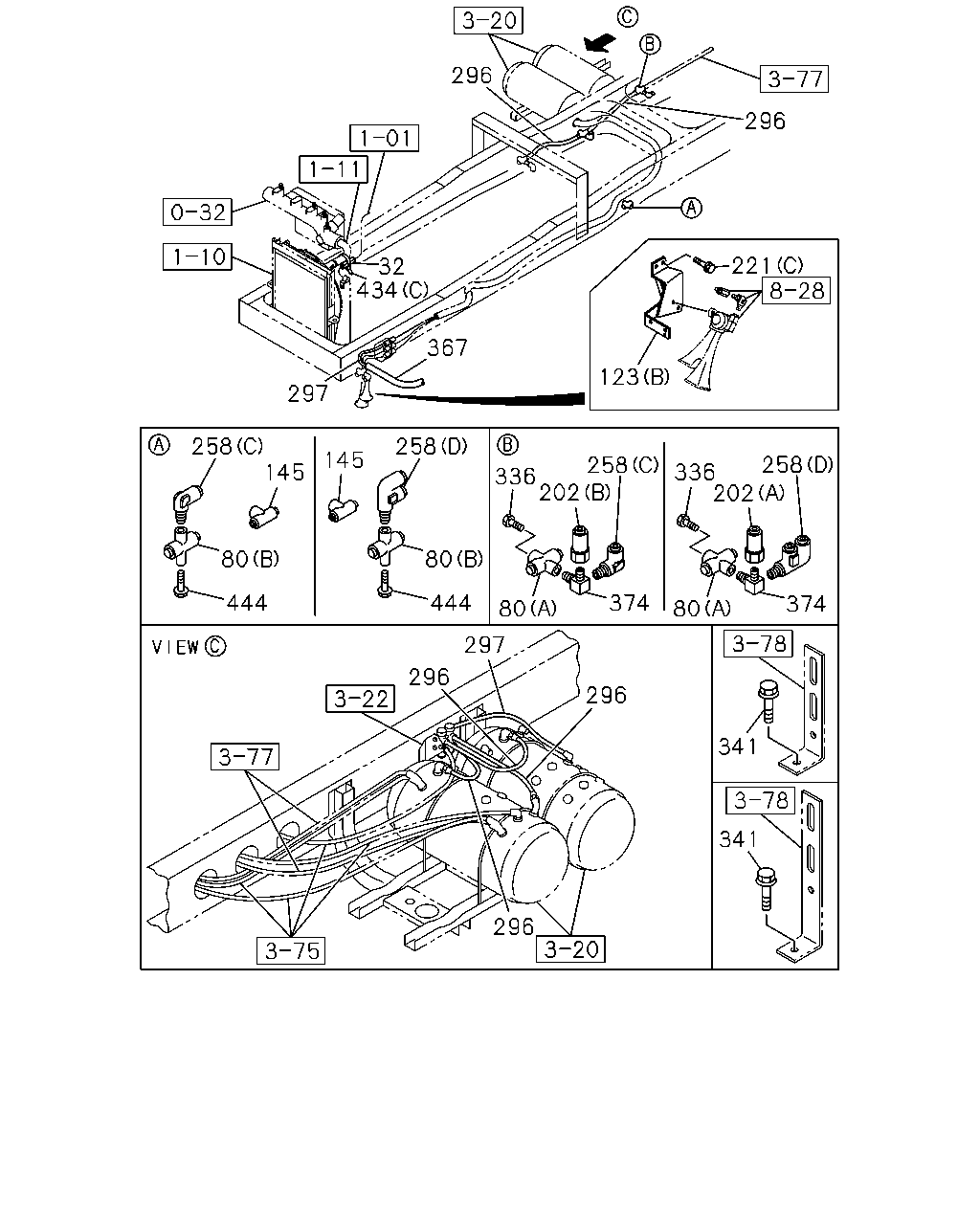

çizim 81699
296 296 32 434 221 367 123 297 258 145 258 145 258 258 336 202 336 202 80 80 374 444 444 374 80 80 297 296 296 341 341 296
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
EXC. ELECTRONIC GOV RED3(KG5) ID=6 L=30 		5-09360-352-0 01 1 0106-
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0106-
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-741-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0106-
145 UNION; NYLON TUBE
FULLER M/T<X9B> 		1-09661-133-0 01 1 0106-
202 ADAPTER
(C) 		1-09660-879-0 01 1 0201-
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0201-
202 ADAPTER
FULLER M/T<X9B> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0106-0112
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0106-0302
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-0202
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0203-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0106-
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0512
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
341 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0203-
374 CONNECTOR
M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0106-0404
374 CONNECTOR
M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(C) ID=17 		8-94449-734-1 01 1 0106-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5) (D) L=140 		5-09707-031-1 01 1 0106-
434 CLIP
FULLER M/T<X9B> (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0106-
434 CLIP
ZF M/T<X9E> (B) D=24 L=21 		1-09700-380-0 01 1 0106-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0106-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
