Sayfa 2-20A - Isuzu EPC

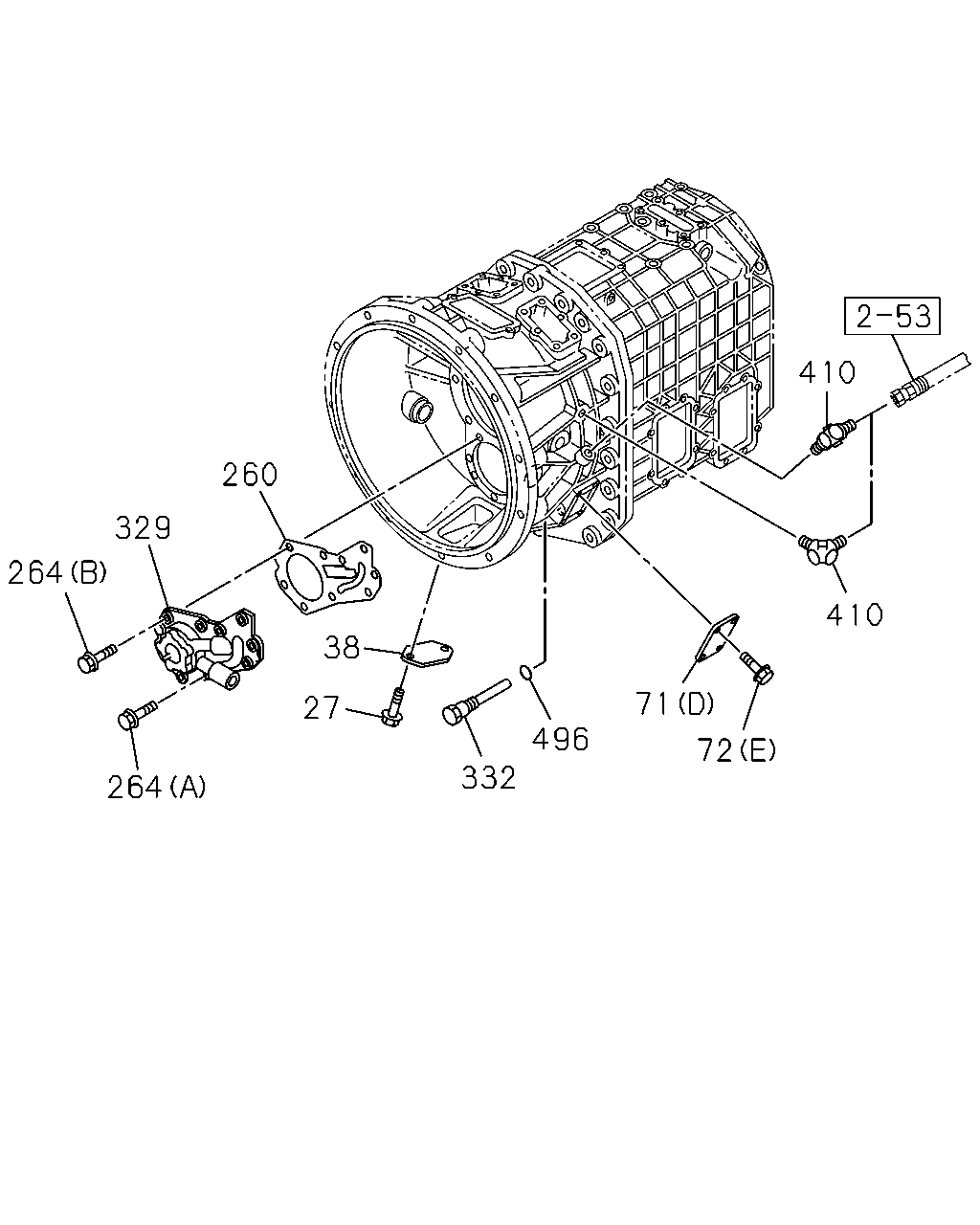

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	1302-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1302-		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1302-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-030-1	01	1	1302-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1302-		●
71	COVER; SIDE,TRANS CASE (D)	1-33141-058-0	01	1	1302-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	1-33141-044-1	01	1	1302-		●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	1302-	●
72	BOLT; SIDE COVER (E) M10X30 FLANGE	0-28151-030-0	04	1	1302-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1302-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1302-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M12X30 FLANGE	0-28751-230-0	08	1	1302-		●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1302-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1302-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1302-		●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1302-		●
332	FILTER; OIL	1-34159-050-1	01	1	1302-		●
410	UNION; OIL PIPE R1/4 & M16 ELBOW	1-09660-800-1	02	1	1302-		●
496	GASKET; OIL FILTER	1-09630-090-0	01	1	1302-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

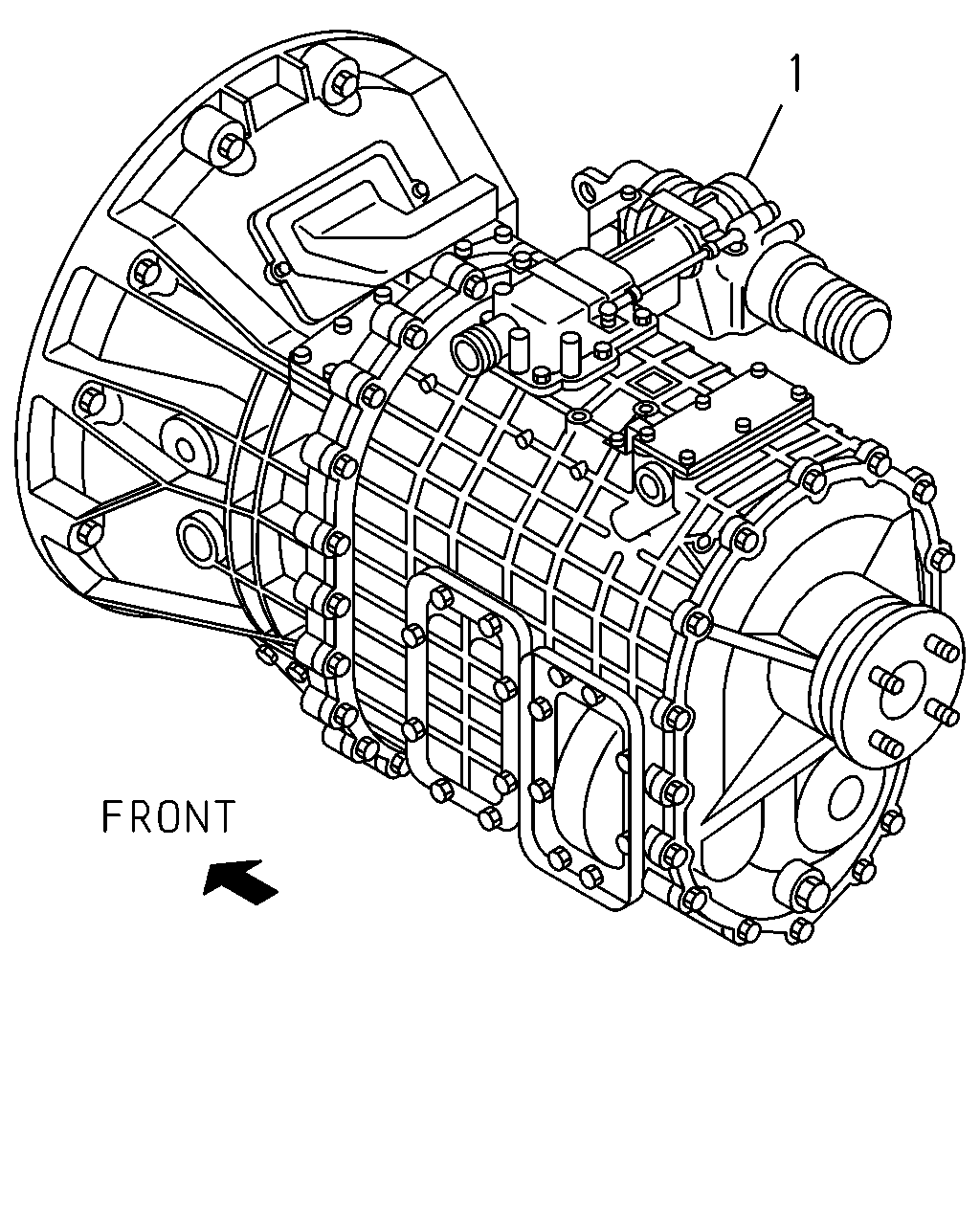

1	TRANSMISSION ASM; MANUAL	1-33044-147-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1302-		●

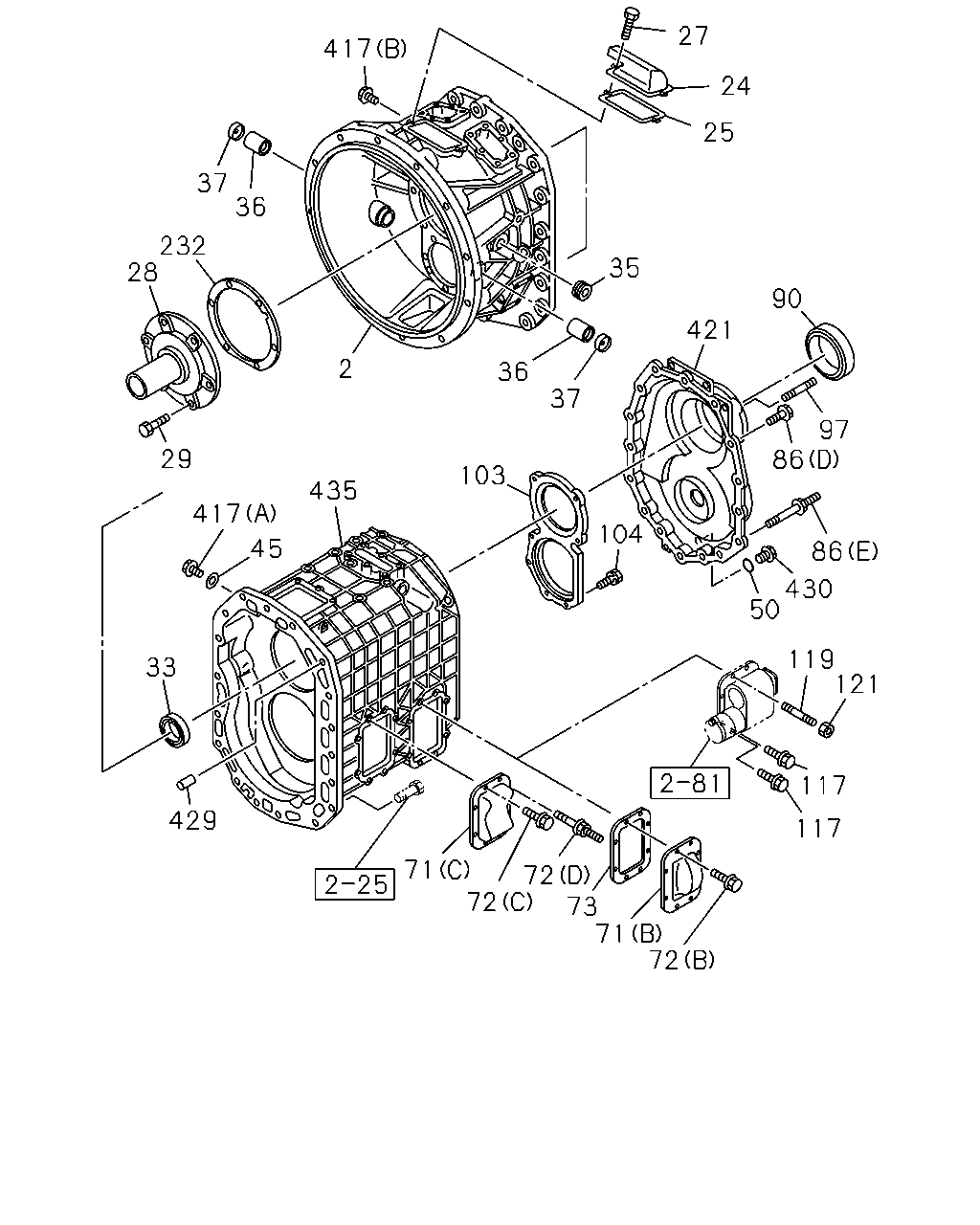

72 71 73 72 71 72 429 117 117 121 119 50 86 86 430 97 90 421 35 25 24 27 104 37 36 103 45 33 417 29 28 232 36 37 417 2 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98077-167-1	01	1	1302-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1302-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1302-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	1302-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1302-		●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	1302-	●
28	COVER; FRT,TRANS CASE	1-33121-159-2	01	1	1302-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	1302-	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1302-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1302-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	1302-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1302-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1302-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1302-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1302-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-030-1	01	1	1302-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1302-		●
71	COVER; SIDE,TRANS CASE (D)	1-33141-058-0	01	1	1302-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	1-33141-044-1	01	1	1302-		●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	1302-	●
72	BOLT; SIDE COVER (E) M10X30 FLANGE	0-28151-030-0	04	1	1302-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1302-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1302-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M12X30 FLANGE	0-28751-230-0	08	1	1302-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	1302-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-041-0	01	1	1302-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1302-	●
86	BOLT; RR COVER (B) M12X65 FLANGE	1-09044-113-0	02	1	1302-	●
86	BOLT; RR COVER (A) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	1302-	●
86	BOLT; RR COVER (D) M12X40 FLANGE THA	0-28151-240-0	14	1	1302-		●
86	BOLT; RR COVER (E) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1302-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	1302-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1302-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1302-	●	●
103	RETAINER; BRG	9-33151-014-0	01	1	1302-	●
103	RETAINER; BRG	1-33151-059-0	01	1	1302-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	1302-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1302-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X35 FLANGE	0-28151-235-0	02	1	1302-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X130 FLANGE	0-28166-213-0	02	1	1302-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12X25 L=43	0-44011-225-0	04	1	1302-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 FLANGE THA	0-91180-212-0	04	1	1302-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1302-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1302-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1302-		●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1302-	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1302-		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	1302-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	1302-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1302-	●	●
435	CASE; TRANS	1-33111-330-0	01	1	1302-	●
435	CASE; TRANS	8-98132-970-0	01	1	1302-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

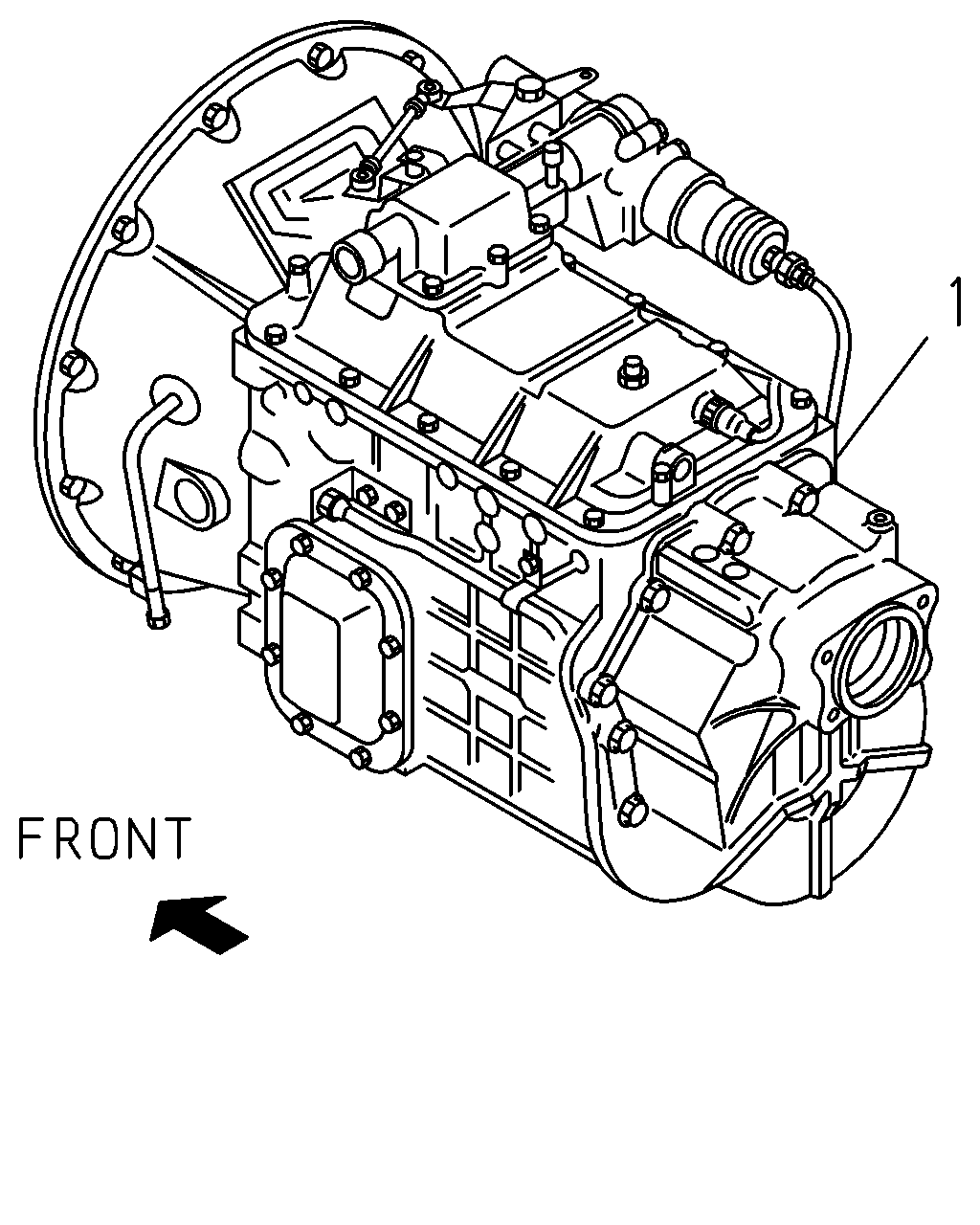

1	TRANSMISSION ASM; MANUAL	1-33044-147-0	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-472-0	01	1	1302-		●

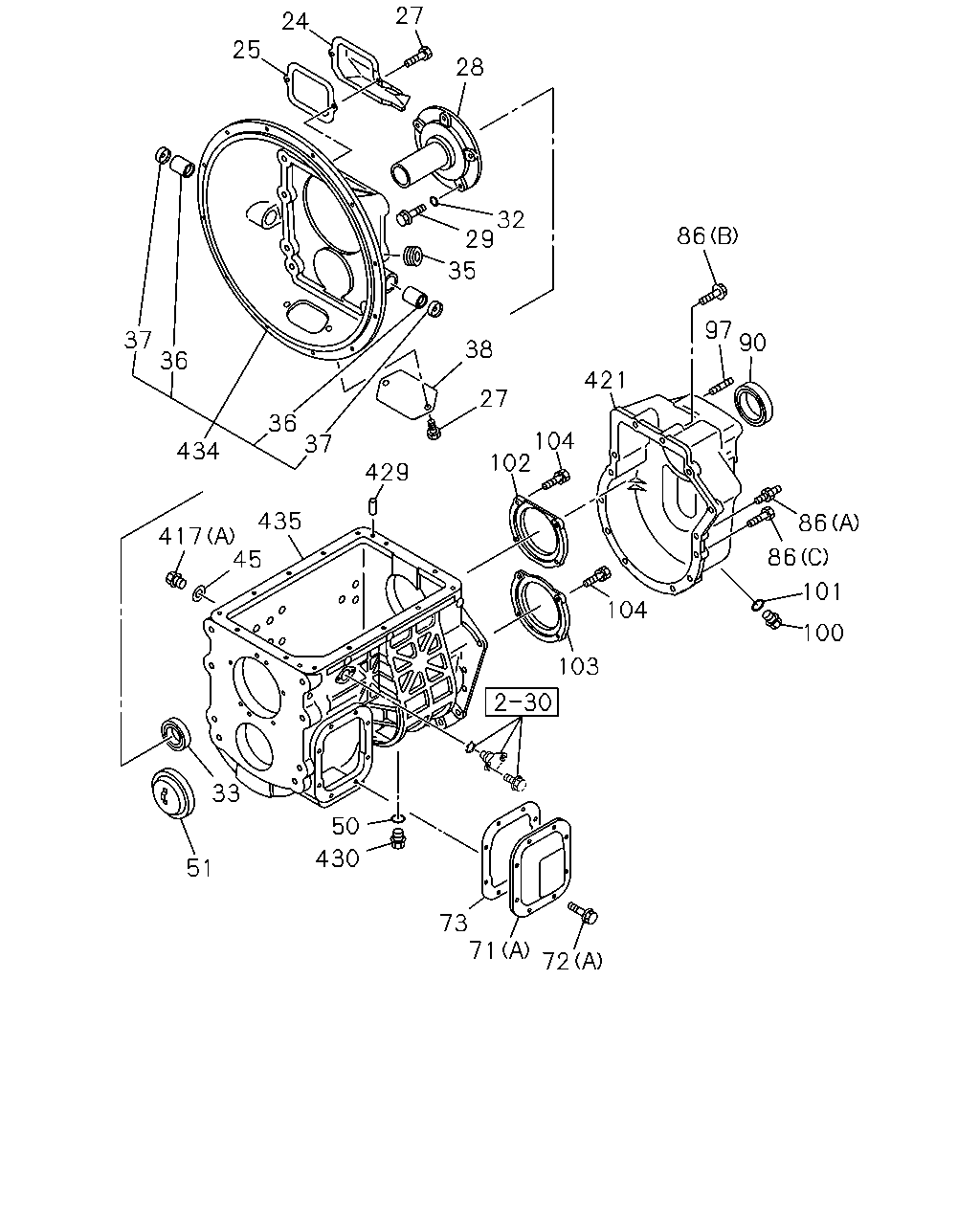

37 25 24 27 28 36 36 37 27 38 35 29 32 86 97 90 86 86 101 100 104 103 102 104 429 435 417 434 45 51 33 50 430 73 71 72 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1302-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1302-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	04	1	1302-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	04	1	1302-		●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	1302-	●
28	COVER; FRT,TRANS CASE	1-33121-159-2	01	1	1302-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	1302-	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1302-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	1302-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1302-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	1302-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1302-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1302-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1302-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1302-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1302-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	1302-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-030-1	01	1	1302-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1302-		●
71	COVER; SIDE,TRANS CASE (D)	1-33141-058-0	01	1	1302-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	1-33141-044-1	01	1	1302-		●
72	BOLT; SIDE COVER (A) M10X16 FLANGE THA	0-28151-016-0	08	1	1302-	●
72	BOLT; SIDE COVER (E) M10X30 FLANGE	0-28151-030-0	04	1	1302-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE THA	0-28151-240-0	07	1	1302-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1302-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M12X30 FLANGE	0-28751-230-0	08	1	1302-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	1302-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-041-0	01	1	1302-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1302-	●
86	BOLT; RR COVER (B) M12X65 FLANGE	1-09044-113-0	02	1	1302-	●
86	BOLT; RR COVER (A) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	1302-	●
86	BOLT; RR COVER (D) M12X40 FLANGE THA	0-28151-240-0	14	1	1302-		●
86	BOLT; RR COVER (E) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1302-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	1302-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1302-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1302-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	1302-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1302-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	1302-	●
103	RETAINER; BRG	9-33151-014-0	01	1	1302-	●
103	RETAINER; BRG	1-33151-059-0	01	1	1302-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	1302-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1302-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1302-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1302-		●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1302-	●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1302-		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	1302-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	1302-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1302-	●	●
434	HOUSING; CLU	1-31110-218-1	01	1	1302-	●
435	CASE; TRANS	1-33111-330-0	01	1	1302-	●
435	CASE; TRANS	8-98132-970-0	01	1	1302-		●
