Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11530 - FXZ/GXZ(RHD)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶
0-50 — OIL COOLER AND OIL FILTER
(#117423) — 90 parça
◀

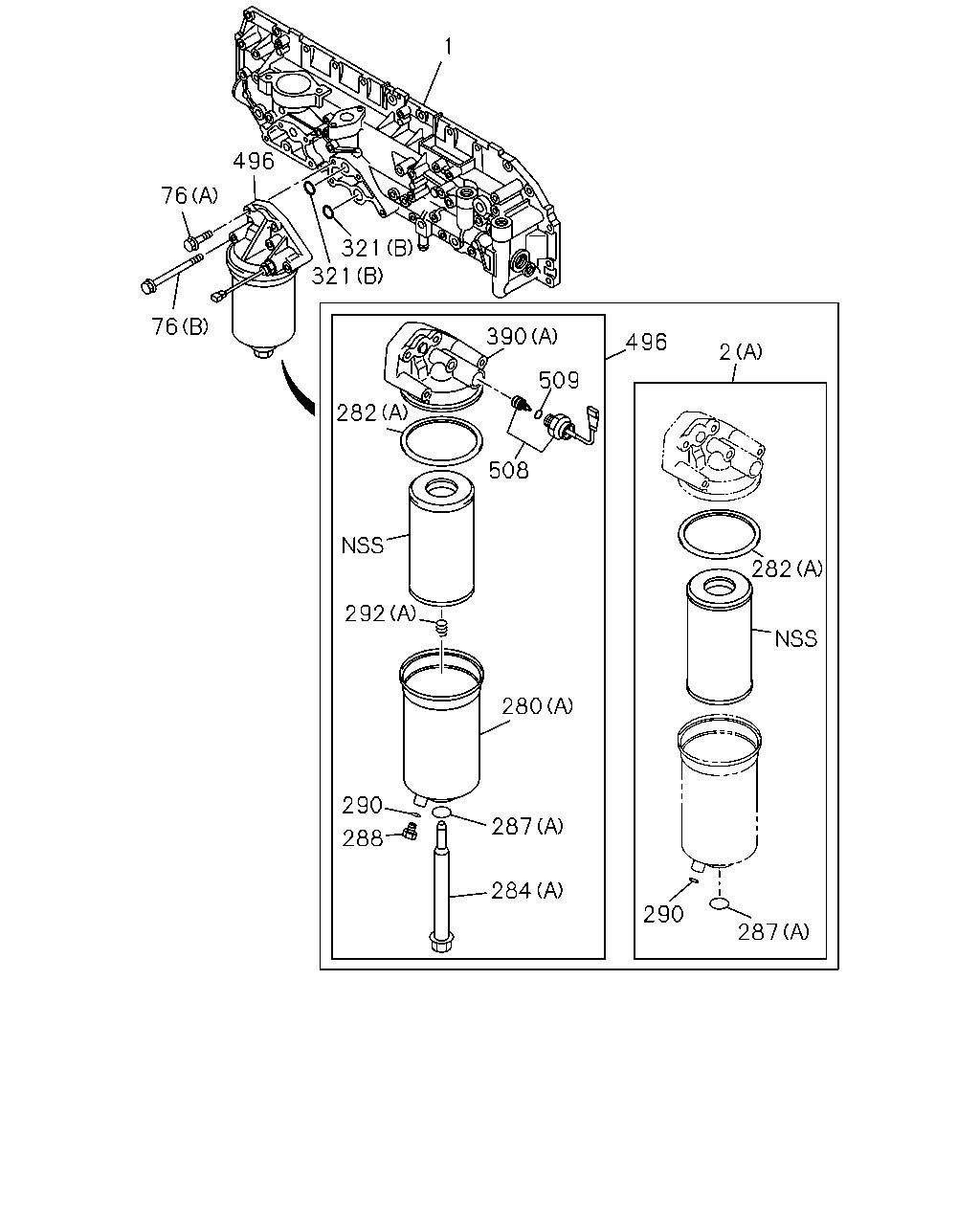

[050A] MAIN FILTER (27 parça)
[050A] PARTIAL FILTER (22 parça)

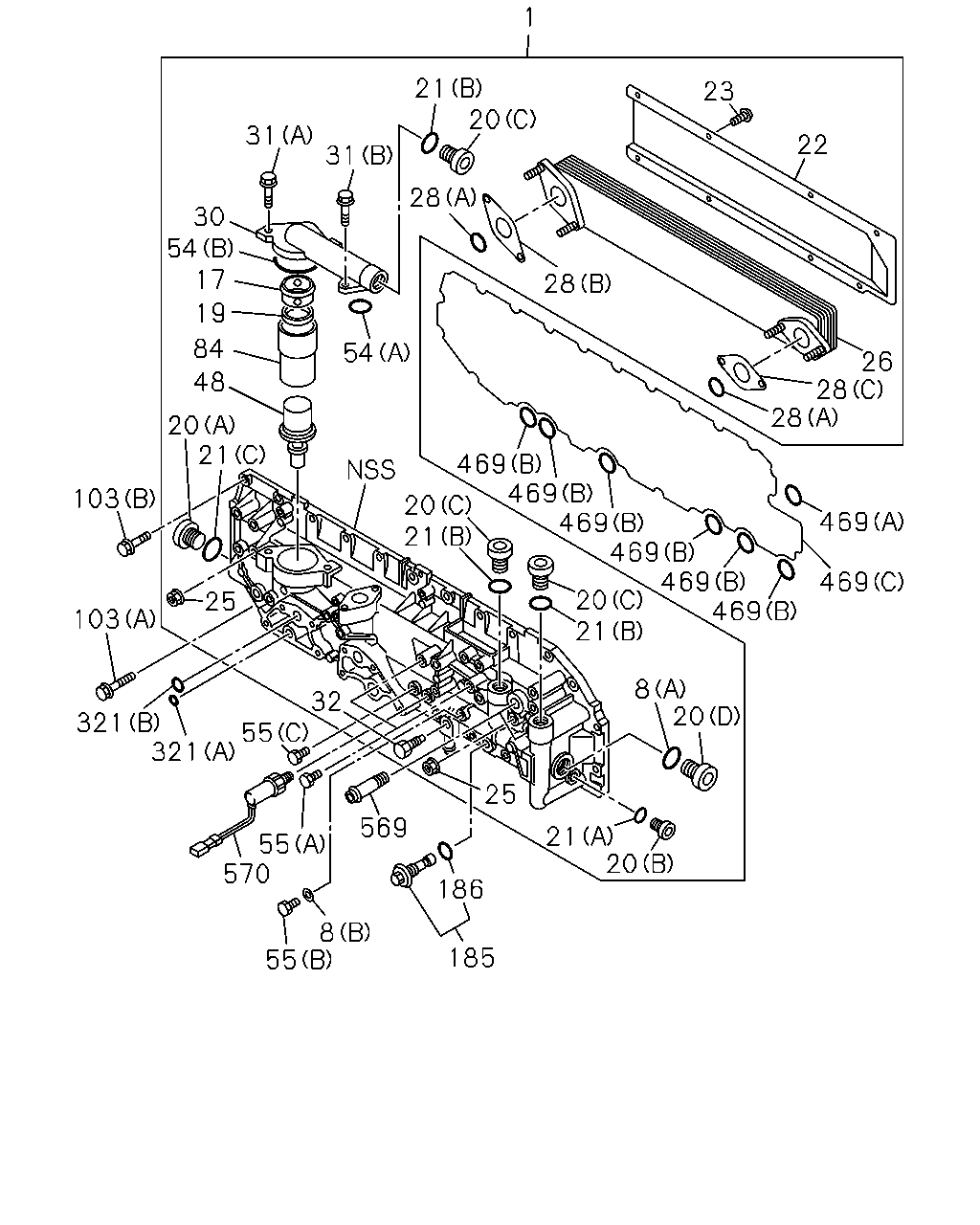

[050A] OIL COOLER (41 parça)
▶
1
496
76
321
321
76
390
282
508
509
292
280
287
290
288
284
290
287
282
2
496
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER & COOLER ASM; OIL
8-98271-170-0
01
1
1304-
2
ELEMENT; OIL FILTER
(A)
1-13240-233-0
01
1
1304-
2
ELEMENT; OIL FILTER
(B)
1-13240-234-1
01
1
1304-
2
ELEMENT; OIL FILTER
(B) BEST VALUE PARTS
1-87610-059-0
01
1
1304-
76
BOLT; OIL FILTER
(C) M10X100 FLANGE
0-28151-000-0
02
1
1304-
76
BOLT; OIL FILTER
(A) M10X50 FLANGE
0-28151-050-0
02
1
1304-
76
BOLT; OIL FILTER
(B) M10X140 FLANGE
0-28156-014-0
02
1
1304-
76
BOLT; OIL FILTER
(D) M10X77 FLANGE
8-98038-705-0
02
1
1304-
280
CASE ASM; OIL FILTER
(A)
1-13211-282-0
01
1
1304-
280
CASE ASM; OIL FILTER
(B)
8-98032-771-1
01
1
1304-
282
GASKET; BODY TO CASE
(A)
1-09623-643-0
01
1
1304-
282
GASKET; BODY TO CASE
(B)
1-09623-644-0
01
1
1304-
284
BOLT; CENTER,OIL FILTER
(B)
1-13219-349-0
01
1
1304-
284
BOLT; CENTER,OIL FILTER
(A)
8-98193-184-0
01
1
1304-
287
GASKET; CENTER BOLT
(A)
1-09623-647-0
01
1
1304-
287
GASKET; CENTER BOLT
(B)
1-09623-648-0
01
1
1304-
288
PLUG; OIL DRAIN
1-13219-346-0
01
1
1304-
290
GASKET; PLUG,OIL DRAIN
1-09623-645-0
01
1
1304-
292
SPRING; ELEMENT
(A)
1-09580-562-0
01
1
1304-
292
SPRING; ELEMENT
(B)
1-09580-563-0
01
1
1304-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
01
1
1304-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
03
1
1304-
390
BODY; OIL FILTER,PARTIAL
(A)
1-13211-284-3
01
1
1304-
390
BODY; OIL FILTER,PARTIAL
(B)
1-13211-285-0
01
1
1304-
496
FILTER ASM; OIL
8-98193-182-2
01
1
1304-
508
CHAMBER ASM; SW,FILTER
1-13260-117-0
01
1
1304-
509
GASKET; SW
8-98013-480-0
01
1
1304-
1
338
76
76
390
282
2
338
282
292
280
132
287
284
287
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER & COOLER ASM; OIL
8-98271-170-0
01
1
1304-
2
ELEMENT; OIL FILTER
(A)
1-13240-233-0
01
1
1304-
2
ELEMENT; OIL FILTER
(B)
1-13240-234-1
01
1
1304-
2
ELEMENT; OIL FILTER
(B) BEST VALUE PARTS
1-87610-059-0
01
1
1304-
76
BOLT; OIL FILTER
(C) M10X100 FLANGE
0-28151-000-0
02
1
1304-
76
BOLT; OIL FILTER
(A) M10X50 FLANGE
0-28151-050-0
02
1
1304-
76
BOLT; OIL FILTER
(B) M10X140 FLANGE
0-28156-014-0
02
1
1304-
76
BOLT; OIL FILTER
(D) M10X77 FLANGE
8-98038-705-0
02
1
1304-
132
PLUG; PARTIAL OIL FILTER
8-98032-770-1
01
1
1304-
280
CASE ASM; OIL FILTER
(A)
1-13211-282-0
01
1
1304-
280
CASE ASM; OIL FILTER
(B)
8-98032-771-1
01
1
1304-
282
GASKET; BODY TO CASE
(A)
1-09623-643-0
01
1
1304-
282
GASKET; BODY TO CASE
(B)
1-09623-644-0
01
1
1304-
284
BOLT; CENTER,OIL FILTER
(B)
1-13219-349-0
01
1
1304-
284
BOLT; CENTER,OIL FILTER
(A)
8-98193-184-0
01
1
1304-
287
GASKET; CENTER BOLT
(A)
1-09623-647-0
01
1
1304-
287
GASKET; CENTER BOLT
(B)
1-09623-648-0
01
1
1304-
292
SPRING; ELEMENT
(A)
1-09580-562-0
01
1
1304-
292
SPRING; ELEMENT
(B)
1-09580-563-0
01
1
1304-
338
FILTER ASM; OIL PARTIAL
8-98139-117-3
01
1
1304-
390
BODY; OIL FILTER,PARTIAL
(A)
1-13211-284-3
01
1
1304-
390
BODY; OIL FILTER,PARTIAL
(B)
1-13211-285-0
01
1
1304-
23
22
28
26
28
28
469
469
28
20
21
31
31
30
54
17
19
84
48
54
20
21
103
103
25
321
321
55
32
55
570
569
8
55
185
186
25
21
20
20
8
21
20
21
20
469
469
469
469
469
469
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER & COOLER ASM; OIL
8-98271-170-0
01
1
1304-
8
GASKET; PLUG
(B) ID=10.2 OD=15.2
1-09630-083-0
01
1
1304-
8
GASKET; PLUG
(A) ID=33.7
8-97608-581-0
01
1
1304-
17
STOPPER; VLV
1-13779-009-0
01
1
1304-
19
SEAL ASM; VLV
1-13779-007-0
01
1
1304-
20
PLUG; COOLER BODY
(A)
8-94391-732-0
01
1
1304-
20
PLUG; COOLER BODY
(B)
8-97608-567-0
01
1
1304-
20
PLUG; COOLER BODY
(C)
8-97608-569-0
03
1
1304-
20
PLUG; COOLER BODY
(D)
8-97608-571-0
01
1
1304-
21
GASKET; PLUG
(A)
8-97608-568-0
01
1
1304-
21
GASKET; PLUG
(B)
8-97608-570-0
03
1
1304-
21
GASKET; PLUG
(C)
8-97608-572-0
01
1
1304-
22
GUIDE; WATER
8-97608-576-0
01
1
1304-
23
SCREW; WATER GUIDE
8-97608-577-0
08
1
1304-
25
NUT; CORE TO BODY
M10 FLANGE
1-13219-324-0
04
1
1304-
26
CORE ASM; OIL COOLER
8-97608-573-0
01
1
1304-
28
GASKET; CORE TO BODY
(A) ID=38.7
1-09623-299-0
02
1
1304-
28
GASKET; CORE TO BODY
(B)
8-97608-574-0
01
1
1304-
28
GASKET; CORE TO BODY
(C)
8-97608-575-0
01
1
1304-
30
PIPE ASM; OIL COOLER
8-97608-578-0
01
1
1304-
31
BOLT; OIL PIPE
(A) M10X25 FLANGE
8-98272-067-0
02
1
1304-
31
BOLT; OIL PIPE
(B) M8X20 FLANGE
1-13219-163-1
02
1
1304-
32
PLUG; DRAIN
1-13219-276-0
01
1
1304-
48
VALVE; THERMO,OIL COOLER
8-98271-171-0
01
1
1304-
54
GASKET; OIL PIPE
(A)
8-97608-579-0
01
1
1304-
54
GASKET; OIL PIPE
(B)
8-97608-580-0
01
1
1304-
55
PLUG; OIL COOLER
(A) M14
8-94399-225-0
02
1
1304-
55
PLUG; OIL COOLER
(B) M10X10
8-97352-537-0
01
1
1304-
55
PLUG; OIL COOLER
(C) M12X9
8-98047-054-0
01
1
1304-
84
SUPPORT; VLV,OIL COOLER & FILTER
1-13779-010-0
01
1
1304-
103
BOLT; OIL COOLER
(A) M10X50 FLANGE
0-28151-050-0
04
1
1304-
103
BOLT; OIL COOLER
(B) M10X30 FLANGE
0-28751-030-0
22
1
1304-
185
VALVE; OIL RELIEF,OIL COOLER
8-98040-002-0
01
1
1304-
186
GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7
9-09566-228-0
01
1
1304-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
01
1
1304-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
03
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2
1-09623-297-0
01
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7
8-94399-279-0
06
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-97609-827-0
01
1
1304-
569
PIPE; WATER,EGR
PT3/8 & OD=18.3 L=47
9-09903-631-0
02
1
1304-
570
SWITCH; OIL PRESSURE
1-82410-163-1
01
1
1304-
