Isuzu WW
▶
TRUCKS
▶
FVR
▶
11527 - FVR(MALAYSIA) 280PS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#117421) — 57 parça
◀

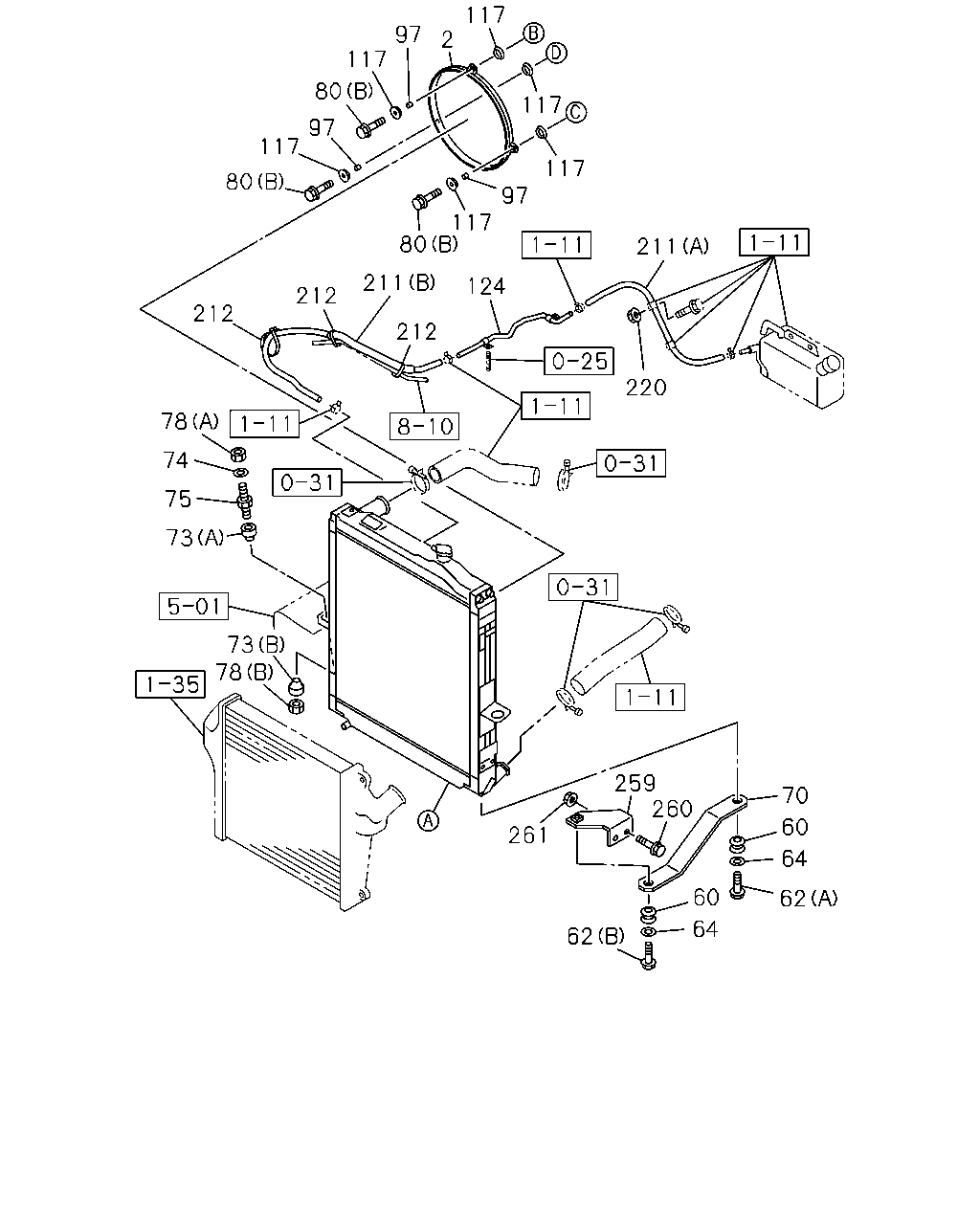

[110A] NO.2 (23 parça)

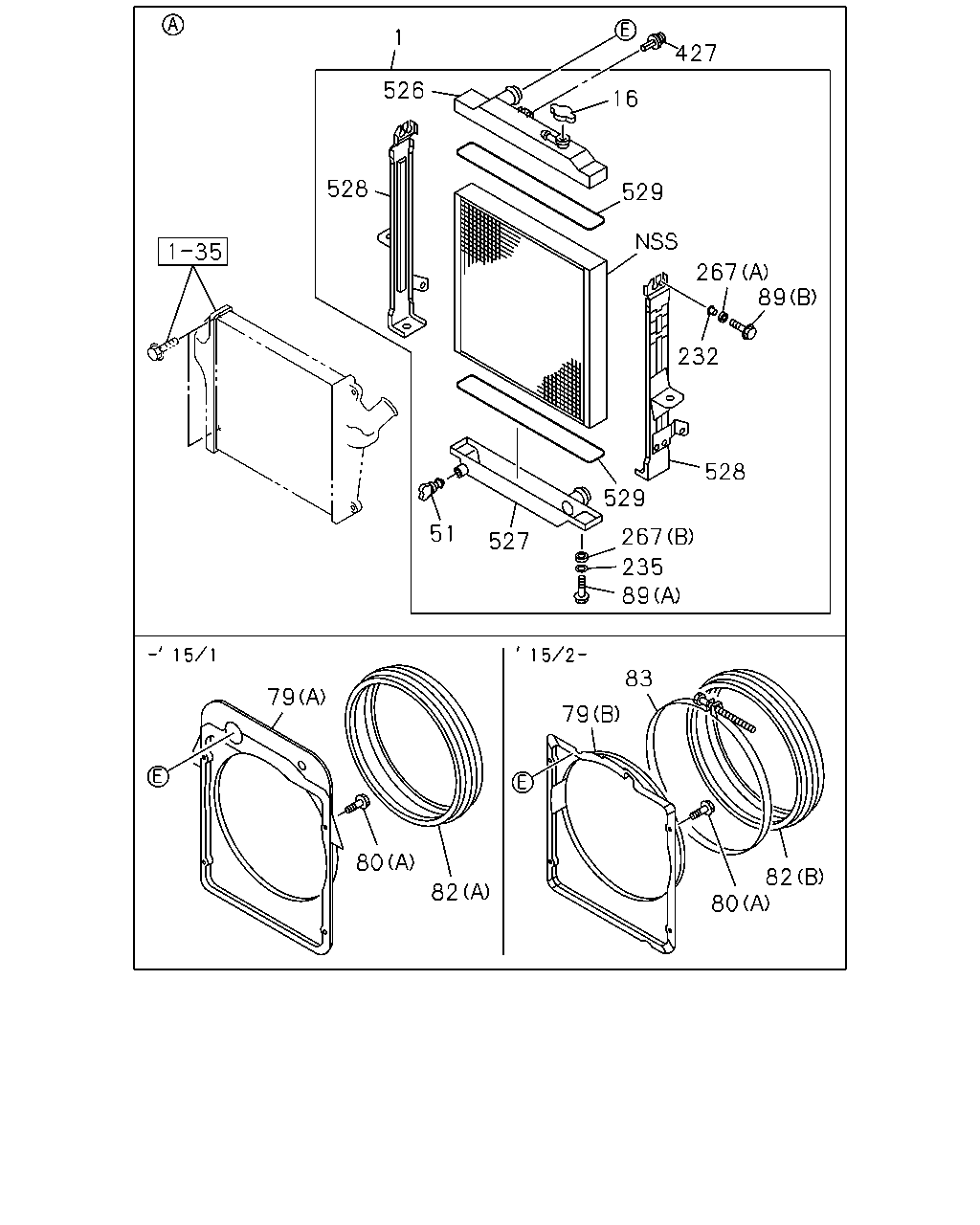

[110A] NO.1 (27 parça)

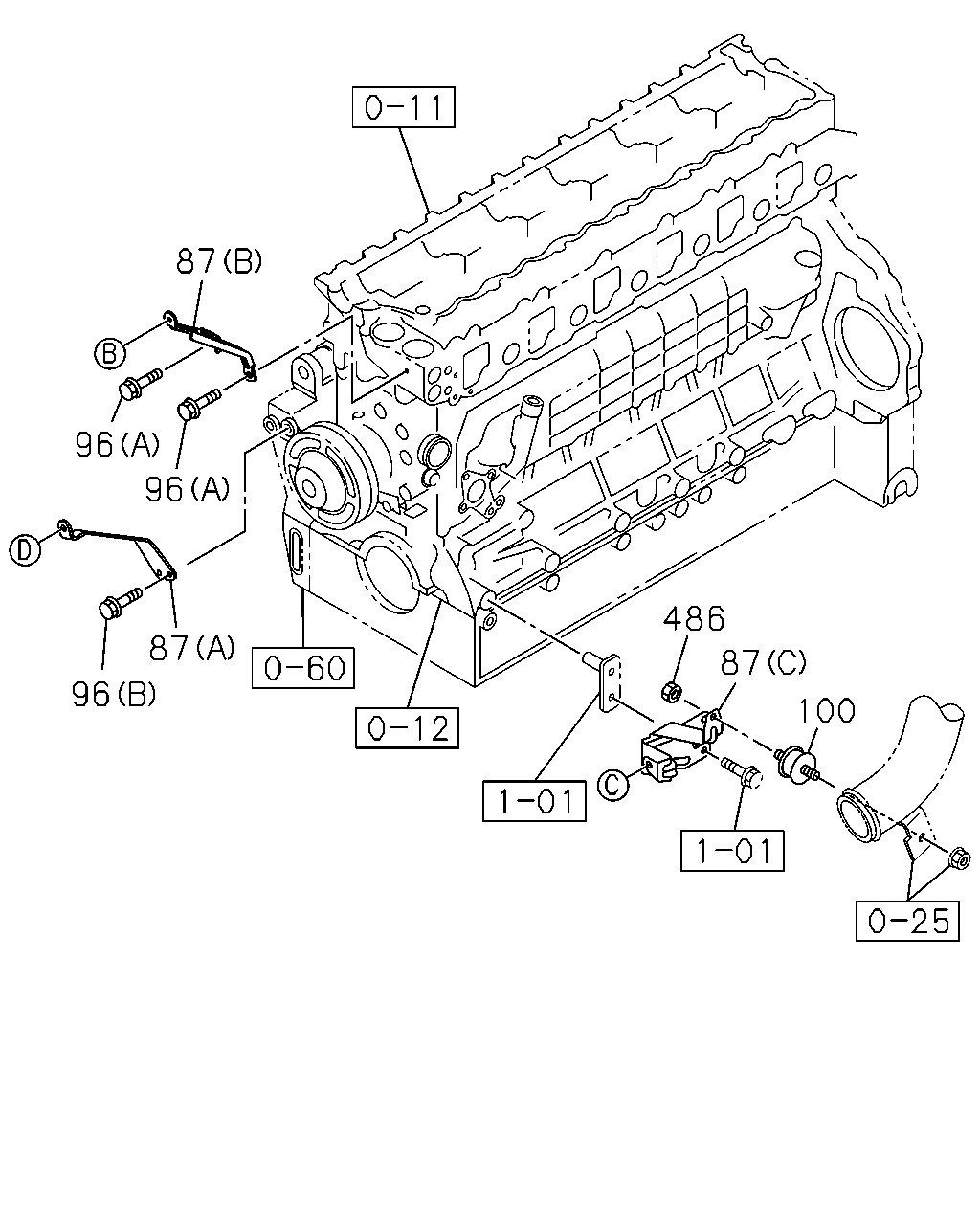

[110A] NO.3 (7 parça)
▶
427
16
529
267
232
89
528
529
235
267
89
527
51
528
526
1
83
79
80
82
82
80
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98139-313-0
01
1
1304-
16
CAP; RAD
8-98096-226-0
01
1
1304-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1304-
79
GUIDE; FAN,RAD
(A)
8-98010-384-0
01
1
1304-1501
79
GUIDE; FAN,RAD
(B)
8-98273-634-0
01
1
1502-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1304-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1304-1501
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1502-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
1304-1501
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1502-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1502-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1304-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1304-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1304-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1304-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1304-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1304-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1304-1501
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1304-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
1304-
528
PLATE; SIDE,RADIATOR CORE
8-98010-371-3
01
1
1304-
528
PLATE; SIDE,RADIATOR CORE
8-98010-372-4
01
1
1304-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1304-
117
2
97
117
80
97
117
80
117
117
97
117
80
211
212
212
124
211
220
212
78
75
74
73
73
78
261
259
260
70
60
64
62
64
62
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1304-
60
GROMMET
1-09332-117-0
04
1
1304-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1304-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1304-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1304-
70
STAY; RAD
8-98004-132-2
02
1
1304-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1304-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1304-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1304-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1304-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1304-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1304-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1304-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1304-1501
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1502-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1304-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1304-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1304-
211
HOSE; RAD TO PIPE
(B) L=970
8-98073-545-0
01
1
1304-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1304-
212
CLIP; HOSE
L=250
5-09707-030-1
02
1
1304-
212
CLIP; HOSE
L=140
5-09707-031-1
01
1
1304-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1304-
259
BRACKET; RAD STAY
8-98071-821-0
01
1
1304-
259
BRACKET; RAD STAY
8-98071-822-0
01
1
1304-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1304-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1304-
87
96
87
96
96
486
87
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1304-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1304-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1304-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1304-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1304-
100
RUBBER; MTG
8-98148-109-0
01
1
1304-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1304-
