Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

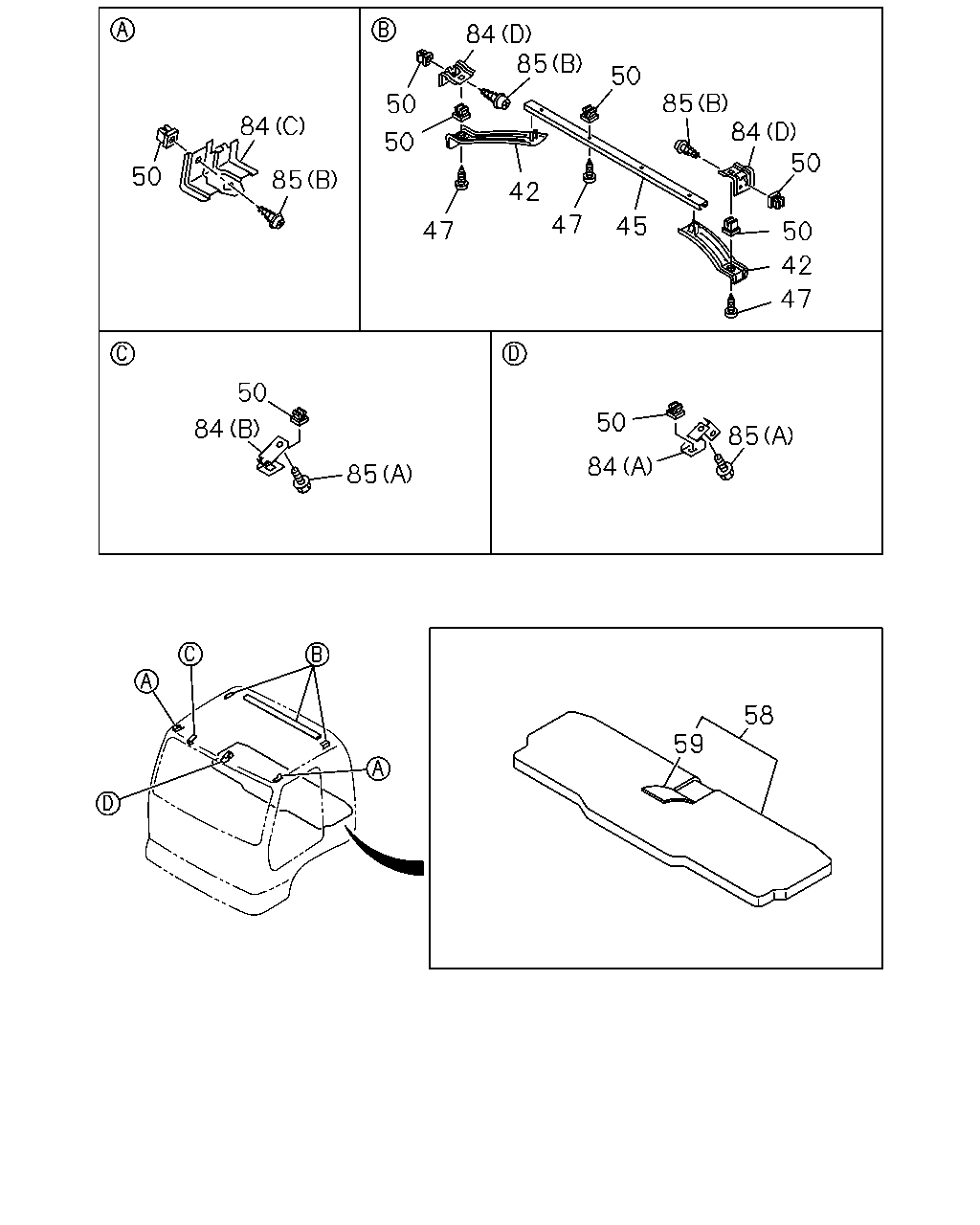

7-70 — SEPARATER AND BED
(#117414) — 17 parça
Tümü
A - FGZ5MX
B - GGZ5MX
84
85
50
84
50
50
85
47
42
50
47
45
85
84
50
50
42
47
50
84
85
50
85
84
59
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1302-
●
●
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1302-
●
●
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1302-
●
●
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1302-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
10
1
1302-1405
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
08
1
1406-
●
●
58
BED; MAT
MATTRESS SLEEPER CAB<E40> THA
8-97924-780-0
01
1
1302-
●
●
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> THA
8-97924-821-0
01
1
1302-
●
●
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1302-1405
●
●
84
BRACKET; CURTAIN RAIL
(D)
8-98042-152-0
02
1
1302-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-290-1
01
1
1302-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98074-740-0
01
1
1302-
●
●
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
04
1
1302-1405
●
●
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
02
1
1406-
●
●
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE
8-97108-669-0
02
1
1302-1306
●
●
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) THA
8-97948-268-0
02
1
1307-1308
●
●
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE THA
0-28450-612-0
02
1
1309-
●
●
