0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

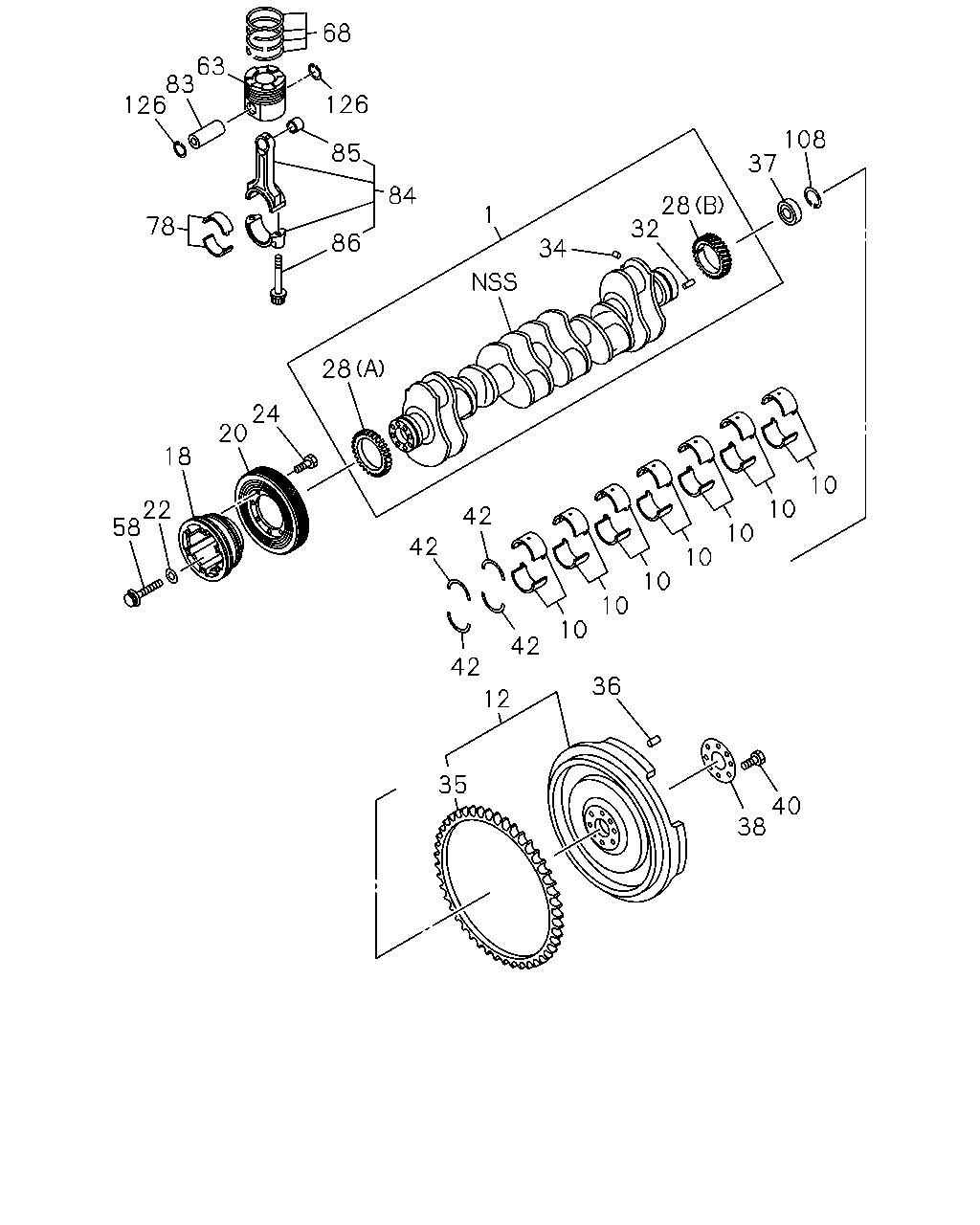

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#117403) — 31 parça
126
83
63
68
126
85
84
86
78
58
22
18
20
24
28
1
34
32
28
37
108
42
42
42
42
10
10
10
10
10
10
10
12
36
40
38
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-046-5
01
1
1304-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97609-768-0
07
1
1304-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97609-769-0
07
1
1304-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97609-770-0
07
1
1304-
12
FLYWHEEL
1-12330-553-0
01
1
1304-
18
PULLEY; CR/SHF
1-GROOVE
8-97603-953-0
01
1
1304-
20
DAMPER; CR/SHF
1-12375-195-0
01
1
1304-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
1304-
24
BOLT; DAMPER
M12X25 FLANGE
0-28161-225-0
08
1
1304-
28
GEAR; CR/SHF
(A) Z=59
8-97607-583-1
01
1
1304-
28
GEAR; CR/SHF
(B) Z=46
8-98002-332-1
01
1
1304-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1304-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1304-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1304-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1304-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1304-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-158-0
01
1
1304-
38
WASHER; FLYWHEEL
ID=64 OD=123.5
1-12336-006-0
01
1
1304-
40
BOLT; FLYWHEEL
M16X62
1-09070-146-1
08
1
1304-
42
WASHER; THRUST,CR/SHF
8-98106-007-0
04
1
1304-
58
BOLT; CR/SHF PULLEY
M16X70 FLANGE
0-28861-670-0
04
1
1304-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
8-98151-363-0
06
1
1304-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
8-98151-364-0
06
1
1304-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98056-464-1
06
1
1304-
78
METAL; CONNROD
8-97605-484-0
06
1
1304-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-97603-263-0
06
1
1304-
84
ROD ASM; CONN
8-98044-950-0
06
1
1304-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-051-0
06
1
1304-
86
BOLT; CONNROD
M13X82 FLANGE
1-12235-046-0
12
1
1304-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1304-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=56.2
1-09587-075-1
12
1
1304-
