◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51472 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#117401) — 17 parça

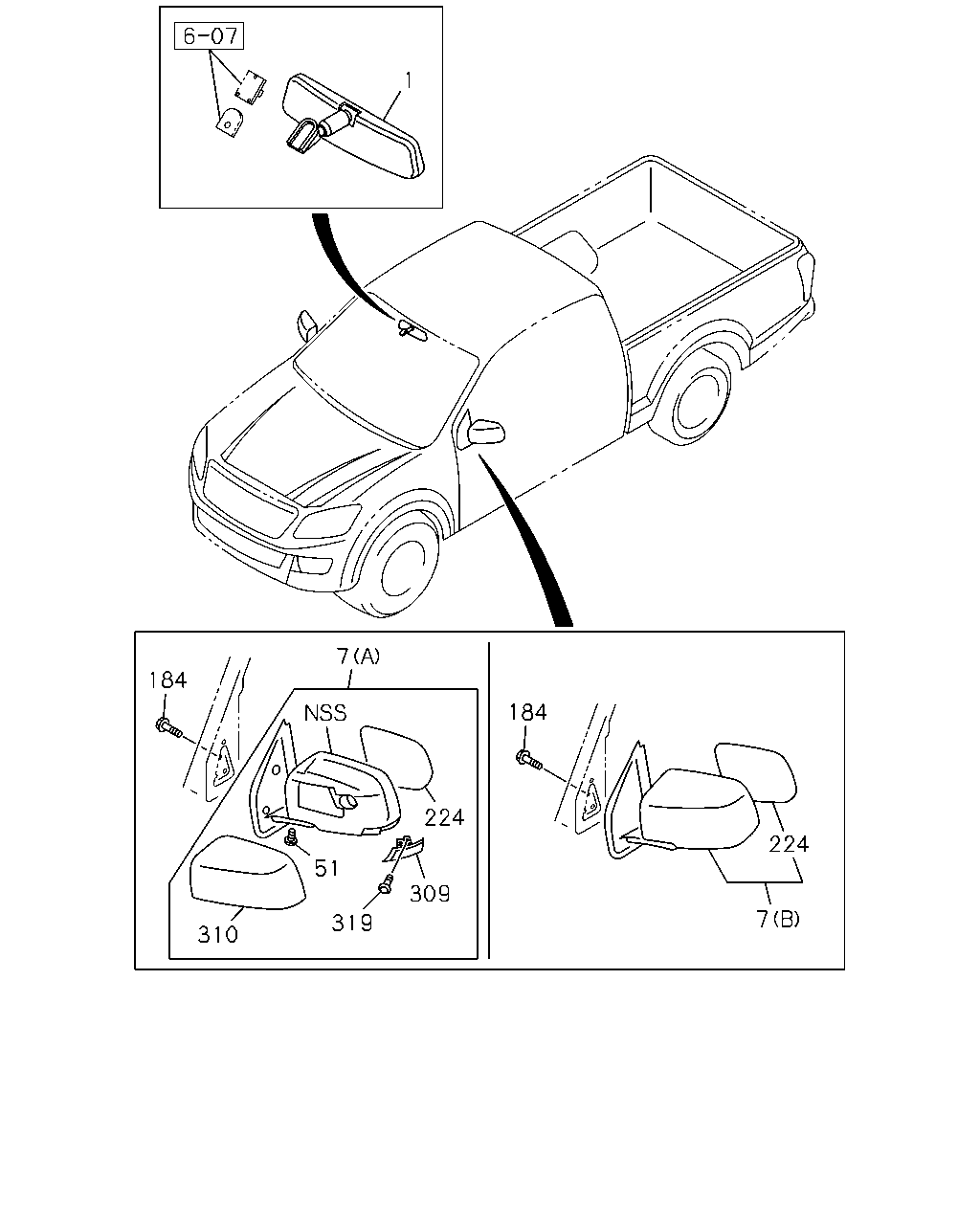

çizim 344068
1 184 7 184 224 7 224 309 319 51 310
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.068 MIRROR; ROOM
RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-97237-560-0 01 1 1304- ● ● ● ●
1 16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98053-645-0 01 1 1304- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) 		8-98065-338-4 01 1 1304- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) 		8-98065-339-4 01 1 1304- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (B) 		8-98065-321-3 01 1 1304- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (B) 		8-98065-322-3 01 1 1304- ● ● ● ●
51 16.069 SCREW; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-685-0 02 1 1304- ● ● ● ●
184 16.069 BOLT; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> 17.455 M6X14 FLANGE 		8-97247-698-0 06 1 1304- ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-678-0 01 1 1304- ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-679-0 01 1 1304- ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR<RT9> 		8-98193-667-0 01 1 1304- ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR<RT9> 		8-98193-668-0 01 1 1304- ● ● ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-683-0 01 1 1304- ● ● ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-684-0 01 1 1304- ● ● ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-686-0 01 1 1304- ● ● ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-687-0 01 1 1304- ● ● ● ●
319 16.069 SCREW; SIDE TURN LAMP
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98193-685-0 02 1 1304- ● ● ● ●
