Sayfa 0-30 - Isuzu EPC

97 97 63 63 63 63 63 63 63 63 63 97 63

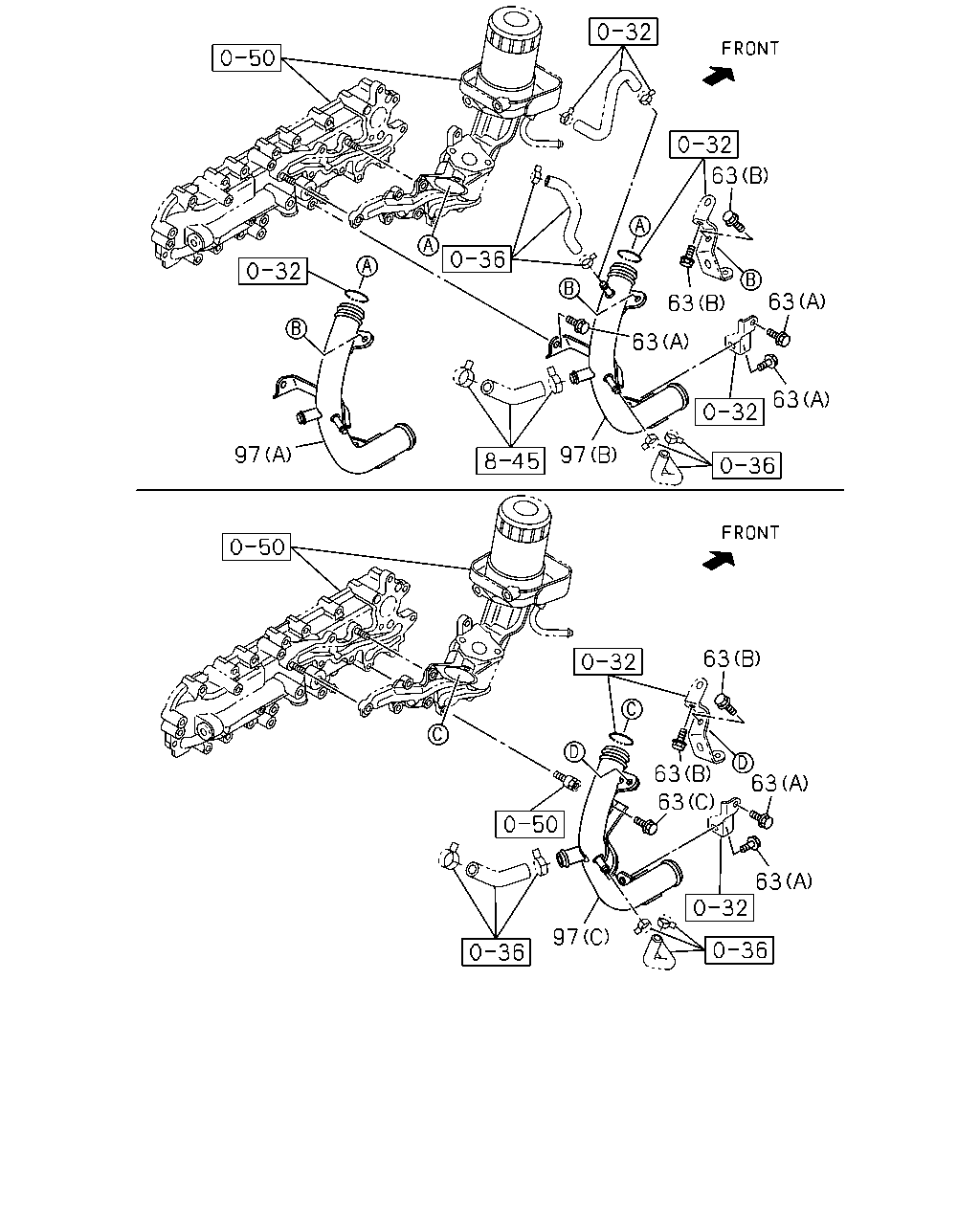

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
63	01.073 BOLT; INL PIPE 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●
63	01.073 BOLT; INL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●
63	01.073 BOLT; INL PIPE 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1304-	●	●	●	●	●
63	01.073 BOLT; INL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1304-		●	●	●	●
97	01.097 PIPE; WATER EURO4 SPECIFICATION<NT4> (A)	8-98132-030-0	01	1	1304-					●
97	01.097 PIPE; WATER (C)	8-98181-124-0	01	1	1304-	●
97	01.097 PIPE; WATER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98132-029-0	01	1	1304-		●	●	●	●

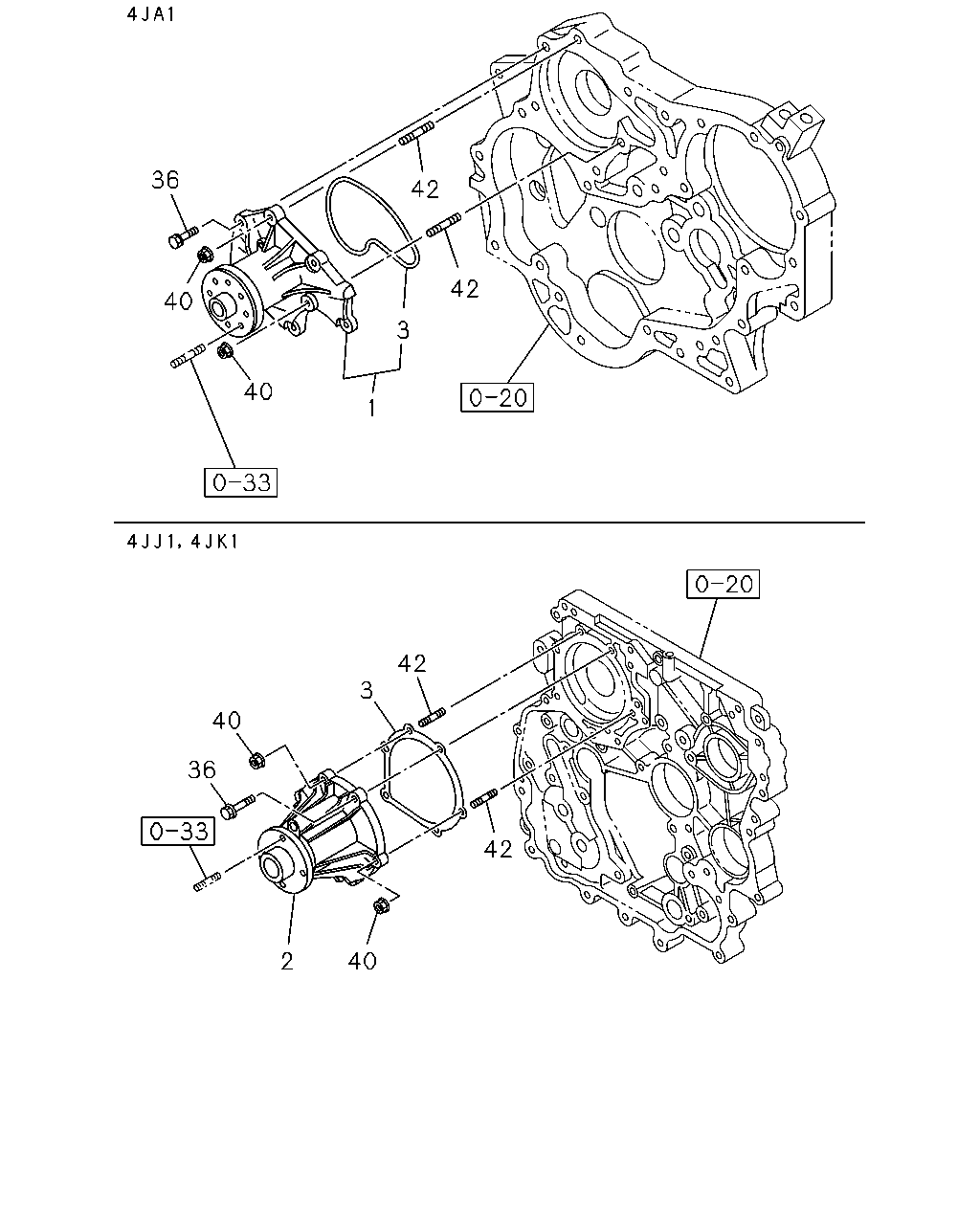

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-5	01	1	1304-						●
2	01.069 PUMP ASM; WATER	8-97312-147-4	01	1	1304-	●	●	●	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-1	01	1	1304-						●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-156-0	01	1	1304-	●	●	●	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	1304-						●
36	00.386 BOLT; WATER PUMP TO C/BL M8X50 FLANGE	0-28050-850-0	04	1	1304-	●	●	●	●	●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-						●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1304-	●	●	●	●	●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	1304-						●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	1304-	●	●	●	●	●
