51472 - TFR/TFS MIDDLE EAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#117391) — 74 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JK1-TCS ENG

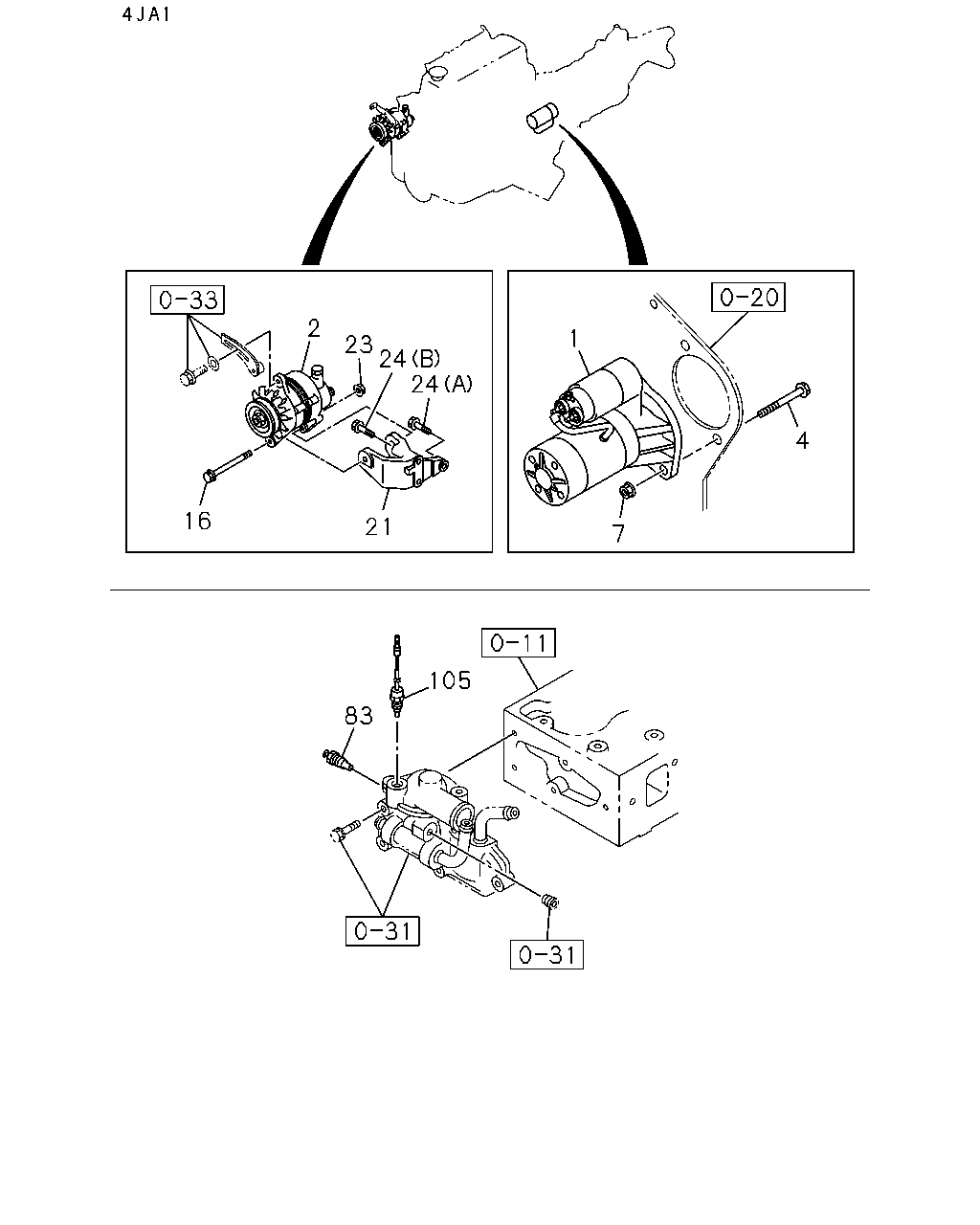

C - 4JA1-T ENG
◀

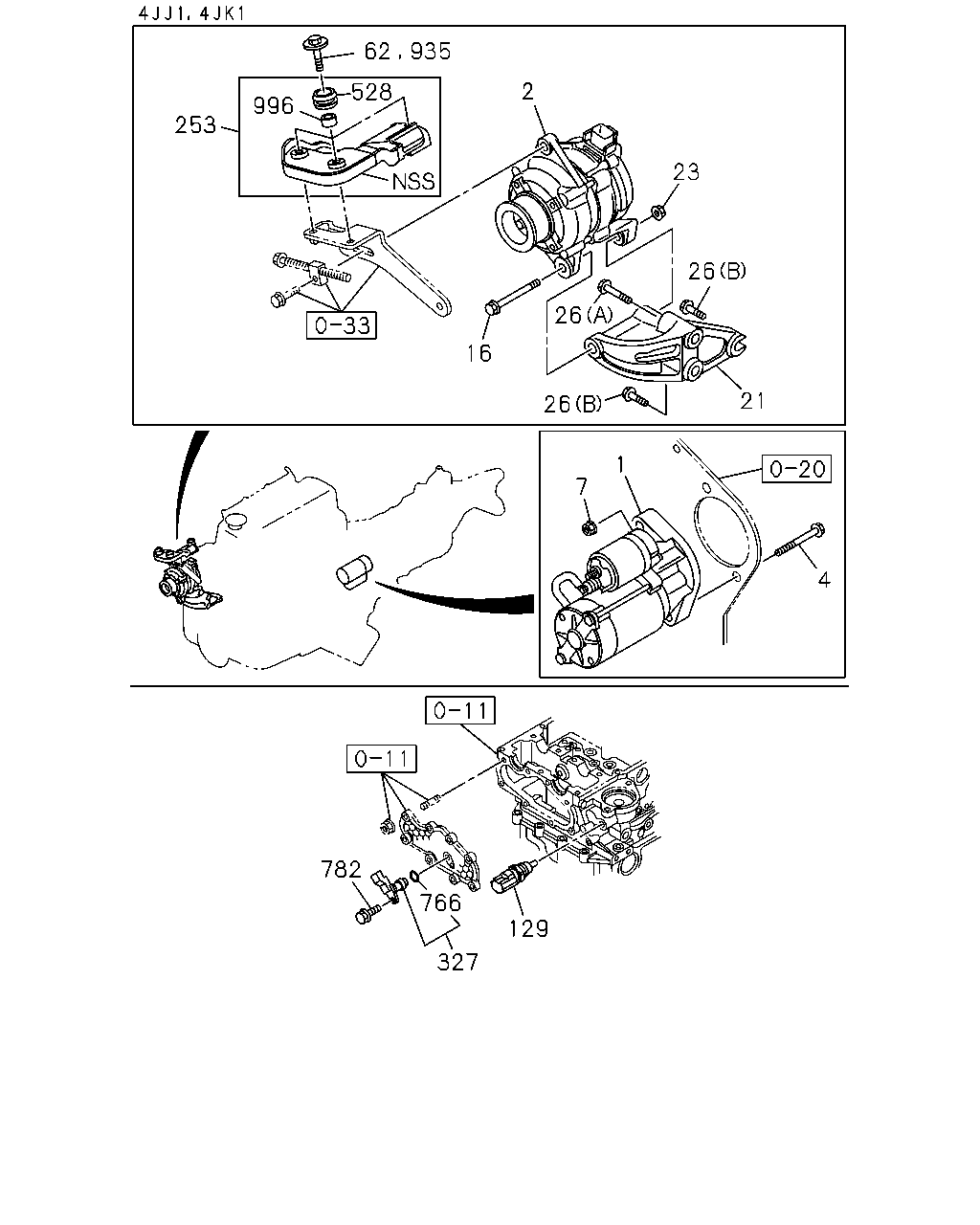

[060A] STARTER,GENERATOR AND THERMO SENSOR (27 parça)
[060A] STARTER,GENERATOR AND THERMO SWITCH (20 parça)

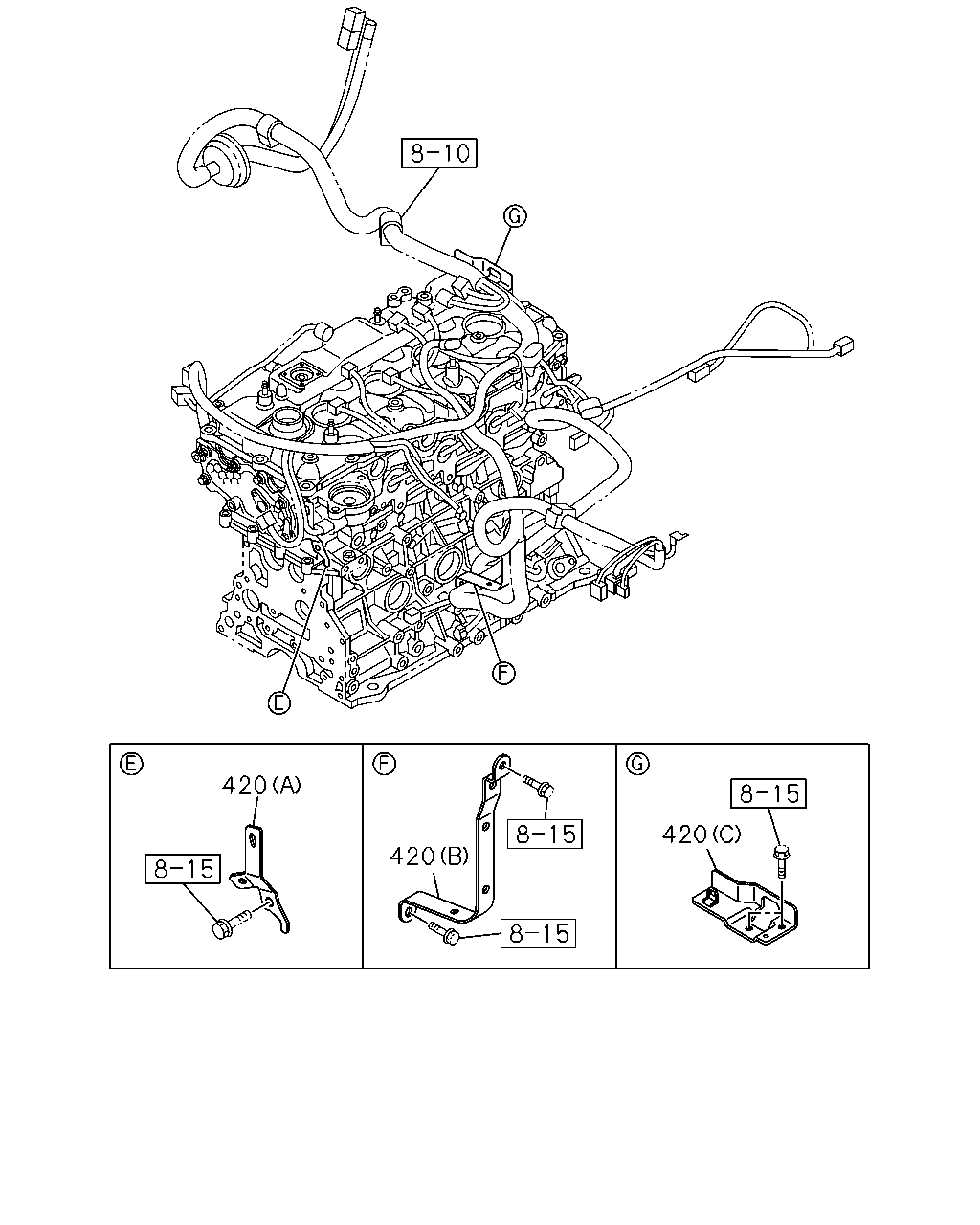

[060A] ENG HARNESS BRACKET AND SENSOR (3 parça)

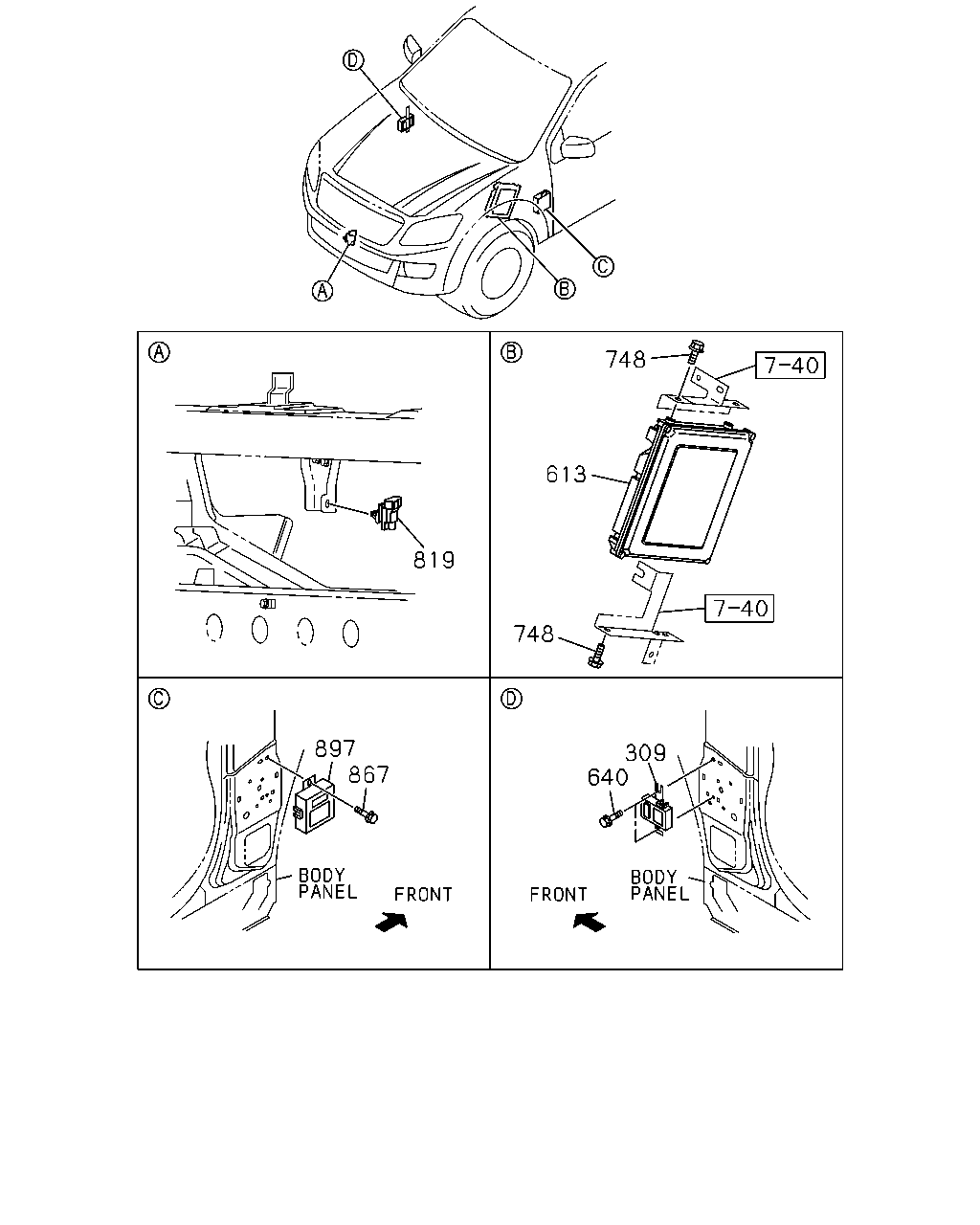

[060A] SENSOR AND CONTROL UNIT (18 parça)

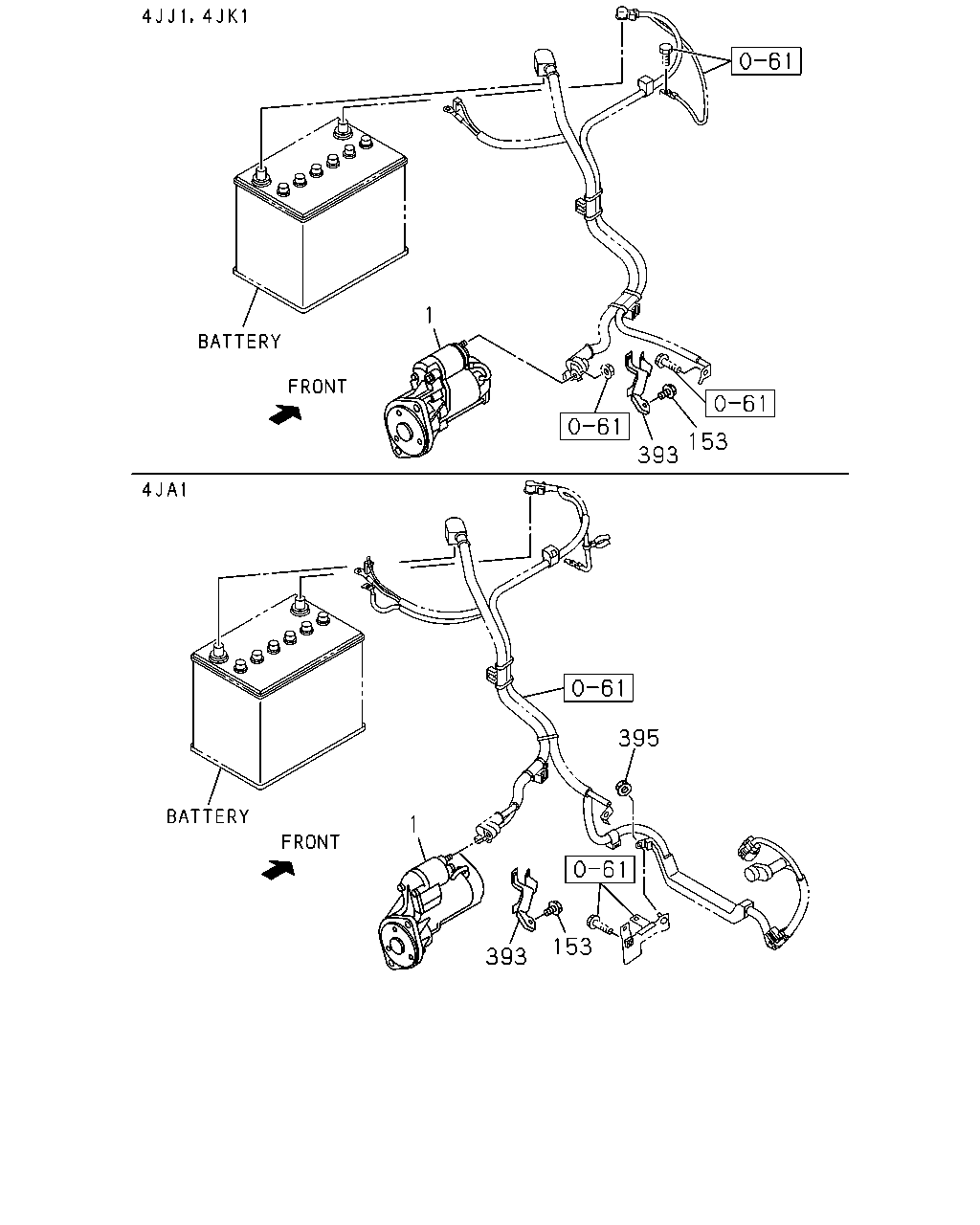

[060A] BATTERY HARNESS BRACKET (6 parça)
▶
4
7
1
21
26
26
26
2
23
16
996
528
62
935
782
766
327
129
253
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-199-0
01
1
1304-
●
●
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-198-0
01
1
1304-
●
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A
8-98229-071-1
01
1
1304-
●
●
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A
8-97245-850-2
01
1
1304-
●
4
02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE
0-28051-260-0
02
1
1304-
●
●
4
02.042 BOLT; STARTER
M12X60 FLANGE
0-28051-260-0
02
1
1304-
●
4
02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60
8-97161-846-1
02
1
1304-
●
●
7
02.042 NUT; STARTER
4X2(TFB***) M12 FLANGE
0-91180-112-0
02
1
1304-
●
●
7
02.042 NUT; STARTER
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE
0-91180-112-0
02
1
1304-
●
●
7
02.042 NUT; STARTER
M12 FLANGE
0-91180-112-0
02
1
1304-
●
16
02.277 BOLT; GEN
M10X125 FLANGE
8-97226-470-1
01
1
1304-
●
●
16
02.277 BOLT; GEN
M10X130 FLANGE
0-28056-013-0
01
1
1304-
●
21
02.277 BRACKET; GEN
8-98169-084-0
01
1
1304-
●
●
21
02.277 BRACKET; GEN
8-94437-276-2
01
1
1304-
●
23
02.277 NUT; GEN
04.085 M10 FLANGE
0-91180-210-0
01
1
1304-
●
●
●
26
02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE
0-28051-060-0
01
1
1304-
●
●
26
02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE
0-28651-040-0
02
1
1304-
●
●
62
02.277 BOLT; PROTECTOR
EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97383-407-0
03
1
1304-
●
●
129
01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI
8-98023-883-0
01
1
1304-1412
●
●
129
01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1501-
●
●
253
02.277 PROTECTOR; HEAT,GEN
8-98157-835-2
01
1
1304-
●
●
327
02.361 SENSOR; CAMSHAFT POSITION
8-97312-108-1
01
1
1304-
●
●
528
02.270 BUSHING
8-98158-298-0
03
1
1304-
●
●
766
02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
1304-
●
●
782
02.510 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
1304-
●
●
935
02.042 BOLT; PROTECTOR
IDENTIFICATION LABEL FOR KD<6UT> 02.277
8-97383-407-0
03
1
1304-
●
●
996
02.042 MOUNT; PROTECTOR
8-98158-299-0
03
1
1304-
●
●
2
16
21
23
1
24
7
4
24
105
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-199-0
01
1
1304-
●
●
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-198-0
01
1
1304-
●
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A
8-98229-071-1
01
1
1304-
●
●
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A
8-97245-850-2
01
1
1304-
●
4
02.042 BOLT; STARTER
IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE
0-28051-260-0
02
1
1304-
●
●
4
02.042 BOLT; STARTER
M12X60 FLANGE
0-28051-260-0
02
1
1304-
●
4
02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60
8-97161-846-1
02
1
1304-
●
●
7
02.042 NUT; STARTER
4X2(TFB***) M12 FLANGE
0-91180-112-0
02
1
1304-
●
●
7
02.042 NUT; STARTER
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE
0-91180-112-0
02
1
1304-
●
●
7
02.042 NUT; STARTER
M12 FLANGE
0-91180-112-0
02
1
1304-
●
16
02.277 BOLT; GEN
M10X125 FLANGE
8-97226-470-1
01
1
1304-
●
●
16
02.277 BOLT; GEN
M10X130 FLANGE
0-28056-013-0
01
1
1304-
●
21
02.277 BRACKET; GEN
8-98169-084-0
01
1
1304-
●
●
21
02.277 BRACKET; GEN
8-94437-276-2
01
1
1304-
●
23
02.277 NUT; GEN
04.085 M10 FLANGE
0-91180-210-0
01
1
1304-
●
●
●
24
02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER
0-50541-035-0
01
1
1304-
●
24
02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER
0-50541-070-0
02
1
1304-
●
83
01.150 THERMOMETER UNIT
DENSO
8-94235-691-0
01
1
1304-
●
83
01.150 THERMOMETER UNIT
YAZAKI
8-94237-861-0
01
1
1304-
●
105
01.150 SWITCH; THERMO,QOS
8-94121-152-1
01
1
1304-
●
420
420
420
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
420
02.183 BRACKET; HARNESS
(A)
8-98132-062-1
01
1
1304-
●
●
420
02.183 BRACKET; HARNESS
(C)
8-98132-063-0
01
1
1304-
●
●
420
02.183 BRACKET; HARNESS
(B)
8-98165-075-0
01
1
1304-
●
●
748
613
748
819
867
897
309
640
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
309
02.510 TIMER; AFTER GLOW,QOS
8-97361-319-3
01
1
1304-
●
613
03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)
8-98178-138-2
01
1
1304-
●
613
03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)
8-98178-141-2
01
1
1304-1408
●
613
03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)
8-98288-113-0
01
1
1409-
●
613
03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)
8-98178-139-2
01
1
1304-1408
●
613
03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1)
8-98178-139-2
01
1
1304-1408
●
613
03.670 CONTROL UNIT; ENG
CREW CAB(TF**W*) A/T 5 SPEED-AISIN(MA1)
8-98178-139-2
01
1
1409-
●
613
03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)
8-98178-137-2
01
1
1304-
●
613
03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)
8-98178-137-2
01
1
1304-
●
613
03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)
8-98178-140-2
01
1
1304-1408
●
613
03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)
8-98178-140-2
01
1
1304-1408
●
613
03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)
8-98288-112-0
01
1
1409-
●
613
03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)
8-98288-112-0
01
1
1409-
●
640
02.510 BOLT; BRKT,QOS GLOW TIMER
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1304-
●
748
02.500 BOLT; CONT UNIT
02.343 M6X16 FLANGE
0-28650-616-0
04
1
1304-
●
●
819
01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA>
8-98008-687-0
01
1
1304-
●
●
●
867
02.559 BOLT
02.343 M6X16 FLANGE
0-28650-616-0
01
1
1304-
●
●
897
02.510 DRM
8-98221-054-4
01
1
1304-
●
●
1
153
393
395
153
393
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-199-0
01
1
1304-
●
●
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW
8-98028-198-0
01
1
1304-
●
153
02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE
8-98043-527-0
01
1
1304-
●
●
153
02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE
0-28050-610-0
01
1
1304-
●
393
02.343 BRACKET; HARNESS TO BODY
8-98102-992-4
01
1
1304-
●
●
●
395
02.343 NUT; BRKT FIX
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 16.320 M6 FLANGE
8-98049-362-0
01
1
1304-
●
