Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

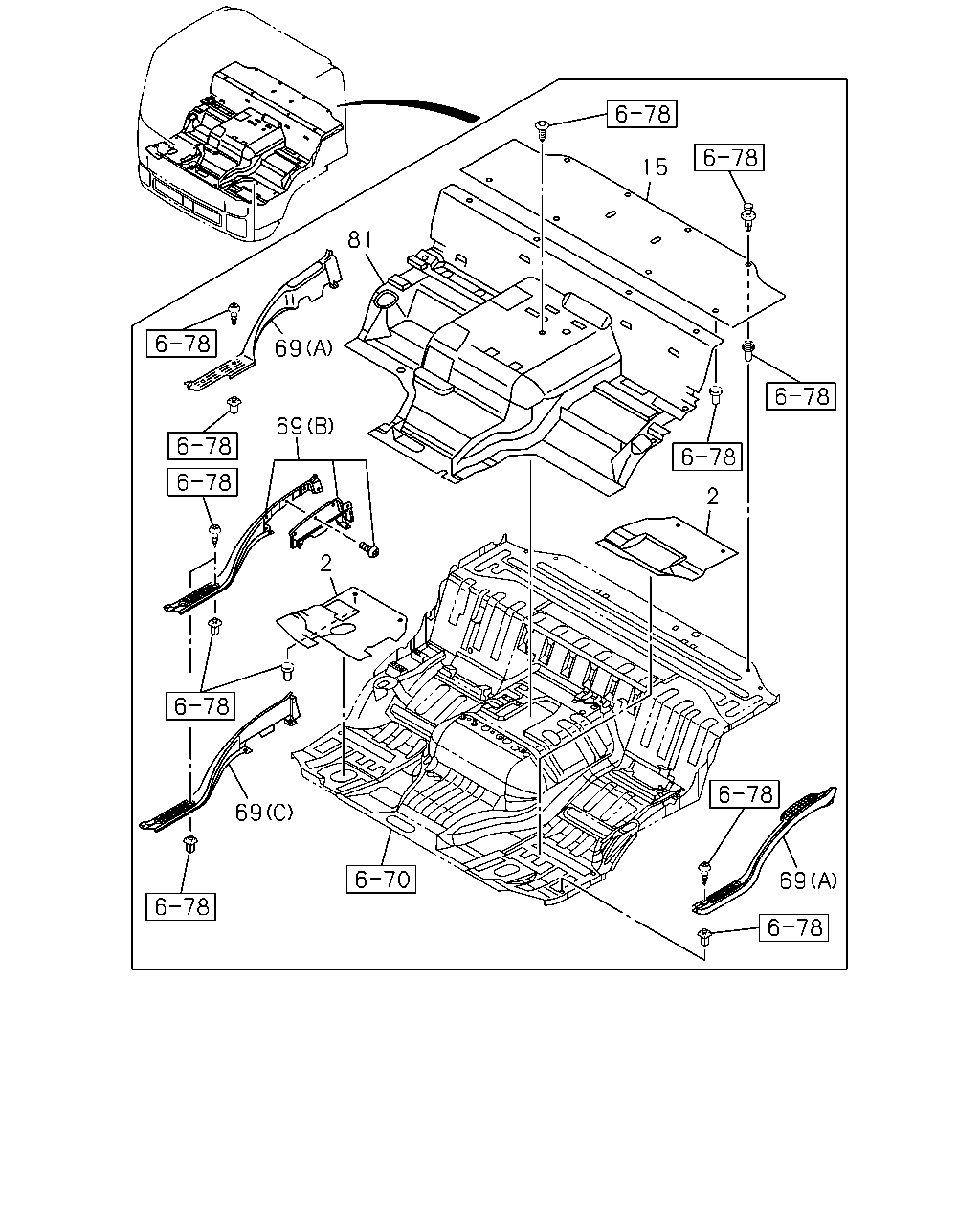

6-75 — MAT AND CARPET (#117384) — 10 parça

15 81 69 69 2 69 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY	8-97413-132-2	01	1	1304-	●	●
2	MAT; FLOOR GRAY	8-97413-133-1	01	1	1304-	●	●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	1304-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1304-1503	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97465-138-0	01	1	1504-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-412-1	01	1	1304-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-412-1	01	1	1304-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1304-	●	●
81	MAT; FLOOR,CENTER GRAY	8-97413-081-6	01	1	1304-	●
81	MAT; FLOOR,CENTER GRAY	8-97413-082-5	01	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
