6-70 — FLOOR PANEL (#117378) — 216 parça

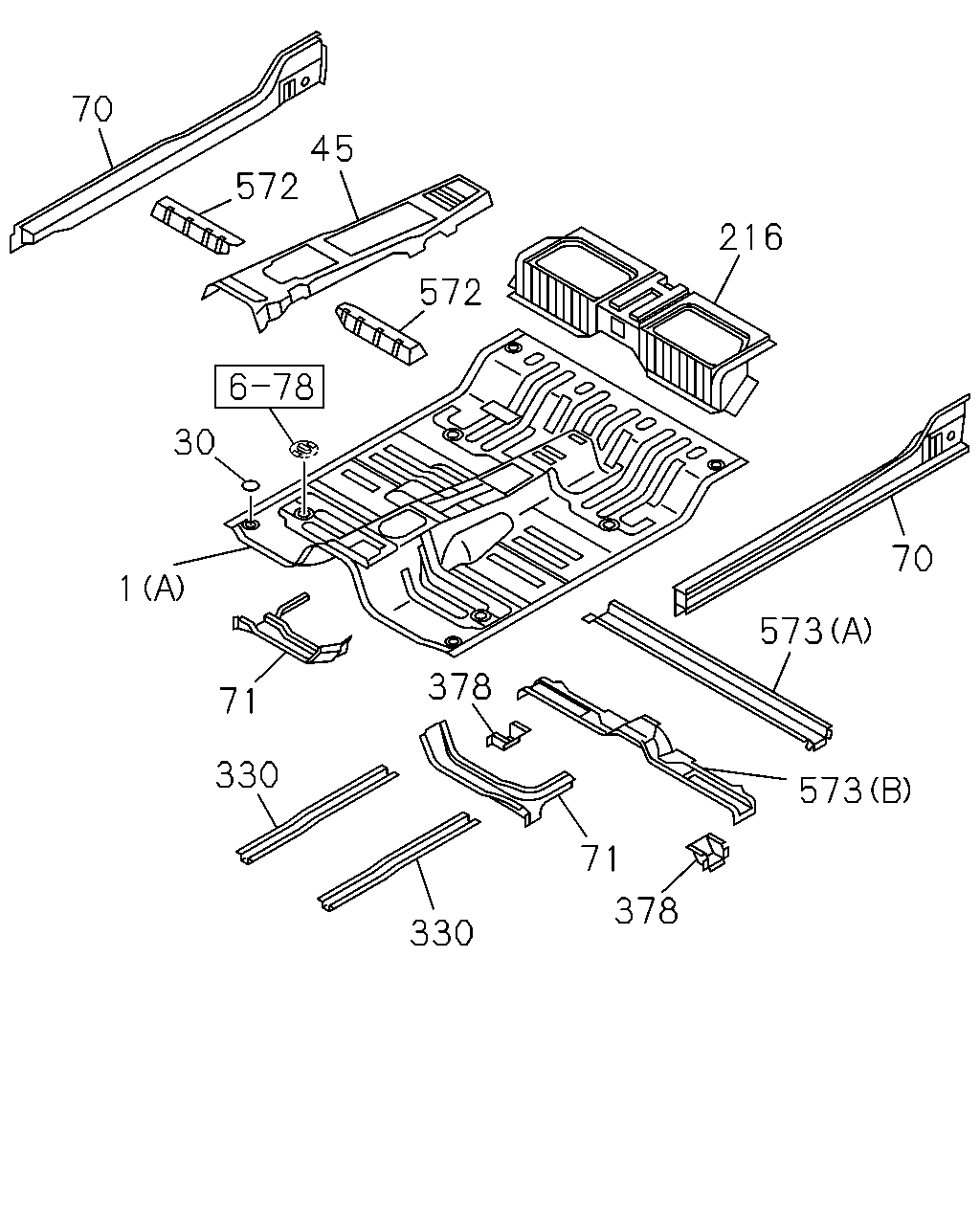

çizim 343855
216 572 45 572 70 70 573 378 330 330 71 378 71 1 30 573
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1304- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98104-004-4 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
AUSTRALIA EQUIPMENT(B13) (B) 		8-98199-516-0 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ●
1 16.545 PANEL; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98199-516-0 01 1 1307- ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1304- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1304- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1304- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT SPLIT BENCH<AM6> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT SPLIT BENCH<AM6> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1304-1304 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1304-1304 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-370-0 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-369-0 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-341-0 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-342-1 01 1 1304- ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1304- ● ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1304- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1304-1304 ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1304- ●
216 16.670 PANEL; SEAT RISER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98116-648-4 01 1 1304- ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304-1304 ● ● ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304- ● ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98100-938-0 02 1 1304- ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304-1304 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304- ● ● ● ● ●
378 16.545 GASSET; LWR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-037-0 02 1 1304- ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304-1304 ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-019-3 01 1 1304- ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304-1304 ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-020-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-2 01 1 1304-1304 ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98104-056-3 01 1 1304- ●

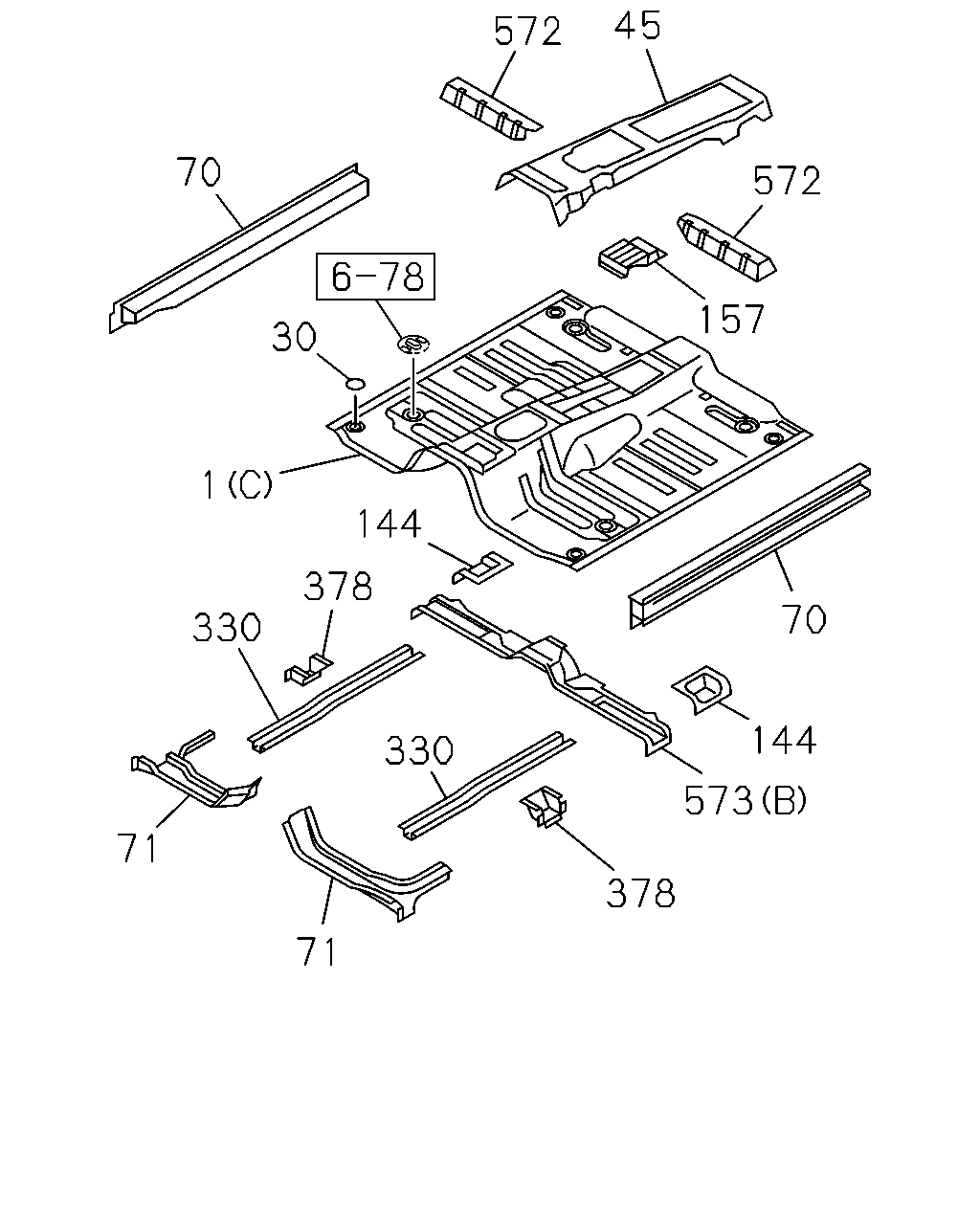

çizim 343898
45 572 70 572 157 30 1 70 144 573 378 71 71 330 330 378 144
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1304- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98104-004-4 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
AUSTRALIA EQUIPMENT(B13) (B) 		8-98199-516-0 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ●
1 16.545 PANEL; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98199-516-0 01 1 1307- ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1304- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1304- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1304- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT SPLIT BENCH<AM6> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT SPLIT BENCH<AM6> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1304-1304 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1304-1304 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-370-0 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-369-0 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-341-0 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-342-1 01 1 1304- ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-2 02 1 1304-1304 ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1304- ●
144 16.545 BRACKET; MTG,RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98100-940-3 02 1 1304- ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1304- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1304-1304 ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1304- ●
157 16.520 BRACKET; TOOL BOX LID
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98115-430-5 01 1 1304- ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304-1304 ● ● ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304- ● ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98100-938-0 02 1 1304- ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304-1304 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304- ● ● ● ● ●
378 16.545 GASSET; LWR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-037-0 02 1 1304- ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304-1304 ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-019-3 01 1 1304- ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304-1304 ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-020-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-2 01 1 1304-1304 ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98104-056-3 01 1 1304- ●

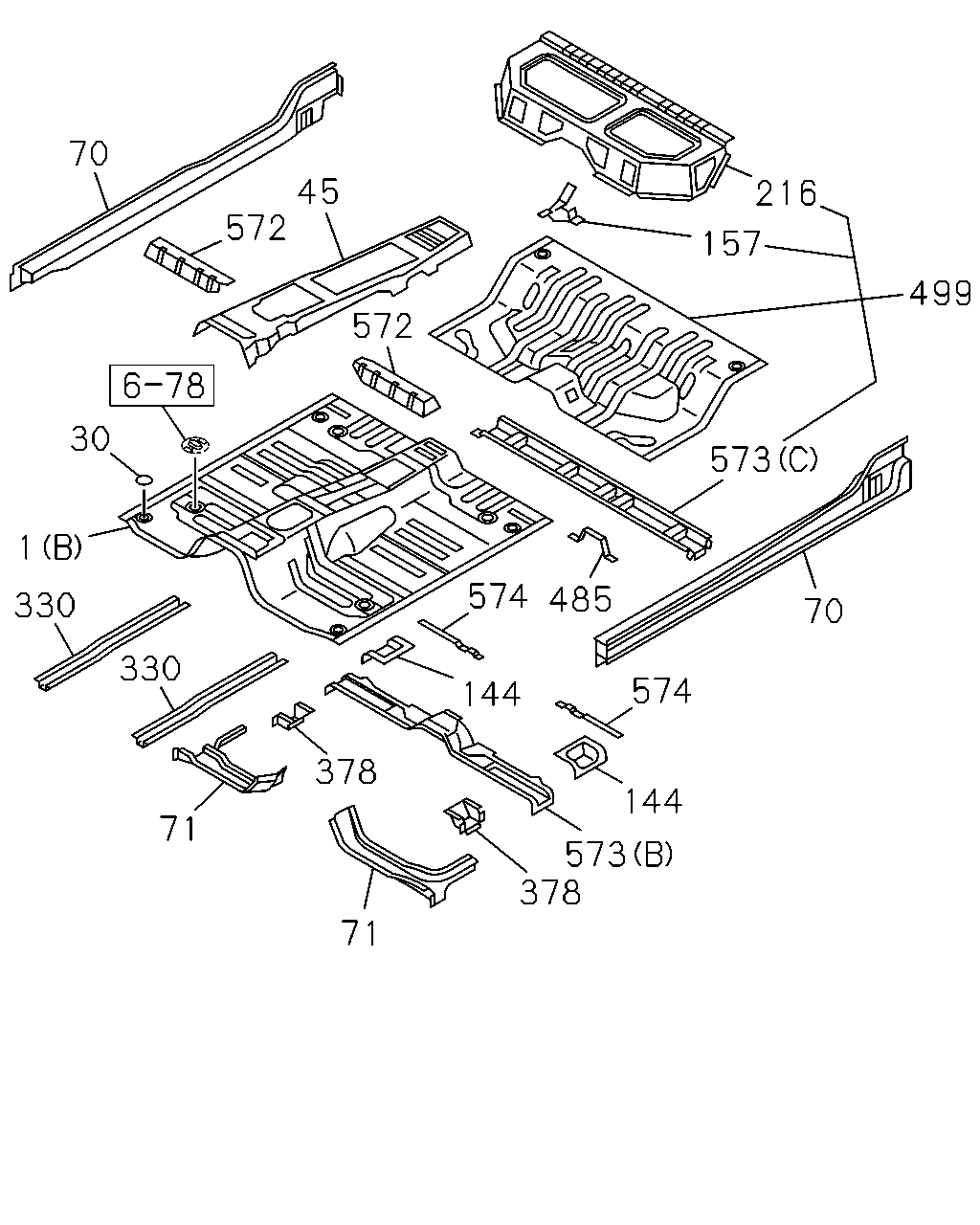

çizim 343937
71 71 330 330 378 378 573 144 574 70 485 574 144 1 30 70 572 45 572 157 573 499 216
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1304- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98104-004-4 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
AUSTRALIA EQUIPMENT(B13) (B) 		8-98199-516-0 01 1 1304-1306 ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ●
1 16.545 PANEL; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98199-516-0 01 1 1307- ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1304- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1304- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1304- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT SPLIT BENCH<AM6> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT SPLIT BENCH<AM6> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1304-1304 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1304-1304 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-370-0 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-369-0 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-341-0 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-342-1 01 1 1304- ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-2 02 1 1304-1304 ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1304- ●
144 16.545 BRACKET; MTG,RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98100-940-3 02 1 1304- ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1304- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1304-1304 ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1304- ●
157 16.520 BRACKET; TOOL BOX LID
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98115-430-5 01 1 1304- ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1304- ● ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1304- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1304-1304 ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1304- ●
216 16.670 PANEL; SEAT RISER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98116-648-4 01 1 1304- ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304-1304 ● ● ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304- ● ● ● ● ●
330 16.545 REINFORCEMENT; FLOOR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98100-938-0 02 1 1304- ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304-1304 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304- ● ● ● ● ●
378 16.545 GASSET; LWR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-037-0 02 1 1304- ●
485 16.800 SEAL; TAPE TYPE 8-94336-915-0 01 1 1304-1304 ● ●
485 16.800 SEAL; TAPE TYPE 8-94336-915-0 01 1 1304- ●
485 16.800 SEAL; TAPE TYPE
EXC. AUSTRALIA EQUIPMENT(B13) 		8-94336-915-0 01 1 1304- ●
499 16.545 PANEL; FLOOR,RR 8-98116-646-9 01 1 1304-1304 ● ●
499 16.545 PANEL; FLOOR,RR 8-98116-646-9 01 1 1304-1506 ●
499 16.545 PANEL; FLOOR,RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98116-646-9 01 1 1304-1506 ●
499 16.545 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ●
499 16.545 PANEL; FLOOR,RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98322-482-0 01 1 1507- ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304-1304 ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-019-3 01 1 1304- ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304-1304 ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-020-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-2 01 1 1304-1304 ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98104-056-3 01 1 1304- ●
574 16.800 TAPE; ADHESIVE 8-98178-885-0 02 1 1304-1304 ● ●
574 16.800 TAPE; ADHESIVE 8-98178-885-0 02 1 1304- ●
574 16.800 TAPE; ADHESIVE
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98178-885-0 02 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
