◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51477 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#117374) — 38 parça
çizim 343828
1 220 7 1 7 1 220 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-957-5 01 1 1308- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-955-5 01 1 1308- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97416-956-5 01 1 1308- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-953-5 01 1 1308- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-954-5 01 1 1308- ●
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-380-4 01 1 1304- ● ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-379-4 01 1 1304- ● ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97419-377-4 01 1 1304- ● ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-376-4 01 1 1304- ● ●
1 16.742 LINING; HD
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-378-4 01 1 1304- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97417-113-3 01 1 1304- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) GRAY 		8-97419-375-2 01 1 1304- ● ●
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-385-4 01 1 1304-1307 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-385-4 01 1 1308- ●
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-385-4 01 1 1308- ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-384-4 01 1 1304-1307 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-384-4 01 1 1308- ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-384-4 01 1 1308- ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97419-382-4 01 1 1304-1307 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97419-382-4 01 1 1308- ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97419-382-4 01 1 1308- ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-381-4 01 1 1304-1307 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-381-4 01 1 1308- ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-381-4 01 1 1308- ●
1 16.742 LINING; HD
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-383-4 01 1 1304-1307 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-383-4 01 1 1308- ●
1 16.742 LINING; HD
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-383-4 01 1 1308- ●
7 16.742 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 02 1 1304- ● ● ● ● ● ●
220 16.165 BRACKET; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98128-570-0 02 1 1304- ● ● ● ●

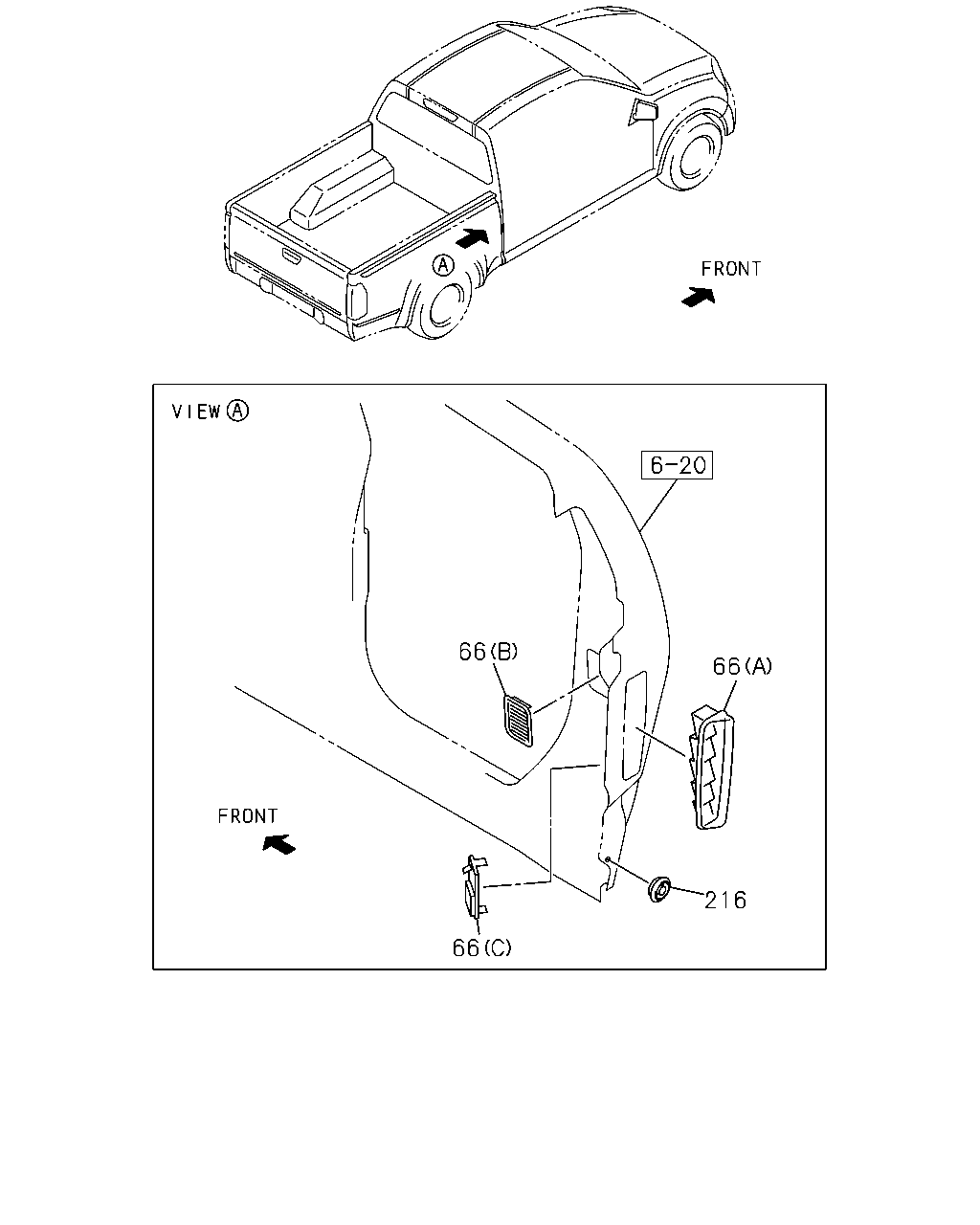

çizim 343840
66 66 216 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-822-2 01 1 1304- ● ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-823-2 01 1 1304- ● ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(C) 		8-97251-682-1 02 1 1304- ● ●
66 16.576 GRILLE; AIR OUTLET
(B) 		8-97365-208-0 02 1 1304- ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 10 1 1304- ● ●
216 16.576 GROMMET; HOLE
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.549 OD=30 		8-94107-655-0 02 1 1304- ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 12 1 1304-1307 ● ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 16.575 OD=19 		8-97365-823-0 12 1 1308- ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 12 1 1308- ●
