◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#117368) — 64 parça

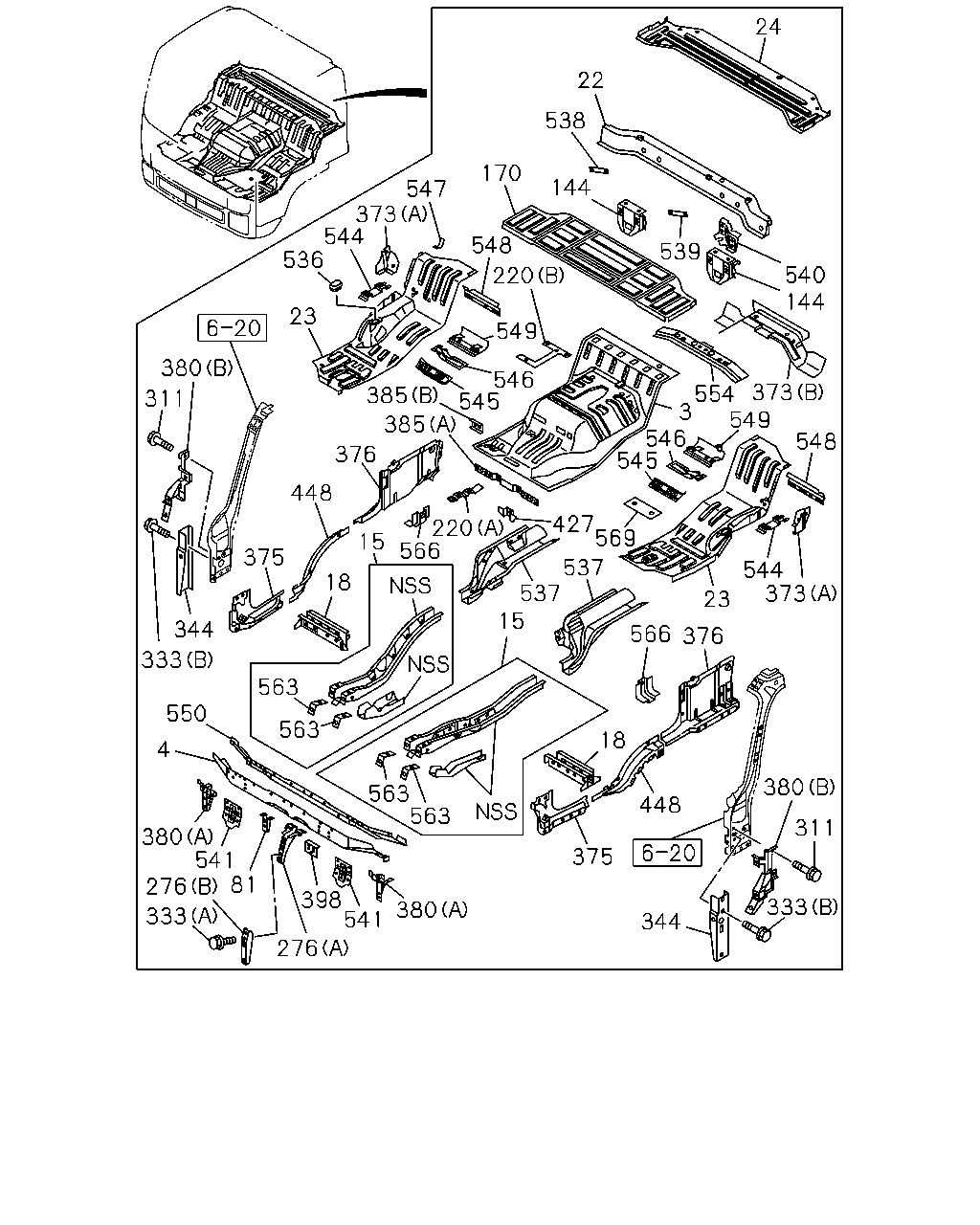

çizim 345388
24 22 538 144 539 540 144 170 547 373 548 220 544 536 549 549 545 385 385 376 380 311 344 333 550 4 380 541 563 563 563 375 448 15 18 566 220 427 569 545 546 3 554 373 549 548 544 373 376 566 537 15 18 448 380 311 375 563 537 276 81 333 398 541 276 380 344 333 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98046-585-7 01 1 1302- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1302- ● ●
15 FRAME; UNDER 8-98055-645-2 01 1 1302- ● ●
15 FRAME; UNDER 8-98055-646-2 01 1 1302- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1302- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1302- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1302- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1302- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1302- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1302- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1302- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1302- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1302- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1302- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 1302-1306 ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 1302- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1302- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1302- ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1302- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 04 1 1302- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1302- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1302- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1302- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1302- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1302- ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1302- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1302- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1302- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1302-1403 ● ●
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1302- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1302- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1302- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1302- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1302- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1302- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1302- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1302-1306 ● ●
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1307- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1302- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1302- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1302- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1302- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1302- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1302- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1302- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1302- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1302- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1302- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1302- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1302- ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1302- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1302- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1302- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1302- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1302- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1302- ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1302- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1302- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1302- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1302- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1302- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1302- ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1302- ● ●
