◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#117367) — 15 parça

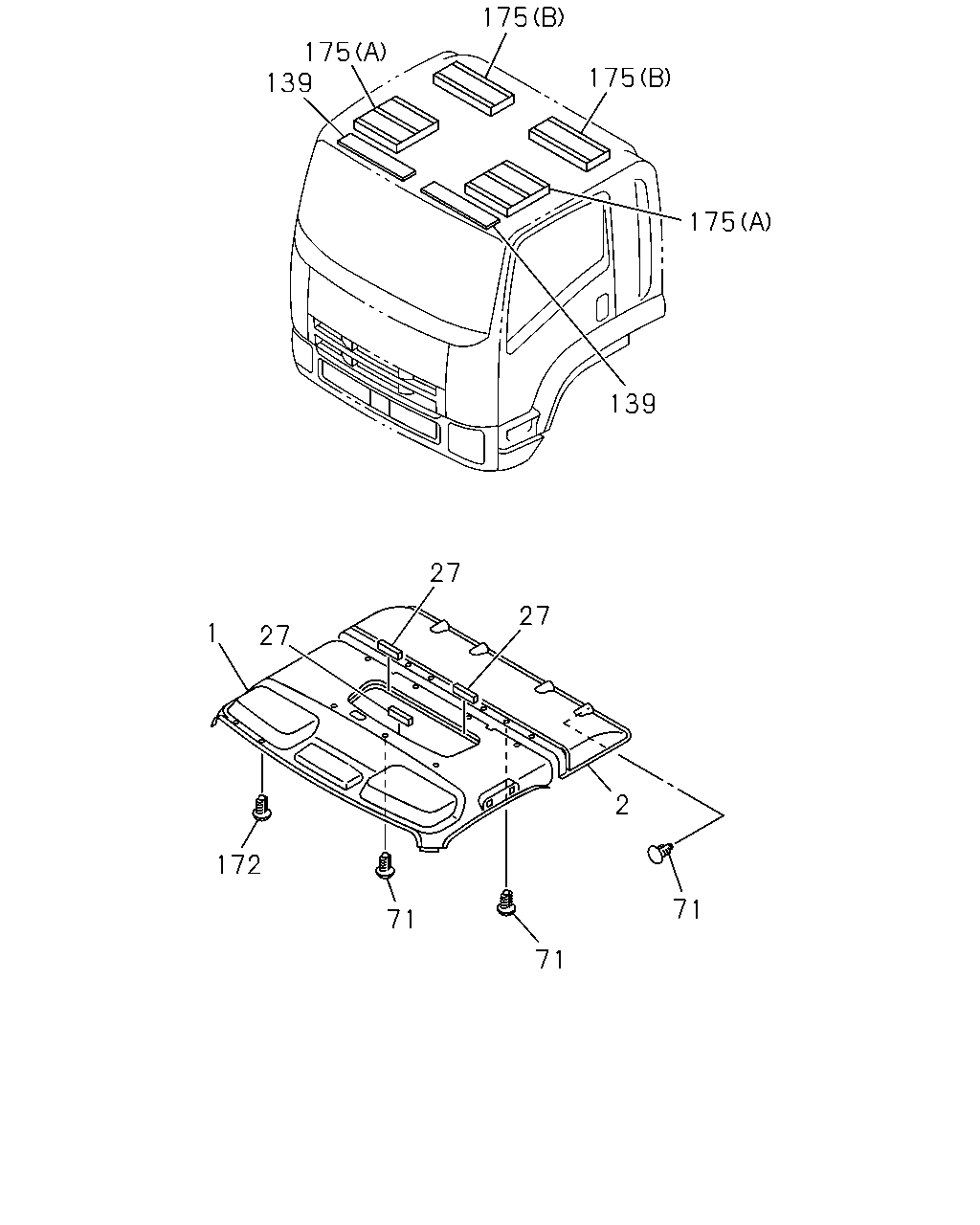

çizim 345389
175 175 175 139 175 139 27 27 2 71 71 172 1 27 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97416-360-0 01 1 1304-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-741-0 01 1 1307- ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97409-899-3 01 1 1304-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-728-0 01 1 1307- ● ●
1 LINING; HD
HEADER CONSOLE DRIVER<EFH> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97416-359-0 01 1 1304-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER<EFH> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-740-0 01 1 1307- ● ●
1 LINING; HD
HEADER CONSOLE DRIVER<EFH> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97409-898-3 01 1 1304-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER<EFH> SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-727-0 01 1 1307- ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97407-455-5 01 1 1304- ● ●
27 INSULATION; ROOF
FLUORESCENT LAMP<6UC> 		8-98046-638-2 03 1 1304- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1304- ● ●
139 SEAL; ROOF 8-98169-116-0 02 1 1304- ● ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 12 1 1304- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1304- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1304- ● ●
