Isuzu WW
▶
PICKUP
▶
TFR
▶
51472 - TFR/TFS MIDDLE EAST
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#117364) — 26 parça
Tümü
A - TFB6SF
B - TFS6SF
C - TFB6WF
D - TFS6WF
◀

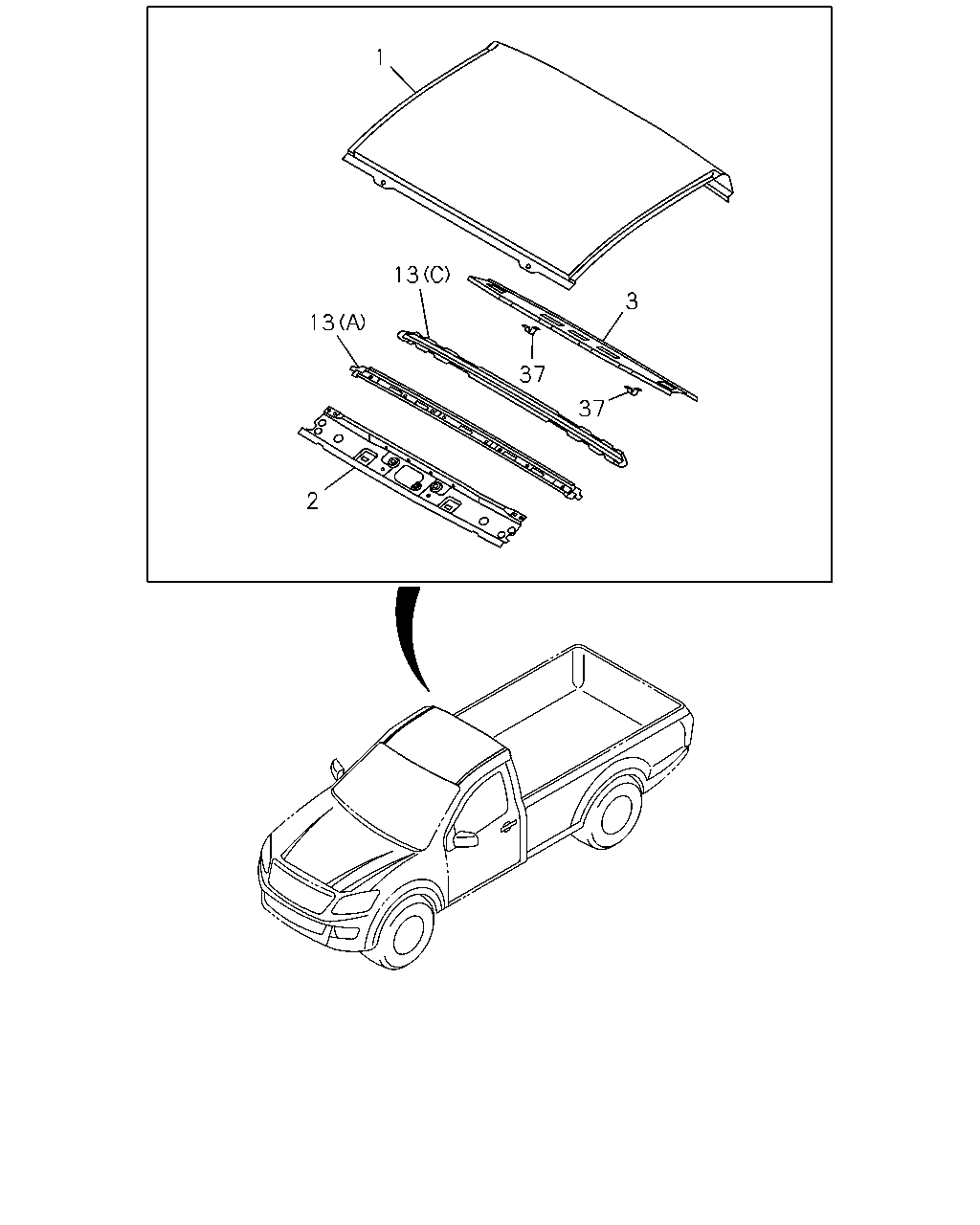

[660A] REGULAR CAB (11 parça)

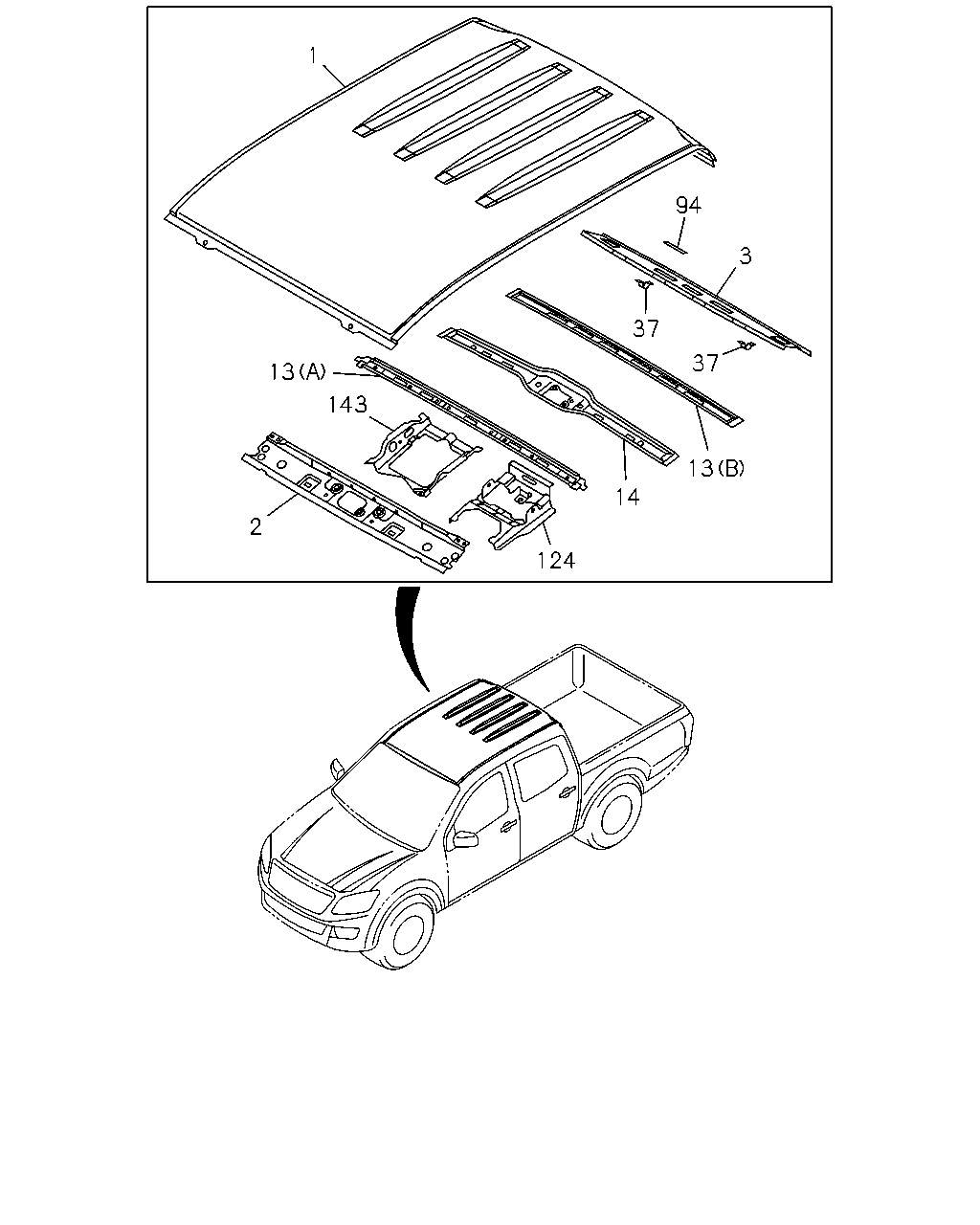

[660A] CREW CAB (15 parça)
▶
13
13
37
3
37
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6>
8-98103-951-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>
8-98103-950-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6>
8-98103-957-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6>
8-98103-955-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD)
8-98103-960-3
01
1
1304-
●
●
2
16.585 PANEL; ROOF,CENTER
8-98103-964-5
01
1
1304-
●
●
●
●
3
16.585 PANEL; ROOF,RR
8-98103-999-3
01
1
1304-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(A)
8-98103-963-1
01
1
1304-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(C)
8-98150-942-0
01
1
1304-
●
●
13
16.585 PANEL; ROOF SUPPORT
(B)
8-98103-982-0
01
1
1304-
●
●
37
16.585 BRACKET; TRIM,ROOF BACK
8-98103-996-0
02
1
1304-
●
●
●
●
13
2
143
124
14
37
37
94
3
13
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6>
8-98103-951-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>
8-98103-950-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6>
8-98103-957-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6>
8-98103-955-3
01
1
1304-
●
●
1
16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD)
8-98103-960-3
01
1
1304-
●
●
2
16.585 PANEL; ROOF,CENTER
8-98103-964-5
01
1
1304-
●
●
●
●
3
16.585 PANEL; ROOF,RR
8-98103-999-3
01
1
1304-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(A)
8-98103-963-1
01
1
1304-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(C)
8-98150-942-0
01
1
1304-
●
●
13
16.585 PANEL; ROOF SUPPORT
(B)
8-98103-982-0
01
1
1304-
●
●
14
16.585 SUPPORT; ROOF
8-98112-817-1
01
1
1304-
●
●
37
16.585 BRACKET; TRIM,ROOF BACK
8-98103-996-0
02
1
1304-
●
●
●
●
94
16.570 SEAL; REINFORCEMENT
8-98201-900-0
01
1
1304-
●
●
124
16.585 BRACKET; ROOM LAMP
MAP LAMP<C74>
8-98103-968-0
01
1
1304-
●
●
143
16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570
8-98103-962-1
01
1
1304-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
