Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#11736) — 284 parça

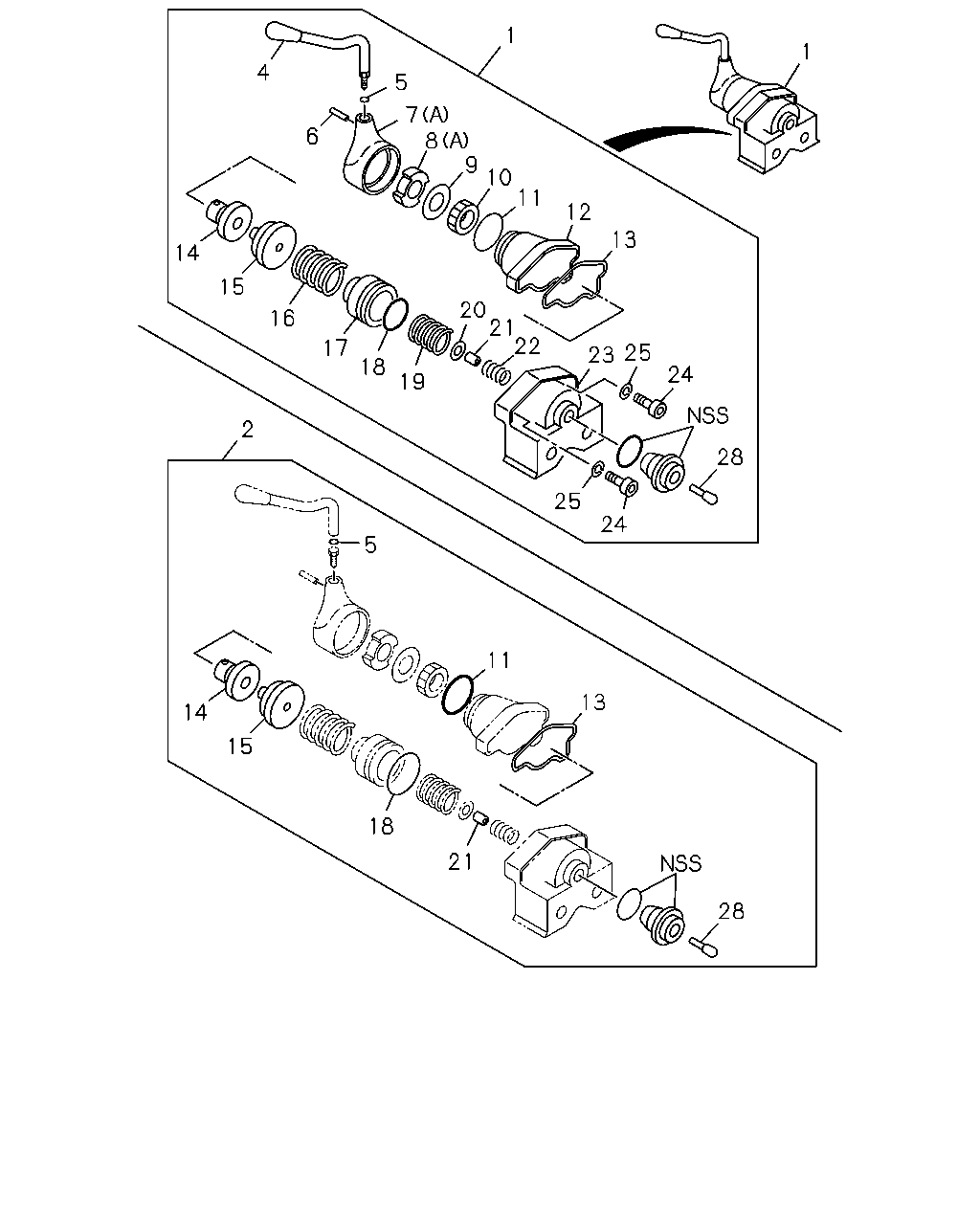

1 1 4 5 7 8 9 10 11 6 12 13 14 15 20 21 22 16 17 18 19 23 25 24 2 28 25 24 5 11 13 14 15 18 21 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL<NLG>	1-48100-848-0	01	1	0106-
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-85576-181-0	01	1	0106-
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48119-517-0	01	1	0106-
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL<NLG>	1-48119-128-0	01	1	0106-
6	PIN; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48119-143-0	01	1	0106-
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0106-
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0106-0108
7	HEAD; BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-201-0	01	1	0109-
7	HEAD; BRK VLV ZF M/T<X9E> (B)	1-48469-201-0	01	1	0109-
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-239-0	01	1	0106-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0106-0108
8	STOPPER; BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-200-0	01	1	0109-
8	STOPPER; BRK VLV ZF M/T<X9E> (B)	1-48469-200-0	01	1	0109-
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-123-0	01	1	0106-
10	RING; ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-122-0	01	1	0106-
11	GASKET; HD TO COVER TRAILER BRAKE HAND CONTROL<NLG>	1-48119-130-0	01	1	0106-
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-097-0	01	1	0106-
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL<NLG>	1-48119-120-0	01	1	0106-
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL<NLG>	1-48129-135-0	01	1	0106-
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL<NLG>	1-48129-134-0	01	1	0106-
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL<NLG>	1-48129-101-0	01	1	0106-
17	PISTON; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48129-095-0	01	1	0106-
18	GASKET; BODY TRAILER BRAKE HAND CONTROL<NLG>	1-48129-096-0	01	1	0106-
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL<NLG>	1-48129-094-0	01	1	0106-
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-090-0	01	1	0106-
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL<NLG>	1-48121-017-0	01	1	0106-
22	SPRING; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48123-024-0	01	1	0106-
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48111-060-0	01	1	0106-
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-092-0	02	1	0106-
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-093-0	02	1	0106-
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-089-0	01	1	0106-

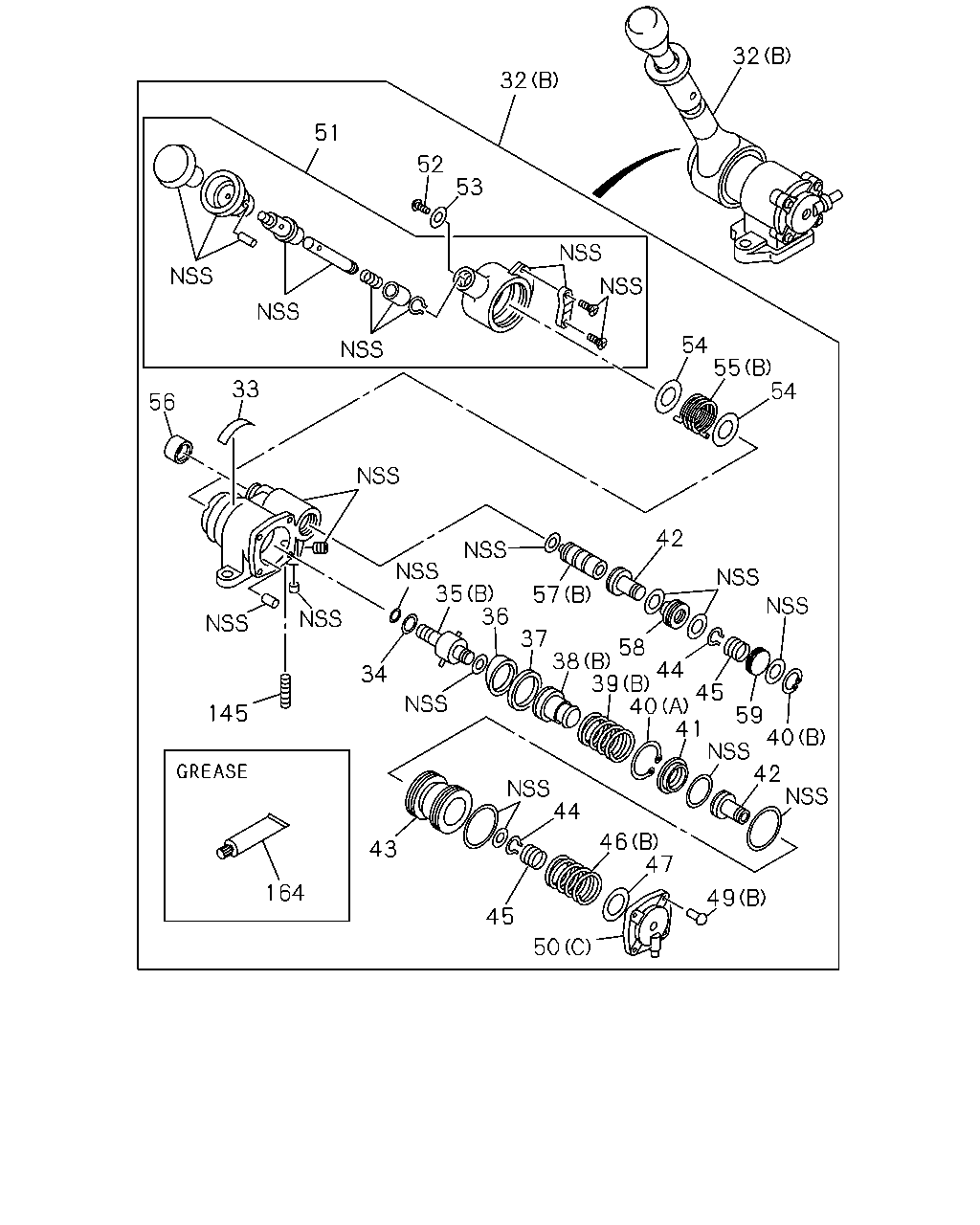

32 32 51 52 53 54 55 54 33 56 42 35 36 57 37 58 38 44 39 45 40 41 42 34 145 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0109-
32	VALVE; BRK,HAND CONT (A)	1-48460-339-0	01	1	0106-0108
32	VALVE; BRK,HAND CONT FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48460-339-1	01	1	0109-
32	VALVE; BRK,HAND CONT ZF M/T<X9E> (A)	1-48460-339-1	01	1	0109-
33	PLATE; CAUTION COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-121-0	01	1	0109-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0106-0108
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0109-
35	HOLDER; CAM COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-054-0	01	1	0109-
35	HOLDER; CAM (A)	1-48469-171-0	01	1	0106-0108
35	HOLDER; CAM FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-171-0	01	1	0109-
35	HOLDER; CAM ZF M/T<X9E> (A)	1-48469-171-0	01	1	0109-
36	RING; CAM COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-056-0	01	1	0109-
37	GUIDE; CAM RING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-058-0	01	1	0109-
38	SEAT; EXH VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-057-0	01	1	0109-
38	SEAT; EXH VLV (A)	1-48469-172-0	01	1	0106-0108
38	SEAT; EXH VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-172-0	01	1	0109-
38	SEAT; EXH VLV ZF M/T<X9E> (A)	1-48469-172-0	01	1	0109-
39	SPRING; RETURN,CAM RING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-063-0	01	1	0109-
39	SPRING; RETURN,CAM RING (A)	1-48469-150-0	01	1	0106-0108
39	SPRING; RETURN,CAM RING FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-150-0	01	1	0109-
39	SPRING; RETURN,CAM RING ZF M/T<X9E> (A)	1-48469-150-0	01	1	0109-
40	RING; SNAP COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A)	1-48469-067-0	01	1	0109-
40	RING; SNAP COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-079-0	01	1	0109-
41	SEAT; FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-066-0	01	1	0109-
42	VALVE; FEED COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-065-0	02	1	0109-
43	PISTON; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-064-0	01	1	0109-
44	RING; SNAP,FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-068-0	02	1	0109-
45	SPRING; FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-070-0	02	1	0109-
46	SPRING; MAIN,PISTON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-119-0	01	1	0109-
46	SPRING; MAIN,PISTON (A)	1-48469-173-0	01	1	0106-0108
46	SPRING; MAIN,PISTON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-173-0	01	1	0109-
46	SPRING; MAIN,PISTON ZF M/T<X9E> (A)	1-48469-173-0	01	1	0109-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0106-0108
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0109-
49	SCREW; COVER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-120-0	04	1	0109-
49	SCREW; COVER (A)	1-48469-169-0	04	1	0106-0108
49	SCREW; COVER FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-169-0	04	1	0109-
49	SCREW; COVER ZF M/T<X9E> (A)	1-48469-169-0	04	1	0109-
50	COVER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0109-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0106-0108
50	COVER; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-153-0	01	1	0109-
50	COVER; HAND BRK VLV ZF M/T<X9E> (A)	1-48469-153-0	01	1	0109-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0106-0108
50	COVER; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-196-0	01	1	0109-
50	COVER; HAND BRK VLV ZF M/T<X9E> (B)	1-48469-196-0	01	1	0109-
51	HANDLE ASM; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-060-0	01	1	0109-
52	SCREW; HANDLE	1-48469-062-0	01	1	0106-0108
52	SCREW; HANDLE	1-48469-062-0	01	1	0109-
53	WASHER; HANDLE	1-48469-061-0	01	1	0106-0108
53	WASHER; HANDLE	1-48469-061-0	01	1	0109-
54	SEAT; SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-082-0	02	1	0109-
55	SPRING; RETURN,HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-059-0	01	1	0109-
55	SPRING; RETURN,HANDLE (A)	1-48469-155-0	01	1	0106-0108
55	SPRING; RETURN,HANDLE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-155-0	01	1	0109-
55	SPRING; RETURN,HANDLE ZF M/T<X9E> (A)	1-48469-155-0	01	1	0109-
56	BOOT; PLUNGER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-080-0	01	1	0109-
57	PLUNGER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-076-0	01	1	0109-
57	PLUNGER; HAND BRK VLV (A)	1-48469-180-0	01	1	0106-0108
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-180-0	01	1	0109-
57	PLUNGER; HAND BRK VLV ZF M/T<X9E> (A)	1-48469-180-0	01	1	0109-
58	HOLDER; FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-077-0	01	1	0109-
59	HOLDER; SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-078-0	01	1	0109-
145	STUD; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-069-0	01	1	0109-
164	GREASE; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-084-0	01	1	0109-

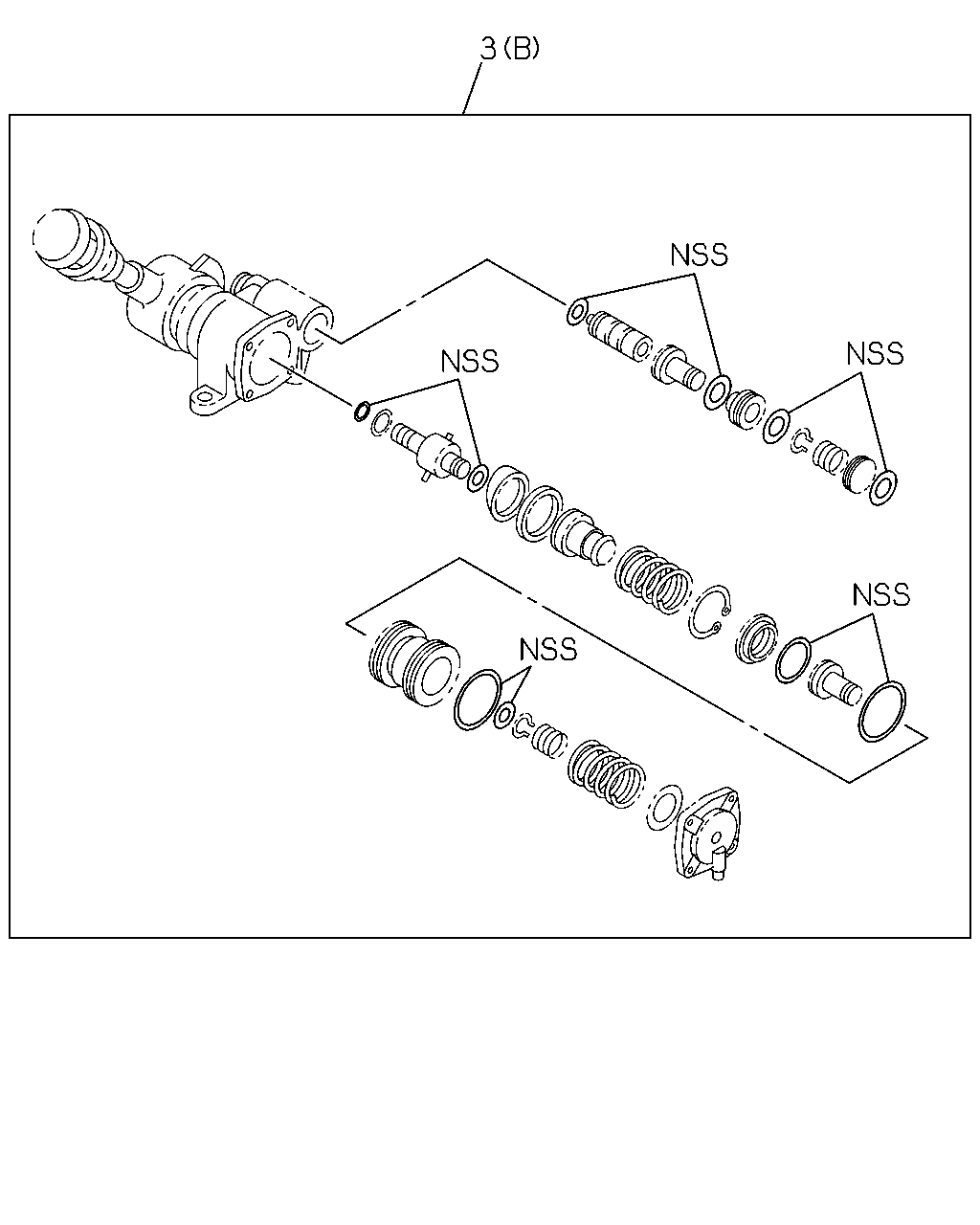

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-083-0	01	1	0109-
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-245-0	01	1	0106-0108
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-85576-245-0	01	1	0109-0302
3	REPAIR KIT; HAND BRK VLV ZF M/T<X9E> (A)	1-85576-245-0	01	1	0109-0302
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-85576-376-0	01	1	0303-
3	REPAIR KIT; HAND BRK VLV ZF M/T<X9E> (A)	1-85576-376-0	01	1	0303-

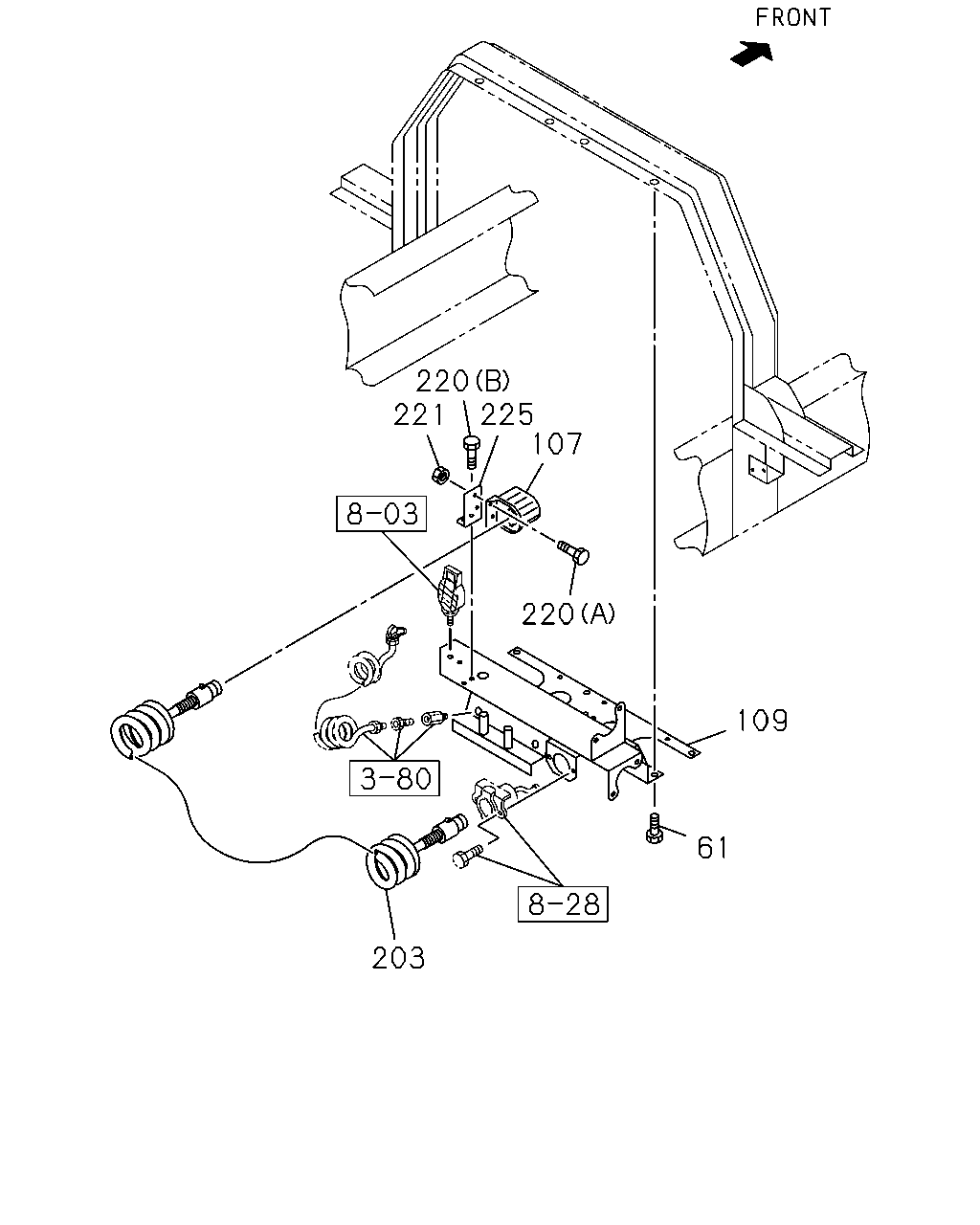

220 221 225 107 220 109 61 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	0106-0512
61	BOLT; STEP BOARD M10X25 FLANGE	0-28651-025-0	08	1	0601-
107	HANGER; JUMPER HOSE	1-57550-022-0	01	1	0106-
109	BRACKET; HOSE HANGER	1-53497-672-0	01	1	0106-0201
109	BRACKET; HOSE HANGER	1-53497-683-1	01	1	0202-
203	CABLE; JUMPER L=5500	1-82659-201-2	01	1	0106-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	0106-0512
220	BOLT; HANGER (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
220	BOLT; HANGER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	0106-0602
221	NUT; HANGER M6 FLANGE	0-91180-106-0	02	1	0603-
225	BRACKET; HANGER	1-82698-002-0	01	1	0106-

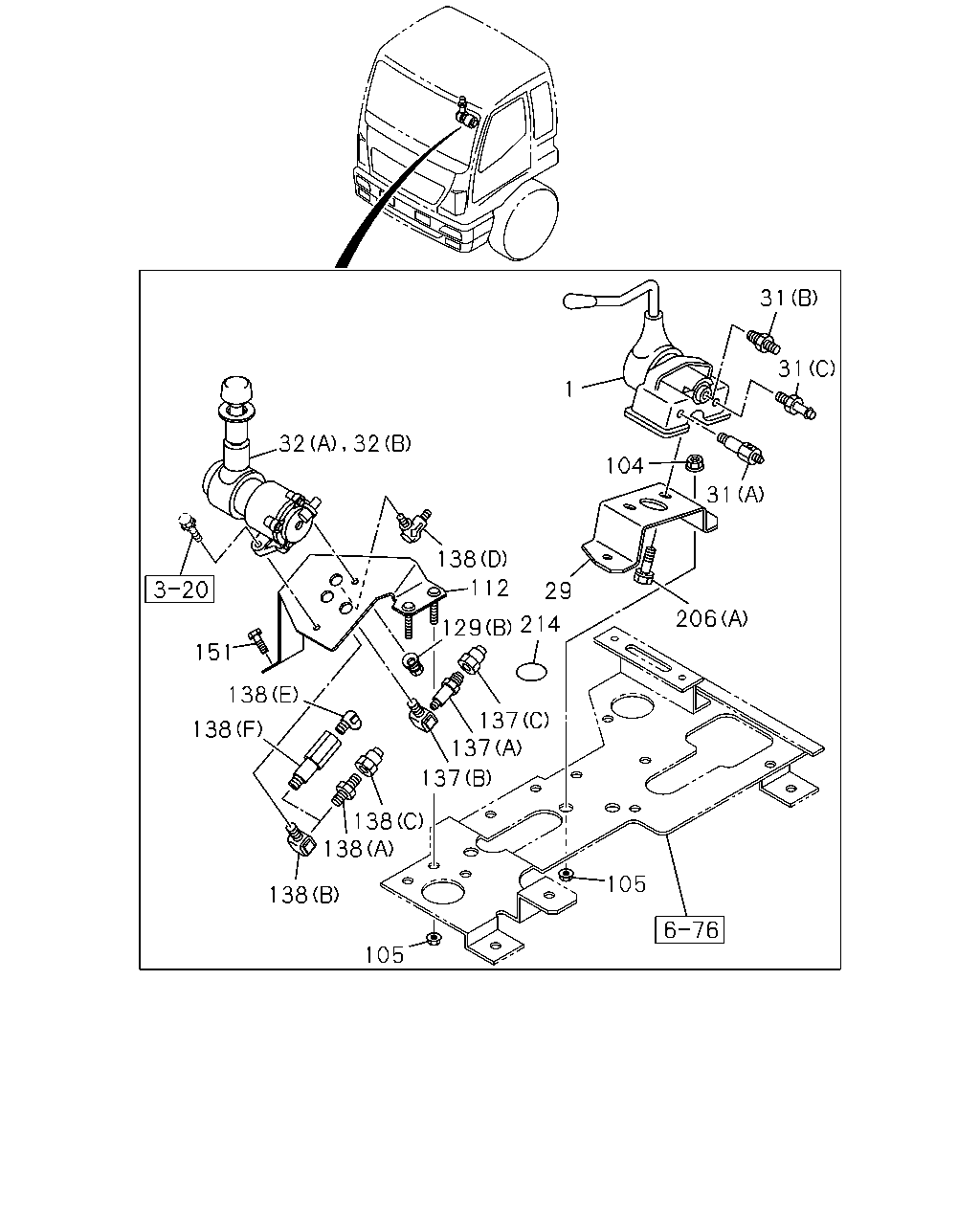

31 31 1 32 32 104 31 138 112 29 206 129 214 151 138 137 137 138 137 138 138 105 138 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL<NLG>	1-48100-848-0	01	1	0106-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0106-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0106-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0106-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0106-0607
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-
32	VALVE; BRK,HAND CONT COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0109-
32	VALVE; BRK,HAND CONT (A)	1-48460-339-0	01	1	0106-0108
32	VALVE; BRK,HAND CONT FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48460-339-1	01	1	0109-
32	VALVE; BRK,HAND CONT ZF M/T<X9E> (A)	1-48460-339-1	01	1	0109-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0106-0301
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
112	BRACKET; CONT VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-79996-336-1	01	1	0107-
112	BRACKET; CONT VLV	1-79996-387-0	01	1	0106-0106
112	BRACKET; CONT VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-79996-387-0	01	1	0107-
112	BRACKET; CONT VLV ZF M/T<X9E>	1-79996-387-0	01	1	0107-
129	NUT; VLV (B) M8 FLANGE	0-91150-108-0	01	1	0106-0602
129	NUT; VLV (B) M8 FLANGE	0-91180-108-0	01	1	0603-
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91150-108-0	03	1	0106-0602
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91180-108-0	03	1	0603-
137	CONNECTOR; SUPPLY COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0106-0106
137	CONNECTOR; SUPPLY FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-09650-352-1	01	1	0107-
137	CONNECTOR; SUPPLY ZF M/T<X9E> (A)	1-09650-352-1	01	1	0107-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0106-
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0106
137	CONNECTOR; SUPPLY FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-
137	CONNECTOR; SUPPLY ZF M/T<X9E> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-
138	CONNECTOR; DELIVERY (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-0106
138	CONNECTOR; DELIVERY FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
138	CONNECTOR; DELIVERY ZF M/T<X9E> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
138	CONNECTOR; DELIVERY COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) M14	1-09656-391-2	01	1	0107-
138	CONNECTOR; DELIVERY COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0107-
138	CONNECTOR; DELIVERY (D)	1-09650-263-2	01	1	0106-0106
138	CONNECTOR; DELIVERY (F)	1-09660-335-1	01	1	0106-0106
138	CONNECTOR; DELIVERY FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F)	1-09660-335-1	01	1	0107-
138	CONNECTOR; DELIVERY ZF M/T<X9E> (F)	1-09660-335-1	01	1	0107-
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0106-0106
138	CONNECTOR; DELIVERY (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0106-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0106-0409
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0106-0512
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0106-0108
206	BOLT; HAND BRK VALVE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-160-0	01	1	0109-
206	BOLT; HAND BRK VALVE ZF M/T<X9E> (B)	1-48469-160-0	01	1	0109-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0106-

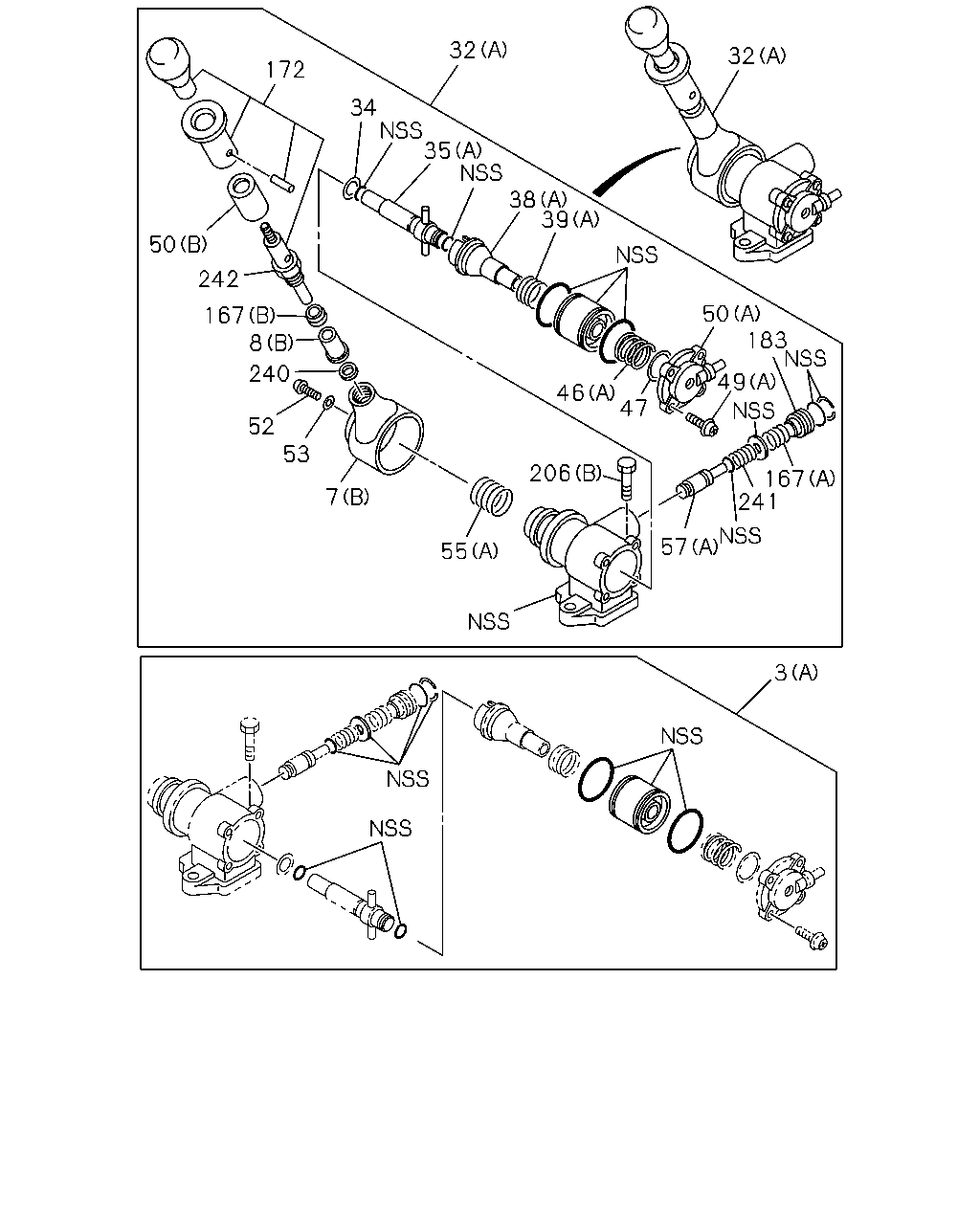

32 32 172 34 35 38 39 50 242 50 183 167 8 240 49 46 47 52 53 167 241 206 7 57 55 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-083-0	01	1	0109-
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-245-0	01	1	0106-0108
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-85576-245-0	01	1	0109-0302
3	REPAIR KIT; HAND BRK VLV ZF M/T<X9E> (A)	1-85576-245-0	01	1	0109-0302
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-85576-376-0	01	1	0303-
3	REPAIR KIT; HAND BRK VLV ZF M/T<X9E> (A)	1-85576-376-0	01	1	0303-
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0106-
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0106-0108
7	HEAD; BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-201-0	01	1	0109-
7	HEAD; BRK VLV ZF M/T<X9E> (B)	1-48469-201-0	01	1	0109-
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-239-0	01	1	0106-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0106-0108
8	STOPPER; BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-200-0	01	1	0109-
8	STOPPER; BRK VLV ZF M/T<X9E> (B)	1-48469-200-0	01	1	0109-
32	VALVE; BRK,HAND CONT COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0109-
32	VALVE; BRK,HAND CONT (A)	1-48460-339-0	01	1	0106-0108
32	VALVE; BRK,HAND CONT FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48460-339-1	01	1	0109-
32	VALVE; BRK,HAND CONT ZF M/T<X9E> (A)	1-48460-339-1	01	1	0109-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0106-0108
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0109-
35	HOLDER; CAM COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-054-0	01	1	0109-
35	HOLDER; CAM (A)	1-48469-171-0	01	1	0106-0108
35	HOLDER; CAM FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-171-0	01	1	0109-
35	HOLDER; CAM ZF M/T<X9E> (A)	1-48469-171-0	01	1	0109-
38	SEAT; EXH VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-057-0	01	1	0109-
38	SEAT; EXH VLV (A)	1-48469-172-0	01	1	0106-0108
38	SEAT; EXH VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-172-0	01	1	0109-
38	SEAT; EXH VLV ZF M/T<X9E> (A)	1-48469-172-0	01	1	0109-
39	SPRING; RETURN,CAM RING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-063-0	01	1	0109-
39	SPRING; RETURN,CAM RING (A)	1-48469-150-0	01	1	0106-0108
39	SPRING; RETURN,CAM RING FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-150-0	01	1	0109-
39	SPRING; RETURN,CAM RING ZF M/T<X9E> (A)	1-48469-150-0	01	1	0109-
46	SPRING; MAIN,PISTON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-119-0	01	1	0109-
46	SPRING; MAIN,PISTON (A)	1-48469-173-0	01	1	0106-0108
46	SPRING; MAIN,PISTON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-173-0	01	1	0109-
46	SPRING; MAIN,PISTON ZF M/T<X9E> (A)	1-48469-173-0	01	1	0109-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0106-0108
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0109-
49	SCREW; COVER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-120-0	04	1	0109-
49	SCREW; COVER (A)	1-48469-169-0	04	1	0106-0108
49	SCREW; COVER FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-169-0	04	1	0109-
49	SCREW; COVER ZF M/T<X9E> (A)	1-48469-169-0	04	1	0109-
50	COVER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0109-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0106-0108
50	COVER; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-153-0	01	1	0109-
50	COVER; HAND BRK VLV ZF M/T<X9E> (A)	1-48469-153-0	01	1	0109-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0106-0108
50	COVER; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-196-0	01	1	0109-
50	COVER; HAND BRK VLV ZF M/T<X9E> (B)	1-48469-196-0	01	1	0109-
52	SCREW; HANDLE	1-48469-062-0	01	1	0106-0108
52	SCREW; HANDLE	1-48469-062-0	01	1	0109-
53	WASHER; HANDLE	1-48469-061-0	01	1	0106-0108
53	WASHER; HANDLE	1-48469-061-0	01	1	0109-
55	SPRING; RETURN,HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-059-0	01	1	0109-
55	SPRING; RETURN,HANDLE (A)	1-48469-155-0	01	1	0106-0108
55	SPRING; RETURN,HANDLE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-155-0	01	1	0109-
55	SPRING; RETURN,HANDLE ZF M/T<X9E> (A)	1-48469-155-0	01	1	0109-
57	PLUNGER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-076-0	01	1	0109-
57	PLUNGER; HAND BRK VLV (A)	1-48469-180-0	01	1	0106-0108
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-180-0	01	1	0109-
57	PLUNGER; HAND BRK VLV ZF M/T<X9E> (A)	1-48469-180-0	01	1	0109-
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0106-0108
167	SPRING; VALVE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A)	1-48469-177-0	01	1	0109-
167	SPRING; VALVE ZF M/T<X9E> (A)	1-48469-177-0	01	1	0109-
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0106-0108
167	SPRING; VALVE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-184-0	01	1	0109-
167	SPRING; VALVE ZF M/T<X9E> (B)	1-48469-184-0	01	1	0109-
172	KNOB; VALVE	1-48469-203-0	01	1	0106-0108
172	KNOB; VALVE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-48469-203-0	01	1	0109-
172	KNOB; VALVE ZF M/T<X9E>	1-48469-203-0	01	1	0109-
183	RETAINER; VALVE	1-48469-185-0	01	1	0106-0108
183	RETAINER; VALVE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-48469-185-0	01	1	0109-
183	RETAINER; VALVE ZF M/T<X9E>	1-48469-185-0	01	1	0109-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0106-0512
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0106-0108
206	BOLT; HAND BRK VALVE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-48469-160-0	01	1	0109-
206	BOLT; HAND BRK VALVE ZF M/T<X9E> (B)	1-48469-160-0	01	1	0109-
240	RING; STOPPER	1-48469-199-0	01	1	0106-0108
240	RING; STOPPER FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-48469-199-0	01	1	0109-
240	RING; STOPPER ZF M/T<X9E>	1-48469-199-0	01	1	0109-
241	SPRING; RETURN	1-48469-182-0	01	1	0106-0108
241	SPRING; RETURN FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-48469-182-0	01	1	0109-
241	SPRING; RETURN ZF M/T<X9E>	1-48469-182-0	01	1	0109-
242	NUT; LK	1-48469-179-0	01	1	0106-0108
242	NUT; LK FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-48469-179-0	01	1	0109-
242	NUT; LK ZF M/T<X9E>	1-48469-179-0	01	1	0109-

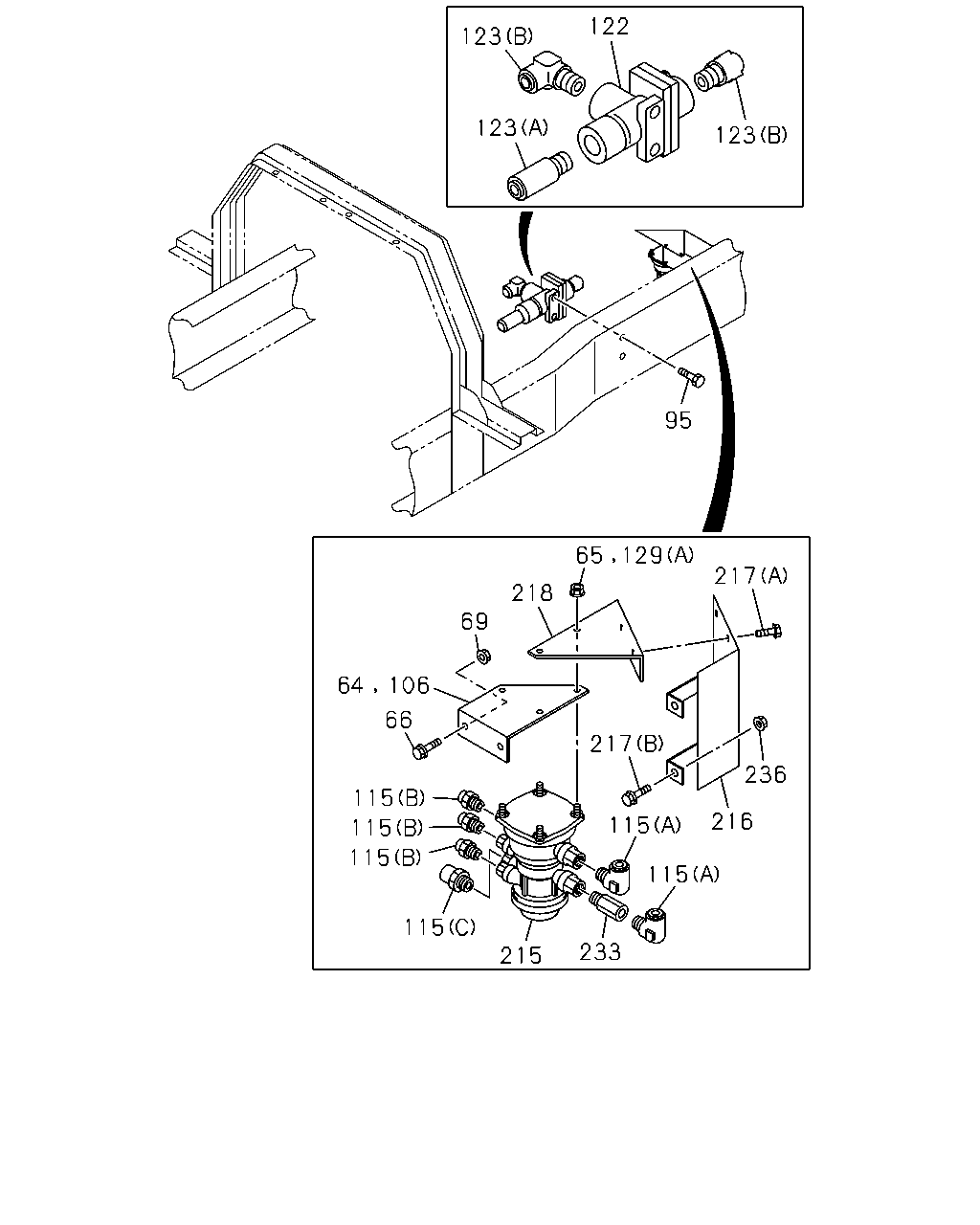

122 123 123 123 95 217 218 69 64 106 66 217 236 115 216 115 115 115 115 115 233 215 65 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48495-226-0	01	1	0106-
65	NUT; RELAY VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0106-0602
65	NUT; RELAY VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; RELAY VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	06	1	0106-0602
65	NUT; RELAY VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	06	1	0603-
66	BOLT; VLV BRKT M10X40 FLANGE	0-28681-040-0	02	1	0106-0512
66	BOLT; VLV BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-
69	NUT; VLV BRKT M10 FLANGE	0-91150-110-0	02	1	0106-0602
69	NUT; VLV BRKT M10 FLANGE	0-91180-110-0	02	1	0603-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28050-816-0	02	1	0601-
106	BRACKET; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48495-226-0	01	1	0106-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0106-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0106-
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-
122	VALVE ASM; DOUBLE CHECK TRAILER BRAKE HAND CONTROL<NLG>	1-48410-531-0	01	1	0106-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0106-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-09660-997-0	01	1	0106-
129	NUT; VLV (B) M8 FLANGE	0-91150-108-0	01	1	0106-0602
129	NUT; VLV (B) M8 FLANGE	0-91180-108-0	01	1	0603-
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91150-108-0	03	1	0106-0602
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91180-108-0	03	1	0603-
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	0106-
216	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48219-142-0	01	1	0106-
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28080-820-0	02	1	0106-0512
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X30 FLANGE	0-28080-830-0	02	1	0106-0512
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-
218	BRACKET; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48219-144-0	01	1	0106-
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	0106-
236	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0106-0602
236	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
