6-60 — ROOF PANEL (#117359) — 14 parça

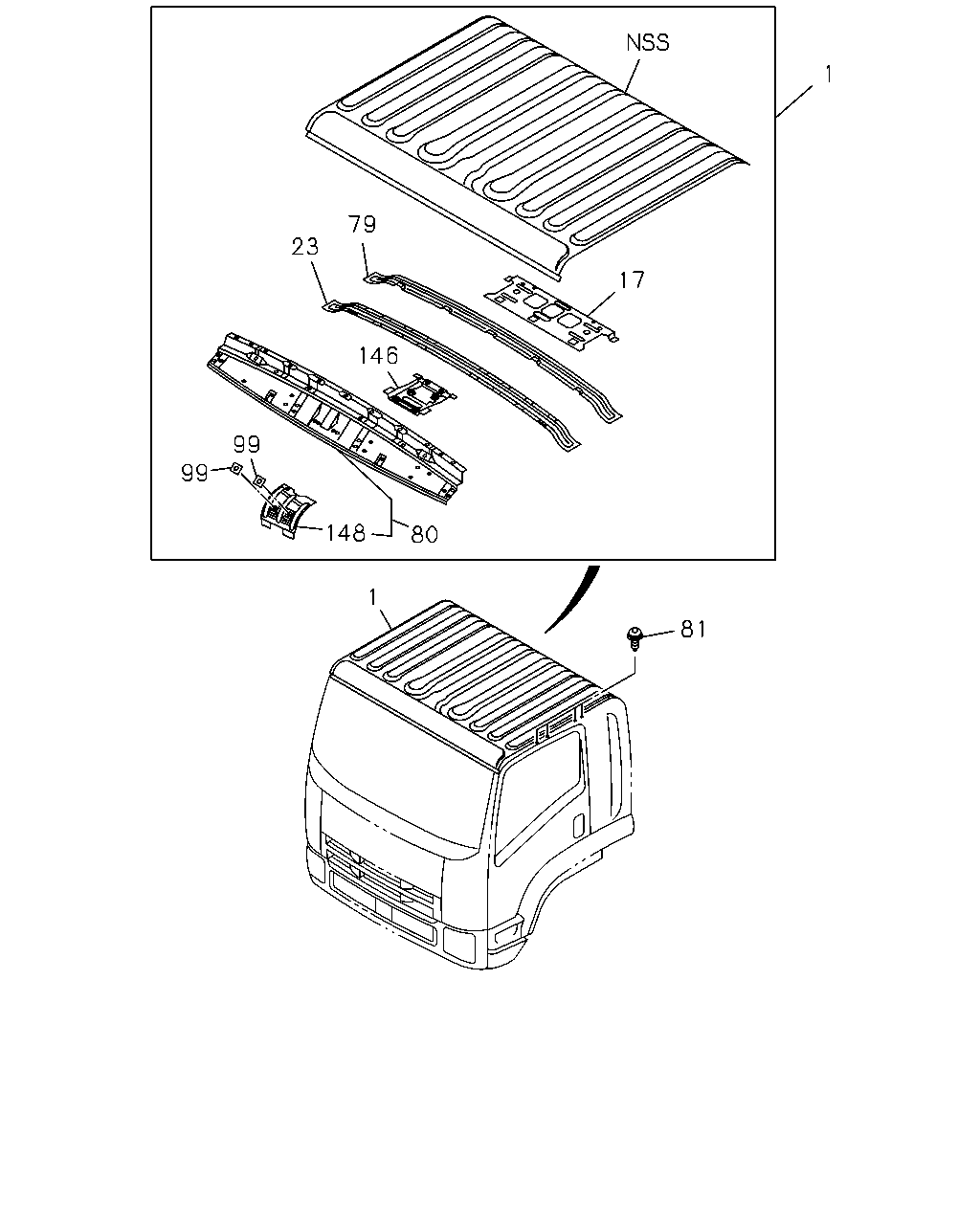

çizim 343868
1 17 79 23 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-97584-177-6 01 1 1304-1308
1 PANEL; ROOF
MIR O/S UNDER & SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-98196-922-0 01 1 1309-
1 PANEL; ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1304-1308
1 PANEL; ROOF
MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FLUORESCENT LAMP<6UC> 		8-98246-477-0 01 1 1309-
17 REINFORCEMENT; ROOF PNL CENTER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1304-1308
17 REINFORCEMENT; ROOF PNL CENTER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1309-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1304-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1304-
80 PANEL; HEADER,ROOF 8-97584-192-3 01 1 1304-1308
80 PANEL; HEADER,ROOF 8-98196-921-0 01 1 1309-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1304-
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1304-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1304-
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1304-
