6-60 — ROOF PANEL (#117357) — 71 parça

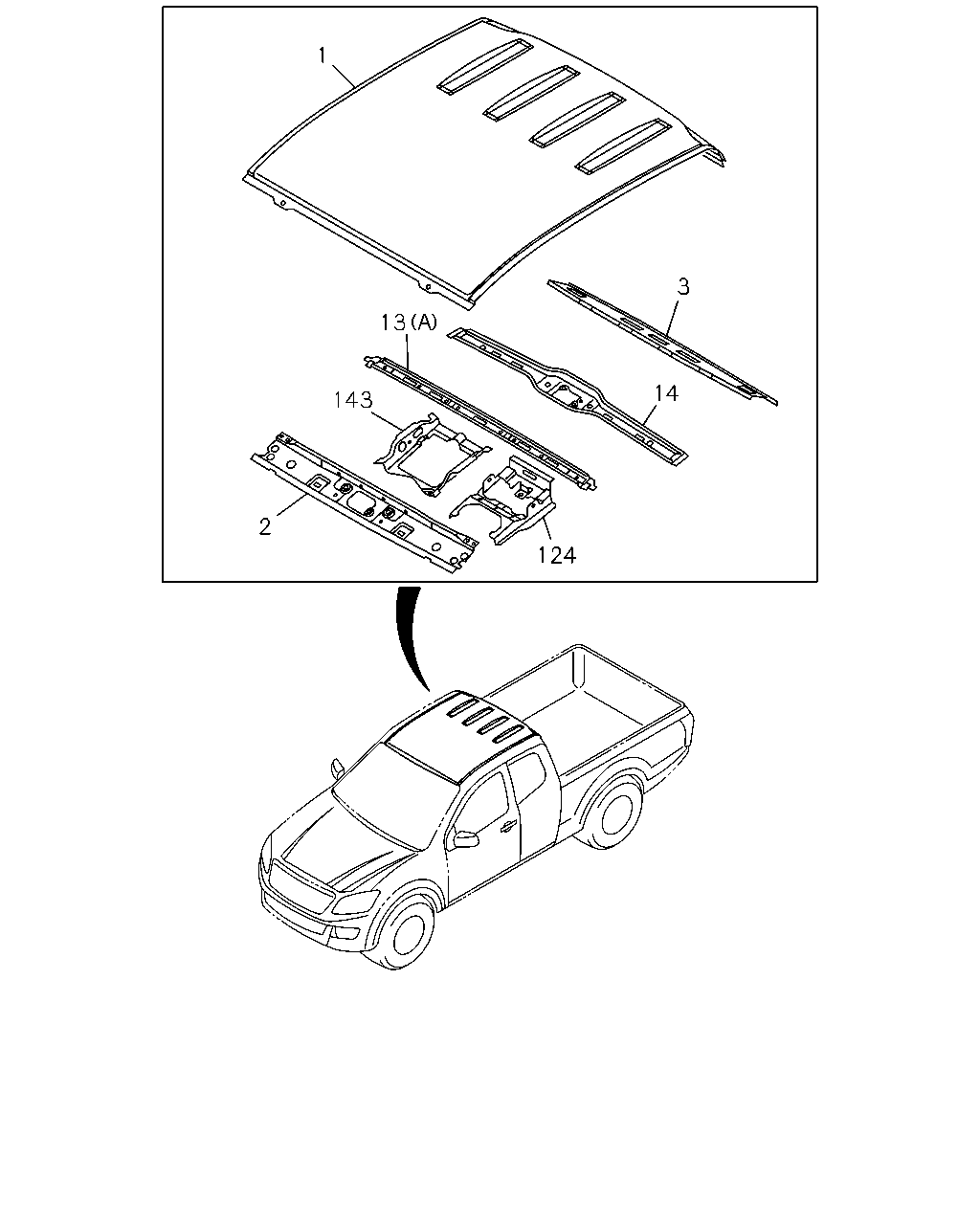

çizim 343871
2 143 13 124 14 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-950-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-955-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1304- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
AUSTRALIA EQUIPMENT(B13) 		8-98103-976-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98163-387-1 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98163-386-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98112-817-1 01 1 1304- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1304- ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1304- ● ● ●

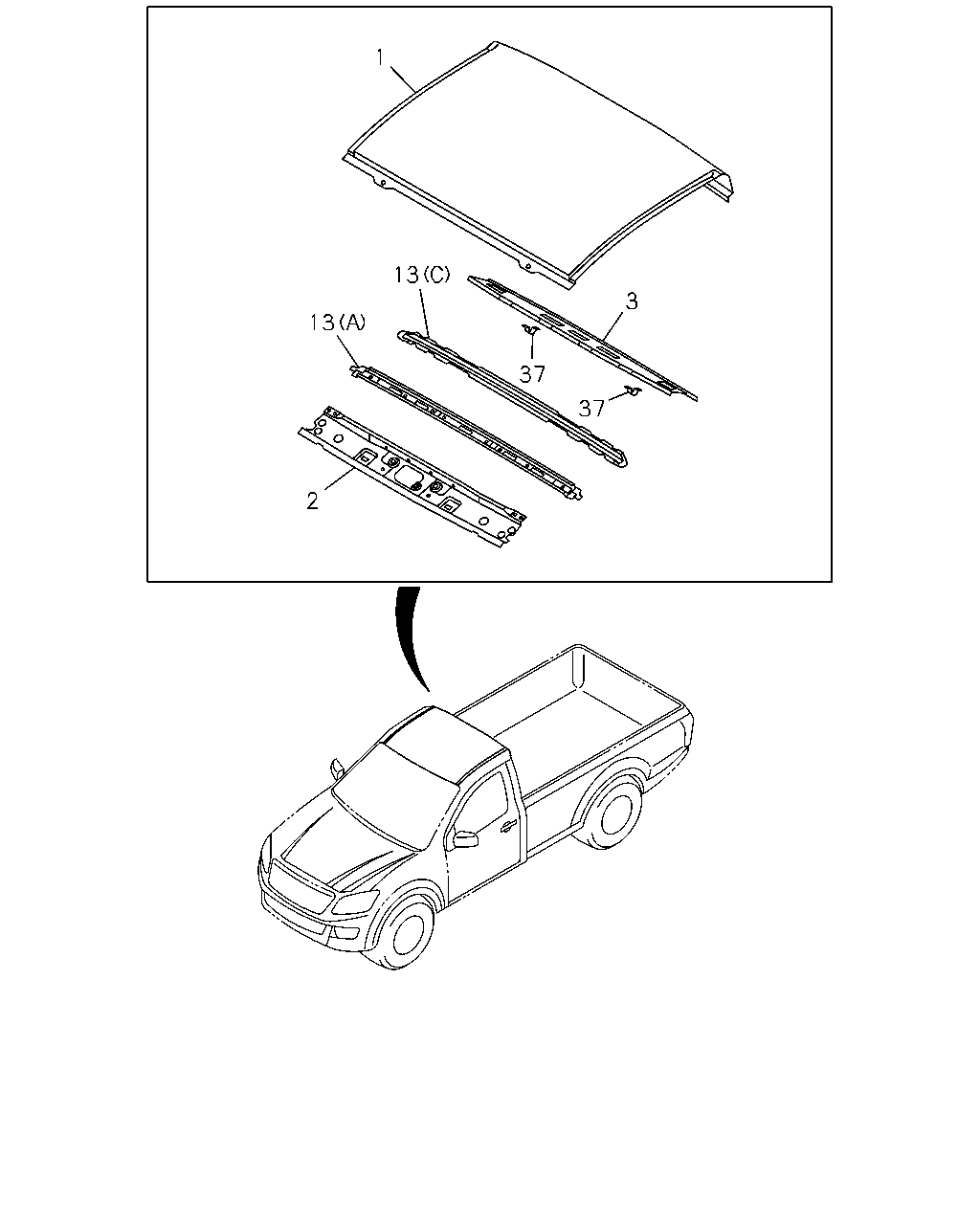

çizim 343896
1 13 13 2 37 3 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-950-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-955-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1304- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1304- ● ● ● ●

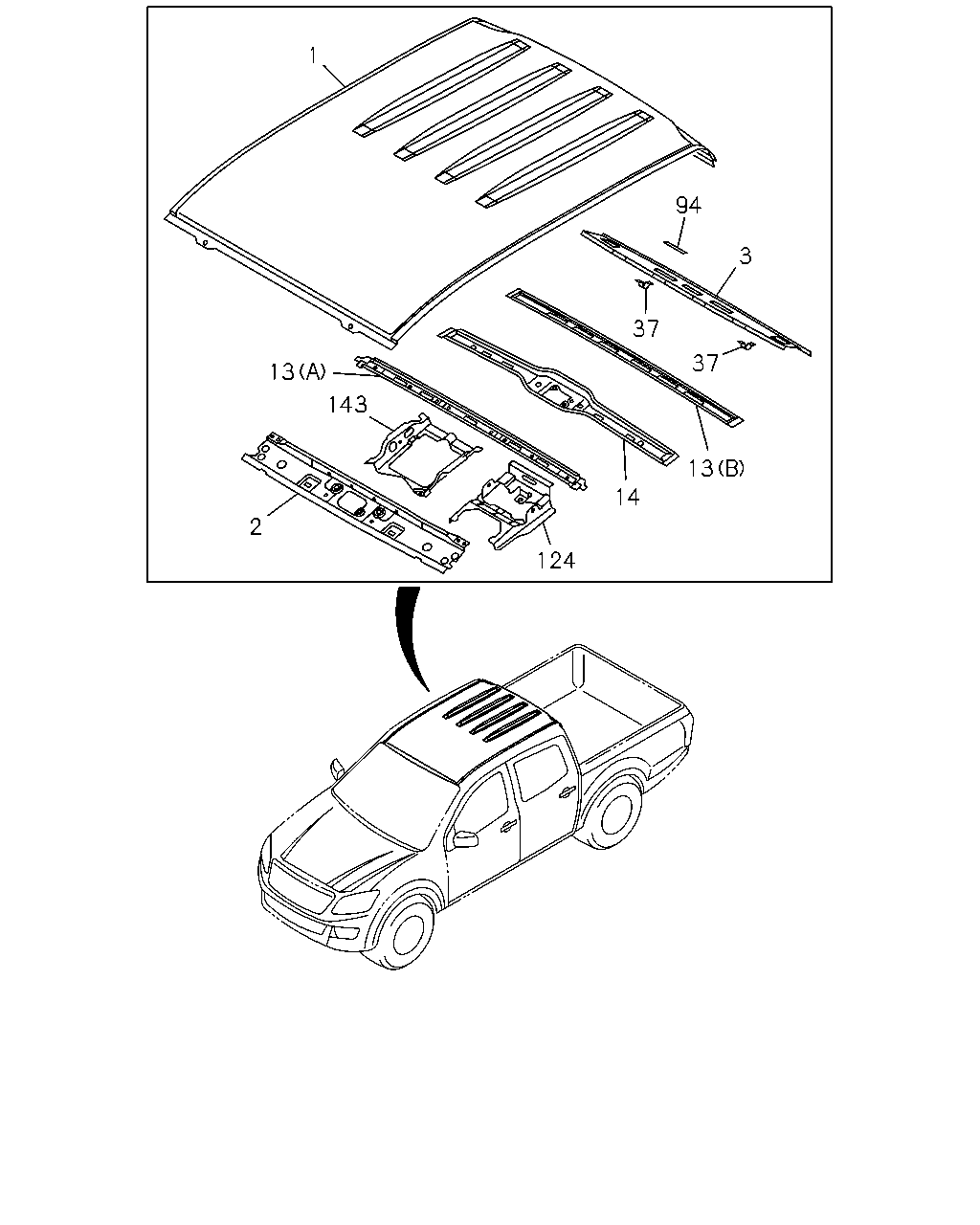

çizim 343913
1 13 2 124 143 14 37 94 3 37 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-950-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-955-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C),INST PANEL F OR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1304- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
AUSTRALIA EQUIPMENT(B13) 		8-98103-976-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98163-387-1 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98163-386-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98112-817-1 01 1 1304- ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1304- ● ● ● ●
94 16.570 SEAL; REINFORCEMENT 8-98201-900-0 01 1 1304- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1304- ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1304- ● ● ●
