◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#117354) — 10 parça

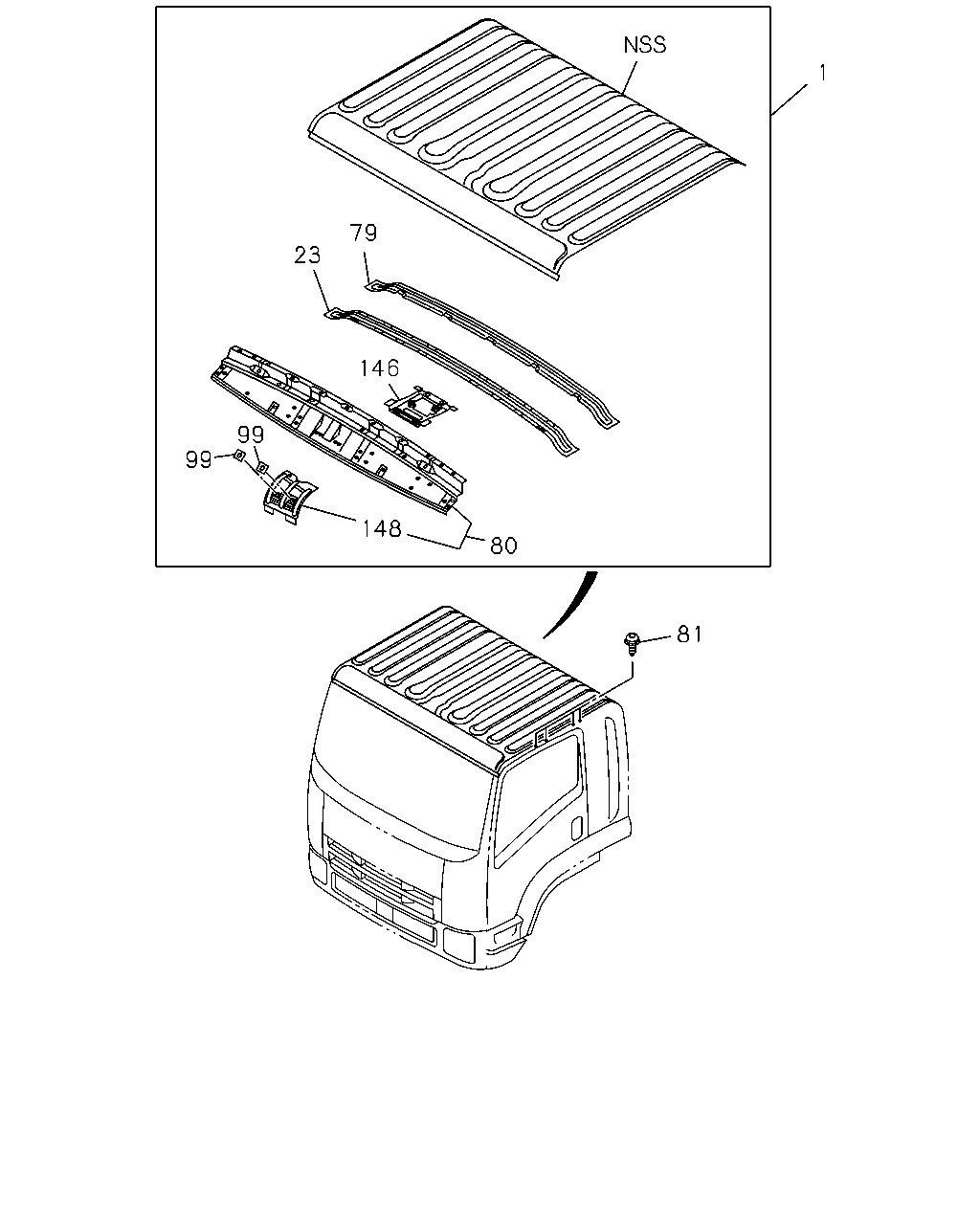

çizim 343801
1 79 146 99 99 148 80 81 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA 		8-97925-345-0 01 1 1302- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA 		8-98019-316-0 01 1 1302- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97584-200-1 01 1 1302-1306 ● ●
79 REINFORCEMENT; ROOF PANEL,RR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA 		8-97948-276-0 01 1 1307- ● ●
80 PANEL; HEADER,ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA 		8-97925-343-0 01 1 1302- ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 1302- ● ●
99 SEAL; BODY,METAL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1302- ● ●
146 REINFORCEMENT; ROOM LAMP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98075-827-0 01 1 1302- ● ●
148 REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97411-015-1 01 1 1302-1306 ● ●
148 REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA 		8-97948-275-0 01 1 1307- ● ●
