Sayfa 6-51 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51472 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶

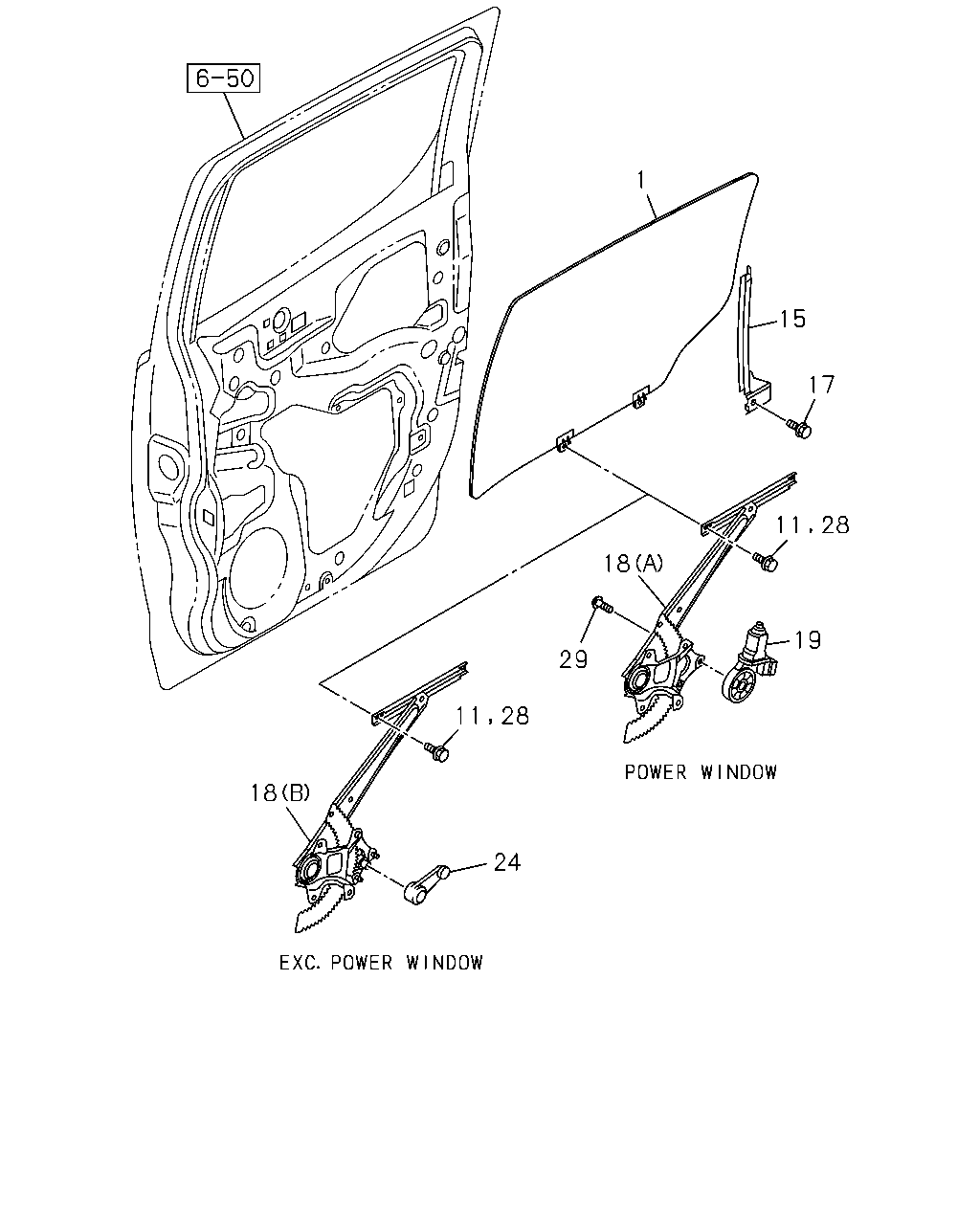

6-51 — REAR DOOR GLASS AND REGULATOR (#117353) — 15 parça

1 15 17 11 28 19 18 29 11 28 24 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.180 GLASS; RR DOOR	8-98073-845-0	01	1	1304-	●	●
1	16.180 GLASS; RR DOOR	8-98073-846-0	01	1	1304-	●	●
11	16.183 BOLT; GLASS 16.270 M6X10 FLANGE	8-98188-381-0	04	1	1304-	●	●
15	16.190 RAIL; RR GUIDE,RR DOOR	8-98100-798-2	01	1	1304-	●	●
15	16.190 RAIL; RR GUIDE,RR DOOR	8-98100-799-2	01	1	1304-	●	●
17	10.765 BOLT; RR GUIDE RAIL M6X8 FLANGE	8-98048-996-0	02	1	1304-	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98167-089-0	01	1	1304-	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98167-090-0	01	1	1304-	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98093-557-1	01	1	1304-	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98093-558-1	01	1	1304-	●	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98167-091-1	01	1	1304-	●	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98167-092-1	01	1	1304-	●	●
24	16.270 HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-724-0	02	1	1304-	●	●
28	16.181 BOLT; WINDOW REG 16.270 M6X10 FLANGE	8-98188-381-0	06	1	1304-	●	●
29	16.270 SCREW; WINDOW REG POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98195-236-0	06	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
