Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#11735) — 131 parça
◀

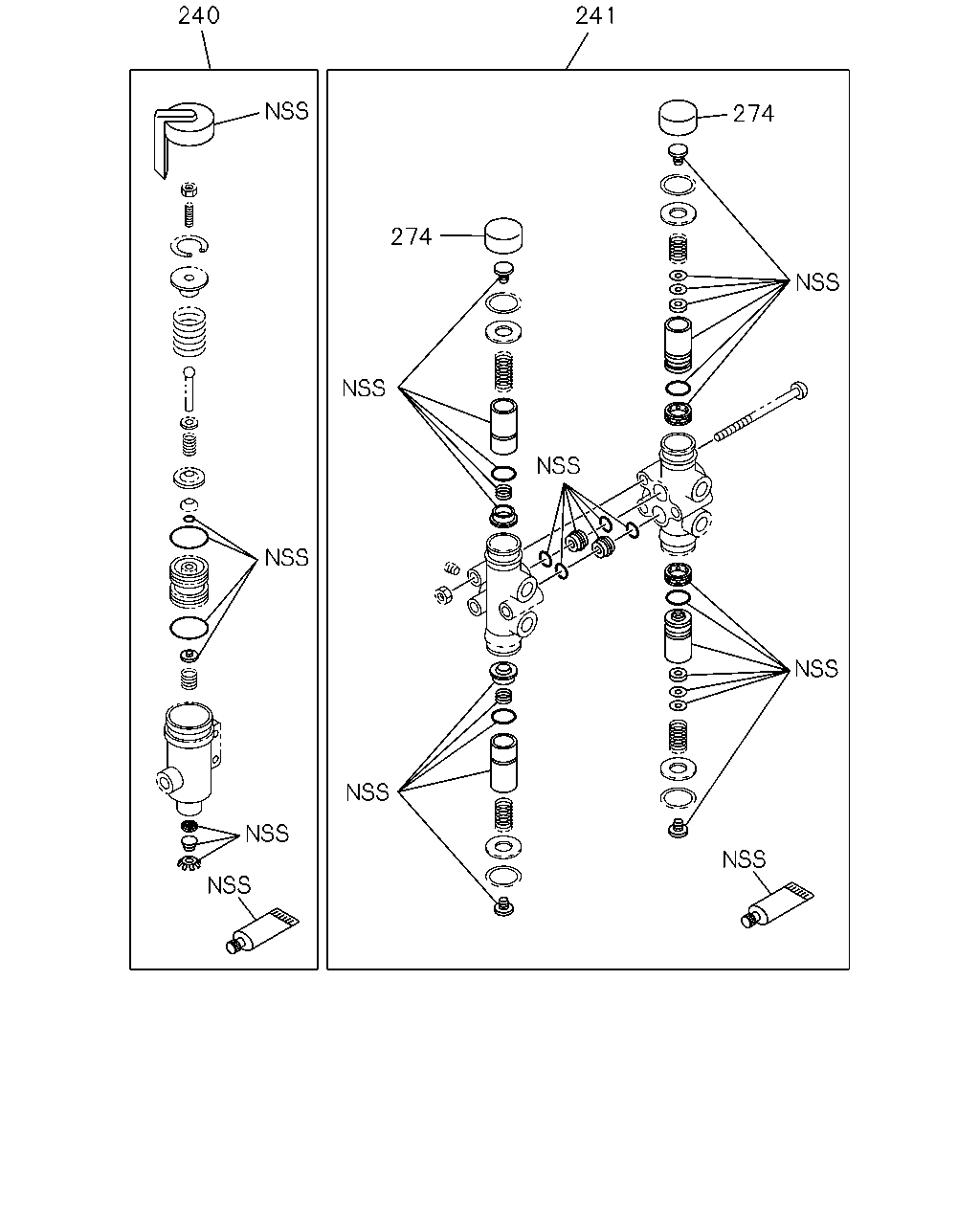

[322A] REPAIR KIT;GOVERNOR,PROTECTION VALVE (3 parça)

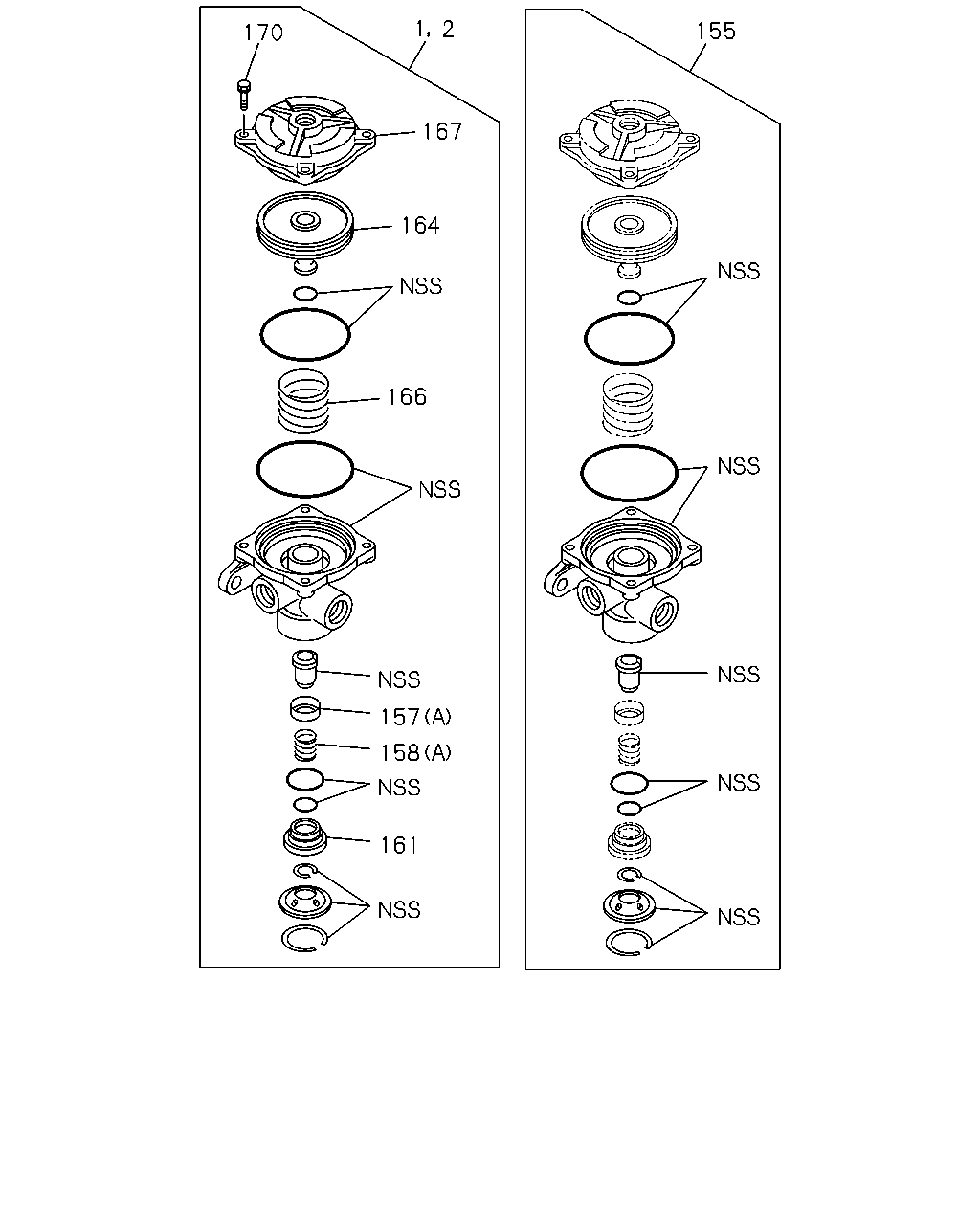

[322A] VALVE;COMPONENT,REPAIR KIT (38 parça)

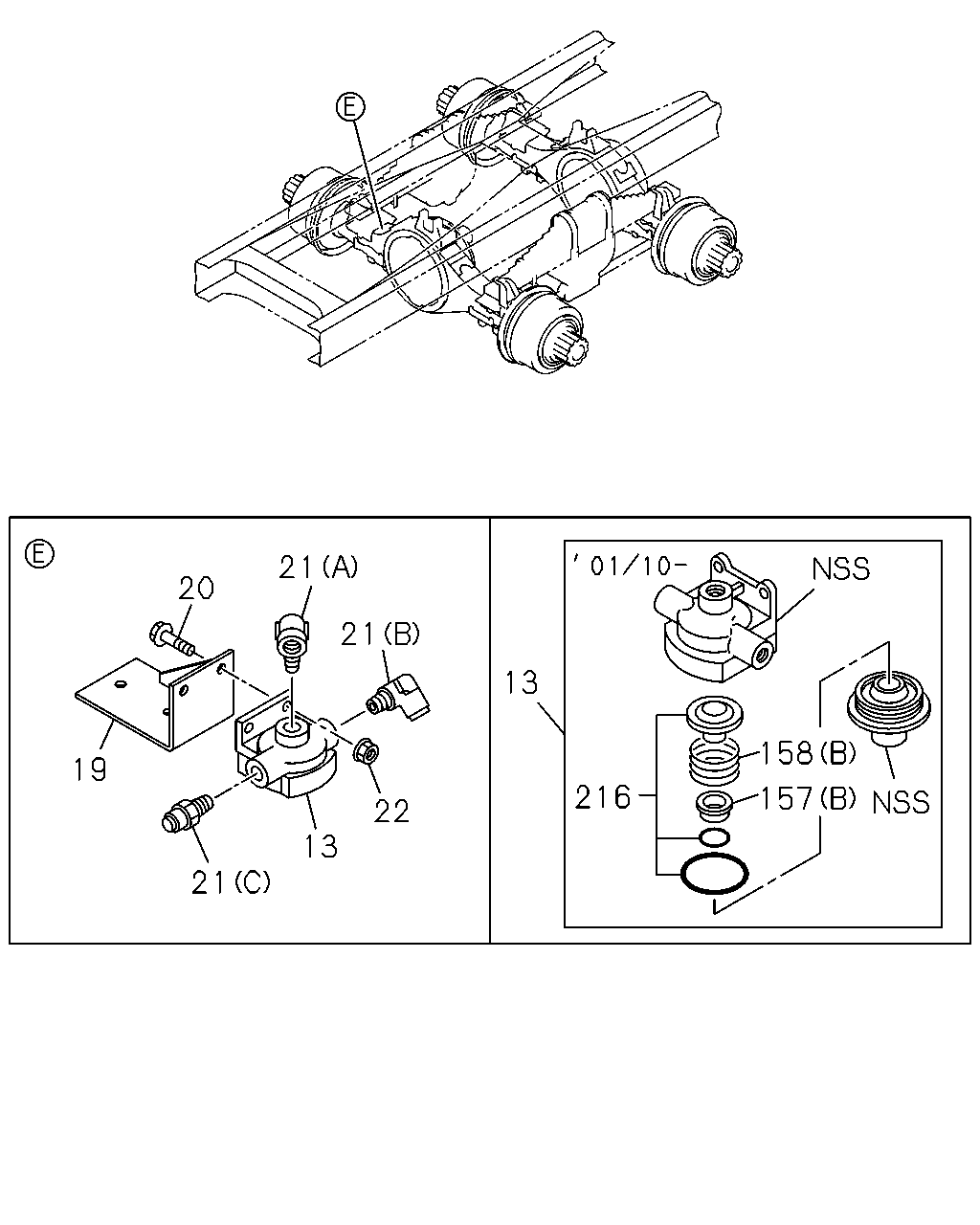

[322A] QUICK RELEASE VALVE (22 parça)

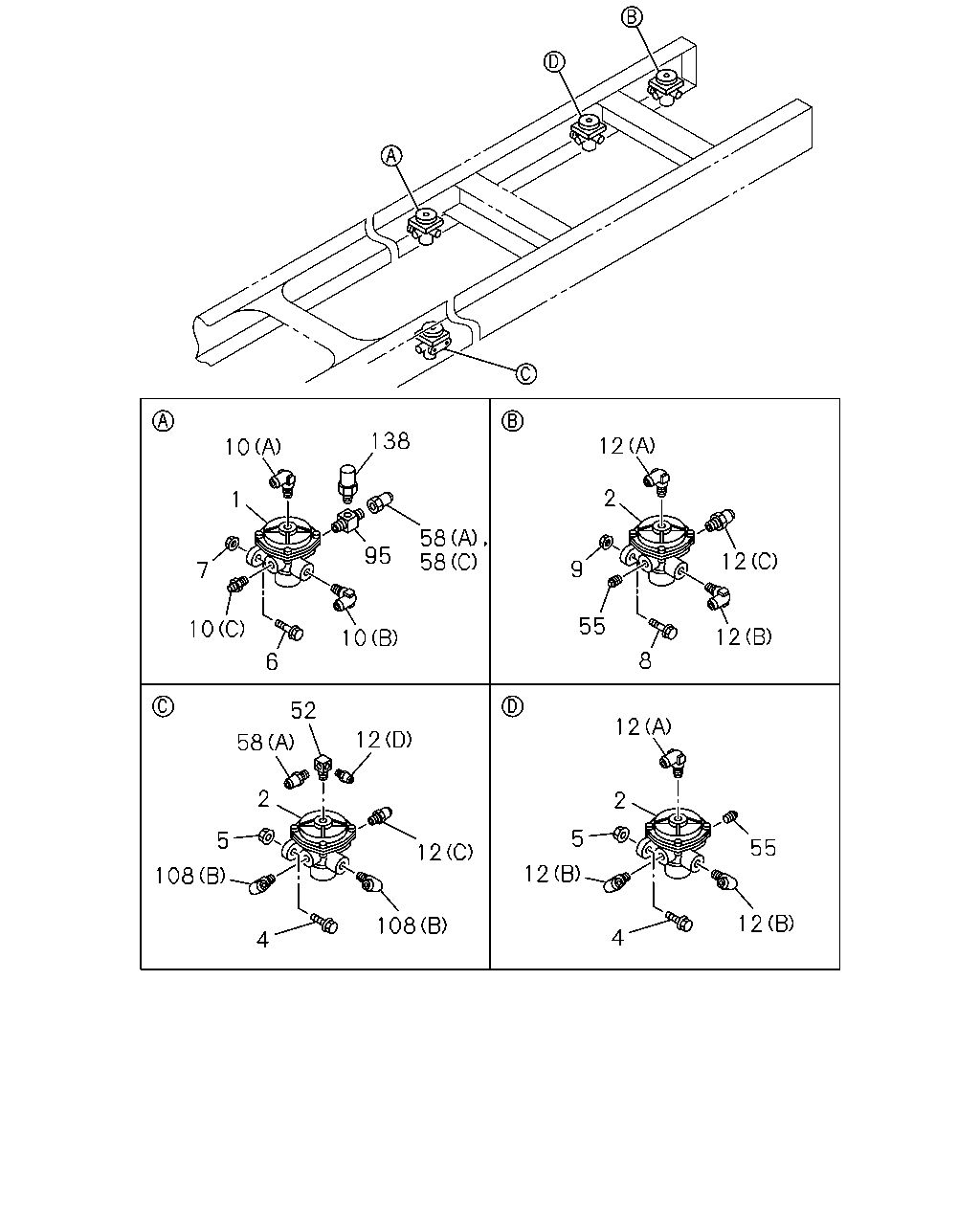

[322A] FIXING;RELAY VALVE (40 parça)

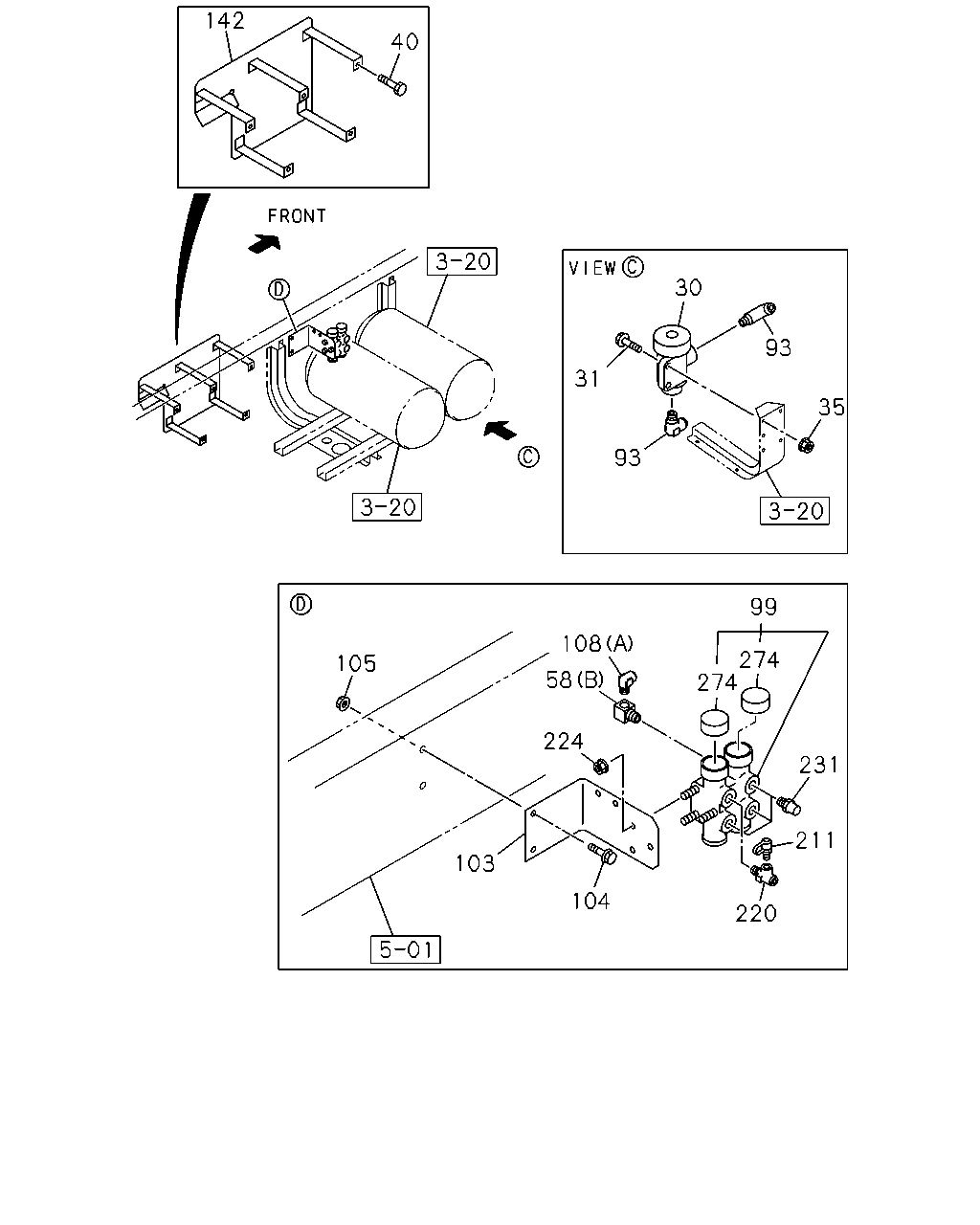

[322A] PROTECTION VALVE AND AIR GOVERNOR (28 parça)
▶
240
241
274
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
240
REPAIR KIT; AIR CONT GOV
1-85576-303-0
01
1
0106-
241
REPAIR KIT; PROTECTION VALVE
1-85576-224-0
01
1
0106-
274
COVER; DUST
1-48119-450-0
02
1
0106-
2
1
155
170
167
164
166
157
158
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48210-500-0
01
1
0106-
2
VALVE; RELAY
TRAILER BRAKE HAND CONTROL<NLG>
1-48210-278-0
01
1
0106-
2
VALVE; RELAY
TRAILER BRAKE HAND CONTROL<NLG>
1-48210-278-0
01
1
0106-
2
VALVE; RELAY
1-48210-278-0
01
1
0106-
155
REPAIR KIT; RELAY VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-85576-033-0
01
1
0106-
155
REPAIR KIT; RELAY VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-85576-033-0
01
1
0106-
155
REPAIR KIT; RELAY VALVE
1-85576-033-0
01
1
0106-
155
REPAIR KIT; RELAY VALVE
1-85576-033-0
01
1
0106-
157
RETAINER; VALVE
BRAKE REGULATION HONG KONG<TCZ> (B)
1-48419-020-0
01
1
0110-
157
RETAINER; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-48213-002-0
01
1
0106-
157
RETAINER; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-48213-002-0
01
1
0106-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
0106-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
0106-
158
SPRING; VALVE
BRAKE REGULATION HONG KONG<TCZ> (B)
9-48419-003-0
01
1
0110-
158
SPRING; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-47819-089-0
01
1
0106-
158
SPRING; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-47819-089-0
01
1
0106-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
0106-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
0106-
161
GUIDE; VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-48129-014-0
01
1
0106-
161
GUIDE; VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-48129-014-0
01
1
0106-
161
GUIDE; VALVE
1-48129-014-0
01
1
0106-
161
GUIDE; VALVE
1-48129-014-0
01
1
0106-
164
PISTON; RELAY VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-48219-071-0
01
1
0106-
164
PISTON; RELAY VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-48219-071-0
01
1
0106-
164
PISTON; RELAY VALVE
1-48219-071-0
01
1
0106-
164
PISTON; RELAY VALVE
1-48219-071-0
01
1
0106-
166
SPRING; PISTON
TRAILER BRAKE HAND CONTROL<NLG> FRONT,FORWARD,REARWARD
1-47819-090-0
01
1
0106-
166
SPRING; PISTON
TRAILER BRAKE HAND CONTROL<NLG> FRONT,FORWARD,REARWARD
1-47819-090-0
01
1
0106-
166
SPRING; PISTON
FRONT,FORWARD,REARWARD
1-47819-090-0
01
1
0106-
166
SPRING; PISTON
PARKING BRAKE
1-47819-165-0
01
1
0106-
167
COVER; VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-48219-070-0
01
1
0106-
167
COVER; VALVE
TRAILER BRAKE HAND CONTROL<NLG>
1-48219-070-0
01
1
0106-
167
COVER; VALVE
1-48219-070-0
01
1
0106-
167
COVER; VALVE
1-48219-070-0
01
1
0106-
170
SCREW; COVER TO BODY
TRAILER BRAKE HAND CONTROL<NLG>
1-48219-039-0
04
1
0106-
170
SCREW; COVER TO BODY
TRAILER BRAKE HAND CONTROL<NLG>
1-48219-039-0
04
1
0106-
170
SCREW; COVER TO BODY
1-48219-039-0
04
1
0106-
170
SCREW; COVER TO BODY
1-48219-039-0
04
1
0106-
21
20
21
13
158
19
216
157
22
13
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
BRAKE REGULATION HONG KONG<TCZ>
1-48410-320-0
01
1
0106-0109
13
VALVE ASM; QUICK RELEASE
BRAKE REGULATION HONG KONG<TCZ>
1-48410-659-0
01
1
0110-
19
BRACKET; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ>
1-47475-199-1
01
1
0106-
20
BOLT; BRKT
BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE
0-28680-825-0
02
1
0106-0512
20
BOLT; BRKT
BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE
0-28650-825-0
02
1
0601-
21
CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ> (A) M27 & PT3/8 ELBOW
1-09660-136-1
01
1
0106-
21
CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0106-
21
CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0106-
22
NUT; BRKT
BRAKE REGULATION HONG KONG<TCZ> M8
9-09110-408-0
02
1
0106-0109
22
NUT; BRKT
BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE
0-91150-108-0
02
1
0110-0602
22
NUT; BRKT
BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE
0-91180-108-0
02
1
0603-
157
RETAINER; VALVE
BRAKE REGULATION HONG KONG<TCZ> (B)
1-48419-020-0
01
1
0110-
157
RETAINER; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-48213-002-0
01
1
0106-
157
RETAINER; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-48213-002-0
01
1
0106-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
0106-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
0106-
158
SPRING; VALVE
BRAKE REGULATION HONG KONG<TCZ> (B)
9-48419-003-0
01
1
0110-
158
SPRING; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-47819-089-0
01
1
0106-
158
SPRING; VALVE
TRAILER BRAKE HAND CONTROL<NLG> (A)
1-47819-089-0
01
1
0106-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
0106-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
0106-
216
REPAIR KIT; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ>
1-85576-235-0
01
1
0110-
138
12
10
2
1
58
58
95
12
9
7
55
10
12
10
8
6
52
12
12
58
2
2
5
5
55
12
12
108
12
108
4
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48210-500-0
01
1
0106-
2
VALVE; RELAY
TRAILER BRAKE HAND CONTROL<NLG>
1-48210-278-0
01
1
0106-
2
VALVE; RELAY
TRAILER BRAKE HAND CONTROL<NLG>
1-48210-278-0
01
1
0106-
2
VALVE; RELAY
1-48210-278-0
01
1
0106-
4
BOLT; RELAY VLV TO BRKT
M10X40 FLANGE
0-28681-040-0
04
1
0106-0512
4
BOLT; RELAY VLV TO BRKT
M10X40 FLANGE
0-28651-040-0
04
1
0601-
5
NUT
M10 FLANGE
0-91150-210-0
04
1
0106-0602
5
NUT
M10 FLANGE
0-91180-210-0
04
1
0603-
6
BOLT; VLV
M10X40 FLANGE
0-28681-040-0
02
1
0106-0512
6
BOLT; VLV
M10X40 FLANGE
0-28651-040-0
02
1
0601-
7
NUT; RELAY VLV
M10 FLANGE
0-91150-210-0
02
1
0106-0602
7
NUT; RELAY VLV
M10 FLANGE
0-91180-210-0
02
1
0603-
8
BOLT; BRKT
M10X40 FLANGE
0-28681-040-0
02
1
0106-0512
8
BOLT; BRKT
M10X40 FLANGE
0-28651-040-0
02
1
0601-
9
NUT
M10 FLANGE
0-91150-210-0
02
1
0106-0602
9
NUT
M10 FLANGE
0-91180-210-0
02
1
0603-
10
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0106-
10
CONNECTOR
(B) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0106-
10
CONNECTOR
(C)
1-09661-126-0
01
1
0106-0109
10
CONNECTOR
(C) DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
0110-
12
CONNECTOR; RELAY VLV
TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & R1/2 ELBOW
1-09660-960-0
02
1
0106-
12
CONNECTOR; RELAY VLV
TRAILER BRAKE HAND CONTROL<NLG> (D) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0106-
12
CONNECTOR; RELAY VLV
TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0106-
12
CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0106-
12
CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0106-
12
CONNECTOR; RELAY VLV
TRAILER BRAKE HAND CONTROL<NLG> (C) DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
0106-
12
CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
0106-
52
CONNECTOR; RELAY VLV
TRAILER BRAKE HAND CONTROL<NLG> M16 & PT1/4 & PT3/8 3WAY
1-09656-677-0
01
1
0106-
55
PLUG; SUPPLY
TRAILER BRAKE HAND CONTROL<NLG> PT1/2
9-09204-521-0
02
1
0106-
55
PLUG; SUPPLY
PT1/2
9-09204-521-0
02
1
0106-
58
ADAPTER
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0110-
58
ADAPTER
(B)
1-09660-778-1
01
1
0106-
58
ADAPTER
TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M16 STRAIGHT
1-09660-875-0
02
1
0106-0109
58
ADAPTER
(A) DIN8 & M16 STRAIGHT
1-09660-875-0
02
1
0106-0109
58
ADAPTER
TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0110-
95
UNION; AIR VLV
1-09656-446-0
01
1
0106-
108
CONNECTOR; ELBOW
TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & R1/2 ELBOW
1-09660-960-0
02
1
0106-
108
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0106-
138
SWITCH; RELAY VALVE
1-48340-057-1
01
1
0106-0312
138
SWITCH; RELAY VALVE
1-48340-068-0
01
1
0401-
142
40
30
93
31
35
93
99
108
274
274
105
58
224
231
211
103
104
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
GOVERNOR; AIR CONT
1-48350-063-0
01
1
0106-
31
BOLT; GOV TO FRAME
M8X30 FLANGE
0-28680-830-0
02
1
0106-0512
31
BOLT; GOV TO FRAME
M8X30 FLANGE
0-28650-830-0
02
1
0601-
35
NUT; GOV TO FRAME
M8 FLANGE
0-91150-108-0
02
1
0106-0602
35
NUT; GOV TO FRAME
M8 FLANGE
0-91180-108-0
02
1
0603-
40
BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE
0-28680-830-0
05
1
0106-0512
40
BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE
0-28650-830-0
05
1
0601-
58
ADAPTER
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0110-
58
ADAPTER
(B)
1-09660-778-1
01
1
0106-
58
ADAPTER
TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M16 STRAIGHT
1-09660-875-0
02
1
0106-0109
58
ADAPTER
(A) DIN8 & M16 STRAIGHT
1-09660-875-0
02
1
0106-0109
58
ADAPTER
TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0110-
93
CONNECTOR; GOV
DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0106-
99
VALVE; PROTECTION
1-48110-114-5
01
1
0106-
103
BRACKET; PROTECTION VALVE
1-47478-407-0
01
1
0106-
104
BOLT; BRKT,VALVE
M8X30 FLANGE
0-28680-830-0
02
1
0106-0512
104
BOLT; BRKT,VALVE
M8X30 FLANGE
0-28650-830-0
02
1
0601-
105
NUT; BRKT,VALVE
M8 FLANGE
0-91150-108-0
02
1
0106-0602
105
NUT; BRKT,VALVE
M8 FLANGE
0-91180-108-0
02
1
0603-
108
CONNECTOR; ELBOW
TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & R1/2 ELBOW
1-09660-960-0
02
1
0106-
108
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0106-
142
PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-48219-143-0
01
1
0106-
211
CONNECTOR; TEST
1-47459-013-0
01
1
0106-
220
CONNECTOR; 3WAY
1-09661-027-0
01
1
0106-
224
NUT; PROTECTION VALVE
M8 FLANGE
0-91150-108-0
03
1
0106-0602
224
NUT; PROTECTION VALVE
M8 FLANGE
0-91180-108-0
03
1
0603-
231
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
1-09660-965-0
03
1
0106-
274
COVER; DUST
1-48119-450-0
02
1
0106-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
