Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#117316) — 34 parça
◀

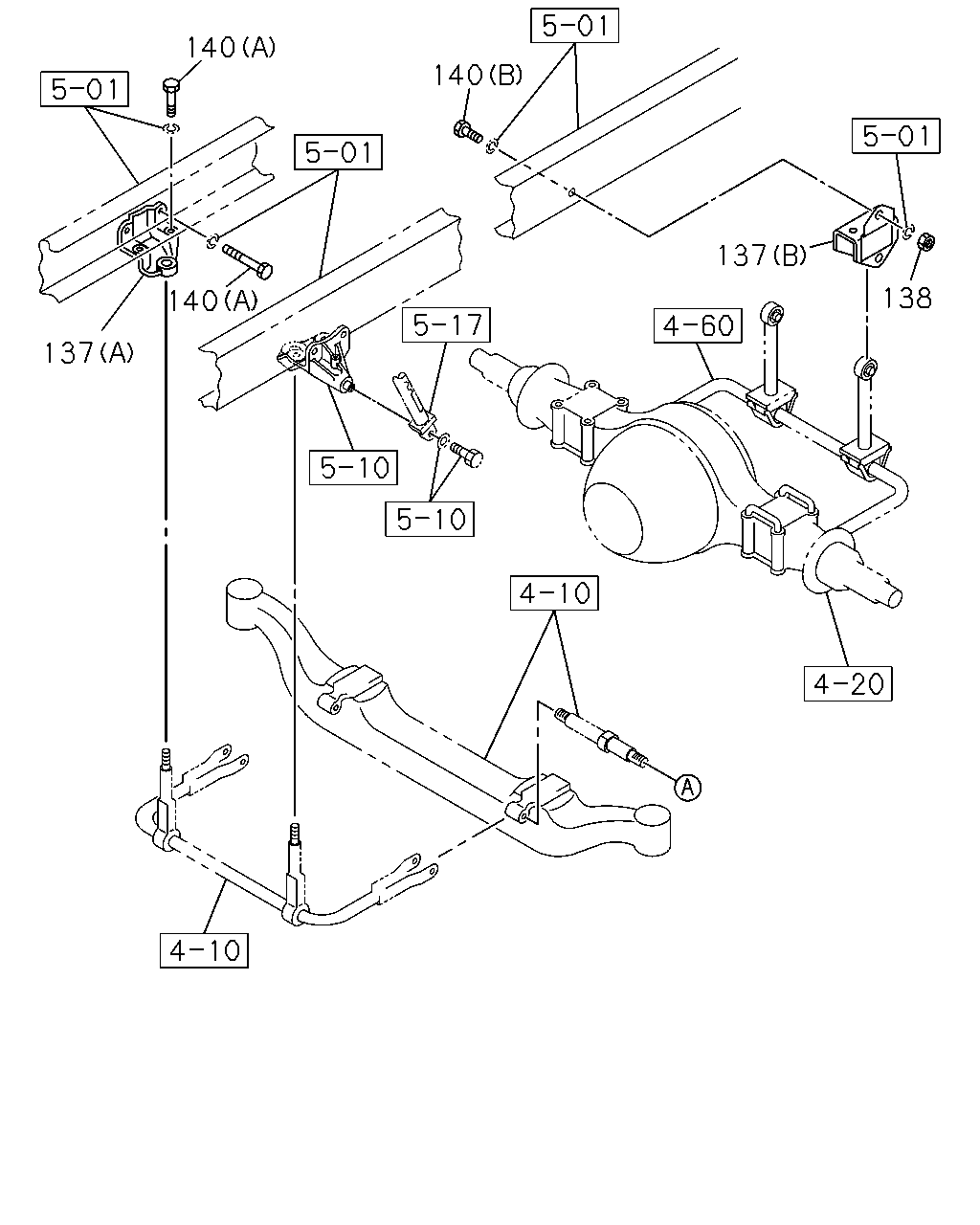

[450A] BRACKET;STABILIZER (5 parça)

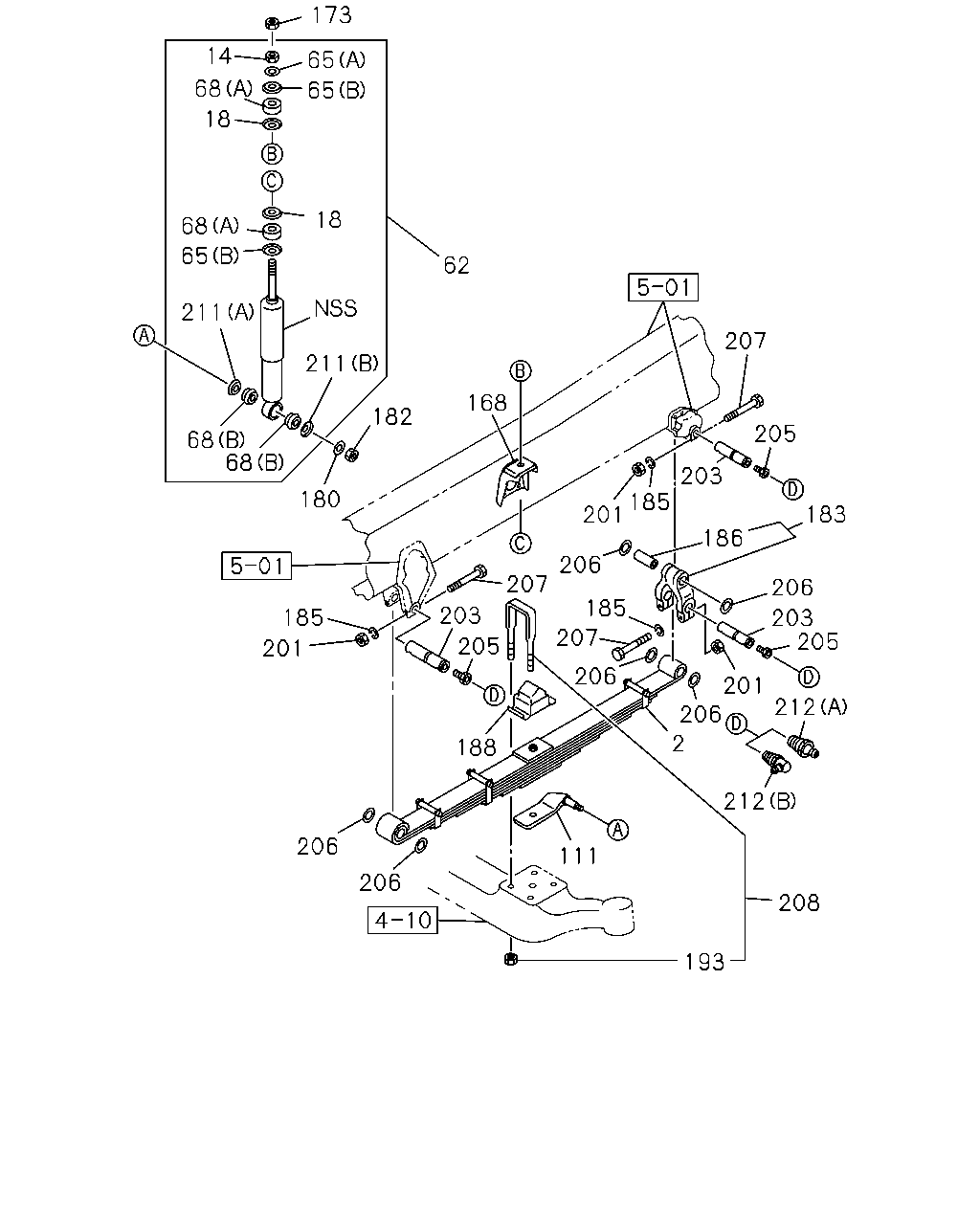

[450A] LEAF SPRING FIXING (29 parça)
▶
140
137
140
140
137
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
(B)
1-51781-074-0
02
1
1304-
137
BRACKET; STAB BAR TO FRAME
(A)
1-51781-111-0
01
1
1304-
138
NUT; BRKT
M14
0-91110-514-0
06
1
1304-
140
BOLT; BRKT
(B) M14X40
0-20951-440-0
06
1
1304-
140
BOLT; BRKT
(A) M14X50
0-20951-450-0
04
1
1304-
173
62
208
212
212
201
206
2
205
203
206
183
186
205
207
203
185
201
185
206
207
206
111
193
206
206
201
188
205
203
185
180
182
168
211
68
68
211
65
68
18
68
65
65
14
18
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98236-923-0
02
1
1304-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1304-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
1304-
62
ABSORBER ASM; SHOCK,FRT
1-51630-417-0
02
1
1304-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
1304-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
1304-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
1304-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
8-98121-193-0
01
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
8-98121-195-0
01
1
1304-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1304-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
1304-
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
1304-
182
NUT; S/ABS LWR
M20
0-91110-520-0
02
1
1304-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1304-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
1304-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1304-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-097-1
02
1
1304-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1304-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1304-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
1304-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1304-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
1304-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
1304-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1304-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1304-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1304-
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1304-
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW
0-90301-610-0
04
1
1304-
