0-12 — CYLINDER BLOCK (#117304) — 36 parça

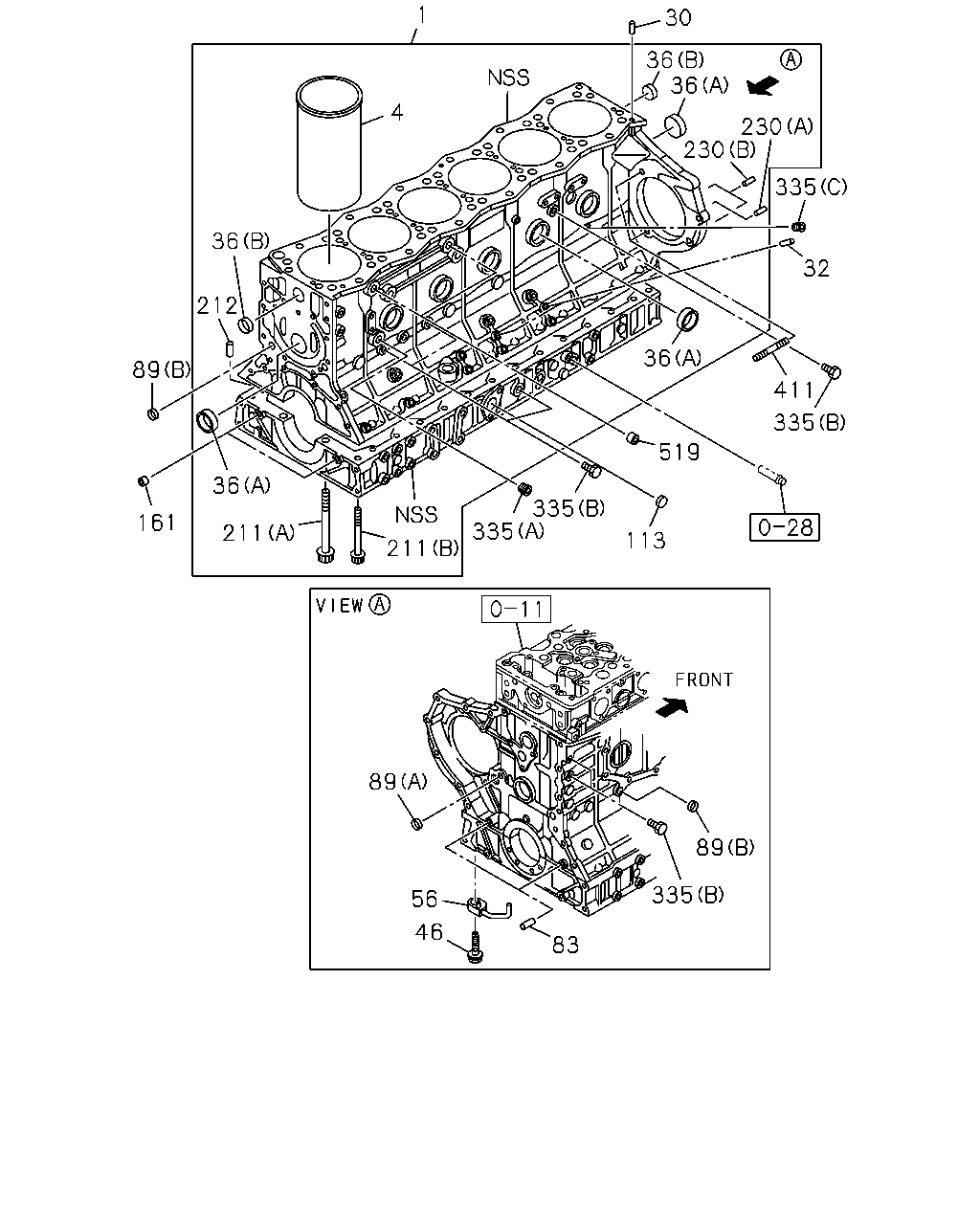

çizim 342053
230 335 32 411 335 89 335 83 46 56 89 211 335 335 113 519 36 211 161 36 89 212 36 4 1 30 36 36 230
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-98319-406-0 01 1 1304-
1 BLOCK ASM; CYL 8-98125-948-5 01 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-98112-230-0 06 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-98112-231-0 06 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-98112-232-0 06 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-98112-233-0 06 1 1304-
30 PIN; CYL HD GASKET SETTING
OD=8 L=16 		9-08150-816-0 02 1 1304-
32 PIN; INJ PUMP BRKT
OD=8 L=16 		9-08150-816-0 02 1 1304-
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-058-1 07 1 1304-
36 CUP; SEALING,WATER JACKET
(B) OD=32 		1-09600-059-1 02 1 1304-
46 BOLT; JOINT,OIL JET,PISTON COOLING
M10X21 FLANGE 		8-97372-238-0 06 1 1304-
56 JET; OIL,PISTON COOLING 8-98031-273-0 06 1 1304-1405
56 JET; OIL,PISTON COOLING 8-98275-246-0 06 1 1406-
83 PIN; FLYWHEEL HSG
OD=10 L=25 		9-08151-025-0 02 1 1304-1404
83 PIN; FLYWHEEL HSG
OD=10 L=22 		9-08151-022-0 02 1 1405-
89 CUP; SEALING,OIL GALLERY
(A) OD=16 		5-11129-006-0 01 1 1304-
89 CUP; SEALING,OIL GALLERY
(B) OD=20 		9-11129-128-0 02 1 1304-
113 CUP; SEALING
OD=32 		1-09600-012-2 01 1 1304-
161 DOWEL; FRT COVER 1-13119-004-0 02 1 1304-
211 BOLT; CRANKCASE
(B) M10X95 FLANGE 		8-98141-538-0 28 1 1304-
211 BOLT; CRANKCASE
(A) M15X126.5 FLANGE 		8-98229-864-0 14 1 1304-
212 PIN; CRANKCASE
OD=12 L=28 		1-09740-031-0 02 1 1304-1506
212 PIN; CRANKCASE
OD=12 L=28 		1-09740-031-0 04 1 1507-
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 1304-
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 1304-
335 PLUG; C/BL,SIDE
(C) PT1/8 		1-09605-050-0 01 1 1304-
335 PLUG; C/BL,SIDE
(A) PT3/8 		1-09605-056-0 01 1 1304-
335 PLUG; C/BL,SIDE
(B) M14X16.5 		8-97329-617-0 06 1 1304-
411 STUD; BRG CASE
M12X40 L=58 		9-94411-240-0 02 1 1304-
519 DOWEL; RAIL BRKT
OD=14 L=9 		9-19759-019-1 02 1 1304-

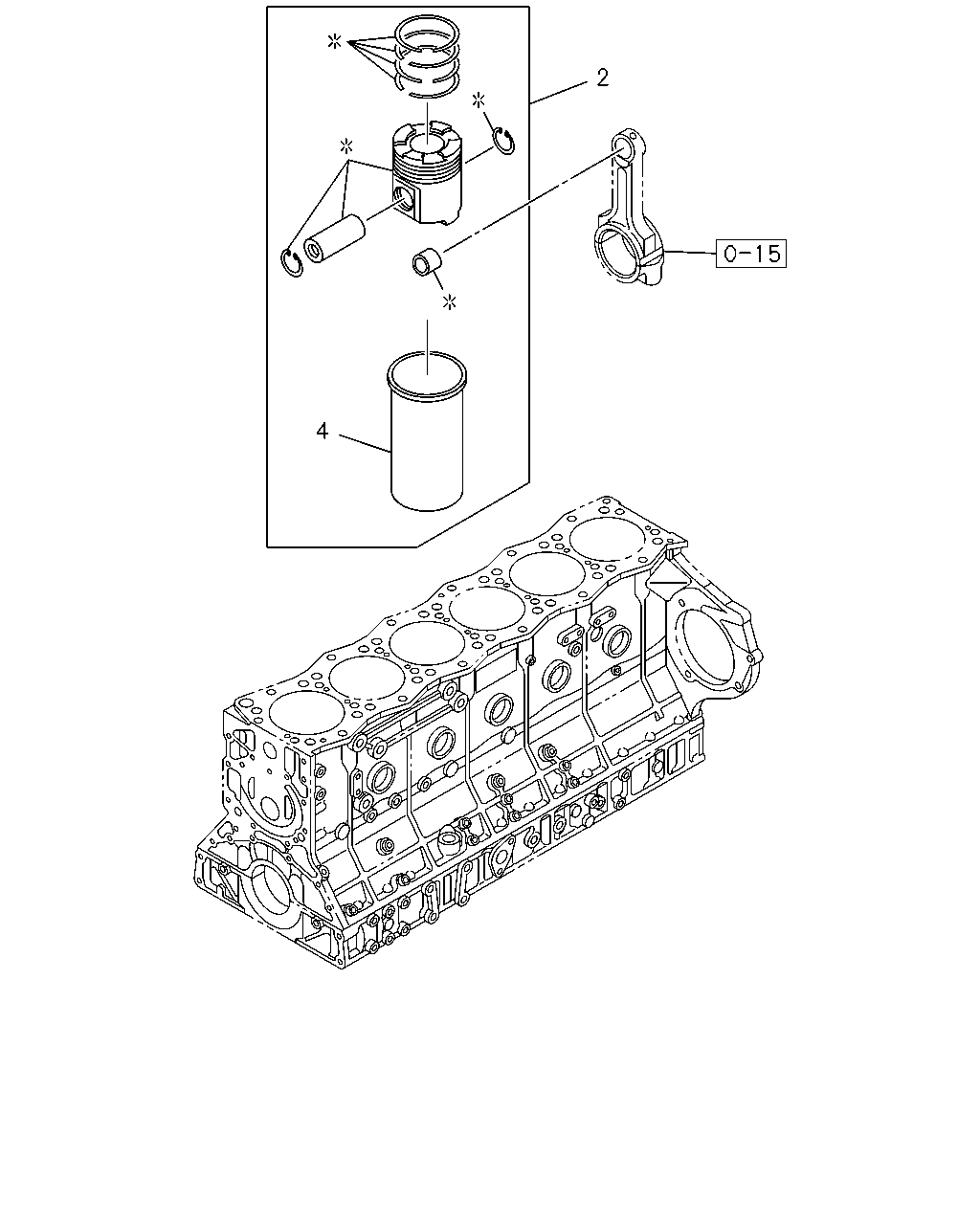

çizim 342062
2 4
BalonParca AdiParca NoAdetTipApplied Date
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-631-1 06 1 1304-
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-632-1 06 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-98112-230-0 06 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-98112-231-0 06 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-98112-232-0 06 1 1304-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-98112-233-0 06 1 1304-
