Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#117297) — 29 parça
◀

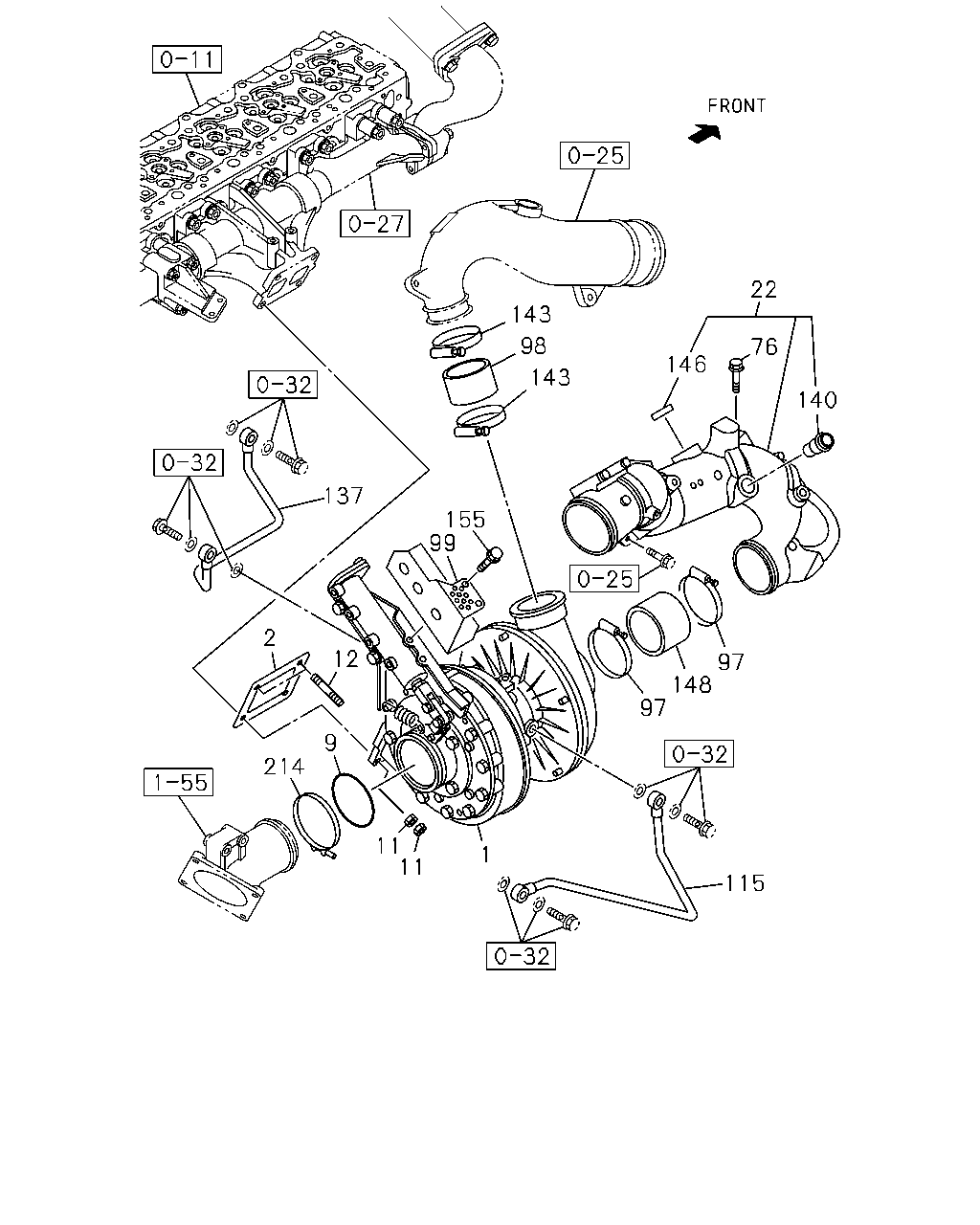

[036A] TURBOCHARGER FIXING (18 parça)
[036A] FLEX HOSE (11 parça)
▶
143
143
98
146
76
22
140
97
148
97
115
1
11
11
9
214
12
2
137
99
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-429-5
01
1
1302-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1302-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97618-761-1
01
1
1302-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1302-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1302-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
1302-
76
BOLT; AIR DUCT
M10X45 FLANGE THA
0-28151-045-0
03
1
1302-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1302-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98169-677-0
01
1
1302-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1302-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1302-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1302-
140
PIPE; AIR PIPE
8-97603-427-1
01
1
1302-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1302-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1302-
148
HOSE; TURBOCHARGER,INL
1-09360-913-0
01
1
1302-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE THA
0-28050-610-0
04
1
1302-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1302-
392
14
514
514
268
268
515
217
276
479
479
272
479
272
268
272
523
276
523
523
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
217
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1302-
268
NUT; FLEX TUBE
M12
0-91110-512-0
03
1
1302-
272
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
03
1
1302-
276
CLIP; PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
1302-
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1302-
479
UNION; FLEX TUBE
M12 2WAY
1-09654-059-2
03
1
1302-
514
HOSE; FLEX
L=240
1-09363-671-0
03
1
1302-
515
BRACKET; UNION
8-97608-912-1
01
1
1302-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550
1-47428-808-0
01
1
1302-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439 THA
8-97618-499-0
01
1
1302-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379 THA
8-97618-500-0
01
1
1302-
