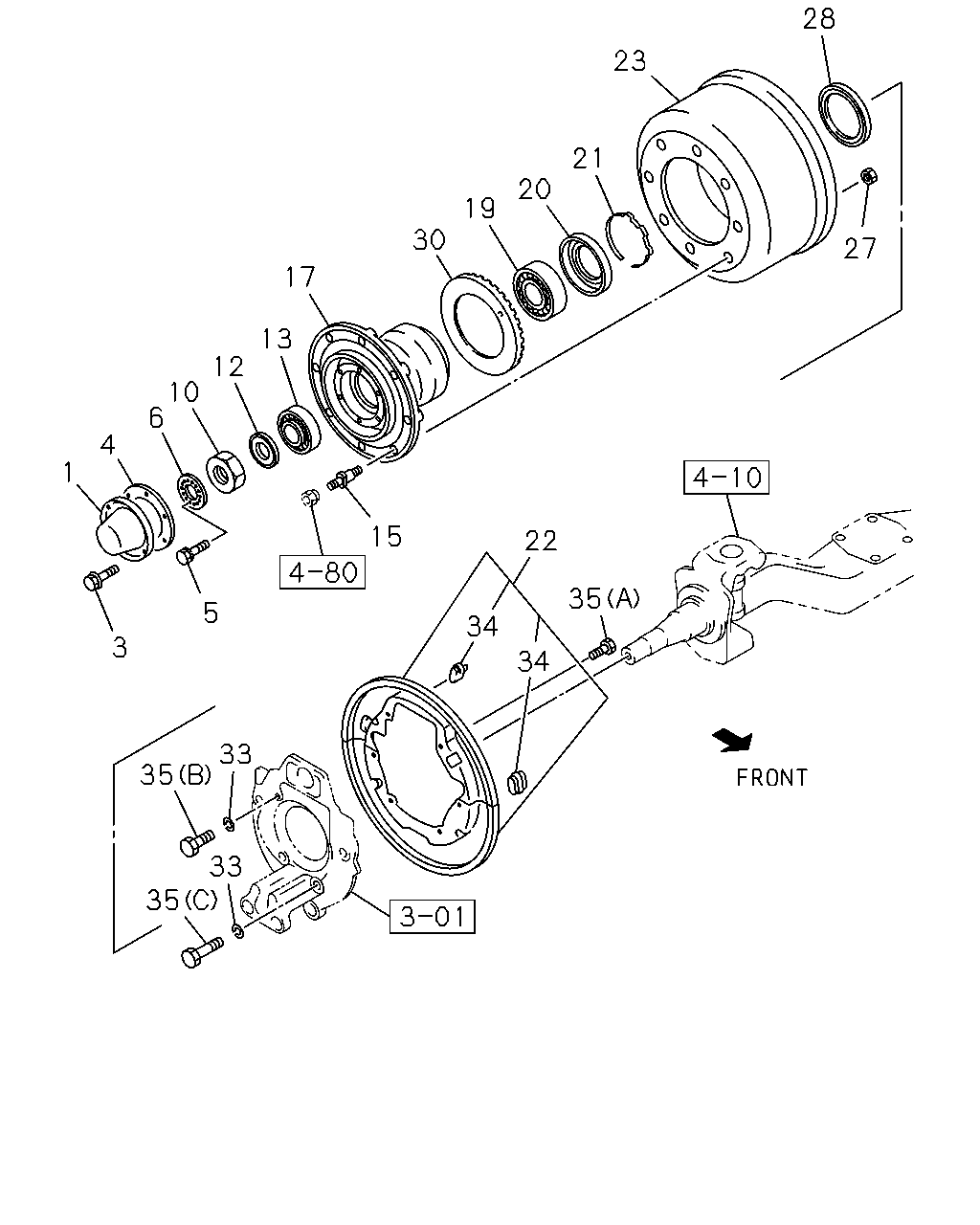

4-11 — FRONT HUB AND DRUM OR ROTOR (#117293) — 24 parça

1 4 6 10 12 13 17 30 19 20 21 23 28 3 15 22 34 34 33 35 35 35 27 5 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	1302-	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE THA	0-28050-812-0	12	1	1302-	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	1302-	●	●
5	BOLT; LK WASHER M6X16 FLANGE	8-98200-943-0	04	1	1302-	●	●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	1302-	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	1302-	●	●
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	1302-	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	1302-	●	●
15	PIN; WHEEL,FRT AXLE M24X37.0,M22X57.5 RH THREAD THA	8-97916-068-0	08	1	1302-	●	●
15	PIN; WHEEL,FRT AXLE M24X37.0 LH THREAD,M22X57.5 RH THREAD THA	8-97916-070-0	08	1	1302-	●	●
17	HUB; FRT AXLE	1-42312-151-3	04	1	1302-	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	1302-	●	●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	1302-	●	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	1302-	●	●
22	COVER SET; FRT BRK DRUM	1-87831-225-0	02	1	1302-	●	●
23	DRUM; BRK,FRT THA	1-42315-397-0	04	1	1302-	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE THA	8-97914-195-0	16	1	1302-	●	●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	1302-	●	●
30	RING; EXCITER,FRT HUB ANTILOCK BRAKE SYSTEM<BFA>	1-42319-203-0	04	1	1302-		●
33	WASHER; LK,DRUM COVER ID=18.2	0-91510-818-0	12	1	1302-	●	●
34	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	1302-	●	●
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	1302-	●	●
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	1302-	●	●
35	BOLT; DRUM COVER (A) M10X12 THA	1-47159-187-0	12	1	1302-	●	●
