Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶
0-31 — THERMOSTAT AND HOUSING
(#117290) — 39 parça
◀

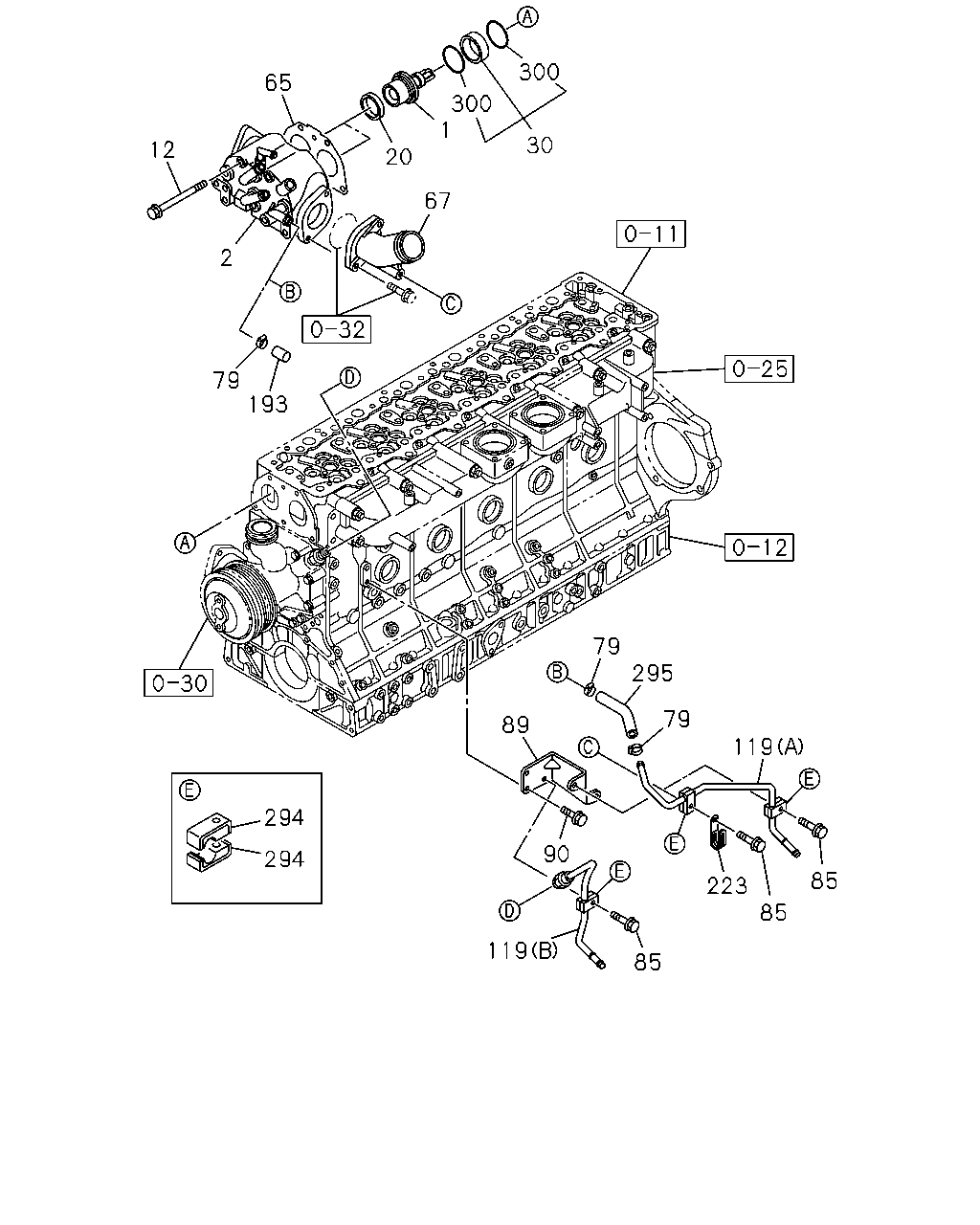

[031A] THERMOSTAT AND HOUSING (21 parça)

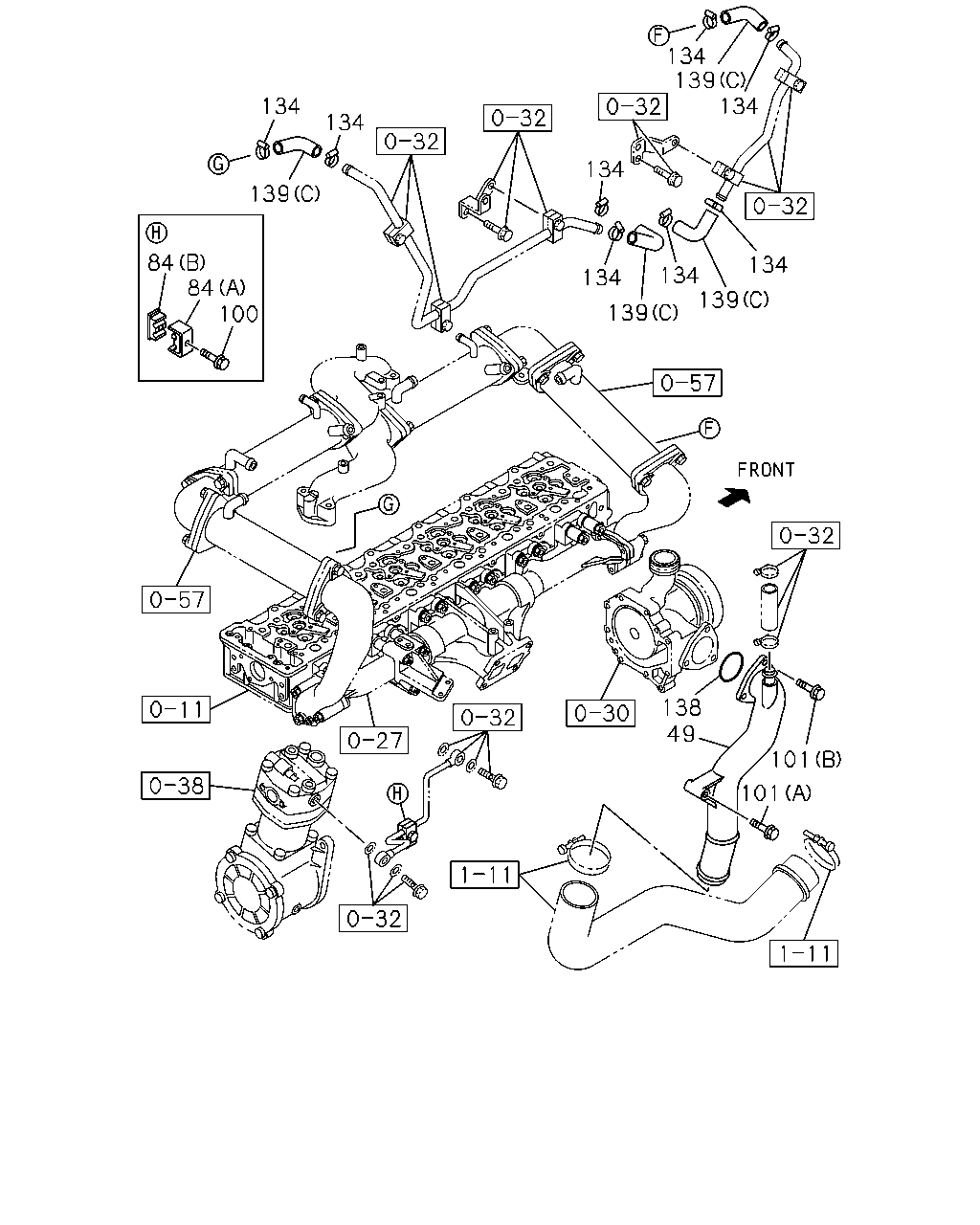

[031A] WATER OUTLET PIPE AND HOSE (13 parça)

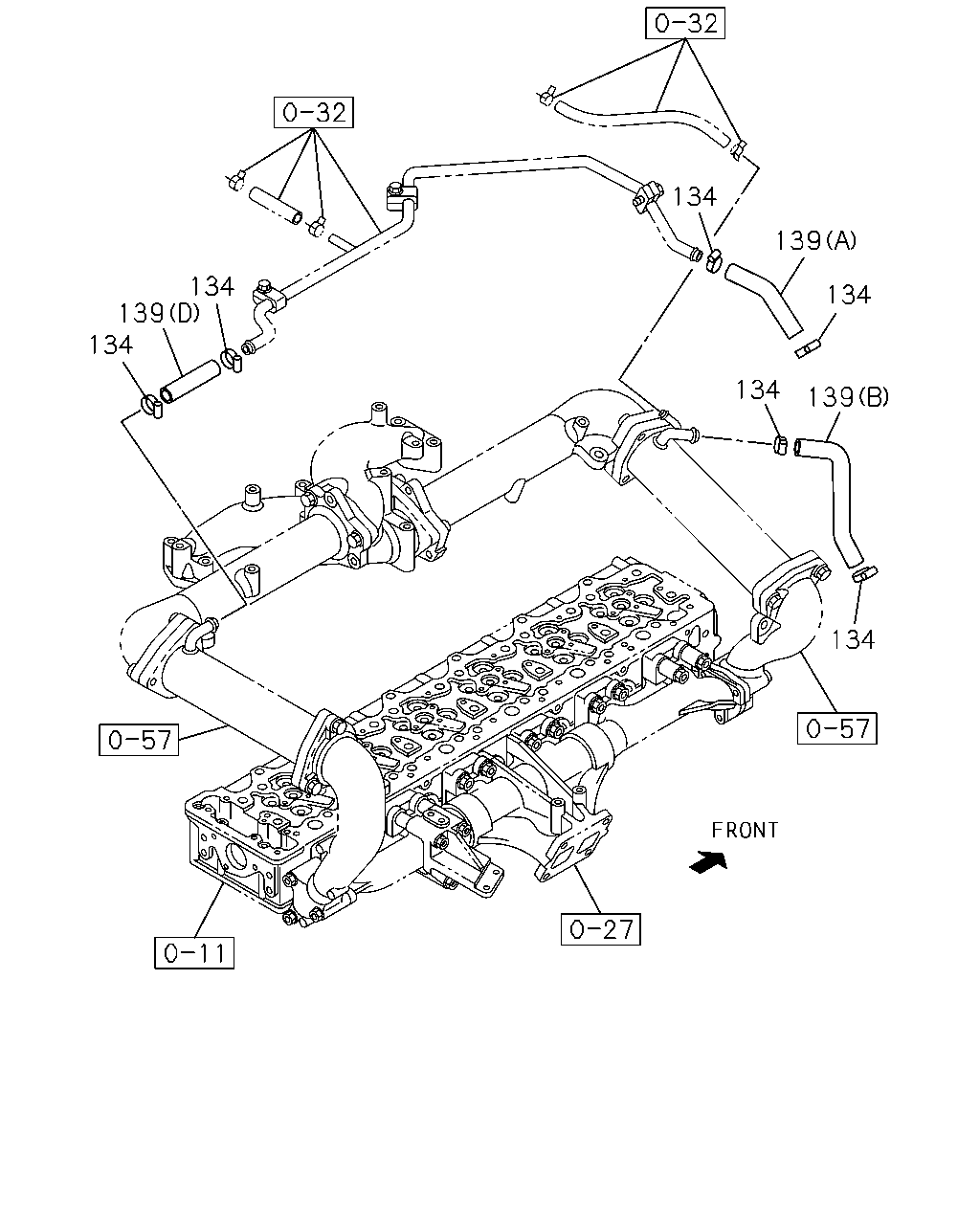

[031A] WATER HOSE AND CLIP (5 parça)
▶
65
300
30
1
300
67
20
2
12
193
79
79
295
79
89
119
85
85
223
90
119
294
294
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
82 CELSIUS
8-98271-161-0
02
1
1304-
2
HOUSING; THERMOSTAT
8-98043-957-2
01
1
1304-1306
2
HOUSING; THERMOSTAT
8-98236-233-0
01
1
1307-
12
BOLT; HSG
M10X120 FLANGE
0-28156-012-0
05
1
1304-
20
RING; SEAL
ID=59 OD=66.1
1-13779-011-0
02
1
1304-
30
SPACER
8-98158-701-0
02
1
1304-
65
GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98089-091-0
01
1
1304-
67
DUCT; WATER,OUTLET
8-97603-796-0
01
1
1304-
79
CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=25
8-97177-581-0
02
1
1304-
79
CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=25
8-97177-581-0
01
1
1304-
85
BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X45 FLANGE
0-28050-845-0
03
1
1304-
85
BOLT; CLIP
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M8X16 FLANGE
0-28050-816-0
01
1
1304-
89
BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-97606-634-0
01
1
1304-
90
BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10X20 FLANGE
0-28151-020-0
02
1
1304-
119
PIPE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-97606-632-1
01
1
1304-
119
PIPE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-97606-633-0
01
1
1304-
193
CAP; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=15 L=42
8-94231-115-0
01
1
1304-
223
CLIP; HARNESS
8-94136-604-0
01
1
1304-
294
CLIP; HTR PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-09701-284-0
06
1
1304-
295
HOSE; RUBBER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-97608-473-0
01
1
1304-
300
GASKET; SPACER
ID=65.3
8-98088-101-0
04
1
1304-
134
139
134
134
134
139
134
134
134
134
139
139
84
100
84
138
49
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
PIPE; WATER OUTLET
8-97604-542-0
01
1
1304-1308
49
PIPE; WATER OUTLET
8-98252-190-0
01
1
1309-
84
CLIP; WATER PIPE
(A)
1-09701-174-0
01
1
1304-
84
CLIP; WATER PIPE
(B)
1-09701-175-0
01
1
1304-
100
BOLT; WATER PIPE
M6X35 FLANGE
0-28650-635-0
01
1
1304-
101
BOLT; PIPE
(A) M12X60 FLANGE
0-28151-260-0
01
1
1304-
101
BOLT; PIPE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1304-
134
CLIP; RUBBER HOSE
ID=25
8-97177-581-0
14
1
1304-
138
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6
9-09565-271-0
01
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(D) L=100 SERVICED BY L=3000
0-03566-300-0
01
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(C)
8-97604-063-0
04
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(A)
8-97608-473-0
01
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(B)
8-98172-756-0
01
1
1304-
134
134
134
139
139
134
134
139
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
134
CLIP; RUBBER HOSE
ID=25
8-97177-581-0
14
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(D) L=100 SERVICED BY L=3000
0-03566-300-0
01
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(C)
8-97604-063-0
04
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(A)
8-97608-473-0
01
1
1304-
139
HOSE; RUBBER,PIPE TO COOLER
(B)
8-98172-756-0
01
1
1304-
