Isuzu WW
▶
PICKUP
▶
TFR
▶
51473 - TFR/TFS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-26B - MANUAL TRANSMISSION GEAR
▶

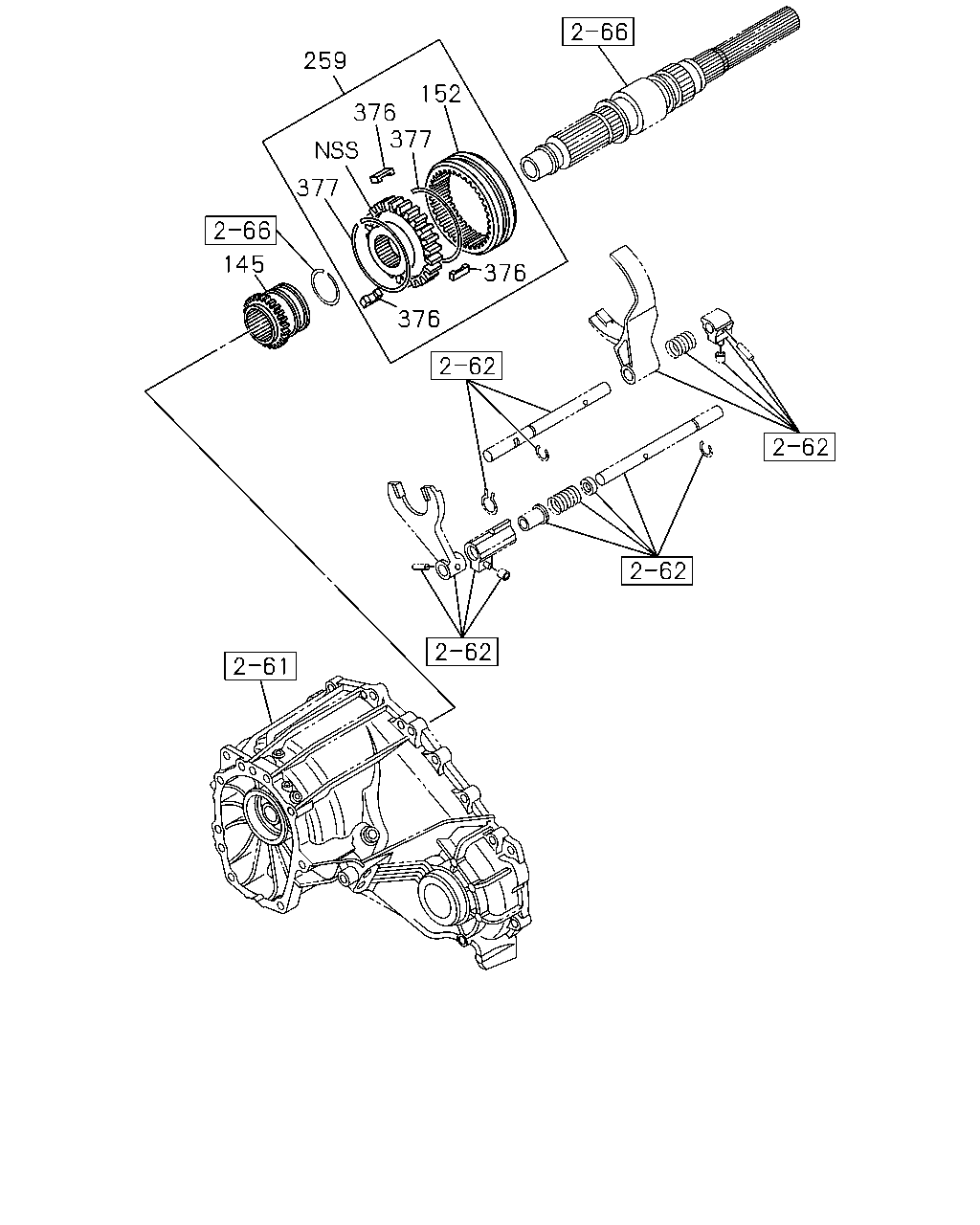

2-26B — MANUAL TRANSMISSION GEAR
(#117276) — 15 parça
259
152
377
376
377
145
376
376
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
145
04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***)
8-98063-369-1
01
1
1304-1304
145
04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-98063-369-1
01
1
1304-1306
145
04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***)
8-98063-369-1
01
1
1307-
152
04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***)
8-94363-060-0
01
1
1304-1304
152
04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-94363-060-0
01
1
1304-1306
152
04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***)
8-94363-060-0
01
1
1307-
259
04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***)
8-97234-225-0
01
1
1304-1304
259
04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97234-225-0
01
1
1304-1306
259
04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***)
8-97234-225-0
01
1
1307-
376
04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***)
8-97238-590-0
03
1
1304-1304
376
04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97238-590-0
03
1
1304-1306
376
04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***)
8-97238-590-0
03
1
1307-
377
04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***)
8-94448-045-0
02
1
1304-1304
377
04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-94448-045-0
02
1
1304-1306
377
04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***)
8-94448-045-0
02
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
