◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53B - TRANSMISSION OIL COOLER SYSTEM ▶
2-53B — TRANSMISSION OIL COOLER SYSTEM (#11725) — 58 parça

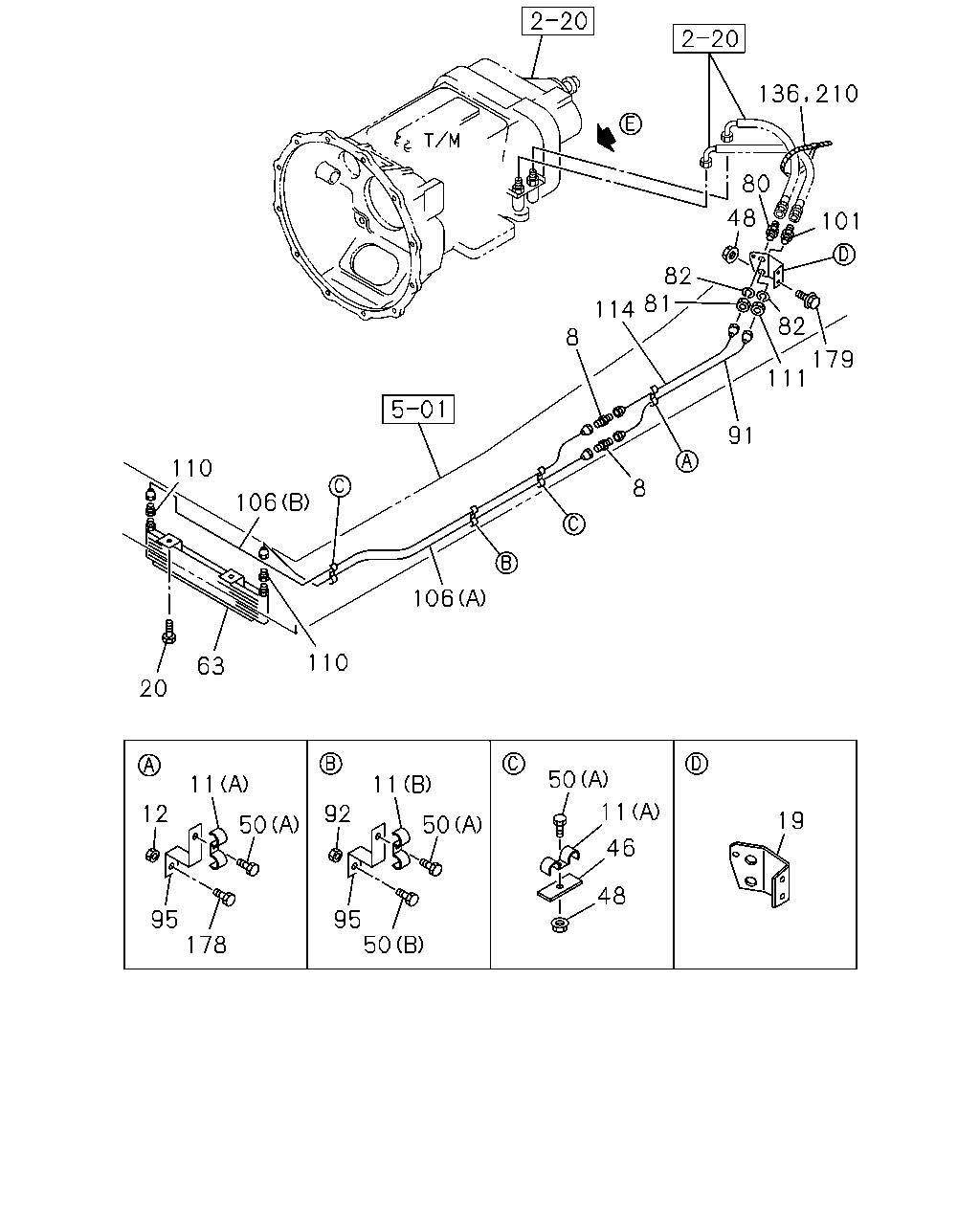

çizim 19414
80 48 101 82 81 114 82 8 179 111 91 110 8 106 106 110 63 20 50 11 11 11 12 92 19 50 50 46 48 95 178 95 50 136 210
BalonParca AdiParca NoAdetTipApplied Date
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 02 1 0106-0607
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		0-92123-015-0 02 1 0608-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0106-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0106-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0106-
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 01 1 0603-
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> 		1-47478-566-0 01 1 0106-
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 0106-0512
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28051-020-0 02 1 0601-
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> L=50 		1-47475-299-2 02 1 0106-
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 04 1 0106-0602
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 04 1 0603-
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0106-0512
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 0106-0609
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-394-0 01 1 0610-
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0106-
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 0106-0512
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		0-91111-522-0 01 1 0601-
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 01 1 0106-0603
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 01 1 0106-0603
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		0-91510-522-0 01 1 0604-
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		0-91510-522-0 01 1 0604-
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> L=837 		1-49163-182-0 01 1 0106-0106
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> L=832 		1-49166-225-0 01 1 0107-
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0106-0106
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0106-0106
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0107-0602
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0107-0602
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0603-
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0603-
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0106-0106
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0106-0106
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47477-669-1 01 1 0107-
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47477-669-1 01 1 0107-
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0106-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) L=2317 		1-49164-311-0 01 1 0106-0106
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) L=2324 		1-49166-216-0 01 1 0107-0206
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) L=2305 		1-49166-669-0 01 1 0207-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) L=1703 		1-49164-312-0 01 1 0106-0106
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) L=1695 		1-49166-217-0 01 1 0107-
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-398-0 02 1 0106-
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 0106-0512
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		0-91111-522-0 01 1 0601-
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=998 		1-49163-183-0 01 1 0106-0106
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=998 		1-49166-226-0 01 1 0107-
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 0106-
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28650-830-0 02 1 0601-
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 0106-

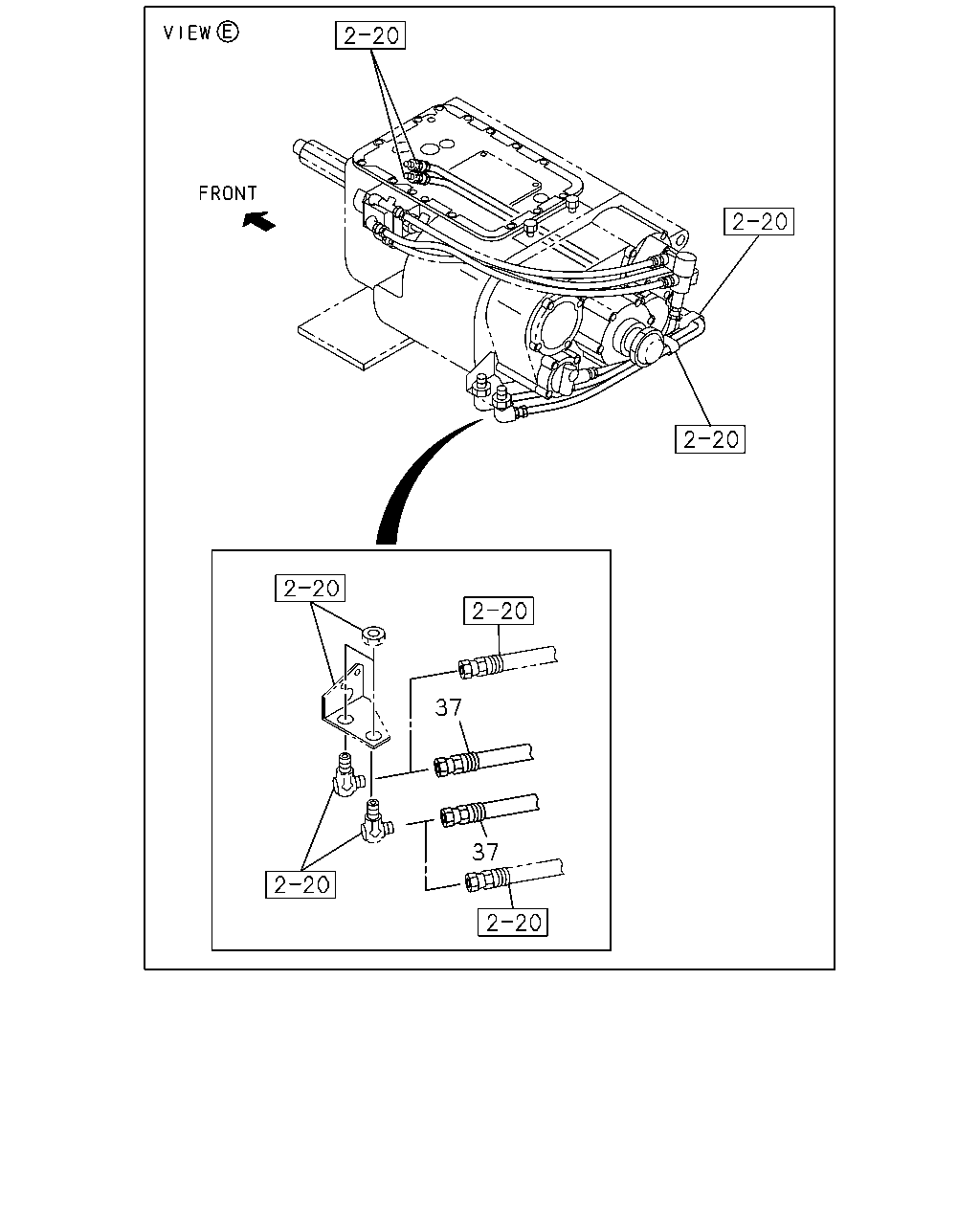

çizim 81657
37 37
BalonParca AdiParca NoAdetTipApplied Date
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
L=1120 		1-09365-010-0 02 1 0106-0309
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
