2-05 — CLUTCH PIPING (#117249) — 182 parça

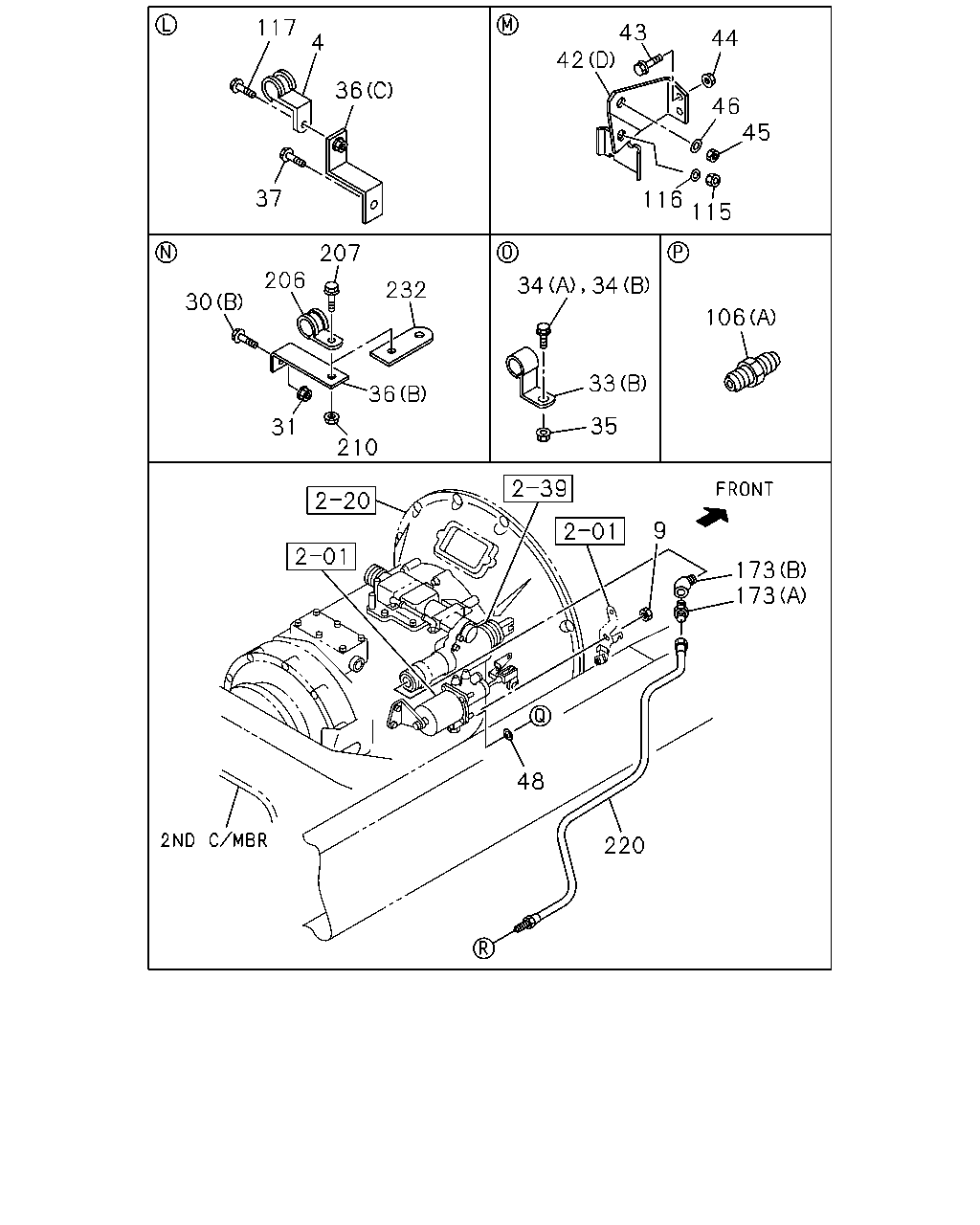

220 48 173 173 9 106 33 35 34 34 36 31 30 206 207 37 232 36 117 42 4 43 44 46 116 45 115 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) ID=16 H=25 L=25	1-09701-162-0	01	1	1304-	●
9	NUT; BRKT,FLEX HOSE MJT7U M/T(Y4X) M10 FLANGE	0-91180-210-0	02	1	1304-	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
31	NUT; BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-		●
31	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (A) ID=9 L=20	0-95234-835-0	04	1	1304-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1304-		●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1304-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1304-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
34	BOLT; PIPE CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (A) M8X35 FLANGE	0-28650-835-0	03	1	1304-	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	04	1	1304-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1304-		●
35	NUT; PIPE CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	03	1	1304-	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) (A) L=80 H=20	1-82699-304-0	01	1	1304-	●
36	BRACKET; CLIP (A) L=80 H=20	1-82699-304-0	01	1	1304-		●
36	BRACKET; CLIP MJT7U M/T(Y4X) (C)	1-47475-689-0	01	1	1304-	●
36	BRACKET; CLIP MJT7U M/T(Y4X) (B) L=95	1-82699-085-0	01	1	1304-	●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
37	BOLT; CLIP BRKT MJT7U M/T(Y4X) M10X16 FLANGE	0-28151-016-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1304-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1304-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (D)	8-98239-928-0	01	1	1304-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-		●
48	GASKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) ID=10.2 OD=16.0	9-09571-410-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1304-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1304-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1304-	●	●
117	BOLT; CLIP,FLEX HOSE MJT7U M/T(Y4X) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
173	CONNECTOR MJT7U M/T(Y4X) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-	●
173	CONNECTOR MJT7U M/T(Y4X) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1304-	●
206	CLIP; TUBE MJT7U M/T(Y4X) ID=16 L=28	1-09700-872-0	01	1	1304-	●
207	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
207	BOLT; CLIP ZF9S1310 M/T(Y5K) M8X20 FLANGE	0-28650-820-0	01	1	1304-		●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1304-	●	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T(Y4X) L=320	1-09363-656-0	01	1	1304-	●
232	BRACKET MJT7U M/T(Y4X)	1-82699-182-0	01	1	1304-	●

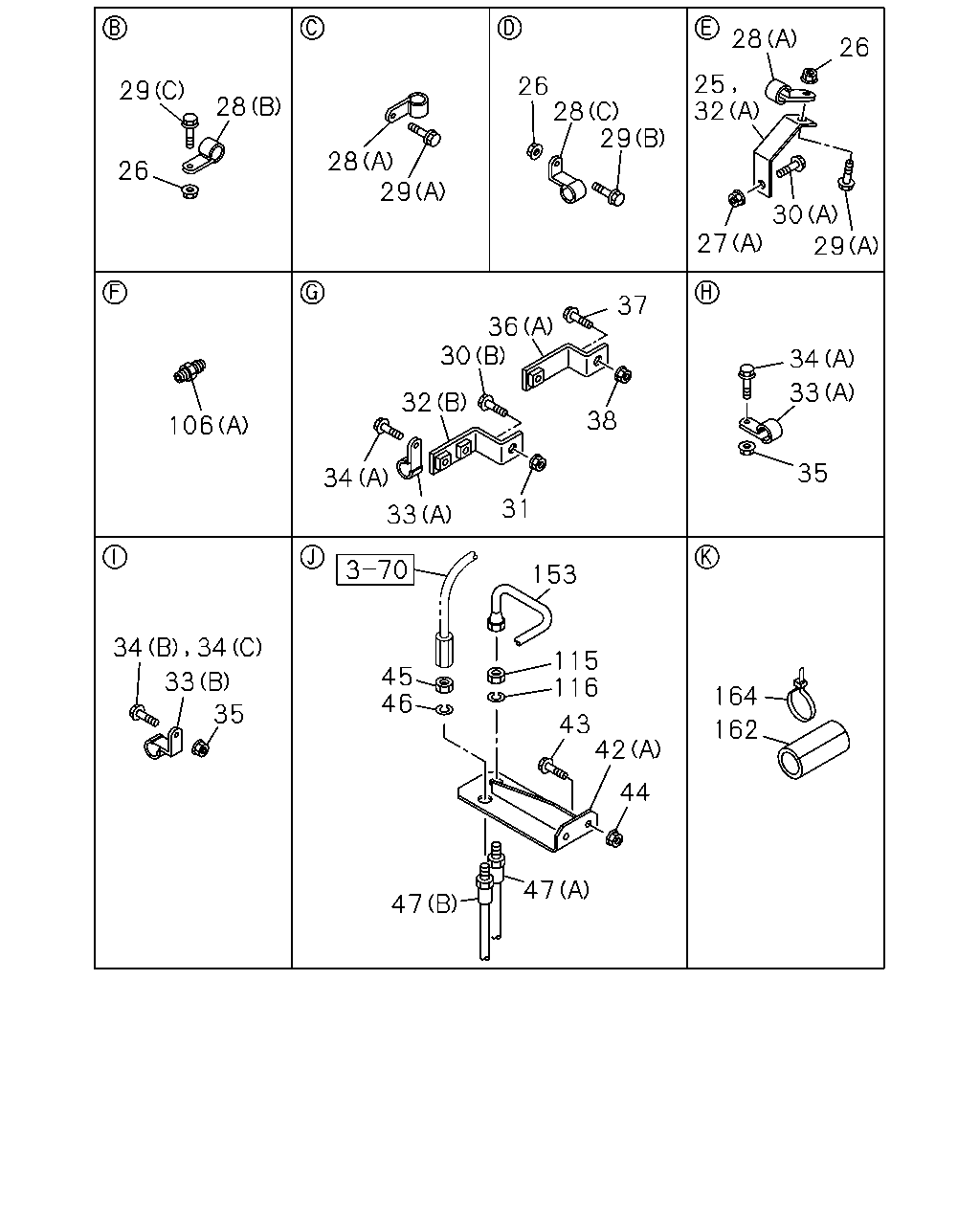

28 29 26 106 34 34 33 35 28 29 37 36 30 32 34 33 31 38 153 115 116 43 42 44 47 47 46 45 26 28 29 28 26 25 32 27 30 29 34 33 35 164 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K)	8-98123-057-0	01	1	1304-	●
25	BRACKET; OIL PIPE	8-98123-057-0	01	1	1304-		●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	1304-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1304-		●
26	NUT; CLIP,OIL PIPE MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1304-		●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1304-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (A) ID=9 L=20	0-95234-835-0	02	1	1304-	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1304-		●
28	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1304-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1304-		●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1304-	●	●
28	CLIP; OIL PIPE MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	1304-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-		●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
29	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
29	BOLT; CLIP,OIL PIPE MJT7U M/T(Y4X) (A) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
29	BOLT; CLIP,OIL PIPE MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
31	NUT; BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-		●
31	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K) (B)	1-47479-482-0	01	1	1304-	●
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	1304-		●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K) (A)	8-98123-057-0	01	1	1304-	●
32	BRACKET; CLIP OIL PIPE (A)	8-98123-057-0	01	1	1304-		●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (A) ID=9 L=20	0-95234-835-0	04	1	1304-	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1304-		●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1304-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1304-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
34	BOLT; PIPE CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (A) M8X35 FLANGE	0-28650-835-0	03	1	1304-	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	04	1	1304-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1304-		●
35	NUT; PIPE CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	03	1	1304-	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) (A) L=80 H=20	1-82699-304-0	01	1	1304-	●
36	BRACKET; CLIP (A) L=80 H=20	1-82699-304-0	01	1	1304-		●
36	BRACKET; CLIP MJT7U M/T(Y4X) (C)	1-47475-689-0	01	1	1304-	●
36	BRACKET; CLIP MJT7U M/T(Y4X) (B) L=95	1-82699-085-0	01	1	1304-	●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
37	BOLT; CLIP BRKT MJT7U M/T(Y4X) M10X16 FLANGE	0-28151-016-0	01	1	1304-	●
38	NUT; CLIP BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	01	1	1304-	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1304-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1304-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (D)	8-98239-928-0	01	1	1304-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=580	1-09363-692-0	01	1	1304-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (B) L=620	8-98072-333-0	01	1	1304-		●
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=650	1-09364-694-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1304-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1304-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1304-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1304-	●
153	PIPE ASM; CLU,UNION TO FLEX L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1304-		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) L=1813 SERVICED BY L=1950	1-47428-769-0	01	1	1304-	●
162	COVER; RUBBER,FLEX HOSE ZF9S1310 M/T(Y5K) L=175	1-09707-178-0	01	1	1304-	●
162	COVER; RUBBER,FLEX HOSE L=175	1-09707-178-0	01	1	1304-		●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T(Y5K) L=350	1-09707-183-0	01	1	1304-	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1304-		●

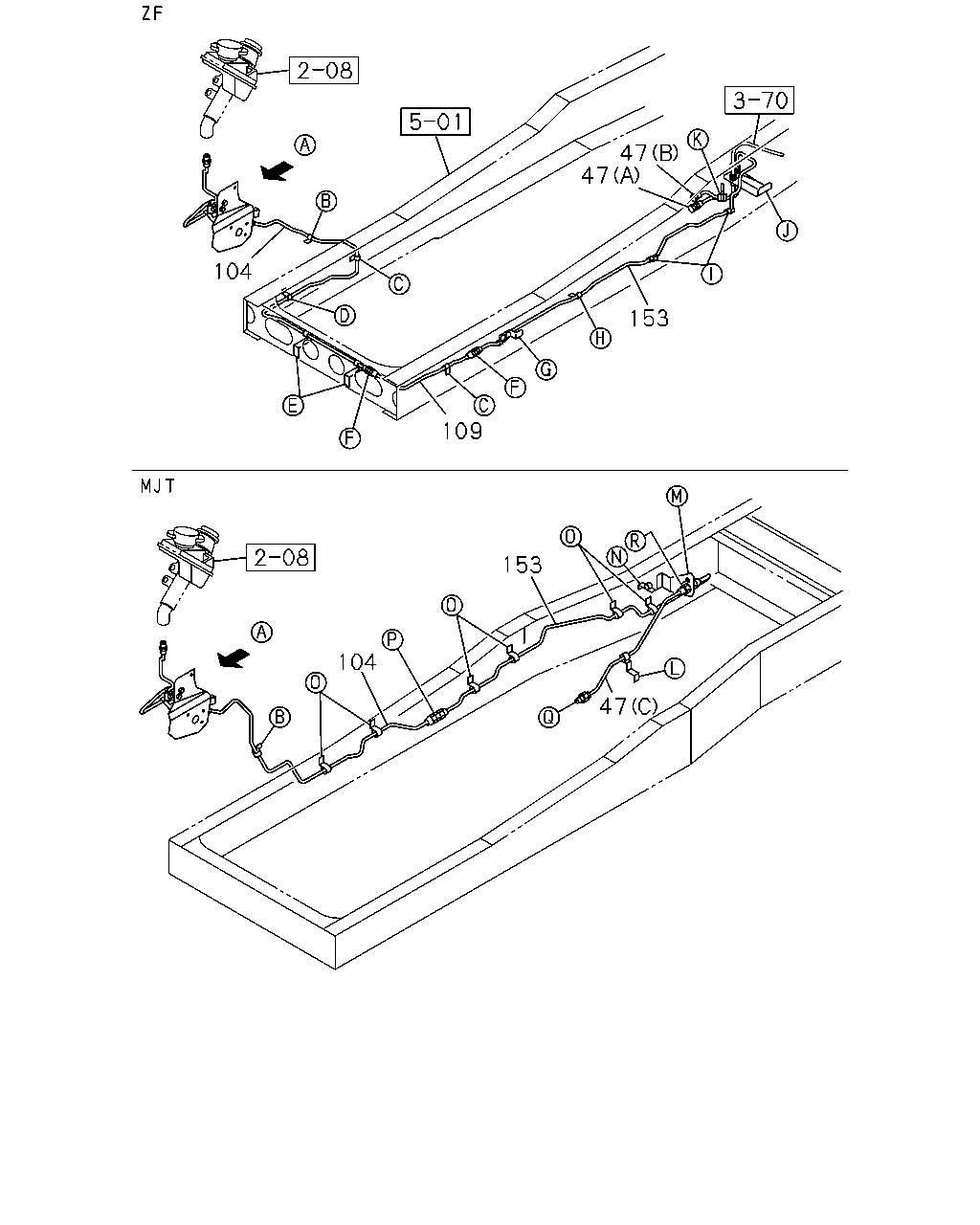

47 153 104 109 153 47 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=580	1-09363-692-0	01	1	1304-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (B) L=620	8-98072-333-0	01	1	1304-		●
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=650	1-09364-694-0	01	1	1304-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K) L=1783 SERVICED BY L=1800	1-47428-768-0	01	1	1304-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1783 SERVICED BY L=1800	1-47428-768-0	01	1	1304-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR WHEEL BASE 4500MM(45W) L=1174 SERVICED BY L=1250	1-47428-764-0	01	1	1304-	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T(Y5K) L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1304-	●
109	PIPE; AIR,UNION TO UNION L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1304-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1304-	●
153	PIPE ASM; CLU,UNION TO FLEX L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1304-		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) L=1813 SERVICED BY L=1950	1-47428-769-0	01	1	1304-	●

235 101 210 106 51 107 27 42 30 42 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1304-	●	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1304-		●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1304-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1304-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1304-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (D)	8-98239-928-0	01	1	1304-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1304-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1304-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1304-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1304-	●	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1304-	●	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0	9-09571-410-0	01	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
