2-01 — CLUTCH
(#117244) — 54 parça
◀

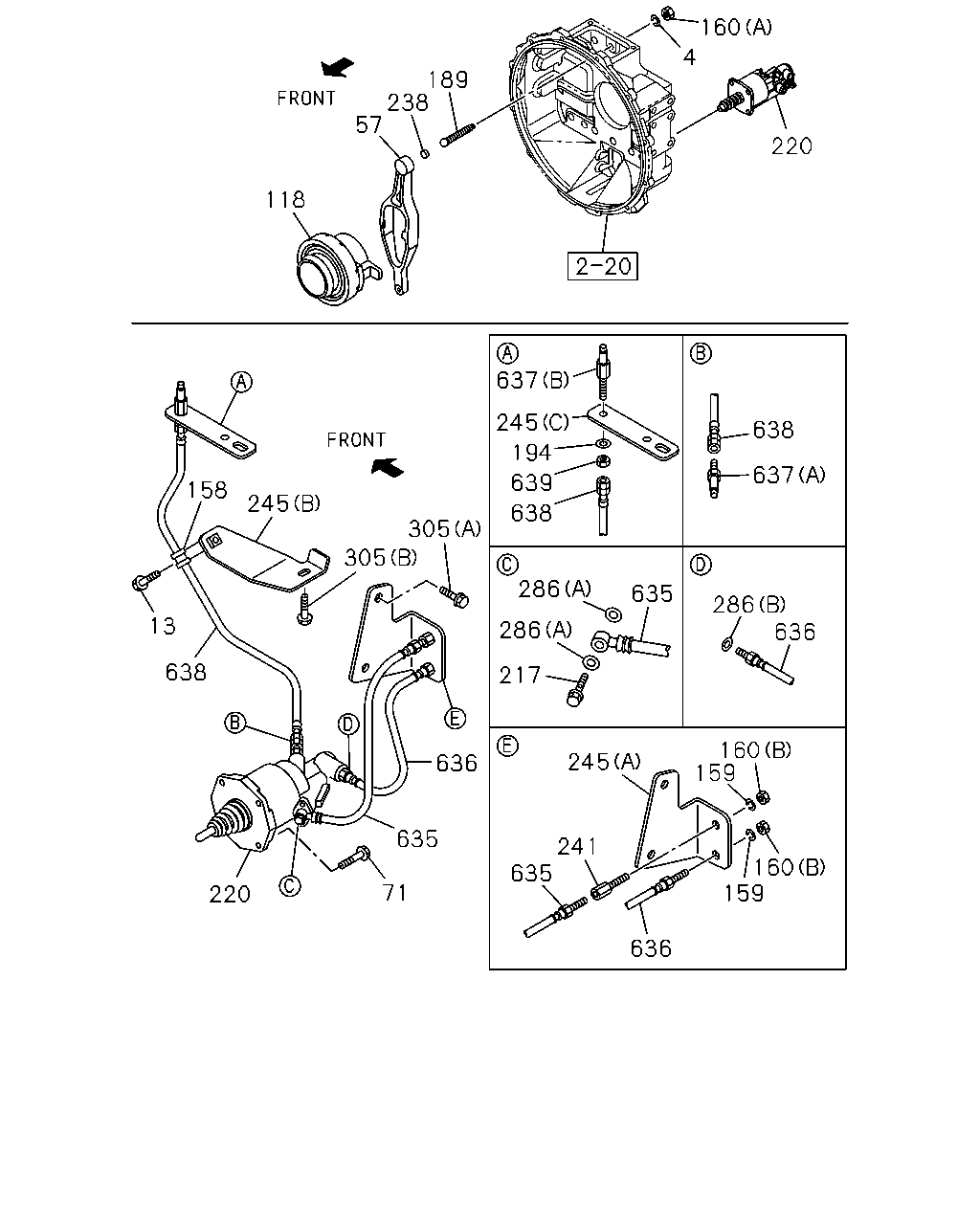

[201A] CLUTCH BOOSTER AND FORK,BEARING (31 parça)

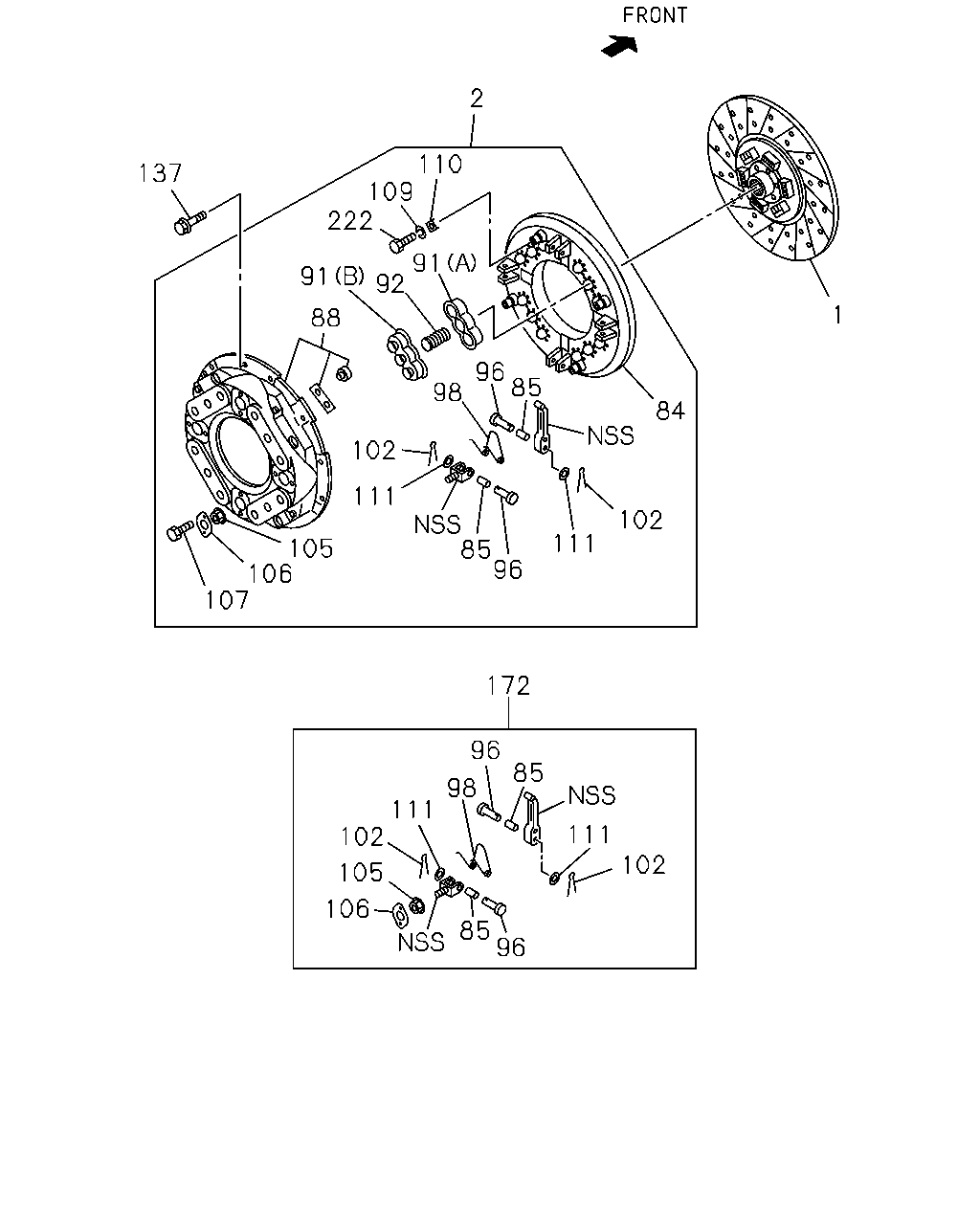

[201A] DISC AND PLATE (23 parça)
▶
160
4
220
189
238
57
118
637
245
194
639
638
638
637
286
286
217
635
286
636
160
159
245
241
635
636
159
160
158
245
305
305
636
635
71
220
638
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
WASHER; FORK STUD
1-33519-052-0
01
1
1304-1305
4
WASHER; FORK STUD
1-33519-198-0
01
1
1306-
13
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1304-
57
FORK; SHIFT,CLU
1-31340-075-0
01
1
1304-
71
BOLT
M8X30 HEX SOCKET
0-58330-830-0
04
1
1304-
118
BEARING; CLU RELEASE
1-31310-022-0
01
1
1304-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-161-0
01
1
1304-
158
CLIP; FLEX HOSE
ID=16 L=50
1-09701-158-0
01
1
1304-
159
WASHER; LK
ID=12.2
0-91510-812-0
02
1
1304-
160
NUT
(A)
1-31119-053-0
01
1
1304-
160
NUT
(B) M12
9-09840-280-0
02
1
1304-
189
PIN; JOINT
1-31119-056-0
01
1
1304-1305
189
PIN; JOINT
1-31119-060-0
01
1
1306-
194
WASHER; LK
ID=12.2
0-91510-812-0
01
1
1304-
217
BOLT; EYE
M16X30
1-09675-026-0
01
1
1304-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-552-0
01
1
1304-
238
CUP; SUPPORT,CLU FORK
1-31349-025-0
01
1
1304-
241
CONNECTOR
1-09661-823-0
01
1
1304-
245
BRACKET; HOSE
(A)
1-31429-491-1
01
1
1304-
245
BRACKET; HOSE
(B)
1-31429-498-2
01
1
1304-
245
BRACKET; HOSE
(C)
1-31429-499-1
01
1
1304-
286
GASKET; BOLT,EYE
(A) ID=16.2
1-09630-086-0
02
1
1304-
286
GASKET; BOLT,EYE
(B) ID=14.2 OD=20.0
9-09571-414-0
01
1
1304-
305
BOLT; BRACKET
(A) M10X20 FLANGE
0-28151-020-0
02
1
1304-
305
BOLT; BRACKET
(B) M16X30 FLANGE
0-28951-630-0
01
1
1304-
635
HOSE; AIR
1-09365-398-0
01
1
1304-
636
HOSE; OIL
1-09365-414-1
01
1
1304-
637
UNION
(A) M8 & M12 STRAIGHT
1-09654-383-0
01
1
1304-
637
UNION
(B)
1-09654-384-0
01
1
1304-
638
HOSE
1-09365-402-2
01
1
1304-
639
NUT; UNION
M12
9-09840-280-0
01
1
1304-
1
2
137
107
106
105
111
102
88
91
85
222
109
110
91
92
96
111
102
84
85
96
98
172
102
96
98
111
105
106
85
111
102
96
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
17"
1-31240-862-0
01
1
1304-
2
PLATE ASM; PRESSURE,CLU
1-31220-321-2
01
1
1304-1408
2
PLATE ASM; PRESSURE,CLU
1-31220-457-0
01
1
1409-
84
PLATE; PRESSURE
17"
1-31221-128-0
01
1
1304-
85
BUSHING; RELEASE LEVER
1-31239-053-0
08
1
1304-1408
85
BUSHING; RELEASE LEVER
8-98281-693-0
08
1
1409-
88
COVER SUB ASM; CLU
1-31210-024-0
01
1
1304-
91
SEAT; SPR
(A)
1-31219-032-0
04
1
1304-
91
SEAT; SPR
(B)
1-31219-033-0
04
1
1304-
92
SPRING; CLU
1-31214-040-0
12
1
1304-1408
92
SPRING; CLU
8-98281-694-0
10
1
1409-
96
PIN; RELEASE LEVER
1-31232-017-0
08
1
1304-
98
SPRING; RETURN
1-31233-007-0
04
1
1304-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
1304-
105
NUT; SUPPORT
1-31235-014-0
04
1
1304-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1304-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1304-
109
WASHER; LK,STRAP
ID=12.2
0-91510-512-0
04
1
1304-
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
1304-
111
WASHER; PL,STRAP
ID=14
9-09651-098-0
08
1
1304-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1304-
172
LEVER KIT; RELEASE,CLU
1-87831-182-2
01
1
1304-
222
BOLT; STRAP
1-09040-102-0
04
1
1304-
