Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53A - TRANSMISSION OIL COOLER SYSTEM
▶

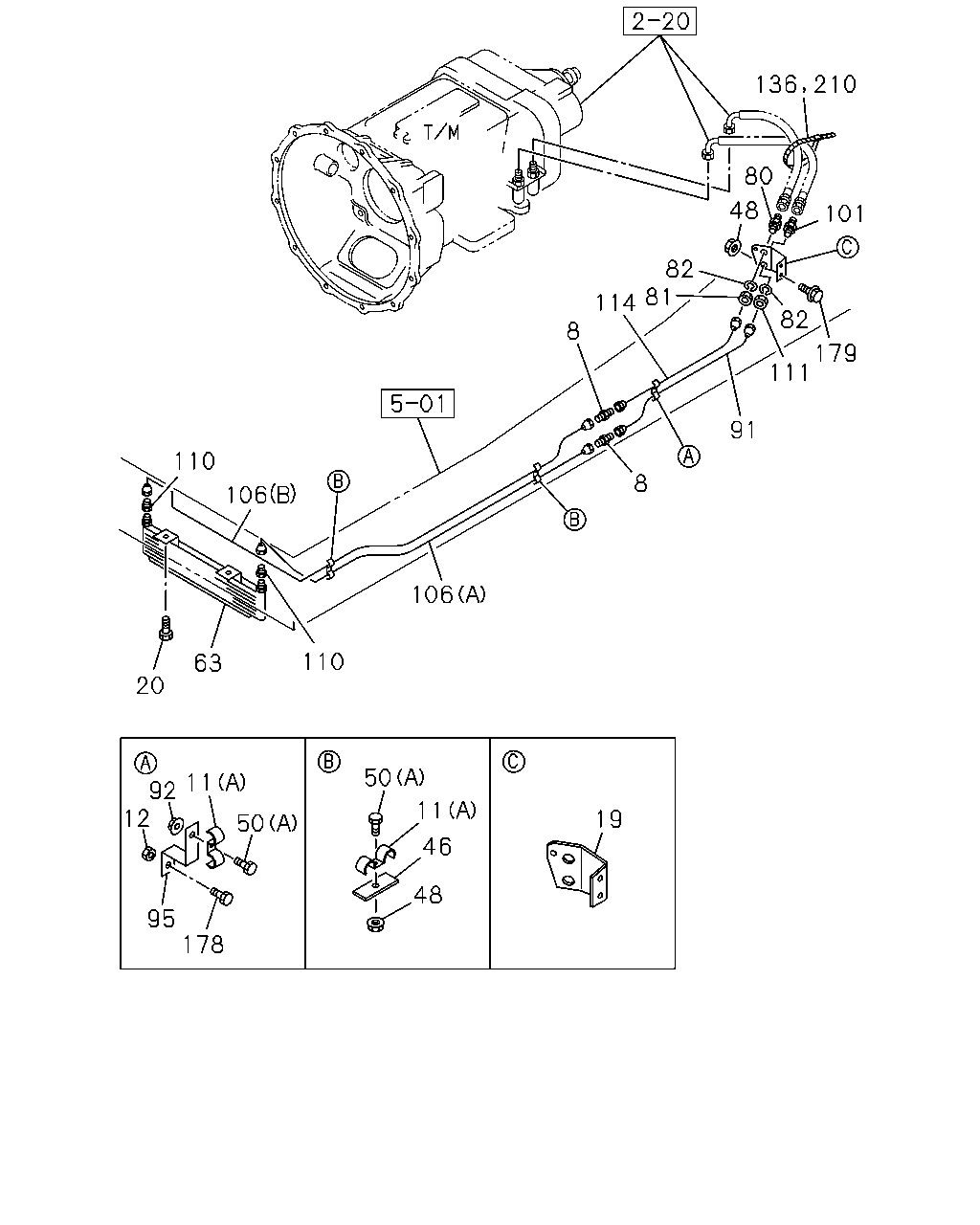

2-53A — TRANSMISSION OIL COOLER SYSTEM
(#11724) — 48 parça
80
48
101
82
81
114
82
8
179
111
91
110
8
106
106
110
63
20
92
12
50
11
11
19
50
46
48
95
178
136
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
UNION
M22
9-09233-015-1
02
1
0106-0607
8
UNION
M22
0-92123-015-0
02
1
0608-
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0106-
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
02
1
0106-
12
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0106-0602
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
19
BRACKET; FLEX HOSE
1-47478-566-0
01
1
0106-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28081-020-0
02
1
0106-0512
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0601-
46
BRACKET; OIL PIPE
L=50
1-47475-299-2
02
1
0106-
48
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0106-0602
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
50
BOLT; CLIP
(A) M8X16 FLANGE
0-28080-816-0
02
1
0106-0512
50
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
02
1
0601-
50
BOLT; CLIP
(A) M8X20 FLANGE
0-28680-820-0
01
1
0106-0106
63
COOLER; OIL
1-21700-290-0
01
1
0106-0609
63
COOLER; OIL
1-21700-394-0
01
1
0610-
80
UNION; FLEX HOSE
M22 & M30 STRAIGHT
1-09664-237-0
01
1
0106-
81
NUT; UNION
M22
9-09111-422-0
01
1
0106-0512
81
NUT; UNION
M22
0-91111-522-0
01
1
0601-
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0106-0603
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0106-0603
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
0604-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
0604-
91
PIPE; OIL,FLEX HOSE TO UNION
L=911
1-49163-072-0
01
1
0106-0106
91
PIPE; OIL,FLEX HOSE TO UNION
1-49166-215-0
01
1
0107-
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0106-0106
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0107-0602
92
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
95
BRACKET; CLIP
1-47475-881-0
01
1
0106-0106
95
BRACKET; CLIP
1-47477-669-1
01
1
0107-
101
UNION; FLEX HOSE
M22 & M30 STRAIGHT
1-09664-237-0
01
1
0106-
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2317
1-49164-311-0
01
1
0106-0106
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2324
1-49166-216-0
01
1
0107-0206
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2305
1-49166-669-0
01
1
0207-
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=1703
1-49164-312-0
01
1
0106-0106
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=1695
1-49166-217-0
01
1
0107-
110
UNION; OIL PIPE
1-09654-398-0
02
1
0106-
111
NUT; UNION
M22
9-09111-422-0
01
1
0106-0512
111
NUT; UNION
M22
0-91111-522-0
01
1
0601-
114
PIPE; OIL,UNION TO FLEX HOSE
L=1071
1-49163-073-0
01
1
0106-0106
114
PIPE; OIL,UNION TO FLEX HOSE
1-49166-218-0
01
1
0107-
136
CLIP; FLEX HOSE
L=250
1-09707-126-0
01
1
0106-
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0106-0512
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0601-
179
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0106-0512
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0601-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0106-
