8-01 — LAMP; FRONT AND FRONT SIDE (#117238) — 75 parça

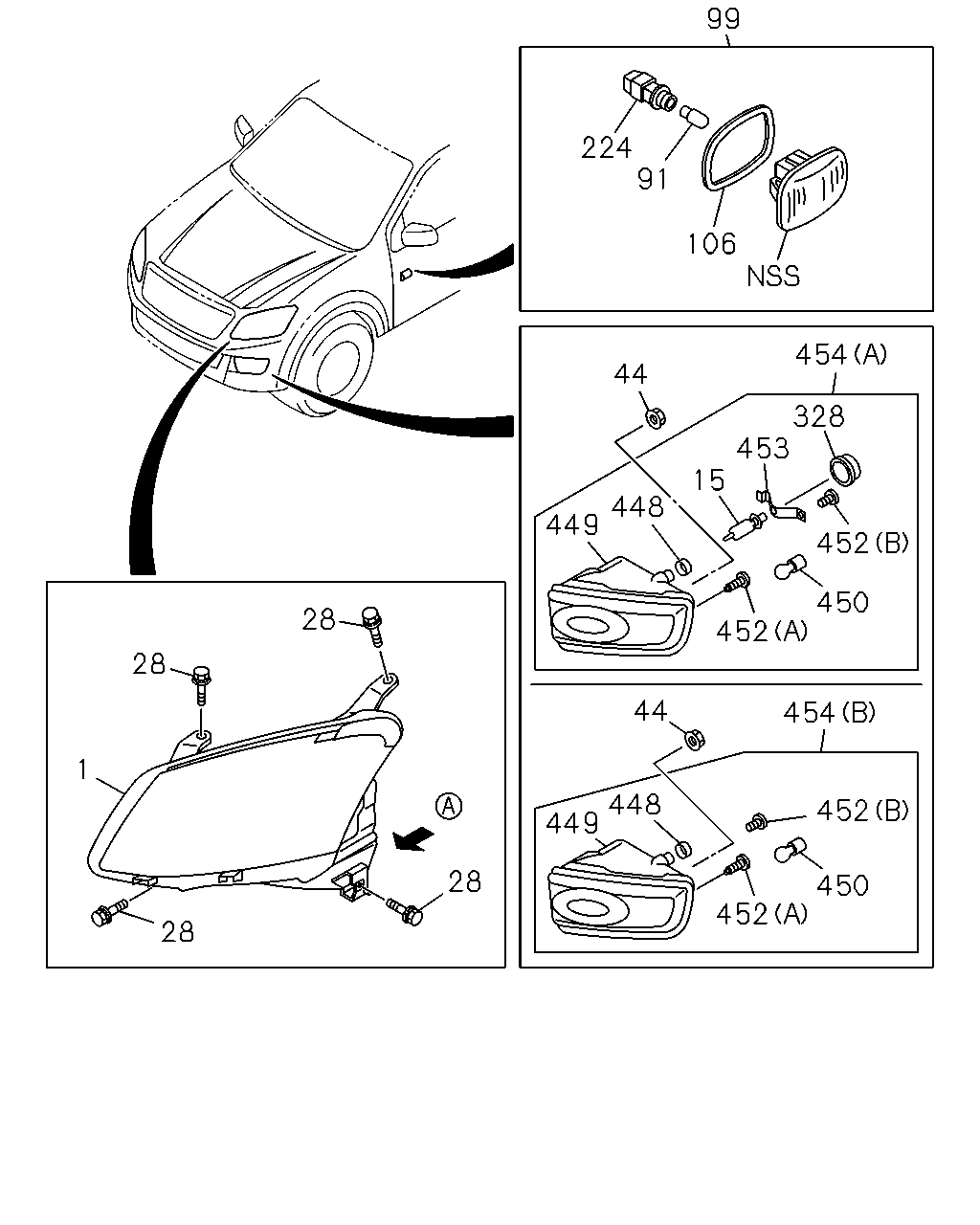

çizim 344052
99 224 106 91 454 44 328 453 15 452 452 450 449 448 44 454 452 450 452 448 449 28 28 28 1 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-384-7 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-385-7 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-393-8 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-393-8 01 1 1304- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-394-8 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-394-8 01 1 1304- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-94451-173-0 02 1 1304- ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 1304- ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
08.915 M6 FLANGE 		8-98055-704-0 08 1 1304- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
DOOR MIRROR<RT9> 12V 5W 		8-97310-952-0 02 1 1304- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 1304- ● ●
99 02.585 LAMP; SIDE FLASHER
DOOR MIRROR<RT9> 		8-98084-153-0 02 1 1304- ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-98084-153-0 02 1 1304- ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
DOOR MIRROR<RT9> 		8-97333-420-0 02 1 1304- ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 1304- ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR<RT9> 		8-97310-953-0 02 1 1304- ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 1304- ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> 		8-97333-417-0 02 1 1304- ● ● ● ●
448 02.727 CAP ASM; LAMP 8-98186-378-0 02 1 1304- ● ● ● ● ● ●
449 02.727 UNIT; FOG & DRL
FOG LAMP<T96> 		8-98186-219-0 01 1 1304- ● ● ● ●
449 02.727 UNIT; FOG & DRL
FOG LAMP<T96> 		8-98186-220-0 01 1 1304- ● ● ● ●
449 02.727 UNIT; FOG & DRL
EXC. FOG LAMP<T96> 		8-98186-217-0 01 1 1304- ● ● ● ●
449 02.727 UNIT; FOG & DRL 8-98186-217-0 01 1 1304- ● ●
449 02.727 UNIT; FOG & DRL
EXC. FOG LAMP<T96> 		8-98186-218-0 01 1 1304- ● ● ● ●
449 02.727 UNIT; FOG & DRL 8-98186-218-0 01 1 1304- ● ●
450 02.727 BULB; DRL LAMP 8-98186-379-0 02 1 1304- ● ● ● ● ● ●
452 02.726 SCREW; FOG & DRL
FOG LAMP<T96> (B) 		8-98074-439-0 04 1 1304- ● ● ● ●
452 02.726 SCREW; FOG & DRL
(A) 		1-82119-086-1 06 1 1304- ● ● ● ● ● ●
452 02.726 SCREW; FOG & DRL
EXC. FOG LAMP<T96> (B) 		8-98074-439-0 02 1 1304- ● ● ● ●
452 02.726 SCREW; FOG & DRL
(B) 		8-98074-439-0 02 1 1304- ● ●
453 02.737 SPRING; SET
FOG LAMP<T96> 		8-98075-644-0 02 1 1304- ● ● ● ●
454 02.725 LAMP ASM; FOG & DRL
FOG LAMP<T96> 02.726 (A) 		8-98150-424-2 01 1 1304- ● ● ● ●
454 02.725 LAMP ASM; FOG & DRL
FOG LAMP<T96> 02.726 (A) 		8-98150-425-2 01 1 1304- ● ● ● ●
454 02.725 LAMP ASM; FOG & DRL
EXC. FOG LAMP<T96> 02.726 (B) 		8-98150-426-1 01 1 1304- ● ● ● ●
454 02.725 LAMP ASM; FOG & DRL
02.726 (B) 		8-98150-426-1 01 1 1304- ● ●
454 02.725 LAMP ASM; FOG & DRL
EXC. FOG LAMP<T96> 02.726 (B) 		8-98150-427-1 01 1 1304- ● ● ● ●
454 02.725 LAMP ASM; FOG & DRL
02.726 (B) 		8-98150-427-1 01 1 1304- ● ●

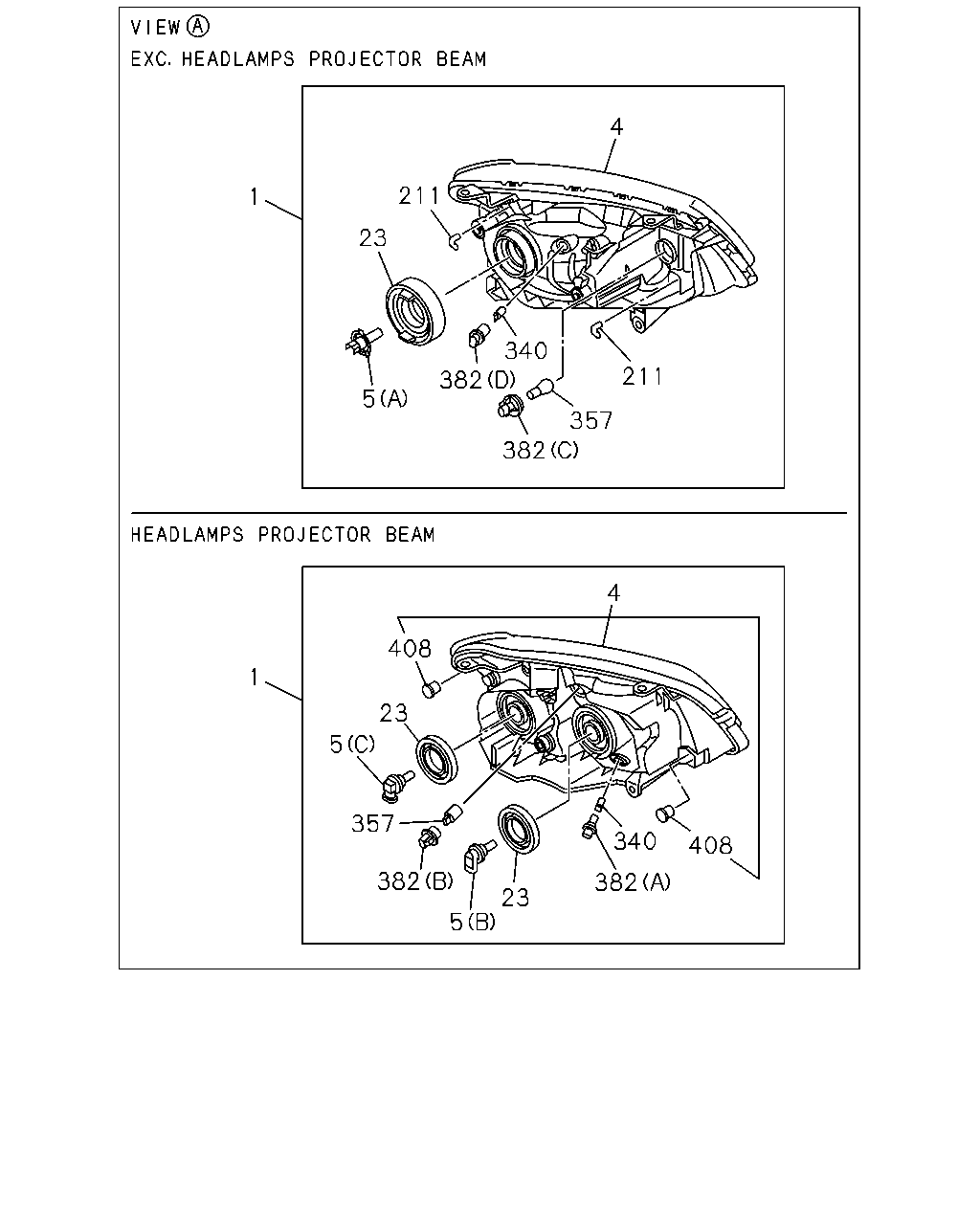

çizim 344255
4 211 211 357 382 340 382 5 23 1 1 4 408 23 5 357 382 5 382 23 340 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-384-7 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-385-7 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-393-8 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-393-8 01 1 1304- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-394-8 01 1 1304- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-394-8 01 1 1304- ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-203-2 01 1 1304- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-204-2 01 1 1304- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-208-0 01 1 1304- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98186-208-0 01 1 1304- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-209-0 01 1 1304- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98186-209-0 01 1 1304- ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60W 		8-97289-997-0 02 1 1304- ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98160-205-0 02 1 1304- ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 55/60W 		8-98186-377-0 02 1 1304- ● ● ● ●
5 02.727 BULB; HEADLAMP
(A) 12V 55/60W 		8-98186-377-0 02 1 1304- ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97675-961-0 04 1 1304- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97332-448-0 02 1 1304- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97332-448-0 02 1 1304- ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 06 1 1304-1311 ● ● ● ●
211 02.728 TUBE; HEADLAMP 8-97333-983-0 06 1 1304-1311 ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 04 1 1312- ● ● ● ●
211 02.728 TUBE; HEADLAMP 8-97333-983-0 04 1 1312- ● ●
340 08.991 BULB; POSITION
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W 		8-98257-815-0 02 1 1406- ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-98257-815-0 02 1 1406- ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 1304-1405 ● ● ● ● ● ●
340 08.991 BULB; POSITION
HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W 		8-94124-595-0 02 1 1406- ● ● ● ●
357 08.991 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 02.727 12V 21W 		8-98160-206-0 02 1 1304- ● ● ● ●
357 08.991 BULB; TURN SIGNAL
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-97179-967-0 02 1 1304- ● ● ● ●
357 08.991 BULB; TURN SIGNAL
12V 21W 		8-97179-967-0 02 1 1304- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-98012-788-0 02 1 1304- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-98160-270-1 02 1 1304- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-97332-447-0 02 1 1304- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(D) 		8-97332-447-0 02 1 1304- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98206-114-0 02 1 1304- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(C) 		8-98206-114-0 02 1 1304- ● ●
408 02.727 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-375-0 04 1 1304-1410 ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98300-478-0 04 1 1411- ● ● ● ●
