Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01A - CLUTCH
▶
2-01A — CLUTCH
(#117233) — 57 parça
Tümü
A - MAL6R M/T
B - MJT7U M/T
◀

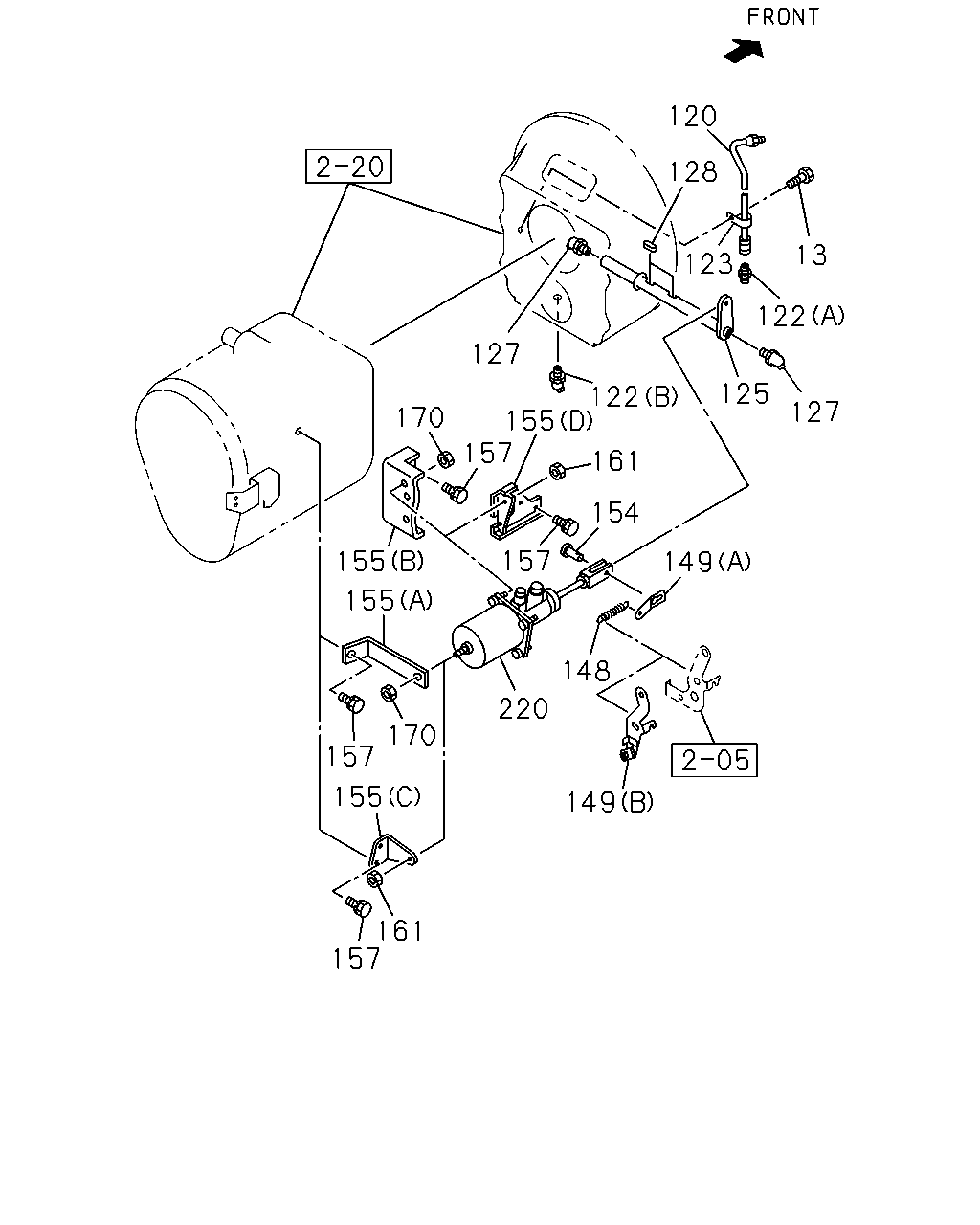

[201A] BOOSTER FIXING (24 parça)

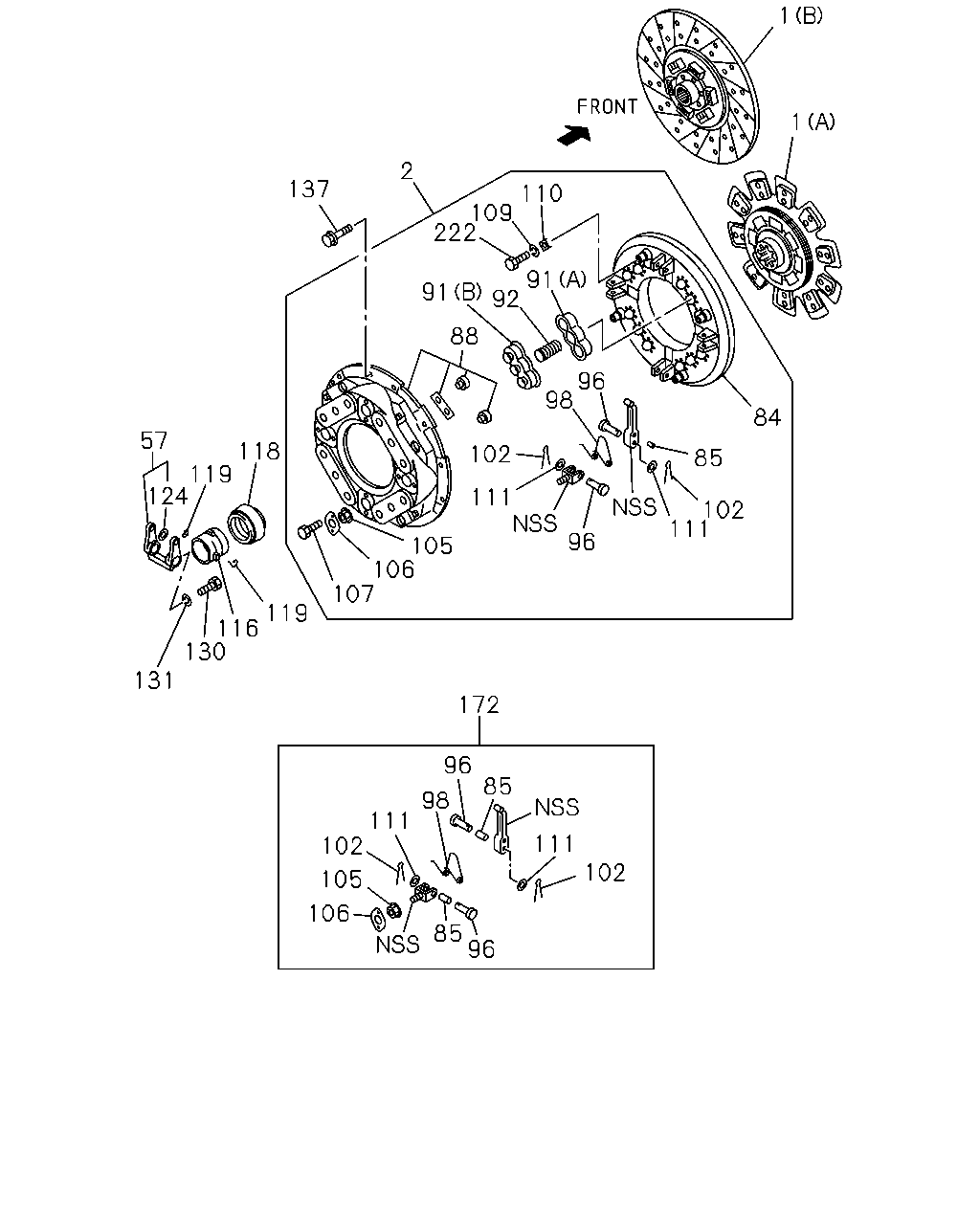

[201A] DISC AND PLATE (33 parça)
▶
157
155
161
170
157
220
155
155
170
127
157
148
157
154
161
155
122
125
122
13
123
128
120
127
149
149
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
BOLT; CLIP
M8X16 FLANGE THA
0-28050-816-0
01
1
1302-
●
●
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
1302-
●
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
1302-
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
1302-
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 & M10
1-09660-710-0
01
1
1302-
●
●
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
1302-
●
●
125
SHAFT; CLU
1-31342-333-0
01
1
1302-
●
125
SHAFT; CLU
1-31342-305-0
01
1
1302-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1302-
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1302-
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1302-
●
●
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-052-0
01
1
1302-
●
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-056-0
01
1
1302-
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
1302-
●
●
155
BRACKET; MINIPACK
(A)
1-31429-345-0
01
1
1302-
●
155
BRACKET; MINIPACK
(B)
1-31429-443-2
01
1
1302-
●
155
BRACKET; MINIPACK
(C)
1-31429-350-0
01
1
1302-
●
155
BRACKET; MINIPACK
(D)
1-31429-402-0
01
1
1302-
●
157
BOLT; BRKT
M10X18 FLANGE
0-28181-018-0
03
1
1302-
●
157
BOLT; BRKT
M10X25 FLANGE THA
0-28151-025-0
03
1
1302-
●
161
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
03
1
1302-
●
170
NUT; BOOSTER FIX
M10 FLANGE THA
0-91180-210-0
03
1
1302-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-548-0
01
1
1302-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-550-0
01
1
1302-
●
57
18
137
2
119
124
131
116
130
107
119
106
111
102
98
96
88
91
222
109
110
91
92
96
111
84
172
96
85
111
102
85
96
106
102
105
111
85
102
1
1
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
(A) 17"
1-31260-010-0
01
1
1302-
●
1
DISC; CLUTCH
(B) 17"
1-31240-862-0
01
1
1302-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-321-2
01
1
1302-1408
●
●
2
PLATE ASM; PRESSURE,CLU
1-31220-457-0
01
1
1409-
●
●
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
1302-
●
●
84
PLATE; PRESSURE
17"
1-31221-128-0
01
1
1302-
●
●
85
BUSHING; RELEASE LEVER
1-31239-053-0
08
1
1302-1408
●
●
85
BUSHING; RELEASE LEVER
8-98281-693-0
08
1
1409-
●
●
88
COVER SUB ASM; CLU
1-31210-024-0
01
1
1302-
●
●
91
SEAT; SPR
(A)
1-31219-032-0
04
1
1302-
●
●
91
SEAT; SPR
(B)
1-31219-033-0
04
1
1302-
●
●
92
SPRING; CLU
1-31214-040-0
12
1
1302-1408
●
●
92
SPRING; CLU
8-98281-694-0
10
1
1409-
●
●
96
PIN; RELEASE LEVER
1-31232-017-0
08
1
1302-
●
●
98
SPRING; RETURN
1-31233-007-0
04
1
1302-
●
●
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
1302-
●
●
105
NUT; SUPPORT
1-31235-014-0
04
1
1302-
●
●
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1302-
●
●
107
BOLT; LK PLATE
1-31239-061-0
08
1
1302-
●
●
109
WASHER; LK,STRAP
ID=12.2
0-91510-512-0
04
1
1302-
●
●
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
1302-
●
●
111
WASHER; PL,STRAP
ID=14
9-09651-098-0
08
1
1302-
●
●
116
BLOCK; SHIFT,CLU
1-31321-073-3
01
1
1302-
●
116
BLOCK; SHIFT,CLU
1-31321-089-1
01
1
1302-
●
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
1302-
●
●
119
SPRING; SHIFT FORK
1-31329-018-0
01
1
1302-
●
●
119
SPRING; SHIFT FORK
1-31329-019-0
01
1
1302-
●
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1302-
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1302-
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1302-
●
●
137
BOLT; CLU COVER
M10X20 FLANGE THA
0-28151-020-0
12
1
1302-
●
●
172
LEVER KIT; RELEASE,CLU
1-87831-182-2
01
1
1302-
●
●
222
BOLT; STRAP
1-09040-102-0
04
1
1302-
●
●
