◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#117231) — 35 parça

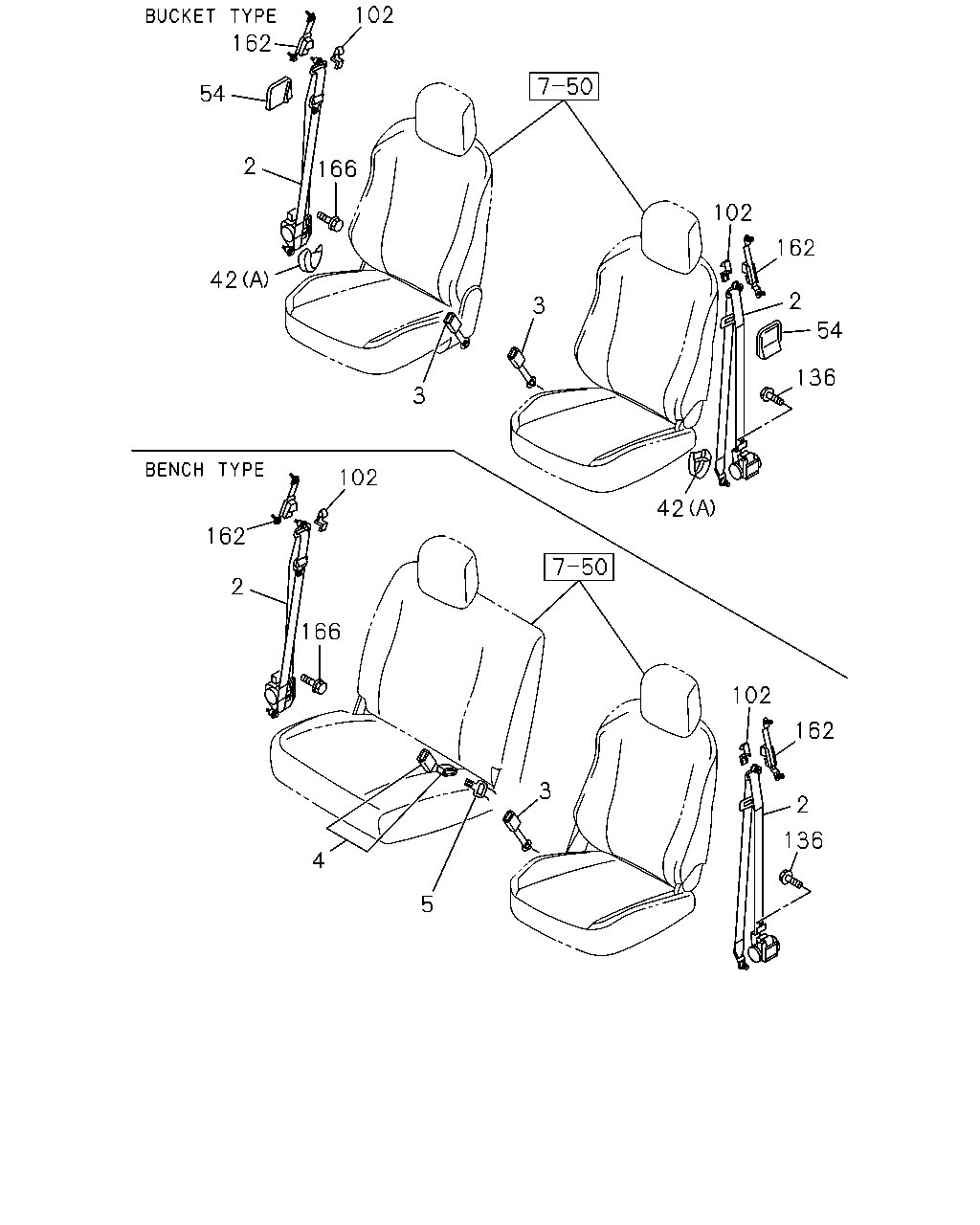

çizim 343780
102 162 54 2 42 166 3 3 102 2 162 54 136 42 102 162 2 136 3 5 4 166 102 2 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) BLACK 		8-97423-666-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97423-666-0 01 1 1304- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97423-664-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97423-663-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97423-663-0 01 1 1304- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-665-0 01 1 1304- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-661-0 01 1 1304- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97423-147-1 01 1 1304-1311 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97426-631-0 01 1 1312- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-435-1 01 1 1304-1311 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97426-630-0 01 1 1312- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97416-837-3 01 1 1304-1311 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97426-632-0 01 1 1312- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97416-839-0 01 1 1304- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97417-107-1 01 1 1304- ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97423-671-0 01 1 1304- ● ● ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1304- ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-758-1 01 1 1304- ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-760-1 01 1 1304- ●
102 16.714 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1304- ● ● ● ● ●
136 16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ● ● ●
136 16.714 BOLT; SEAT BELT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ●
162 16.714 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1304- ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ●

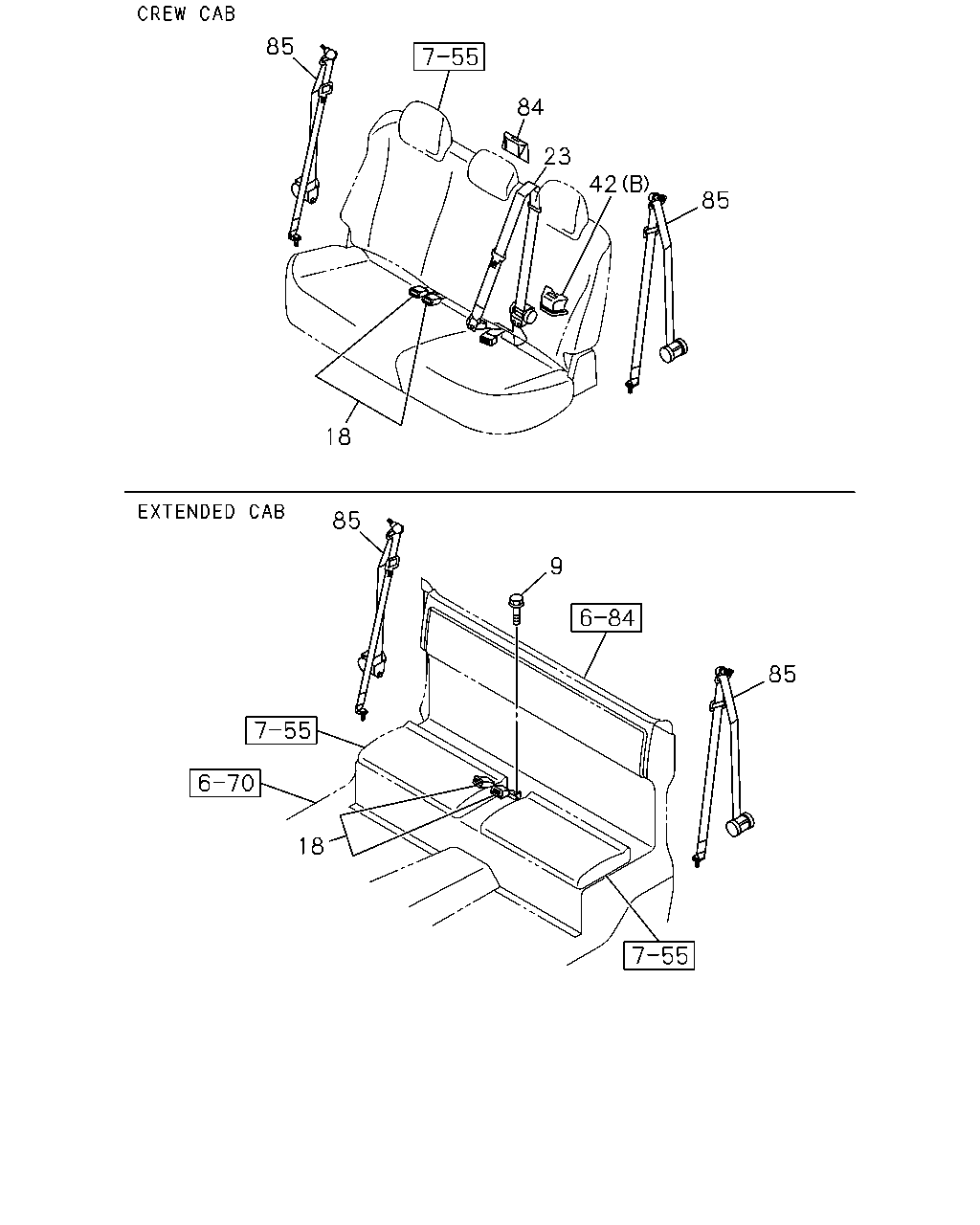

çizim 344161
18 84 23 42 85 85 85 9 85 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.714 BOLT; SEAT BELT ANCHOR
JUMP SEAT<AJ2> 16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 01 1 1304- ●
18 16.714 BELT; SEAT,RR
BLACK 		8-97416-937-1 01 1 1304- ● ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> BLACK 		8-97417-403-3 01 1 1304- ●
23 16.714 BELT; SEAT,CENTER
BLACK 		8-97417-405-3 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1304- ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
BLACK 		8-97417-409-1 01 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
BLACK 		8-97423-669-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> BLACK 		8-97423-669-0 02 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
