Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11530 - FXZ/GXZ(RHD)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶

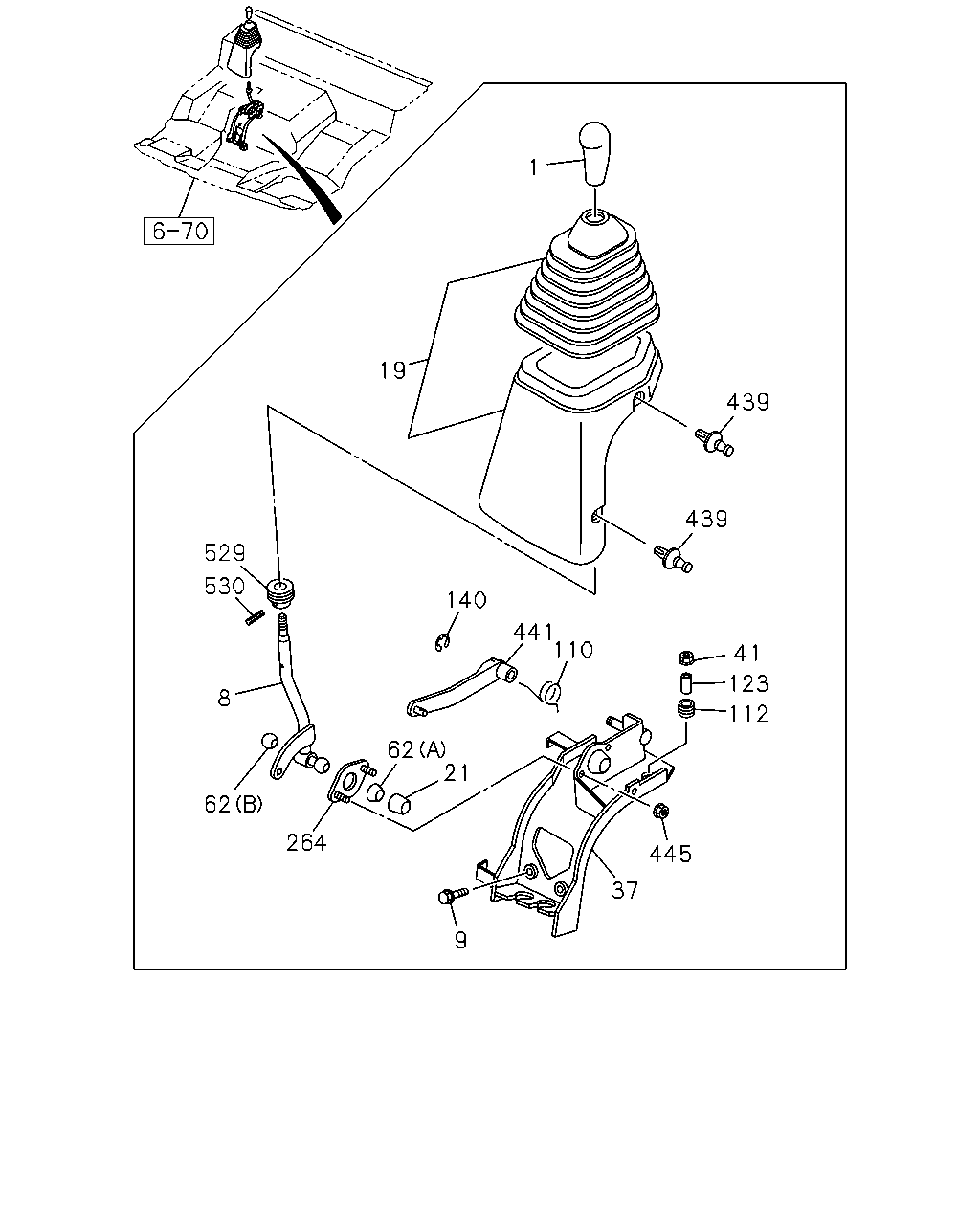

2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#117230) — 23 parça
Tümü
A - FGZ5MX
B - GGZ5MX
11
19
529
530
8
62
264
9
21
62
110
441
140
37
439
439
41
123
112
445
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
KNOB; CHANGE LEVER
MJT7U M/T(Y4X)
1-33611-082-1
01
1
1304-
●
1
KNOB; CHANGE LEVER
ZF9S1310 M/T(Y5K)
1-33611-099-1
01
1
1304-
●
●
8
LEVER; CHANGE
8-98079-299-0
01
1
1304-1502
●
●
8
LEVER; CHANGE
8-98296-343-0
01
1
1503-
●
●
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
1304-
●
●
19
COVER; CHANGE LEVER
GRAY
8-97416-183-2
01
1
1304-
●
●
21
SEAT; CHANGE LEVER
1-33619-429-0
01
1
1304-
●
●
37
BRACKET; CHANGE LEVER SUPPORT
8-98079-297-0
01
1
1304-1311
●
●
37
BRACKET; CHANGE LEVER SUPPORT
8-98245-919-0
01
1
1312-1502
●
●
37
BRACKET; CHANGE LEVER SUPPORT
8-98296-341-0
01
1
1503-
●
●
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
1304-
●
●
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
1304-
●
●
62
SEAT; BALL,CHANGE LEVER
(B)
8-97049-147-0
01
1
1304-
●
●
110
SPRING; RETURN,CHANGE LEVER
1-33619-435-0
01
1
1304-
●
●
112
RUBBER; CUSHION
1-33619-442-0
04
1
1304-
●
●
123
COLLAR; DIST,CHANGE LEVER
1-33619-443-0
04
1
1304-
●
●
140
RING; SNAP
ID=10
0-91805-510-0
01
1
1304-
●
●
264
PLATE; COVER
1-33619-430-0
01
1
1304-
●
●
439
FASTENER; COVER
GRAY
8-97407-955-0
04
1
1304-
●
●
441
LEVER; SELECT
8-98079-302-0
01
1
1304-
●
●
445
NUT; PLATE
M6 FLANGE
0-91180-106-0
02
1
1304-
●
●
529
RING; BOOT
1-33619-504-0
01
1
1304-
●
●
530
PIN; SPRING
1-33619-505-0
01
1
1304-
●
●
