2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#11723) — 89 parça
çizim 20489
24 22 25 112 25 15 25 22 15 28 22 24 25 28 32 30 35 5 32 35 30 45 49 121 47 47 49 8 38 36 44 45 44 36 6 6 38
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 0106-
6 ROD; LINK,3RD SELECT
FULLER M/T<X9B> L=1637 		1-33652-980-1 01 1 0106-
6 ROD; LINK,3RD SELECT
ZF M/T<X9E> (B) L=125 		1-33671-570-0 01 1 0106-
6 ROD; LINK,3RD SELECT
ZF M/T<X9E> (A) L=1454 		1-33671-700-1 01 1 0106-
8 ROD; LINK,4TH SHIFT
FULLER M/T<X9B> L=480 		1-33652-730-0 01 1 0106-
8 ROD; LINK,4TH SHIFT
ZF M/T<X9E> L=485 		1-33652-859-1 01 1 0106-
15 ROD; LINK 1ST SHIFT
(A) L=435 		1-33652-696-0 01 1 0106-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-1 01 1 0106-
15 ROD; LINK 1ST SHIFT
(C) L=423 		1-33652-804-2 01 1 0106-
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0106-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0106-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0106-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 0106-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0601-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0106-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0601-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0106-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0106-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0106-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0106-0512
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> 		1-09760-124-0 02 1 0106-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
ZF M/T<X9E> 		1-09760-124-0 01 1 0106-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
ZF M/T<X9E> 		1-09760-124-0 01 1 0106-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0106-
44 NUT; LK,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> M10 		9-09111-410-0 02 1 0106-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> M10 		0-91111-510-0 02 1 0601-
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		9-09111-410-0 01 1 0106-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		9-09111-410-0 01 1 0106-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		0-91111-510-0 01 1 0601-
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		0-91111-510-0 01 1 0601-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0106-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0106-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0106-0512
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601-
112 JOINT; RUBBER 1-33670-413-1 01 1 0106-
112 JOINT; RUBBER 1-33670-413-1 01 1 0106-
121 BOLT; LINK ROD
ZF M/T<X9E> 		1-09044-103-0 02 1 0106-
çizim 21409
24 28 112 25 15 25 15 22 25 22 25 22 24 28 30 35 32 5 35 32 30 45 49 8 47 47 36 44 49 45 6 38 38 36 44
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 0106-
6 ROD; LINK,3RD SELECT
FULLER M/T<X9B> L=1637 		1-33652-980-1 01 1 0106-
6 ROD; LINK,3RD SELECT
ZF M/T<X9E> (B) L=125 		1-33671-570-0 01 1 0106-
6 ROD; LINK,3RD SELECT
ZF M/T<X9E> (A) L=1454 		1-33671-700-1 01 1 0106-
8 ROD; LINK,4TH SHIFT
FULLER M/T<X9B> L=480 		1-33652-730-0 01 1 0106-
8 ROD; LINK,4TH SHIFT
ZF M/T<X9E> L=485 		1-33652-859-1 01 1 0106-
15 ROD; LINK 1ST SHIFT
(A) L=435 		1-33652-696-0 01 1 0106-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-1 01 1 0106-
15 ROD; LINK 1ST SHIFT
(C) L=423 		1-33652-804-2 01 1 0106-
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0106-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0106-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0106-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 0106-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0601-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0106-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0601-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0106-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0106-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0106-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0106-0512
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> 		1-09760-124-0 02 1 0106-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
ZF M/T<X9E> 		1-09760-124-0 01 1 0106-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
ZF M/T<X9E> 		1-09760-124-0 01 1 0106-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0106-
44 NUT; LK,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> M10 		9-09111-410-0 02 1 0106-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> M10 		0-91111-510-0 02 1 0601-
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		9-09111-410-0 01 1 0106-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		9-09111-410-0 01 1 0106-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		0-91111-510-0 01 1 0601-
44 NUT; LK,RIGHT SCREW,LINK ROD
ZF M/T<X9E> M10 		0-91111-510-0 01 1 0601-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0106-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0106-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0106-0512
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601-
112 JOINT; RUBBER 1-33670-413-1 01 1 0106-
112 JOINT; RUBBER 1-33670-413-1 01 1 0106-

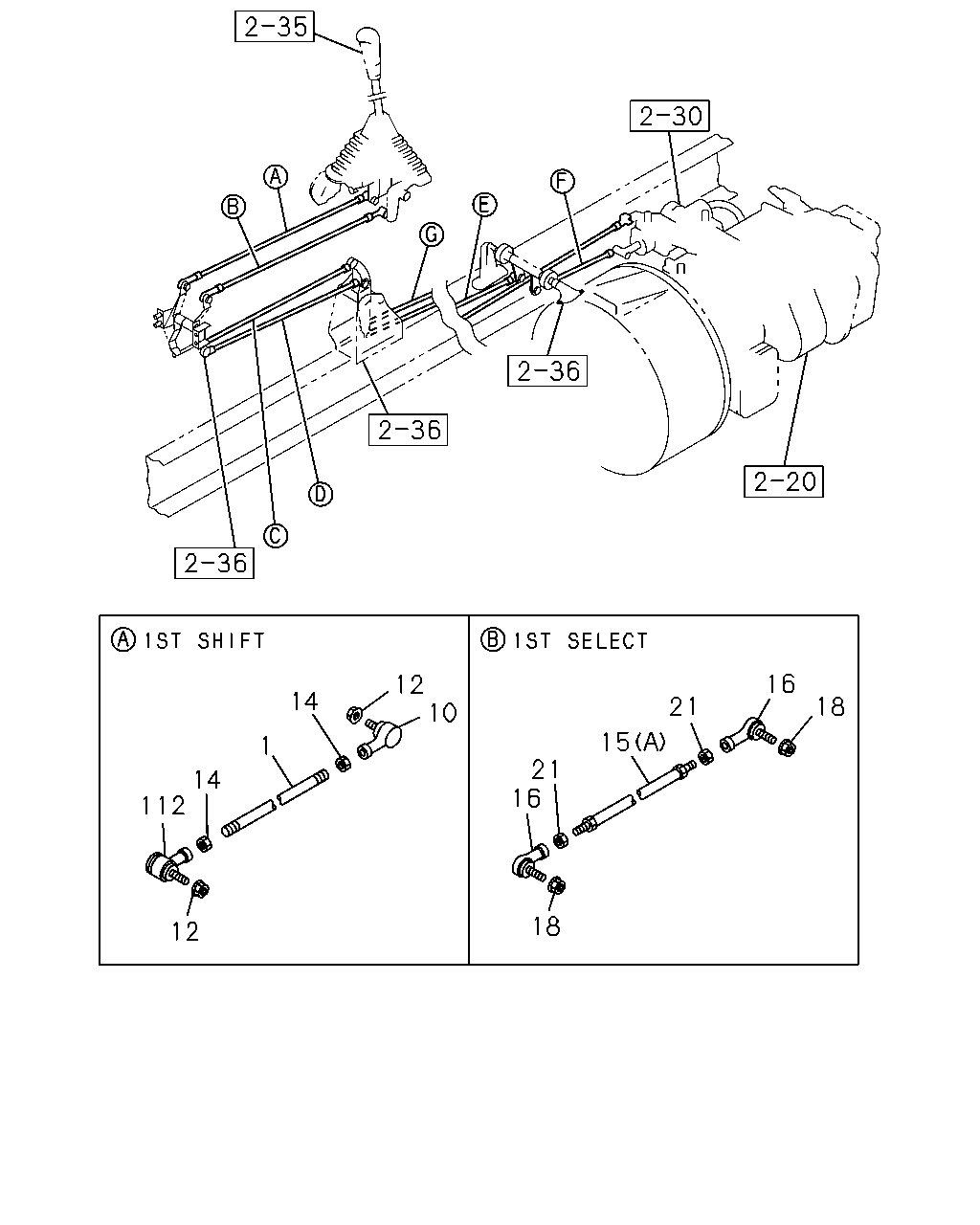

çizim 78153
16 12 10 14 21 15 18 1 21 16 14 112 18 12
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 0106-
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 0106-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0106-
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0106-0512
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601-
15 ROD; LINK 1ST SHIFT
(A) L=435 		1-33652-696-0 01 1 0106-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-1 01 1 0106-
15 ROD; LINK 1ST SHIFT
(C) L=423 		1-33652-804-2 01 1 0106-
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 0106-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0106-
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 0106-0512
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		0-91111-508-0 02 1 0601-
112 JOINT; RUBBER 1-33670-413-1 01 1 0106-
112 JOINT; RUBBER 1-33670-413-1 01 1 0106-
