Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#11722) — 293 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0106-0106
192	COVER	1-79907-090-0	01	1	0106-
465	BRACKET; CONNECTOR	1-47478-772-1	01	1	0106-
468	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-
468	NUT; BRKT FULLER M/T<X9B> (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
468	NUT; BRKT ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	01	1	0106-0602
468	NUT; BRKT ZF M/T<X9E> (B) M8 FLANGE	0-91180-108-0	01	1	0603-
496	FASTENER D8X13.5	1-09987-248-1	02	1	0106-
509	SEAL; BRKT	1-47477-825-2	01	1	0106-0401
509	SEAL; BRKT	1-47479-978-0	01	1	0402-

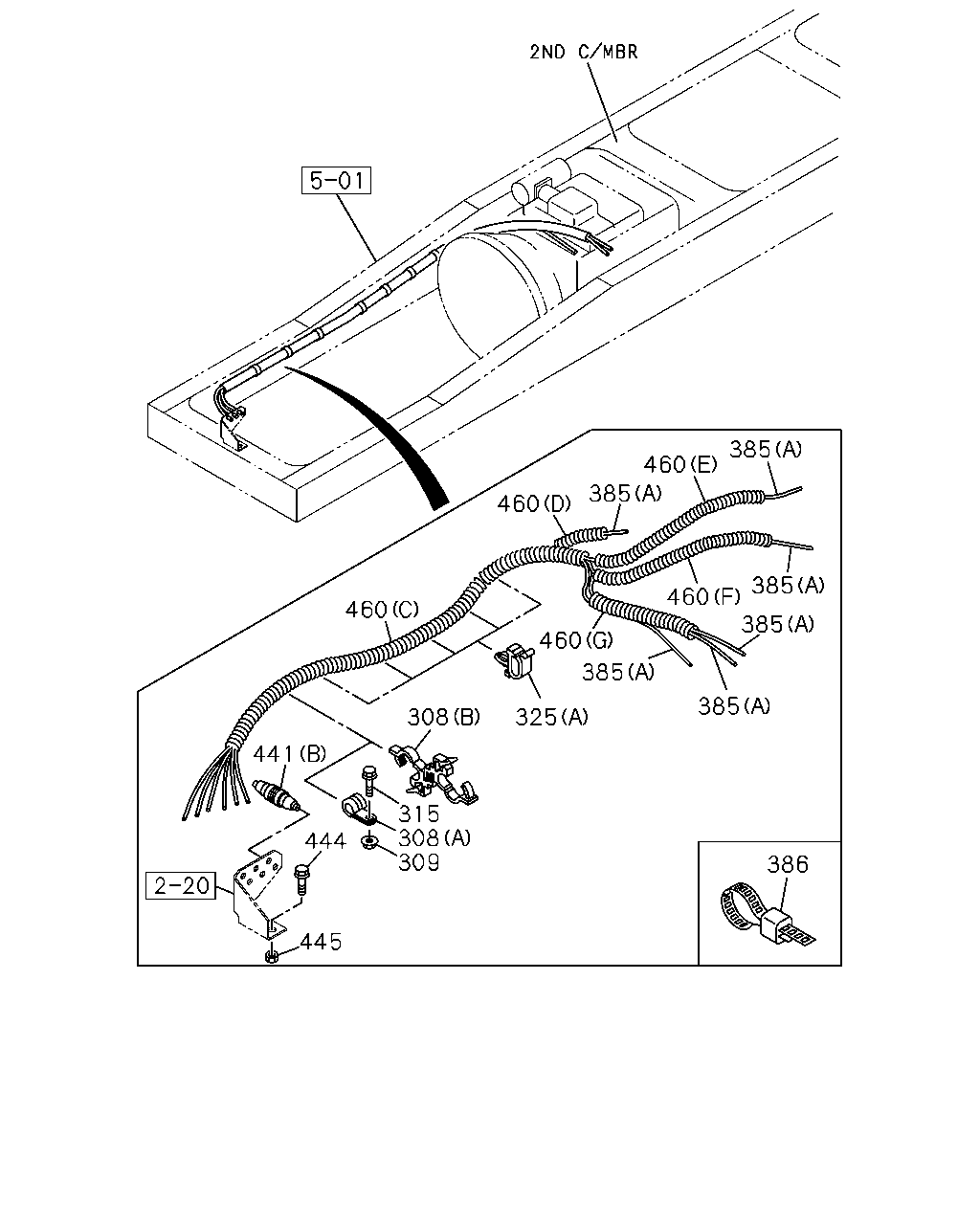

385 460 385 460 385 460 385 460 460 385 385 308 325 441 315 444 308 309 386 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	CLIP; PIPE FULLER M/T<X9B> (A) ID=18 L=28	1-09701-067-0	01	1	0106-0107
308	CLIP; PIPE FULLER M/T<X9B> (A) ID=19 L=28	9-09525-856-0	01	1	0108-0606
308	CLIP; PIPE (A) ID=19 L=28	0-95235-856-0	01	1	0607-
308	CLIP; PIPE FULLER M/T<X9B> (B) ID=12-16 & 12-16	1-09709-191-0	01	1	0106-
309	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0106-0602
309	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
315	BOLT; PIPE CLIP FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0106-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0106-0107
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-0606
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	0607-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0106-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	08	1	0106-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=250	5-09707-030-1	02	1	0106-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=140	5-09707-031-1	01	1	0106-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) L=140	5-09707-031-1	02	1	0309-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-0308
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09660-466-0	01	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0106-
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28650-825-0	01	1	0601-
445	NUT; BRKT,NIPPLE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0106-0602
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91180-108-0	01	1	0603-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (D) L=50 L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) SERVICED BY L=800 ID=7.4	1-83129-031-1	02	1	0106-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (F) SERVICED BY L=800 ID=7.4 L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0106-0304
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-

385 385 385 385 385 385 460 387 460 460 501 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0106-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U)	1-09332-102-0	01	1	0106-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09660-466-0	01	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0106-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (D) L=50 L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) SERVICED BY L=800 ID=7.4	1-83129-031-1	02	1	0106-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (F) SERVICED BY L=800 ID=7.4 L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0106-0304
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
501	SEAL; HARNESS PROTECTOR 180X40	1-72498-019-0	04	1	0504-
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	0106-0503
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U) 100X40	1-72498-022-0	04	1	0504-

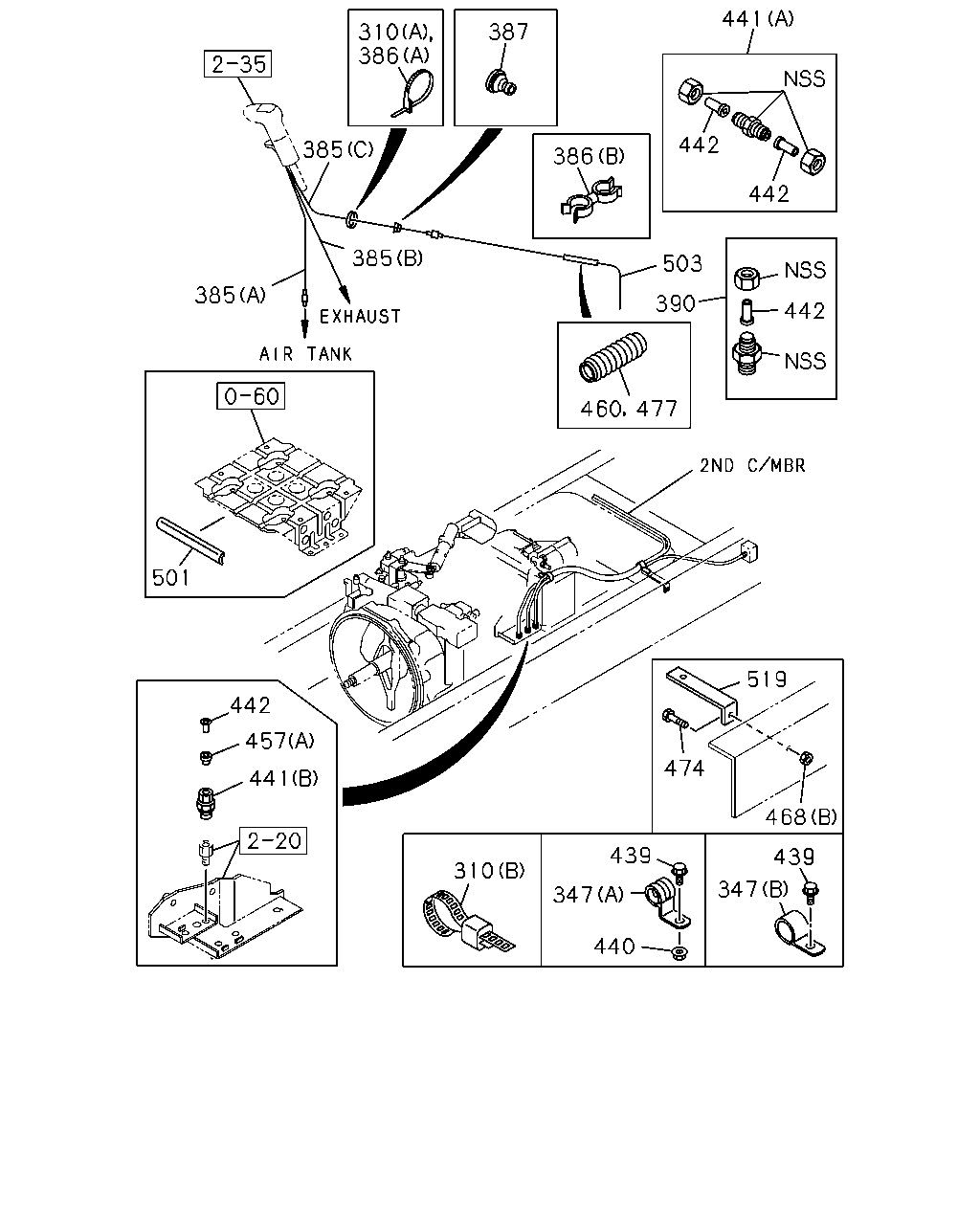

441 387 310 386 442 385 386 442 385 503 385 390 442 501 519 442 457 474 441 468 439 439 347 310 347 440 460 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B) ID=12-16 & 12-16	1-09709-191-0	01	1	0106-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=140	5-09707-031-1	03	1	0106-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=250	1-09707-126-0	16	1	0106-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=250	5-09707-030-1	02	1	0106-
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0106-
347	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) ID=18 L=28	1-09701-067-0	01	1	0106-
347	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) PTO ZF TRANS RR(BDM) (B) ID=28 L=40	1-09701-261-0	01	1	0106-
347	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. PTO ZF TRANS RR(BDM) (B) ID=24 L=27	1-09700-809-0	01	1	0106-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	08	1	0106-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=250	5-09707-030-1	02	1	0106-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=140	5-09707-031-1	01	1	0106-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) L=140	5-09707-031-1	02	1	0309-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-0308
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0106-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U)	1-09332-102-0	01	1	0106-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0106-
439	BOLT; CLIP,AIR PIPE PTO ZF TRANS RR(BDM) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	0106-0512
439	BOLT; CLIP,AIR PIPE PTO ZF TRANS RR(BDM) ZF M/T<X9E> M8X25 FLANGE	0-28650-825-0	03	1	0601-
439	BOLT; CLIP,AIR PIPE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
439	BOLT; CLIP,AIR PIPE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28650-825-0	02	1	0601-
440	NUT; CLIP,AIR PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0602
440	NUT; CLIP,AIR PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09660-466-0	01	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0106-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0106-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0106-
457	GASKET (B)	1-09623-594-0	04	1	0106-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U) (A) ID=10.2	1-09630-083-0	01	1	0106-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (D) L=50 L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) SERVICED BY L=800 ID=7.4	1-83129-031-1	02	1	0106-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (F) SERVICED BY L=800 ID=7.4 L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0106-0304
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
468	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-
468	NUT; BRKT FULLER M/T<X9B> (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
468	NUT; BRKT ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	01	1	0106-0602
468	NUT; BRKT ZF M/T<X9E> (B) M8 FLANGE	0-91180-108-0	01	1	0603-
474	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
474	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0106-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0106-
501	SEAL; HARNESS PROTECTOR 180X40	1-72498-019-0	04	1	0504-
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	0106-0503
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U) 100X40	1-72498-022-0	04	1	0504-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0106-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0106-
519	BRACKET; FRAME ZF M/T<X9E> L=125	1-47475-897-0	01	1	0106-

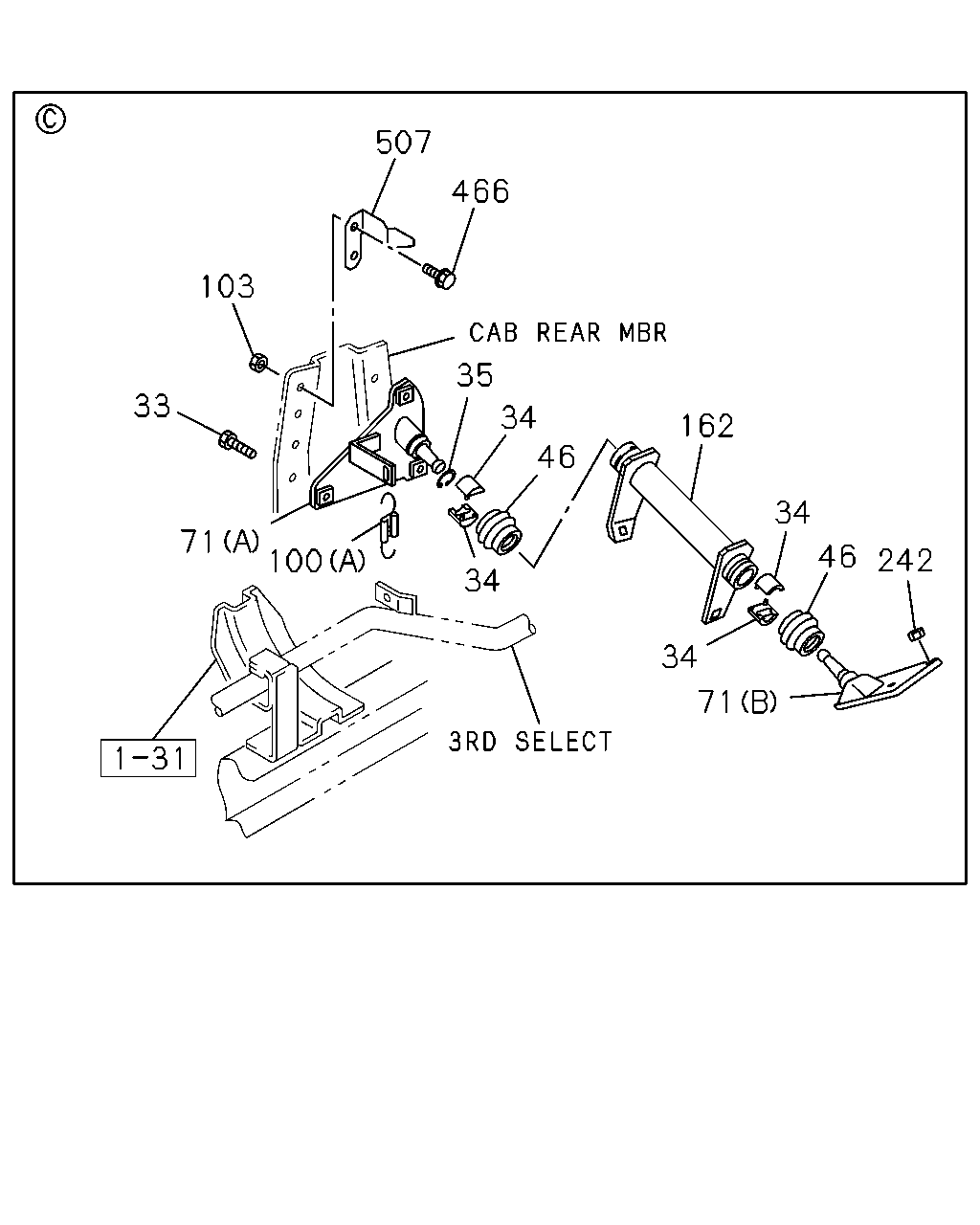

507 466 103 35 34 46 33 162 34 46 242 71 100 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0106-0512
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28651-030-0	03	1	0601-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0106-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0106-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0106-0503
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0504-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0106-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-657-1	01	1	0106-
100	SPRING (B)	1-09583-319-0	01	1	0106-
100	SPRING (A)	1-09583-351-0	01	1	0106-
103	NUT M8 FLANGE	0-91150-108-0	01	1	0106-0602
103	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
162	LEVER; RELAY FULLER M/T<X9B>	1-33651-625-0	01	1	0106-
162	LEVER; RELAY ZF M/T<X9E>	1-33651-679-0	01	1	0106-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0106-0602
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	0603-
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
507	PROTECTOR; HEAT	1-14181-315-0	01	1	0106-

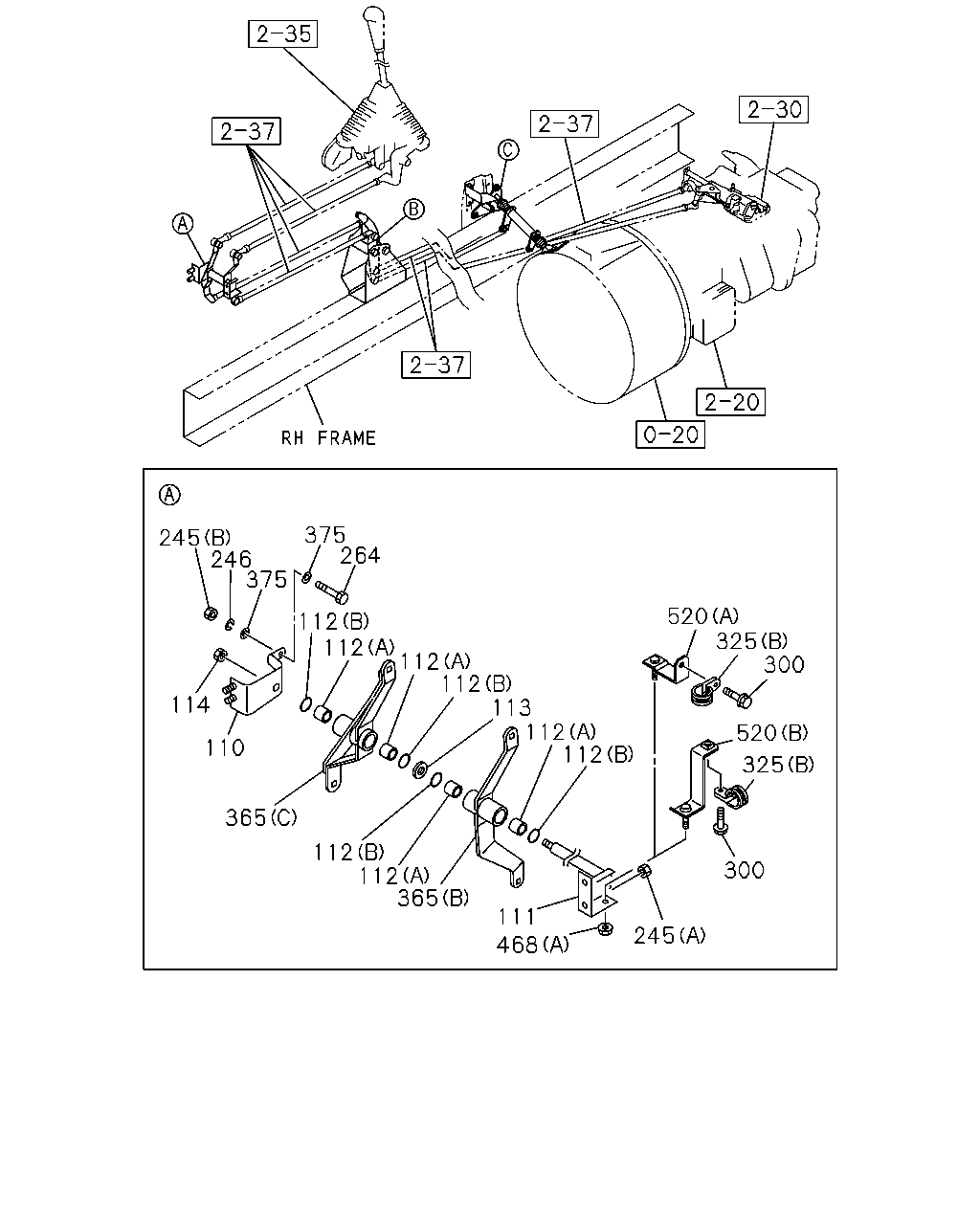

375 264 245 246 375 520 325 300 112 112 112 112 113 112 112 114 520 110 325 365 112 112 365 300 111 468 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	0106-
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	0106-
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0106-
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0106-
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	0106-0605
113	WASHER; RELAY LEVER ID=17 OD=30	0-91610-516-0	01	1	0606-
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0106-0602
114	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	01	1	0603-
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	0106-0602
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-210-0	02	1	0603-
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0106-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0106-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	0106-0301
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	0302-
300	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	8-94279-208-0	01	1	0106-
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0106-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0106-0107
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-0606
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	0607-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0106-
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	0106-
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	0106-
365	LEVER; RELAY,SELECT (A)	1-33651-771-0	01	1	0106-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0106-
468	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-
468	NUT; BRKT FULLER M/T<X9B> (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
468	NUT; BRKT ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	01	1	0106-0602
468	NUT; BRKT ZF M/T<X9E> (B) M8 FLANGE	0-91180-108-0	01	1	0603-
520	BRACKET; NYLON TUBE FULLER M/T<X9B> (A)	1-79996-545-0	01	1	0106-0304
520	BRACKET; NYLON TUBE FULLER M/T<X9B> (B)	1-79996-628-0	01	1	0305-

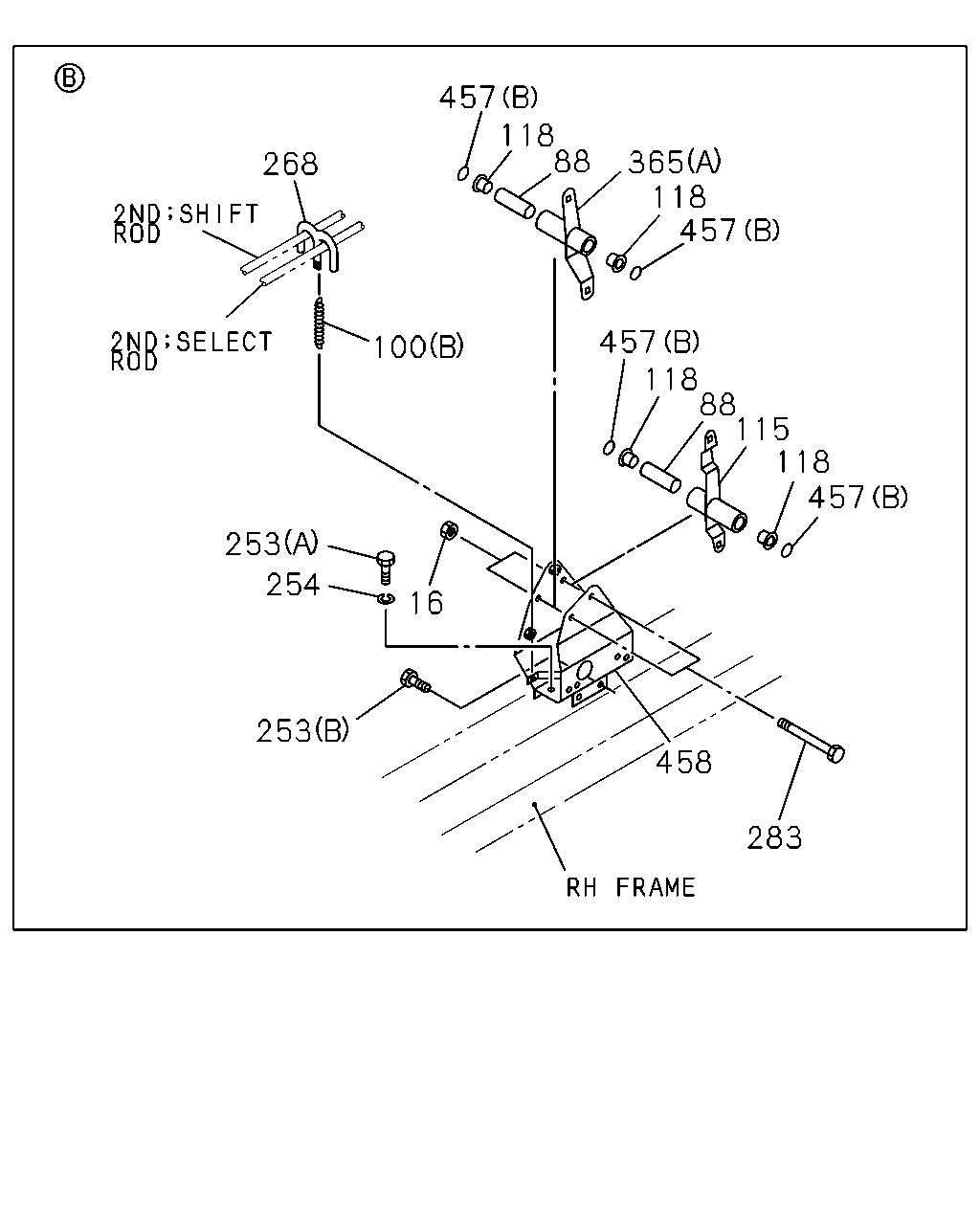

457 118 88 365 118 457 268 457 118 88 115 118 457 100 253 254 16 458 253 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0106-0602
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	0603-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0106-
100	SPRING (B)	1-09583-319-0	01	1	0106-
100	SPRING (A)	1-09583-351-0	01	1	0106-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-0	01	1	0106-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0106-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0106-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0106-0512
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0106-0603
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	0604-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0106-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0106-
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	0106-
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	0106-
365	LEVER; RELAY,SELECT (A)	1-33651-771-0	01	1	0106-
457	GASKET (B)	1-09623-594-0	04	1	0106-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U) (A) ID=10.2	1-09630-083-0	01	1	0106-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
