2-05A — CLUTCH PIPING
(#117212) — 27 parça
Tümü
A - M/T MSG 5 SPEED
B - M/T MUA 5 SPEED 5H
C - M/T AISIN 6 SPEED
D - M/T MUA 5 SPEED 5G
E - M/T MUA 5 SPEED 5S
◀
[205A] M/T AISIN (13 parça)
[205A] HOSE (3 parça)
[205A] M/T MSG,M/T MUA (11 parça)
▶

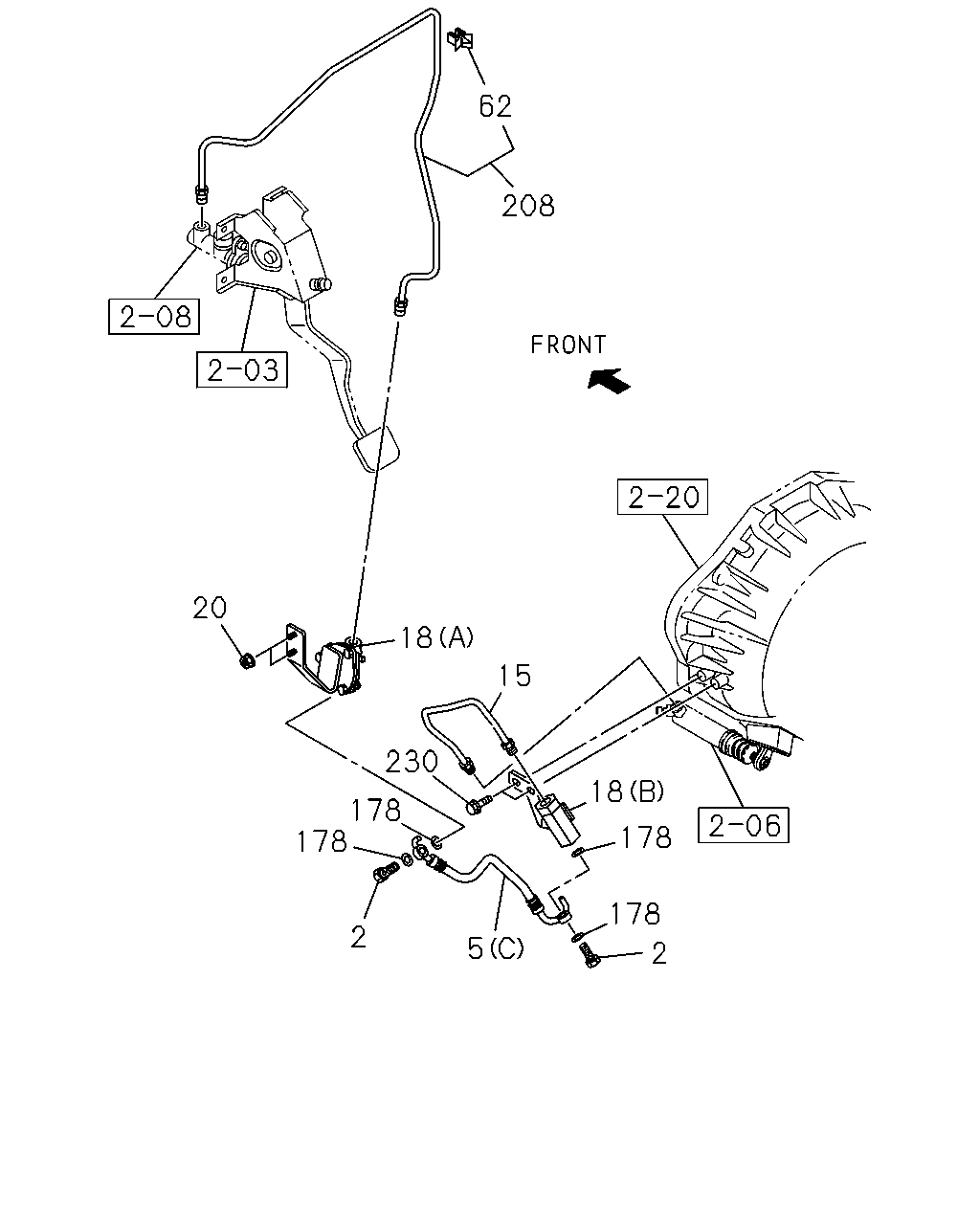

62
208
18
178
178
2
5
2
178
178
230
15
18
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
2
00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22
8-97359-818-0
02
1
1304-
●
●
●
●
●
5
00.785 HOSE; FLEX,CLU PIPE
(A)
8-98098-317-1
01
1
1304-
●
●
●
5
00.785 HOSE; FLEX,CLU PIPE
4X2(TFB***) (A)
8-98098-317-1
01
1
1304-
●
5
00.785 HOSE; FLEX,CLU PIPE
(C)
8-98098-315-1
01
1
1304-
●
5
00.785 HOSE; FLEX,CLU PIPE
4X4(TFS***) (B)
8-98098-316-1
01
1
1304-
●
15
00.785 PIPE; CLU,FLEX HOSE
8-98097-509-0
01
1
1304-
●
18
00.830 DAMPER ASM; CLU OIL
(A)
8-97946-616-1
01
1
1304-
●
●
●
●
●
18
00.830 DAMPER ASM; CLU OIL
(B)
8-97946-623-1
01
1
1304-
●
20
00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE
0-91180-106-0
02
1
1304-
●
●
●
●
●
62
00.785 CLIP; CLU PIPE
8-98181-751-0
01
1
1304-
●
●
●
●
●
178
00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0
9-09571-410-0
04
1
1304-
●
●
●
●
●
208
00.785 PIPE; OIL,M/CYL TO DAMPER CYL
8-98100-270-1
01
1
1304-
●
●
●
●
●
230
00.785 BOLT; ACTUATOR
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1304-
●

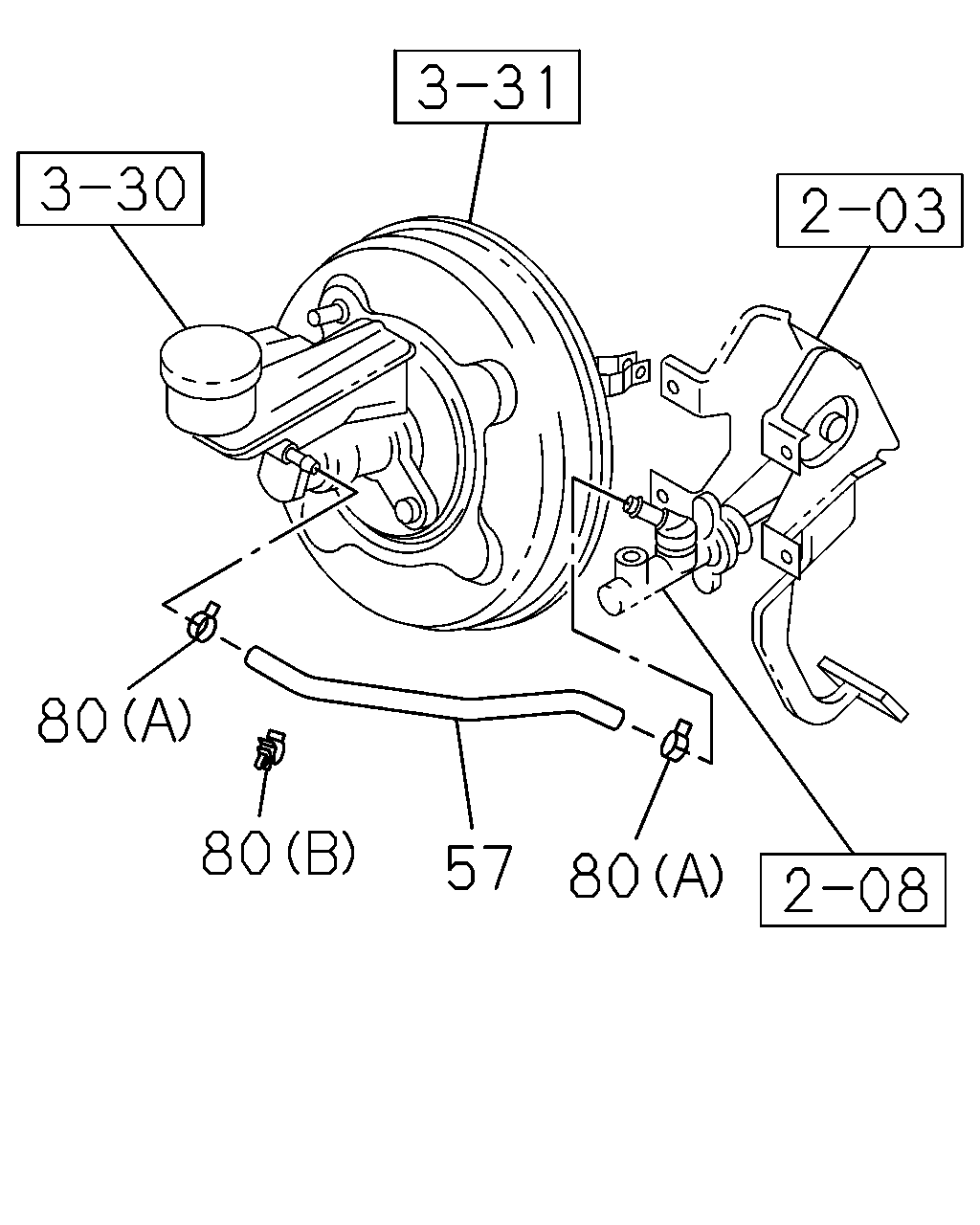

80
57
80
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
57
00.785 HOSE; CLU M/CYL TO OIL TANK
8-98097-544-1
01
1
1304-
●
●
●
●
●
80
00.785 CLIP; HOSE
(B)
8-97947-817-0
01
1
1304-
●
●
●
●
●
80
00.785 CLIP; HOSE
(A) ID=12 WO/PVC COATING
8-97947-824-0
02
1
1304-
●
●
●
●
●

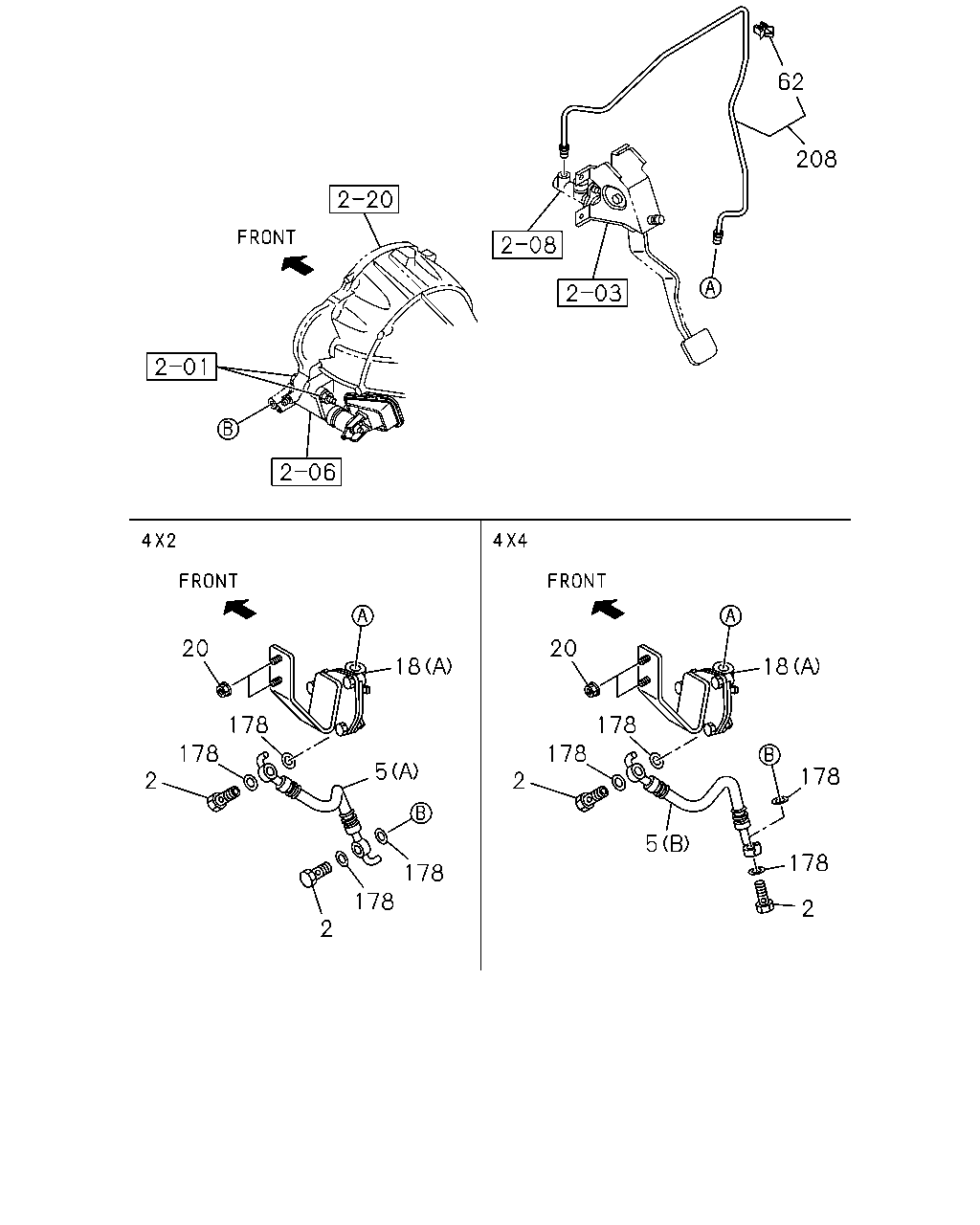

208
62
18
178
178
2
178
178
2
20
5
17
178
2
18
178
178
2
20
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
2
00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22
8-97359-818-0
02
1
1304-
●
●
●
●
●
5
00.785 HOSE; FLEX,CLU PIPE
(A)
8-98098-317-1
01
1
1304-
●
●
●
5
00.785 HOSE; FLEX,CLU PIPE
4X2(TFB***) (A)
8-98098-317-1
01
1
1304-
●
5
00.785 HOSE; FLEX,CLU PIPE
(C)
8-98098-315-1
01
1
1304-
●
5
00.785 HOSE; FLEX,CLU PIPE
4X4(TFS***) (B)
8-98098-316-1
01
1
1304-
●
18
00.830 DAMPER ASM; CLU OIL
(A)
8-97946-616-1
01
1
1304-
●
●
●
●
●
18
00.830 DAMPER ASM; CLU OIL
(B)
8-97946-623-1
01
1
1304-
●
20
00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE
0-91180-106-0
02
1
1304-
●
●
●
●
●
62
00.785 CLIP; CLU PIPE
8-98181-751-0
01
1
1304-
●
●
●
●
●
178
00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0
9-09571-410-0
04
1
1304-
●
●
●
●
●
208
00.785 PIPE; OIL,M/CYL TO DAMPER CYL
8-98100-270-1
01
1
1304-
●
●
●
●
●
