◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#117203) — 65 parça

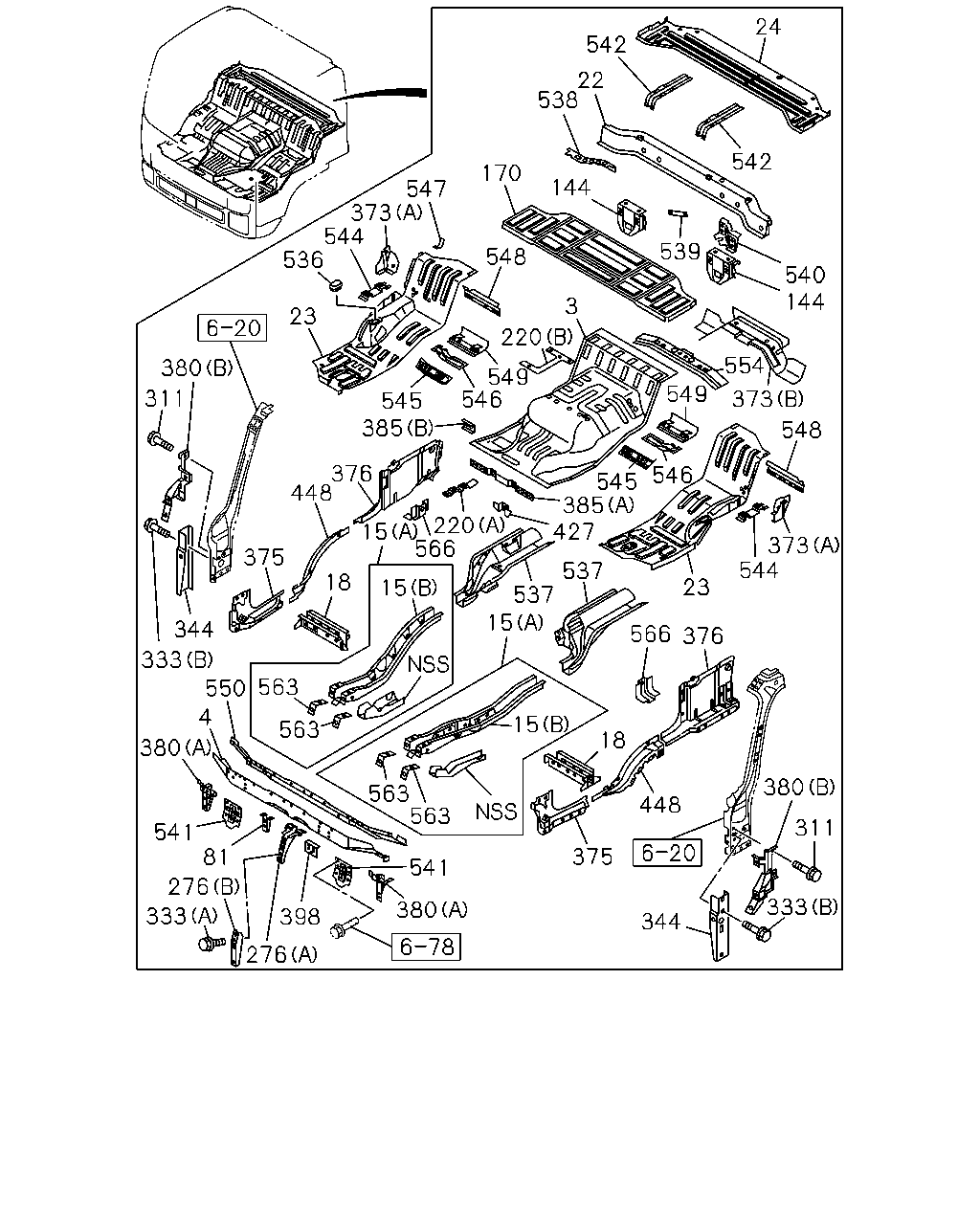

çizim 344609
24 542 542 22 538 144 170 548 547 373 544 536 23 380 311 344 333 550 4 380 541 81 276 333 398 276 380 541 563 563 563 563 18 15 375 448 15 566 220 376 385 545 546 549 220 3 539 540 144 554 549 373 548 546 545 385 427 537 537 15 15 18 566 376 23 544 373 380 311 333 344 375 448
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98046-585-7 01 1 1304- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1304- ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1304- ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1304- ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1304- ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1304- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1304- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1304- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1304- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1304- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1304- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1304- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1304- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1304- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1304- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1304- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 1304- ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 1304- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1304- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1304- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1304- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1304- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1304- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1304- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 1304- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1304- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1304- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1304-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1304- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1304- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1304- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1304- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1304- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1304- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1304- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1304- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1304- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1304- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1304- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1304- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1304- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1304- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1304- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1304- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1304- ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1304- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1304- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1304- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1304- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1304- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1304- ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1304- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1304- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1304- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1304- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1304- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1304- ● ●
