5-10 — CAB MOUNTING; FRAME SIDE (#117201) — 83 parça

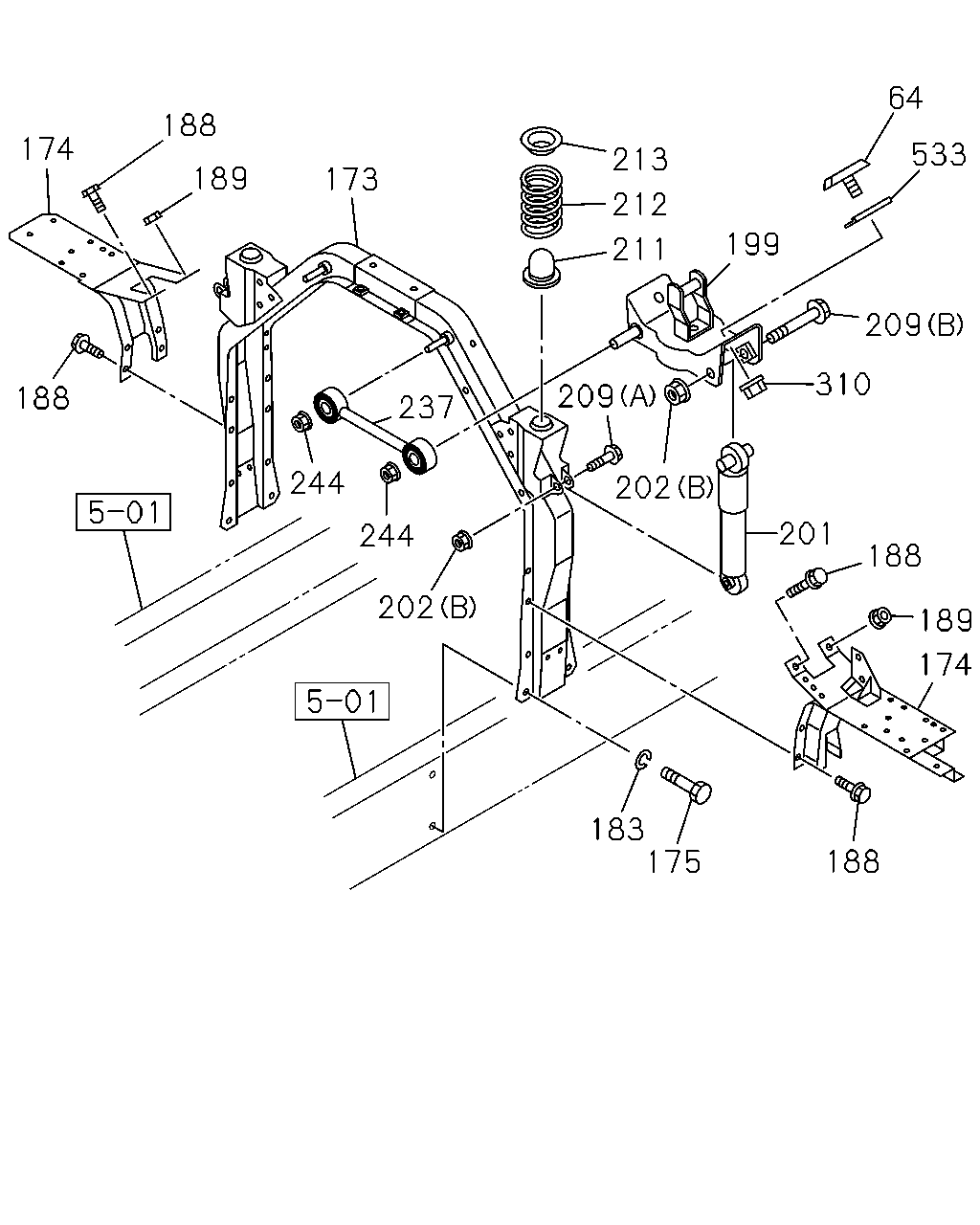

64 533 209 310 199 211 212 213 209 202 201 188 189 174 188 175 183 202 244 237 244 188 174 188 189 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	RUBBER; CUSHION	8-97113-340-0	04	1	1302-	●	●
135	NUT; PIN M14 SLOTTED	0-91116-514-0	01	1	1302-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION	1-09580-537-0	02	1	1302-	●	●
173	MEMBER; CAB MTG RR	8-98054-836-3	01	1	1302-	●	●
174	OUTRIGGER	8-98054-839-2	01	1	1302-	●	●
174	OUTRIGGER	8-98054-838-1	01	1	1302-	●	●
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1302-	●	●
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1302-	●	●
188	BOLT; OUTRIGGER M12X30 FLANGE THA	0-28661-230-0	10	1	1302-	●	●
189	NUT; OUTRIGGER M12 FLANGE THA	0-91180-212-0	02	1	1302-	●	●
199	BRACKET; CAB RR MTG	8-98025-488-4	01	1	1302-	●	●
199	BRACKET; CAB RR MTG	8-98025-489-4	01	1	1302-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	8-98022-450-0	02	1	1302-1401	●	●
201	ABSORBER ASM; SHOCK,RR MTG	8-98269-510-0	02	1	1402-	●	●
202	NUT; S/ABS (A) M10 FLANGE THA	0-91180-110-0	02	1	1302-	●	●
202	NUT; S/ABS (B) M12 FLANGE THA	0-91180-212-0	04	1	1302-	●	●
202	NUT; S/ABS (C) M10	9-09111-410-0	02	1	1302-	●	●
209	BOLT; S/ABS (A) M12X60 FLANGE THA	0-28051-260-0	02	1	1302-	●	●
209	BOLT; S/ABS (B) M12X100 FLANGE	0-28061-200-0	02	1	1302-	●	●
211	RUBBER; CUSHION,S/ABS THA	8-97926-572-0	02	1	1302-	●	●
212	SPRING; COIL	1-09580-398-1	02	1	1302-	●	●
213	SEAT; SPR,S/ABS	1-53366-062-2	02	1	1302-	●	●
237	ROD ASM; LATERAL	1-53459-585-2	02	1	1302-	●	●
244	NUT; LATERAL ROD M16 FLANGE	0-91180-216-0	04	1	1302-	●	●
310	NUT; CUSHION M8 FLANGE THA	0-91180-108-0	04	1	1302-	●	●
533	SPACER; MTG RUBBER	8-98100-388-0	04	1	1302-	●	●

65 202 202 203 204 205 204 203 112 51 27 48 536 51 535 535 535 191 535 191 191 535 51 48 27 536 51 535 535 191 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING M18X120	1-09000-442-1	02	1	1302-	●	●
48	WASHER; PL ID=19 OD=30	1-09503-279-0	02	1	1302-	●	●
51	BUSHING; RUBBER	1-53458-714-0	04	1	1302-	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	1302-	●	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98100-381-0	01	1	1302-	●	●
135	NUT; PIN M14 SLOTTED	0-91116-514-0	01	1	1302-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION	1-09580-537-0	02	1	1302-	●	●
191	BOLT; BRKT FIX M12X35 FLANGE THA	0-28051-235-0	08	1	1302-	●	●
202	NUT; S/ABS (A) M10 FLANGE THA	0-91180-110-0	02	1	1302-	●	●
202	NUT; S/ABS (B) M12 FLANGE THA	0-91180-212-0	04	1	1302-	●	●
202	NUT; S/ABS (C) M10	9-09111-410-0	02	1	1302-	●	●
203	WASHER; RUBBER,SHOCK (A) THA	1-51631-005-0	02	1	1302-	●	●
203	WASHER; RUBBER,SHOCK (B) THA	1-51631-104-0	02	1	1302-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	1302-	●	●
205	WASHER; RUBBER,SHOCK THA	1-51631-079-0	02	1	1302-	●	●
535	BRACKET; LINK ARM (A)	8-98094-831-0	02	1	1302-	●	●
535	BRACKET; LINK ARM (B)	8-98094-832-0	02	1	1302-	●	●
535	BRACKET; LINK ARM (C)	8-98099-704-0	04	1	1302-	●	●
536	WASHER; SIDE ID=34.5	1-53458-281-1	02	1	1302-	●	●

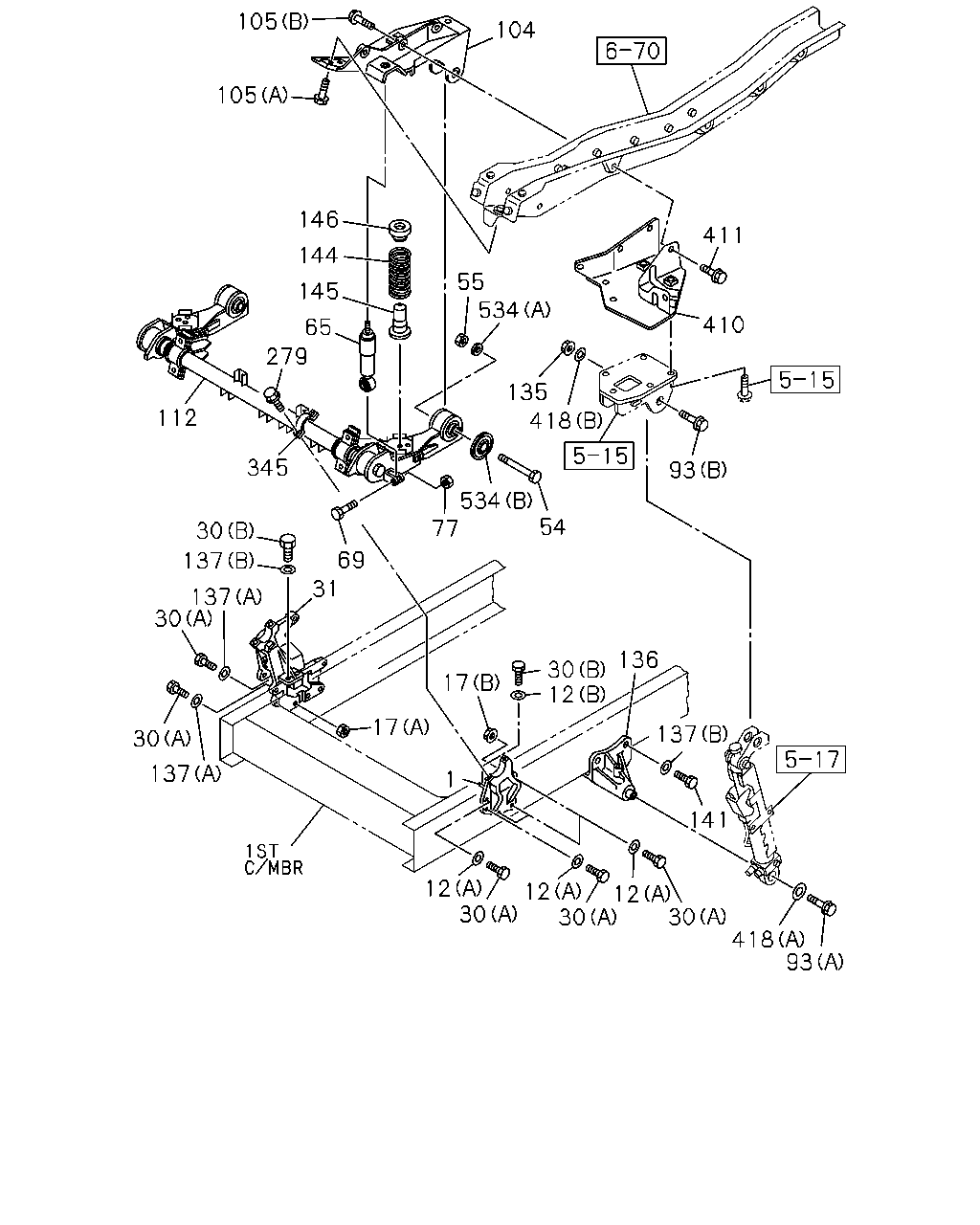

93 418 30 141 12 30 12 30 12 37 136 12 30 93 410 411 418 35 534 55 104 534 77 17 17 1 54 137 30 30 137 30 31 69 345 112 279 65 145 44 146 105 105 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	8-98054-826-0	01	1	1302-	●	●
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	12	1	1302-	●	●
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	02	1	1302-	●	●
17	NUT; BRKT,CAB TILT (A) M16 THA	0-91110-516-0	06	1	1302-	●	●
17	NUT; BRKT,CAB TILT (B) M16 FLANGE	0-91180-216-0	05	1	1302-	●	●
30	BOLT; CAB FRT FOOT (B) M14X60	0-20951-460-0	04	1	1302-	●	●
30	BOLT; CAB FRT FOOT (A) M16X60	0-20951-660-0	11	1	1302-	●	●
31	BRACKET; CAB	1-44226-181-0	01	1	1302-	●	●
54	BOLT; RUBBER M18X90	0-10856-890-0	02	1	1302-	●	●
55	NUT; RUBBER M18 THA	0-91110-518-0	02	1	1302-	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	1302-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION M12X60	0-20801-260-0	02	1	1302-	●	●
77	NUT M12 FLANGE THA	0-91180-212-0	02	1	1302-	●	●
93	BOLT; PIN (A) M10X30	1-09000-283-0	01	1	1302-	●	●
93	BOLT; PIN (B) M14X70	1-53458-633-0	01	1	1302-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98054-821-2	01	1	1302-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98054-822-2	01	1	1302-	●	●
105	BOLT; BRKT TO CAB FRAME (A) M12X35 FLANGE THA	0-28651-235-0	06	1	1302-	●	●
105	BOLT; BRKT TO CAB FRAME (B) M10X30 FLANGE THA	0-28661-030-0	08	1	1302-	●	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98100-381-0	01	1	1302-	●	●
135	NUT; PIN M14 SLOTTED	0-91116-514-0	01	1	1302-	●	●
136	BRACKET; OIL CYL	8-98054-835-0	01	1	1302-	●	●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	04	1	1302-	●	●
137	WASHER; PL,BRKT (A) ID=16.2	1-09503-316-0	05	1	1302-	●	●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	02	1	1302-	●	●
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	1302-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION	1-09580-537-0	02	1	1302-	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION THA	8-97948-023-0	02	1	1302-	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION THA	1-53366-138-0	02	1	1302-	●	●
279	BOLT M12X40 FLANGE THA	0-28061-240-0	04	1	1302-	●	●
345	CAP; CAB	1-53458-336-3	02	1	1302-	●	●
410	REINFORCEMENT; CAB TILT	8-98054-960-3	01	1	1302-	●	●
411	BOLT; REINFORCEMENT M8X20 FLANGE THA	0-28650-820-0	03	1	1302-	●	●
411	BOLT; REINFORCEMENT M10X30 FLANGE THA	0-28661-030-0	02	1	1302-	●	●
418	WASHER; PL,PIN (B) ID=14.2	0-91510-814-0	01	1	1302-	●	●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	01	1	1302-	●	●
534	WASHER; RUBBER (A) ID=19 OD=30	1-09503-279-0	02	1	1302-	●	●
534	WASHER; RUBBER (B) ID=34.5	1-53458-281-1	02	1	1302-	●	●
