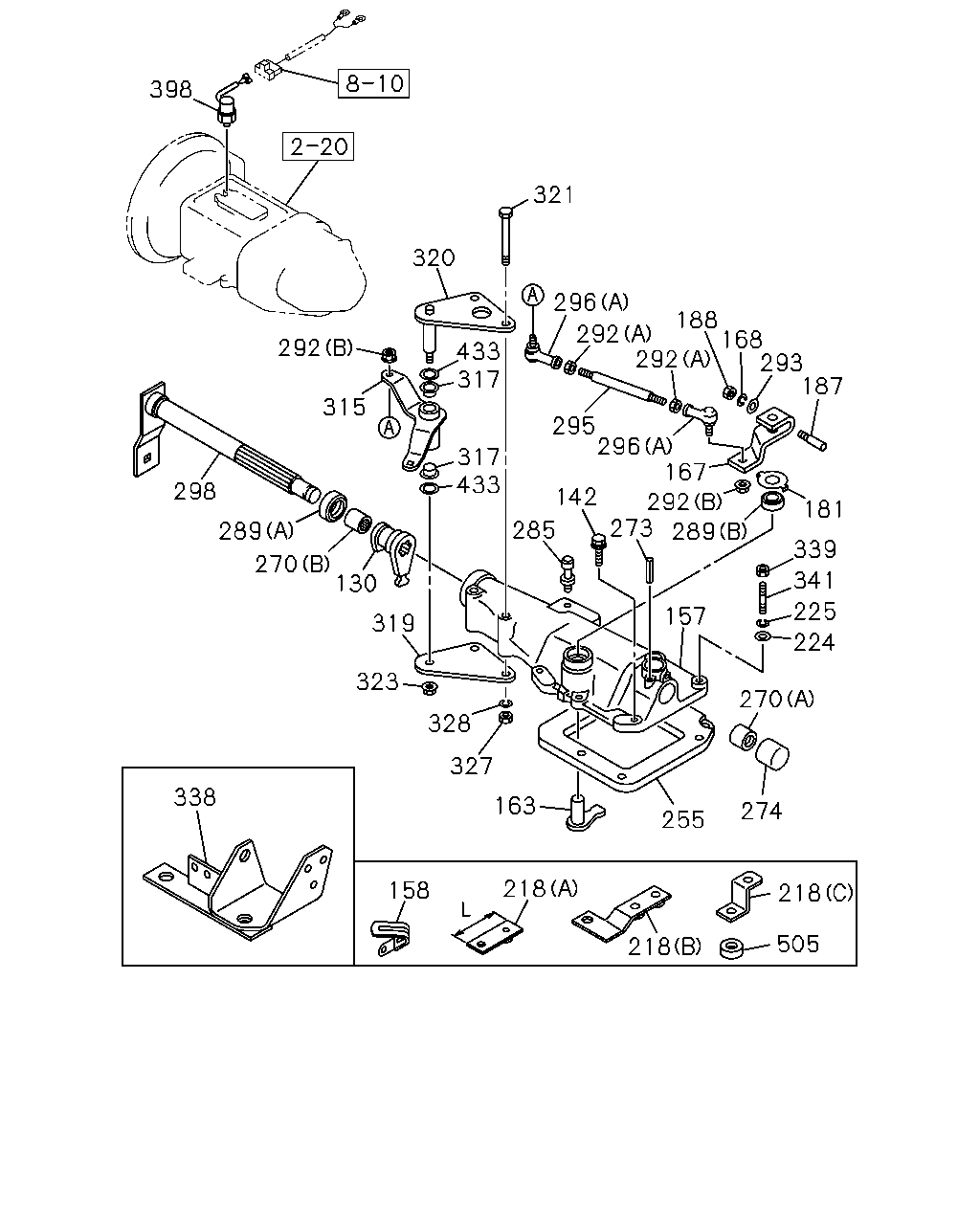

130 |
LEVER; SHIFT,INTERNAL
|
1-33521-055-0 |
01 |
1 |
0106- |
| |
142 |
BOLT; QUAD BOX
M10X28 W/LK&PL WASHER
|
0-50141-028-0 |
04 |
1 |
0106- |
| |
157 |
BOX; QUAD,TRANS
|
1-33541-267-1 |
01 |
1 |
0106- |
| |
158 |
CLIP; HARNESS
L=36
|
8-94224-891-1 |
01 |
1 |
0106- |
| |
163 |
LEVER; SELECT,INTERNAL
|
1-33522-041-4 |
01 |
1 |
0106- |
| |
167 |
LEVER; SELECT,EXTERNAL
|
1-33521-138-0 |
01 |
1 |
0106- |
| |
168 |
WASHER; LK,SELECT LEVER
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0106-0201 |
| |
181 |
WASHER; PL,SELECT LEVER
OD=40
|
1-09532-008-0 |
01 |
1 |
0106- |
| |
187 |
BOLT; SELECT LEVER
M8X42
|
1-33659-045-0 |
01 |
1 |
0106- |
| |
188 |
NUT; SELECT LEVER
M8
|
9-09110-408-0 |
01 |
1 |
0106-0201 |
| |
188 |
NUT; SELECT LEVER
M8 FLANGE
|
1-09440-062-1 |
01 |
1 |
0202- |
| |
218 |
BRACKET; HARNESS CLIP,QUAD BOX
(A)
L=65
|
1-47476-513-0 |
01 |
1 |
0106- |
| |
218 |
BRACKET; HARNESS CLIP,QUAD BOX
(B)
|
1-82569-341-0 |
01 |
1 |
0106- |
| |
218 |
BRACKET; HARNESS CLIP,QUAD BOX
(C)
|
1-82699-425-0 |
03 |
1 |
0106- |
| |
224 |
WASHER; PL,QUAD BOX
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
0106-0605 |
| |
224 |
WASHER; PL,QUAD BOX
ID=10.5
|
0-91610-510-0 |
02 |
1 |
0606- |
| |
225 |
WASHER; LK,QUAD BOX
ID=10.2
|
9-09150-510-0 |
02 |
1 |
0106-0603 |
| |
225 |
WASHER; LK,QUAD BOX
ID=10.2
|
0-91510-510-0 |
02 |
1 |
0604- |
| |
255 |
PLATE; DIST,QUAD BOX
|
1-33549-070-1 |
01 |
1 |
0106- |
| |
270 |
BEARING; NEEDLE,QUAD BOX
(A)
NTN
|
1-09811-006-0 |
01 |
1 |
0106- |
| |
270 |
BEARING; NEEDLE,QUAD BOX
(A)
NSK
|
1-09811-057-0 |
01 |
1 |
0106- |
| |
270 |
BEARING; NEEDLE,QUAD BOX
(B)
NTN
|
1-09811-260-0 |
01 |
1 |
0106- |
| |
273 |
PIN; SPR,STOPPER
|
1-09748-016-0 |
01 |
1 |
0106- |
| |
274 |
COVER; SHAFT,QUAD BOX
|
9-33545-017-1 |
01 |
1 |
0106- |
| |
285 |
BREATHER; AIR,QUAD BOX
|
1-33149-008-0 |
01 |
1 |
0106- |
| |
289 |
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
(A)
OD=41
|
1-09625-334-0 |
01 |
1 |
0106-0307 |
| |
289 |
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
(A)
OD=41
|
1-09625-647-0 |
01 |
1 |
0308- |
| |
289 |
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
(B)
OD=30
|
1-09625-386-0 |
01 |
1 |
0106- |
| |
292 |
NUT; LINK ROD
(A)
M8
|
9-09111-408-0 |
02 |
1 |
0106-0512 |
| |
292 |
NUT; LINK ROD
(A)
M8
|
0-91111-508-0 |
02 |
1 |
0601- |
| |
292 |
NUT; LINK ROD
(B)
M8 FLANGE
|
1-09440-062-1 |
02 |
1 |
0106- |
| |
293 |
WASHER; PL,TAPER BOLT
ID=8.4 OD=22
|
9-09160-708-0 |
01 |
1 |
0106-0605 |
| |
293 |
WASHER; PL,TAPER BOLT
ID=8.4 OD=22
|
0-91610-708-0 |
01 |
1 |
0606- |
| |
295 |
ROD; LINK,RELAY LEVER
|
9-08400-817-0 |
01 |
1 |
0106- |
| |
296 |
ROD END
(A)
|
1-09760-108-0 |
02 |
1 |
0106- |
| |
298 |
SHAFT; SHIFT LEVER
|
1-33522-141-0 |
01 |
1 |
0106- |
| |
315 |
LEVER; SELECT
|
1-33651-980-0 |
01 |
1 |
0106- |
| |
317 |
BUSHING; LEVER
|
1-09330-119-0 |
02 |
1 |
0106- |
| |
319 |
BRACKET; SELECT LEVER
|
1-33657-640-0 |
01 |
1 |
0106- |
| |
320 |
SHAFT; LEVER
|
1-33619-629-0 |
01 |
1 |
0106- |
| |
321 |
BOLT; BRKT,RELAY LEVER
M10X80
|
0-10806-080-0 |
02 |
1 |
0106-0512 |
| |
321 |
BOLT; BRKT,RELAY LEVER
M10X80
|
0-10856-080-0 |
02 |
1 |
0601- |
| |
323 |
NUT; LK,SELECT LEVER
|
1-33659-219-0 |
01 |
1 |
0106- |
| |
327 |
NUT; BRKT,RELAY LEVER
M10
|
9-09110-510-0 |
02 |
1 |
0106-0201 |
| |
327 |
NUT; BRKT,RELAY LEVER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0202-0602 |
| |
327 |
NUT; BRKT,RELAY LEVER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
328 |
WASHER; LK,BRKT
ID=10.2
|
9-09150-510-0 |
02 |
1 |
0106-0201 |
| |
338 |
BRACKET; FLEX TUBE
|
1-47478-877-0 |
01 |
1 |
0106- |
| |
339 |
NUT; QUAD BOX
M10
|
9-09110-510-0 |
02 |
1 |
0106-0512 |
| |
339 |
NUT; QUAD BOX
M10
|
0-91110-510-0 |
02 |
1 |
0601- |
| |
341 |
STUD; QUAD BOX
|
1-09305-004-0 |
02 |
1 |
0106- |
| |
398 |
SWITCH; REV LAMP
|
1-82440-102-0 |
01 |
1 |
0106- |
| |
433 |
GASKET; BUSHING
|
1-09623-636-0 |
02 |
1 |
0106- |
| |
505 |
SPACER; BRKT
|
1-53459-587-0 |
01 |
1 |
0106- |
