8-75 — CONDENSER (#1172) — 48 parça

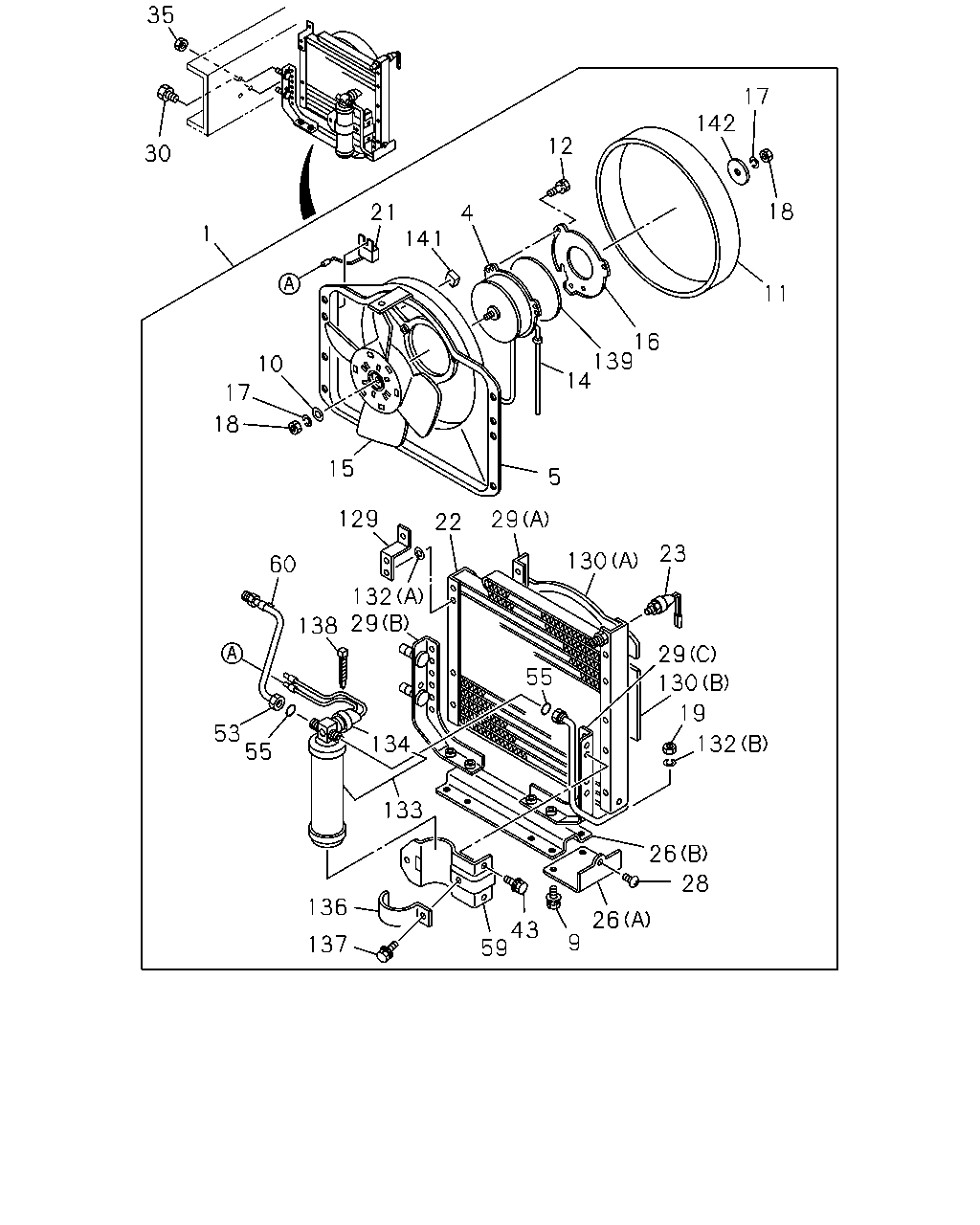

çizim 27536
35 30 1 21 4 141 12 142 17 18 11 16 14 139 5 129 22 29 15 10 17 18 60 132 29 138 53 55 134 133 136 137 59 9 26 43 28 26 55 130 23 29 130 19 132
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CON MANUAL CONTROL(C60) 		1-83534-124-1 01 1 9202-9301 ● ●
1 CONDENSER; A/C
AIR CON MANUAL CONTROL(C60) 		1-83534-162-0 01 1 9302- ● ●
4 MOTOR ASM; FAN
AIR CON MANUAL CONTROL(C60) 		1-83561-059-0 01 1 9202- ● ●
5 SHROUD; FAN MOTOR
AIR CON MANUAL CONTROL(C60) 		1-83539-164-0 01 1 9202- ● ●
9 BOLT; BRKT
AIR CON MANUAL CONTROL(C60) M8X22 		1-83579-198-0 07 1 9202- ● ●
10 WASHER; PL,FAN
AIR CON MANUAL CONTROL(C60) 		1-83539-045-0 01 1 9202- ● ●
11 COVER; SHROUD
AIR CON MANUAL CONTROL(C60) 		1-83539-057-0 01 1 9202- ● ●
12 BOLT; FAN MOTOR
AIR CON MANUAL CONTROL(C60) 		1-83539-042-0 03 1 9202- ● ●
14 HOSE; DRAIN
AIR CON MANUAL CONTROL(C60) 		1-83566-449-0 01 1 9202- ● ●
15 FAN; MOTOR
AIR CON MANUAL CONTROL(C60) 		1-83539-041-0 01 1 9202- ● ●
16 COVER; FAN MOTOR
AIR CON MANUAL CONTROL(C60) 		1-83539-055-0 01 1 9202- ● ●
17 WASHER; LK,FAN
AIR CON MANUAL CONTROL(C60) ID=5 		1-83539-044-0 02 1 9202- ● ●
18 NUT; FAN,CENTER
AIR CON MANUAL CONTROL(C60) 		1-83539-043-0 02 1 9202- ● ●
19 NUT; BRKT
AIR CON MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9202- ● ●
21 CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-84132-007-0 01 1 9202- ● ●
22 CONDENSER ASM; A/C
AIR CON MANUAL CONTROL(C60) 		1-83534-148-0 01 1 9202- ● ●
23 SWITCH; PRESSURE,CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-82380-088-0 01 1 9202- ● ●
26 BRACKET; LOW
AIR CON MANUAL CONTROL(C60) (A) 		1-83539-060-0 01 1 9202- ● ●
26 BRACKET; LOW
AIR CON MANUAL CONTROL(C60) (B) 		1-83539-105-0 01 1 9202- ● ●
28 SCREW; BRKT,LOW SIDE
AIR CON MANUAL CONTROL(C60) 		1-83539-047-0 04 1 9202- ● ●
29 BRACKET; SIDE
AIR CON MANUAL CONTROL(C60) (B) 		1-83539-163-0 01 1 9202- ● ●
29 BRACKET; SIDE
AIR CON MANUAL CONTROL(C60) (C) 		1-83571-477-0 01 1 9202- ● ●
29 BRACKET; SIDE
AIR CON MANUAL CONTROL(C60) (A) 		1-83571-789-0 01 1 9202- ● ●
30 BOLT; CONDENSER,A/C
AIR CON MANUAL CONTROL(C60) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9202- ● ●
35 NUT; CONDENSER,A/C
AIR CON MANUAL CONTROL(C60) M10 		9-09110-510-0 02 1 9202- ● ●
43 BOLT; BRKT,CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83539-059-0 02 1 9202- ● ●
53 PIPE; CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83539-166-1 01 1 9202-9301 ● ●
53 PIPE; CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83539-217-0 01 1 9302- ● ●
55 GASKET; PIPE
AIR CON MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9202- ● ●
59 BRACKET; CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83571-479-0 01 1 9202- ● ●
60 CLIP; PIPE
AIR CON MANUAL CONTROL(C60) 		1-83539-167-0 01 1 9202- ● ●
129 BRACKET; UPR
AIR CON MANUAL CONTROL(C60) 		1-83539-207-0 01 1 9202- ● ●
130 LINING; CONDENSER
AIR CON MANUAL CONTROL(C60) (A) 		1-83539-061-0 01 1 9202- ● ●
130 LINING; CONDENSER
AIR CON MANUAL CONTROL(C60) (B) 		1-83539-104-0 01 1 9202- ● ●
132 WASHER; BRKT
AIR CON MANUAL CONTROL(C60) (B) ID=8 		1-14319-034-0 01 1 9202- ● ●
132 WASHER; BRKT
AIR CON MANUAL CONTROL(C60) (A) 		1-83539-052-0 01 1 9202- ● ●
133 DRYER ASM; RECEIVER
AIR CON MANUAL CONTROL(C60) 		1-83535-051-2 01 1 9202-9301 ● ●
133 DRYER ASM; RECEIVER
AIR CON MANUAL CONTROL(C60) 		1-83535-068-0 01 1 9302- ● ●
134 SWITCH; PRESSURE,DRYER
AIR CON MANUAL CONTROL(C60) 		1-83534-121-0 01 1 9202-9301 ● ●
134 SWITCH; PRESSURE,DRYER
AIR CON MANUAL CONTROL(C60) 		1-83539-216-0 01 1 9302- ● ●
136 BRACKET; DRYER
AIR CON MANUAL CONTROL(C60) 		1-83571-472-0 01 1 9202-9301 ● ●
136 BRACKET; DRYER
AIR CON MANUAL CONTROL(C60) 		8-97084-632-0 01 1 9302- ● ●
137 BOLT; BRKT,DRYER
AIR CON MANUAL CONTROL(C60) 		1-83539-048-0 01 1 9202- ● ●
138 CLIP; DRYER
AIR CON MANUAL CONTROL(C60) 		1-83574-130-0 01 1 9202-9301 ● ●
138 CLIP; DRYER
AIR CON MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9302- ● ●
139 SEAL; FAN MOTOR
AIR CON MANUAL CONTROL(C60) 		1-83539-054-0 01 1 9202- ● ●
141 INSULATOR; SHROUD
AIR CON MANUAL CONTROL(C60) 		1-83539-056-0 03 1 9202- ● ●
142 COVER; SHROUD COVER
AIR CON MANUAL CONTROL(C60) 		1-83539-058-0 01 1 9202- ● ●
