Isuzu WW
▶
TRUCKS
▶
GXR
▶
11529 - GXR(RHD)EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#117192) — 33 parça
◀

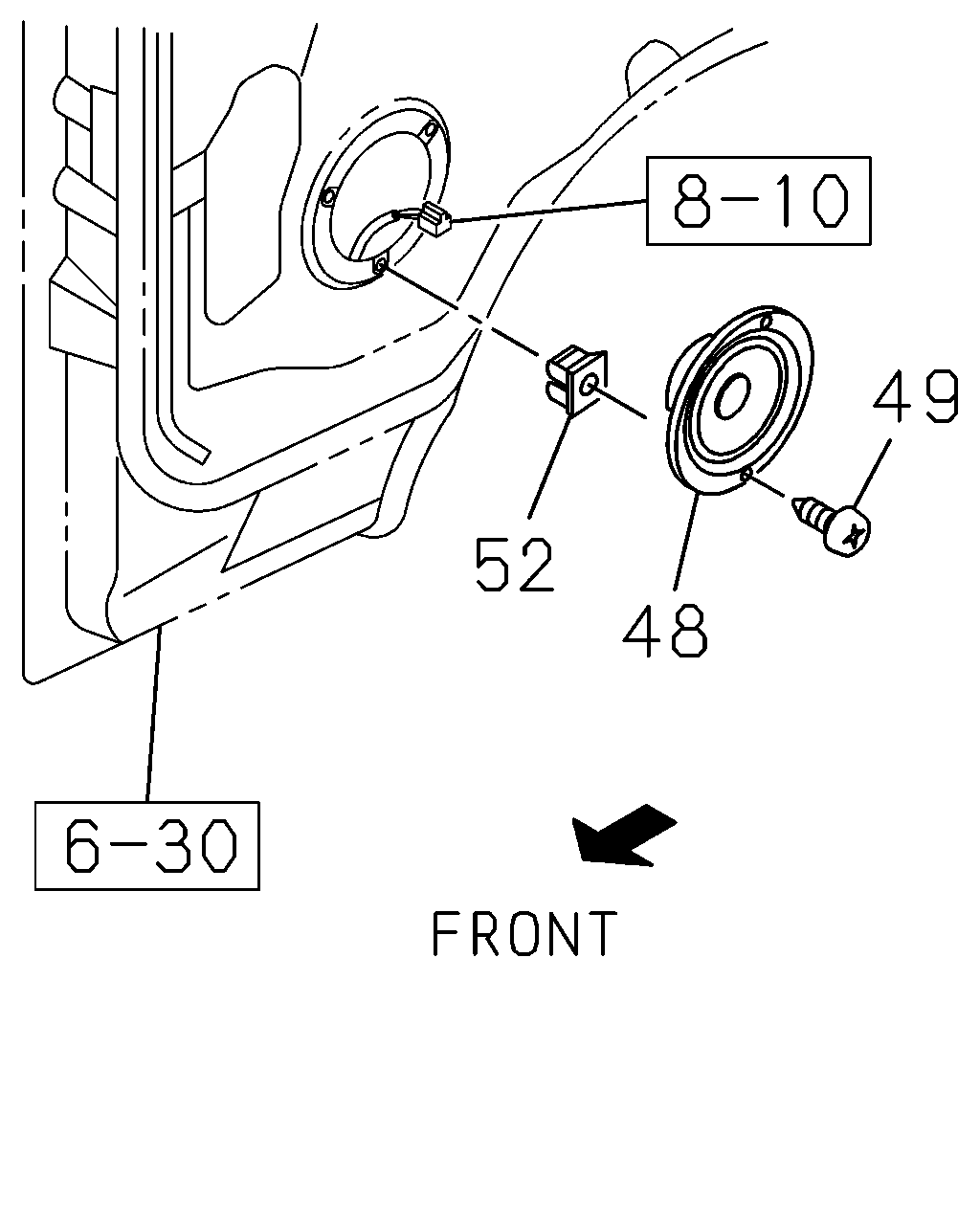

[890A] NO.1 (15 parça)

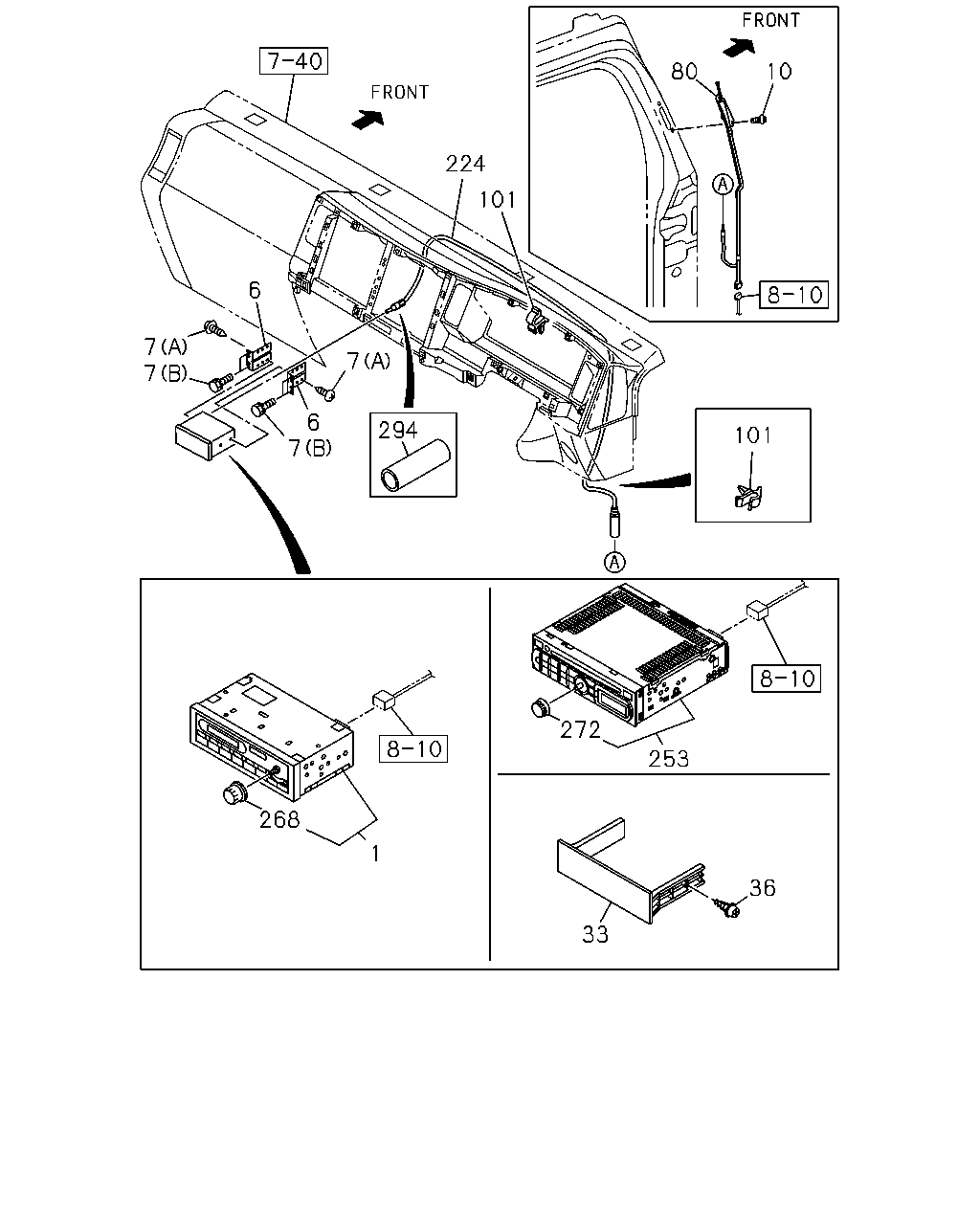

[890A] NO.2 (18 parça)
▶
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN>
8-98032-643-0
01
1
1304-
6
BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
1304-
7
SCREW; RADIO
(A) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1304-
7
SCREW; RADIO
RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (B) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1304-
10
SCREW; ANTENNA CABLE
M5X11
1-09981-536-1
02
1
1304-
33
COVER; RADIO
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) BLACK
8-97407-896-2
01
1
1304-
36
SCREW; COVER
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1304-
80
ANTENNA
8-98139-014-0
01
1
1304-
101
CLIP; FEEDER TO BRKT
ID=4.8
8-94128-483-0
03
1
1304-
224
CABLE; EXT,FEEDER
8-98063-002-1
01
1
1304-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND ASIA<7DN>
8-98017-752-0
01
1
1304-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM>
8-98112-329-0
01
1
1304-
268
KNOB; VOL
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION
8-97375-820-0
01
1
1304-
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION
8-98048-329-0
01
1
1304-
294
CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69)
8-98095-617-1
01
1
1304-
48
52
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN>
8-98032-643-0
01
1
1304-
6
BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
1304-
7
SCREW; RADIO
(A) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1304-
7
SCREW; RADIO
RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (B) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1304-
10
SCREW; ANTENNA CABLE
M5X11
1-09981-536-1
02
1
1304-
33
COVER; RADIO
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) BLACK
8-97407-896-2
01
1
1304-
36
SCREW; COVER
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1304-
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
8-97317-001-1
02
1
1304-
49
SCREW; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1304-
52
GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1304-
80
ANTENNA
8-98139-014-0
01
1
1304-
101
CLIP; FEEDER TO BRKT
ID=4.8
8-94128-483-0
03
1
1304-
224
CABLE; EXT,FEEDER
8-98063-002-1
01
1
1304-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND ASIA<7DN>
8-98017-752-0
01
1
1304-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM>
8-98112-329-0
01
1
1304-
268
KNOB; VOL
RADIO AM/FM(U69) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION
8-97375-820-0
01
1
1304-
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION
8-98048-329-0
01
1
1304-
294
CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69)
8-98095-617-1
01
1
1304-
