8-60 — HEATER UNIT; FRONT (#117191) — 29 parça

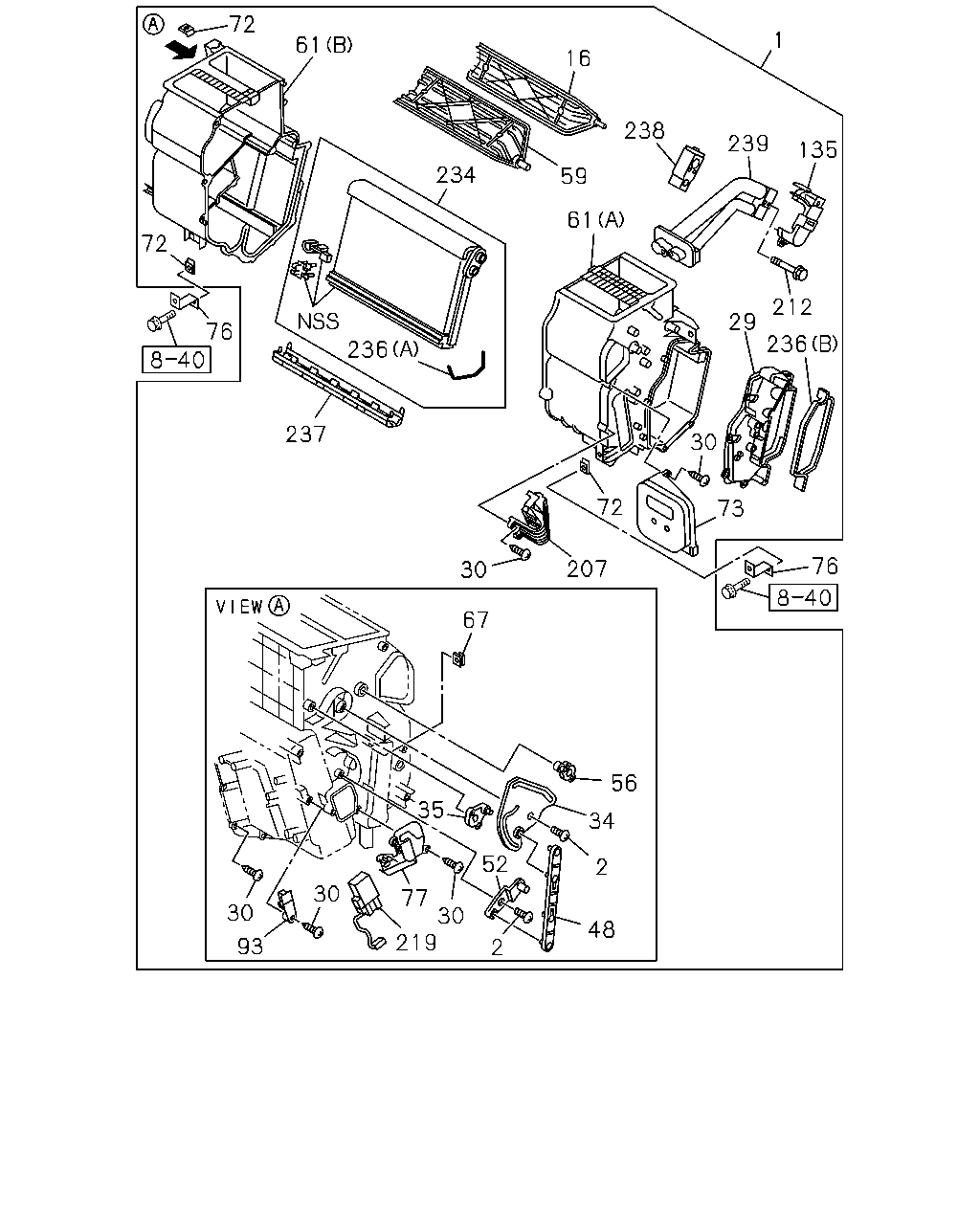

çizim 346013
72 16 238 239 59 135 1 234 61 29 212 236 30 73 72 207 76 30 67 237 76 236 72 61 56 34 2 48 2 52 30 219 77 30 93 30 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 8-98057-980-2 01 1 1302- ● ●
2 SCREW; LEVER
M4X16 		8-98047-416-0 02 1 1302- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1302- ● ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
M4X16 TAPPING 		8-97957-708-0 27 1 1302- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1302- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1302- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1302- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1302- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1302- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1302- ● ●
61 CASE; HTR UNIT
(A) 		8-98077-422-0 01 1 1302- ● ●
61 CASE; HTR UNIT
(B) 		8-98077-423-0 01 1 1302- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 01 1 1302- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1302- ● ●
73 PLATE; HTR UNIT 8-98077-420-0 01 1 1302- ● ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1302- ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1302- ● ●
93 PLATE; HTR UNIT 8-98047-427-0 01 1 1302- ● ●
135 COVER; HTR 8-98047-384-0 01 1 1302- ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1302- ● ●
212 BOLT; HTR UNIT
M5X61 		8-98047-415-0 02 1 1302- ● ●
219 AMPLIFIER; HEATER UNIT 8-98064-733-0 01 1 1302- ● ●
234 EVAPORATOR ASM; HEATER 8-98074-116-1 01 1 1302- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1302- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1302- ● ●
237 INSULATOR; EVAPORATOR 8-98047-382-0 01 1 1302- ● ●
238 VALVE; EXPANSION 8-98047-383-0 01 1 1302- ● ●
239 TUBE ASM; HEATER 8-98074-115-0 01 1 1302- ● ●
