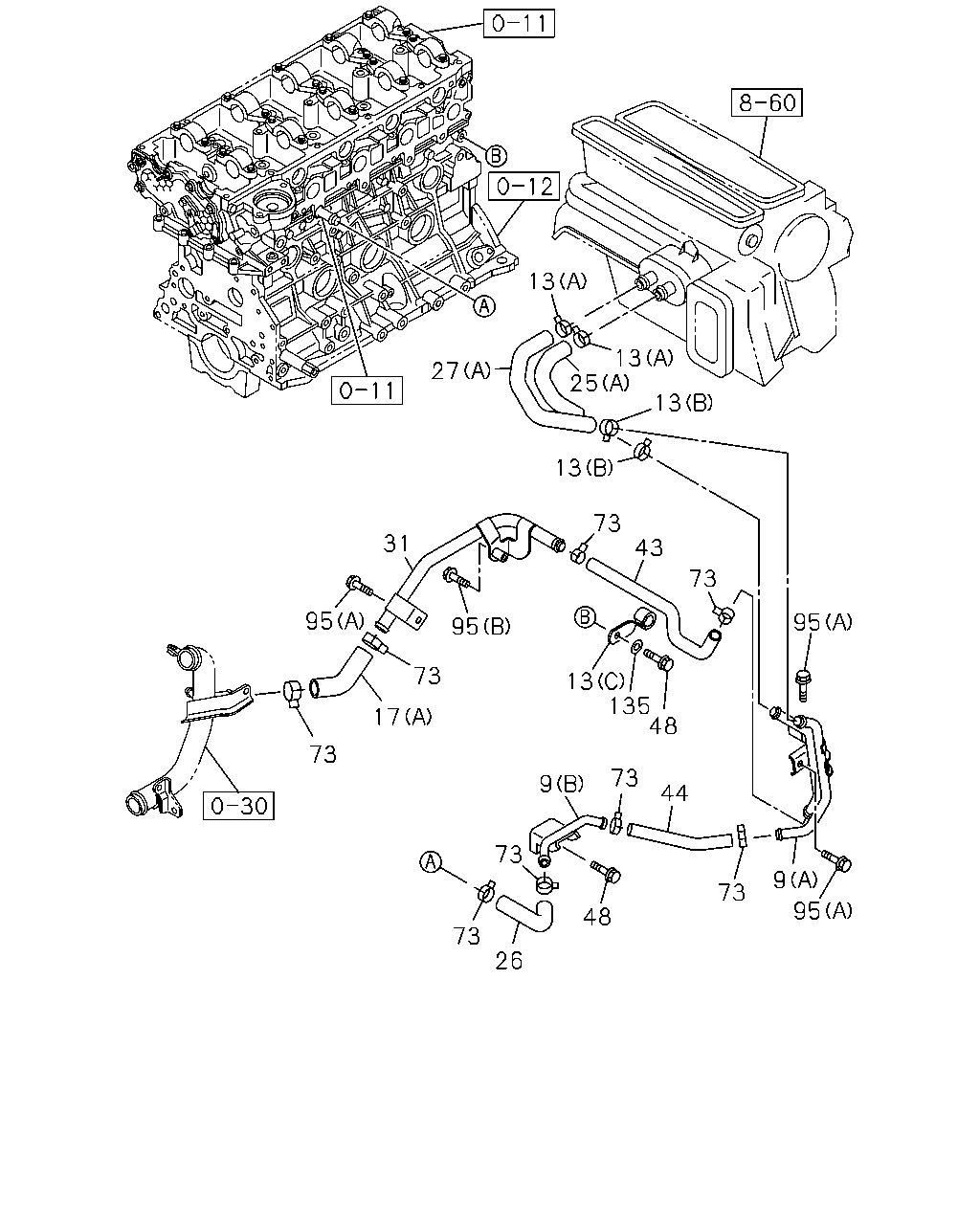

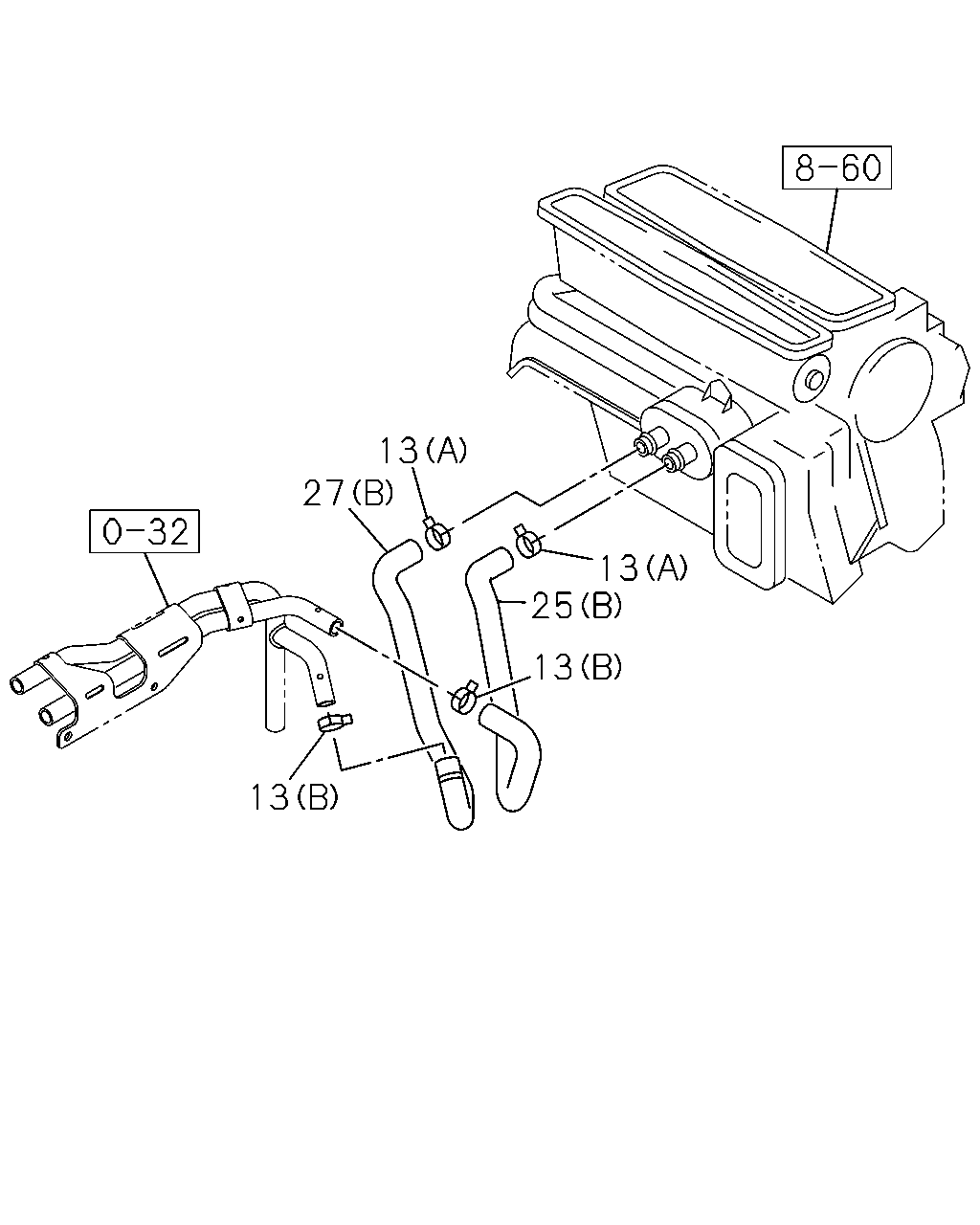

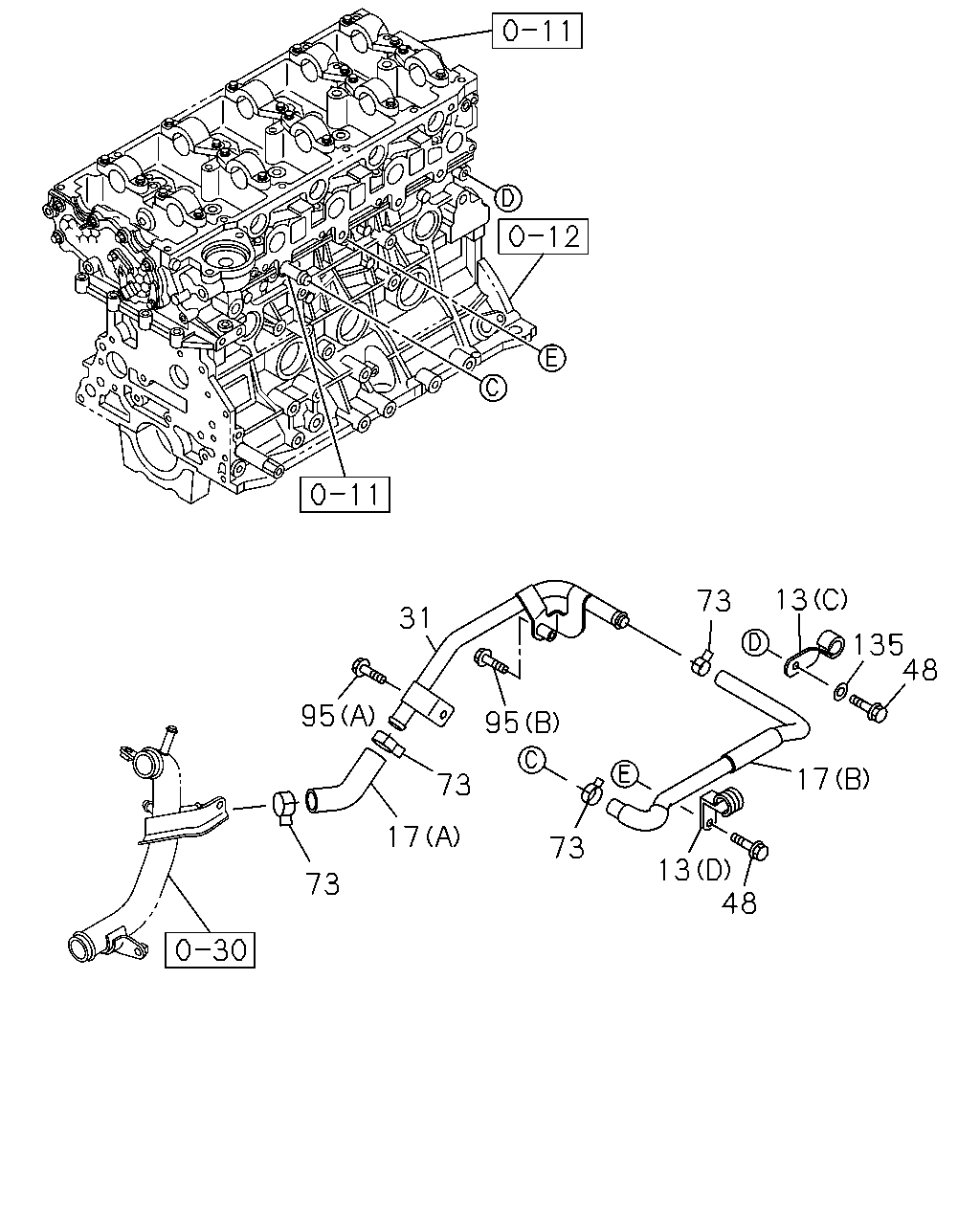

8-45 — HEATER PIPING (#117186) — 51 parça

13 27 25 13 13 13 73 73 43 95 13 135 48 44 73 95 48 9 9 73 73 26 73 17 73 73 95 31 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98131-991-1	01	1	1304-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98163-300-0	01	1	1304-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1304-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1304-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1304-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1304-			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1304-	●	●	●	●
13	08.846 CLIP; HTR HOSE COOLER W/FRESH AIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1304-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A)	8-98132-368-0	01	1	1304-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS COOLER W/FRESH AIR(C65) (B)	8-98036-848-0	01	1	1304-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98129-341-3	01	1	1304-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98129-342-3	01	1	1304-	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98011-630-0	01	1	1304-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98129-339-3	01	1	1304-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98129-340-3	01	1	1304-	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)	8-98131-989-0	01	1	1304-	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98134-332-0	01	1	1304-	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 01.540 L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1304-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1304-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) ID=20.8	8-97944-127-0	08	1	1304-	●	●	●	●
73	08.846 CLIP; HTR HOSE COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	04	1	1304-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1304-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1304-	●	●	●	●

13 73 135 17 48 13 48 95 73 31 95 73 17 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1304-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1304-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1304-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1304-			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1304-	●	●	●	●
13	08.846 CLIP; HTR HOSE COOLER W/FRESH AIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1304-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A)	8-98132-368-0	01	1	1304-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS COOLER W/FRESH AIR(C65) (B)	8-98036-848-0	01	1	1304-	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)	8-98131-989-0	01	1	1304-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1304-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) ID=20.8	8-97944-127-0	08	1	1304-	●	●	●	●
73	08.846 CLIP; HTR HOSE COOLER W/FRESH AIR(C65) ID=20.8	8-97944-127-0	04	1	1304-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1304-	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1304-	●	●	●	●

13 13 27 25 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1304-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1304-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1304-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1304-			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1304-	●	●	●	●
13	08.846 CLIP; HTR HOSE COOLER W/FRESH AIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1304-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98129-341-3	01	1	1304-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98129-342-3	01	1	1304-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98129-339-3	01	1	1304-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98129-340-3	01	1	1304-	●	●
