Isuzu WW
▶
PICKUP
▶
TFR
▶
51474 - TFR/TFS-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#117178) — 45 parça
Tümü
A - TFB5WF
B - TFS5WF
C - TFB5CF
D - TFS5CF
E - TFB5SF
F - TFS5SF
◀

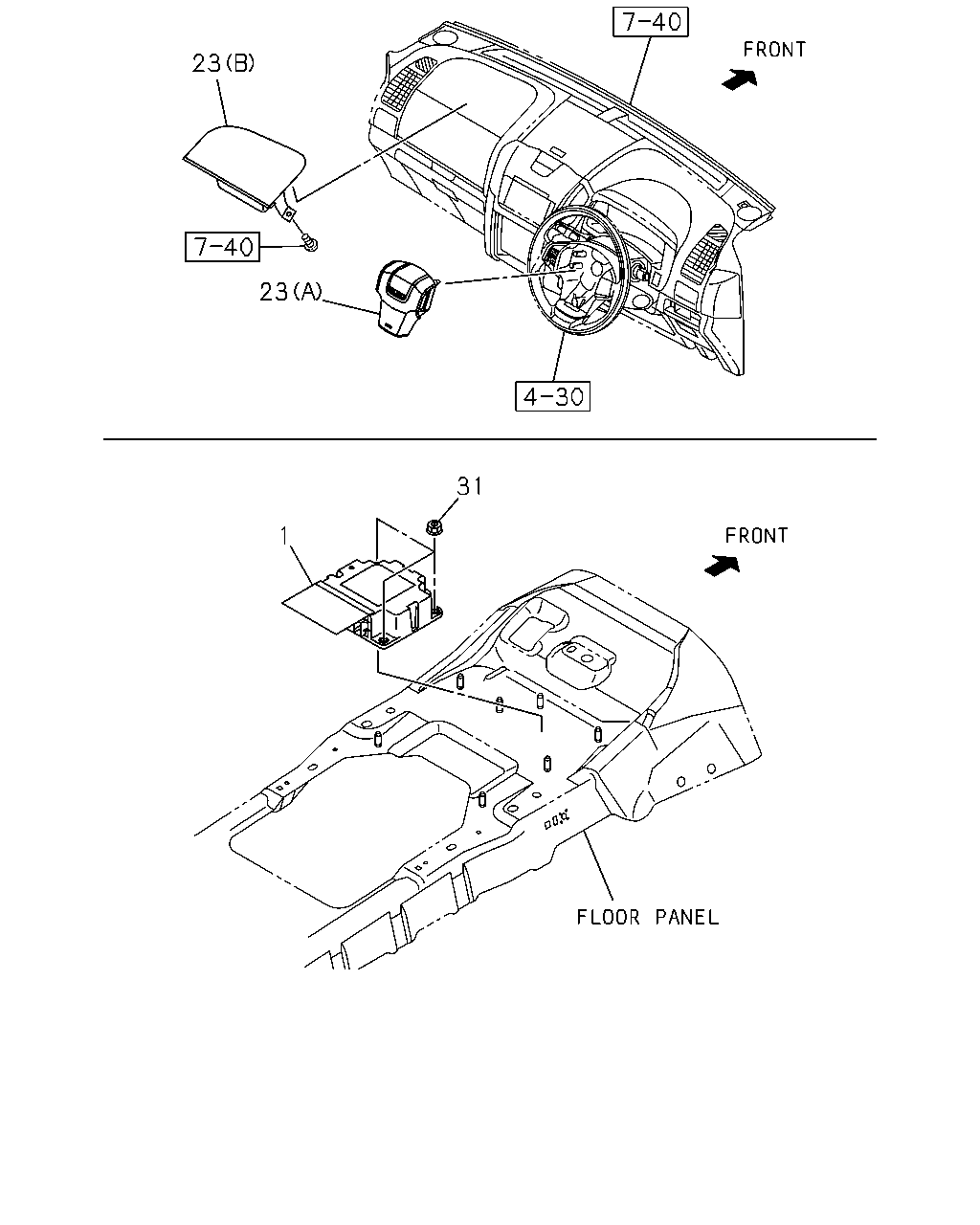

[827A] AIR BAG;FRONT (27 parça)

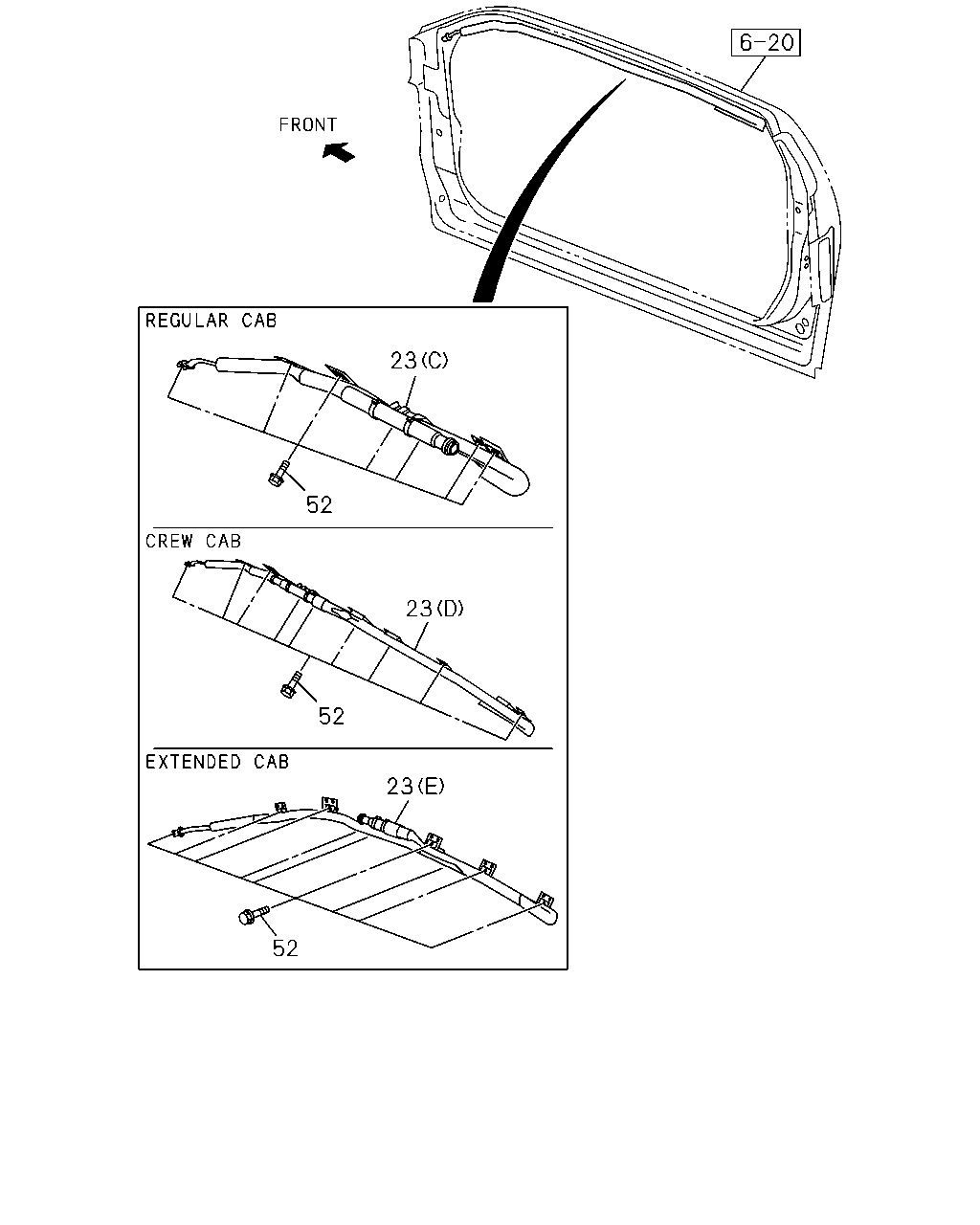

[827A] AIR BAG;ROOF RAIL (18 parça)
▶
23
23
31
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13)
8-98220-043-0
01
1
1304-1310
●
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13)
8-98220-043-1
01
1
1311-1404
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13)
8-98261-127-0
01
1
1405-
●
1
02.559 CONTROL UNIT; SIR
8-98159-361-1
01
1
1304-1310
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUSTRALIA EQUIPMENT(B13)
8-98159-361-1
01
1
1304-1310
●
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)
8-98159-361-1
01
1
1304-1310
●
1
02.559 CONTROL UNIT; SIR
8-98159-361-1
01
1
1311-
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)
8-98159-361-1
01
1
1311-
●
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUSTRALIA EQUIPMENT(B13)
8-98159-361-1
01
1
1311-
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5)
8-98127-250-2
01
1
1304-
●
●
●
●
●
1
02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0)
8-98159-362-1
01
1
1304-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) BLACK
8-97424-332-0
01
1
1304-
●
23
02.559 AIR BAG UNIT
(A) BLACK
8-97416-641-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) BLACK
8-97416-641-6
01
1
1304-
●
●
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. AUSTRALIA EQUIPMENT(B13) (A) BLACK
8-97416-641-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
(B) BLACK
8-97416-642-7
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) BLACK
8-97416-642-7
01
1
1304-
●
●
●
●
●
23
02.559 AIR BAG UNIT
(E)
8-98147-098-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E)
8-98147-098-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
(E)
8-98147-099-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E)
8-98147-099-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C)
8-98147-096-5
01
1
1304-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C)
8-98147-097-5
01
1
1304-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D)
8-98147-100-6
01
1
1304-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D)
8-98147-101-6
01
1
1304-
●
●
31
14.865 NUT
01.540 M6 FLANGE
0-91180-206-0
03
1
1304-
●
31
14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 01.540 M6 FLANGE
0-91180-206-0
03
1
1304-
●
●
●
●
●
23
52
23
52
23
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) BLACK
8-97424-332-0
01
1
1304-
●
23
02.559 AIR BAG UNIT
(A) BLACK
8-97416-641-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) BLACK
8-97416-641-6
01
1
1304-
●
●
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. AUSTRALIA EQUIPMENT(B13) (A) BLACK
8-97416-641-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
(B) BLACK
8-97416-642-7
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) BLACK
8-97416-642-7
01
1
1304-
●
●
●
●
●
23
02.559 AIR BAG UNIT
(E)
8-98147-098-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E)
8-98147-098-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
(E)
8-98147-099-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E)
8-98147-099-6
01
1
1304-
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C)
8-98147-096-5
01
1
1304-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C)
8-98147-097-5
01
1
1304-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D)
8-98147-100-6
01
1
1304-
●
●
23
02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D)
8-98147-101-6
01
1
1304-
●
●
52
02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE
0-28650-620-0
18
1
1304-
●
52
02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE
0-28650-620-0
18
1
1304-
●
52
02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE
0-28650-620-0
14
1
1304-
●
●
52
02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE
0-28650-620-0
20
1
1304-
●
●
