Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#117176) — 41 parça

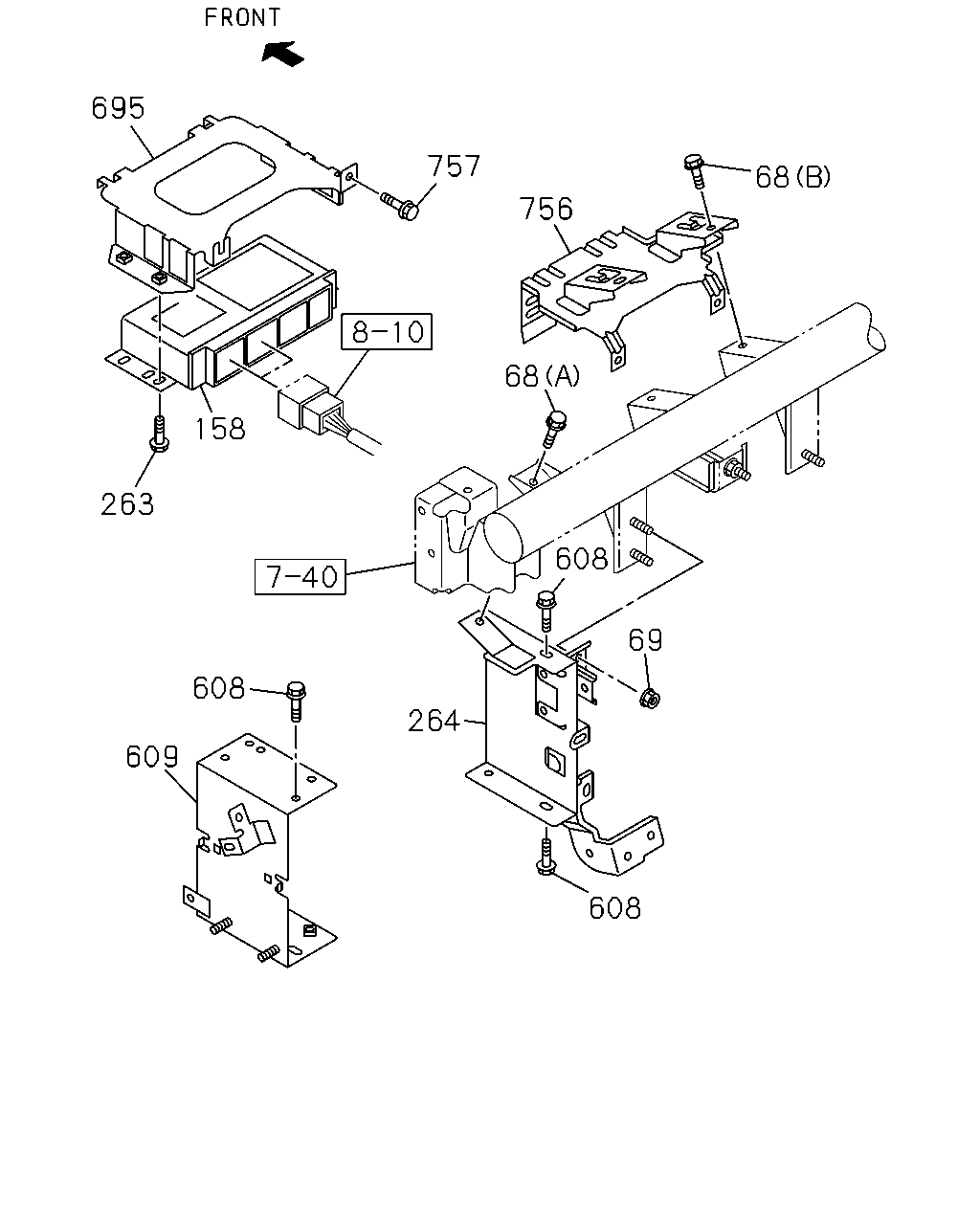

695 158 263 608 609 608 264 69 608 68 68 756 757

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
68	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1304-	●	●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
158	CONTROLLER; ABS ANTILOCK BRAKE SYSTEM(BFA)	8-98220-159-0	01	1	1304-	●	●
263	BOLT; CONT UNIT ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	04	1	1304-	●	●
264	BRACKET; CONT UNIT	8-97609-985-9	01	1	1304-	●	●
608	BOLT; CONT UNIT,AIR SUS AUTO DOOR LOCK<AU4> M6X16 FLANGE	0-28650-616-0	05	1	1304-1401	●
608	BOLT; CONT UNIT,AIR SUS ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	05	1	1304-1401		●
608	BOLT; CONT UNIT,AIR SUS ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	05	1	1304-1401		●
608	BOLT; CONT UNIT,AIR SUS AUTO DOOR LOCK<AU4> M6X16 FLANGE	0-28650-616-0	05	1	1402-	●
608	BOLT; CONT UNIT,AIR SUS AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	05	1	1402-		●
608	BOLT; CONT UNIT,AIR SUS ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	05	1	1402-		●
609	BRACKET ASM; ELEC UNIT,AIR SUS AUTO DOOR LOCK<AU4>	8-98095-337-0	01	1	1304-1308	●
609	BRACKET ASM; ELEC UNIT,AIR SUS ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98095-337-0	01	1	1304-1308		●
609	BRACKET ASM; ELEC UNIT,AIR SUS ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98095-337-0	01	1	1304-1308		●
609	BRACKET ASM; ELEC UNIT,AIR SUS AUTO DOOR LOCK<AU4>	8-98169-737-0	01	1	1309-1401	●
609	BRACKET ASM; ELEC UNIT,AIR SUS ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98169-737-0	01	1	1309-1401		●
609	BRACKET ASM; ELEC UNIT,AIR SUS ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98169-737-0	01	1	1309-1401		●
609	BRACKET ASM; ELEC UNIT,AIR SUS AUTO DOOR LOCK<AU4>	8-98169-737-1	01	1	1402-	●
609	BRACKET ASM; ELEC UNIT,AIR SUS AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98169-737-1	01	1	1402-		●
609	BRACKET ASM; ELEC UNIT,AIR SUS ANTILOCK BRAKE SYSTEM(BFA)	8-98169-737-1	01	1	1402-		●
695	BRACKET; CONT UNIT,ABS ANTILOCK BRAKE SYSTEM(BFA)	8-98045-016-1	01	1	1304-	●	●
756	BRACKET; ECU,BCM ANTILOCK BRAKE SYSTEM(BFA)	8-98056-411-3	01	1	1304-	●	●
757	BOLT; BRKT,BCM ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●

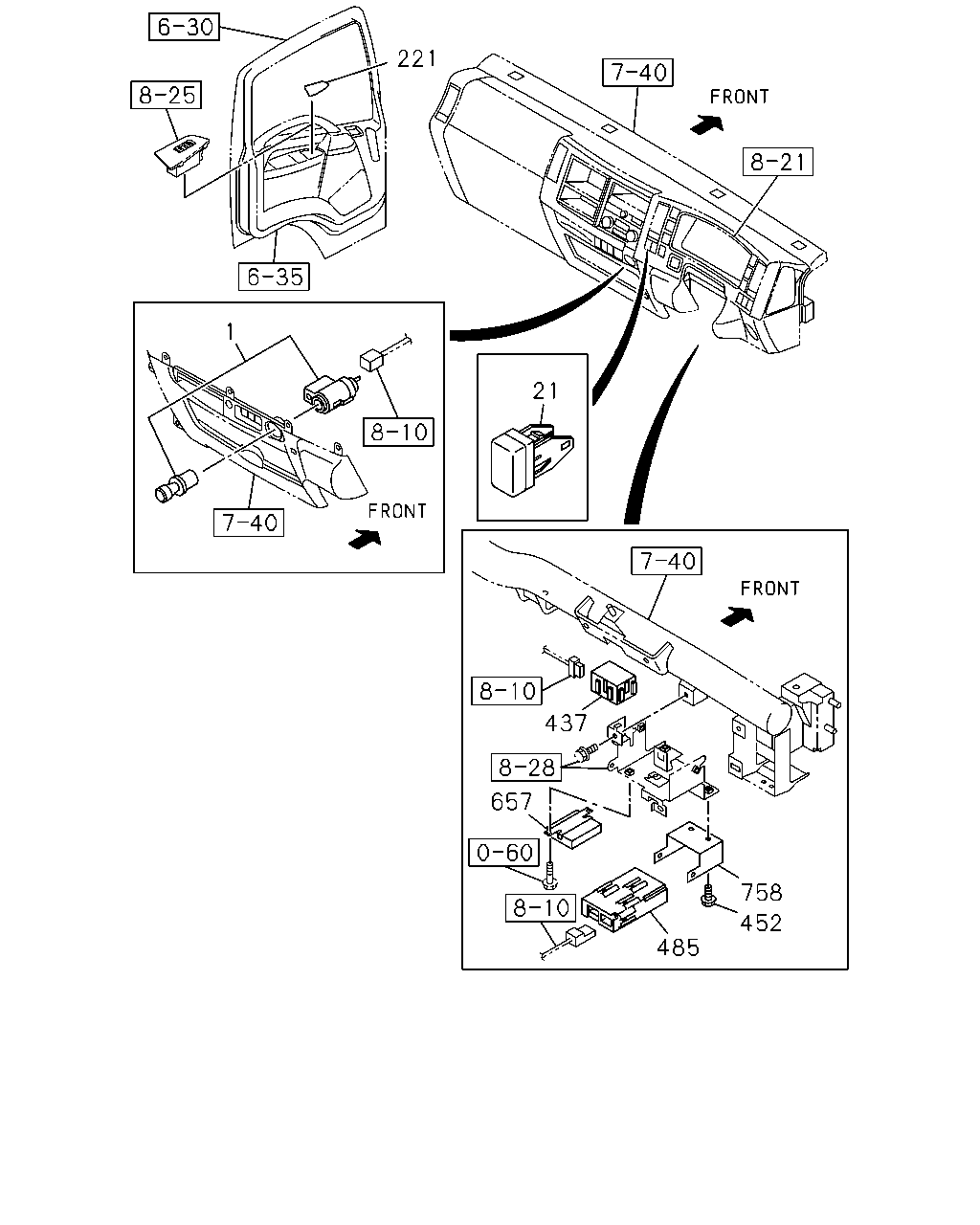

221 21 437 657 485 758 452 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LIGHTER; CIGAR	8-98142-962-0	01	1	1304-	●	●
21	COVER; HOLE	8-98025-954-1	01	1	1304-	●	●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1304-	●	●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1304-	●	●
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	1304-	●	●
452	BOLT; BRKT ZF9S1310 M/T(Y5K) M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●
485	CONTROL UNIT; SPEED SENSOR ZF9S1310 M/T(Y5K)	1-80190-063-0	01	1	1304-	●	●
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	1304-1401	●	●
657	CONTROL UNIT; MIMAMORI	8-98260-912-0	01	1	1402-	●	●
758	BRACKET; ELEC CONT UNIT,SPEED SENSOR ZF9S1310 M/T(Y5K)	8-98048-743-1	01	1	1304-	●	●

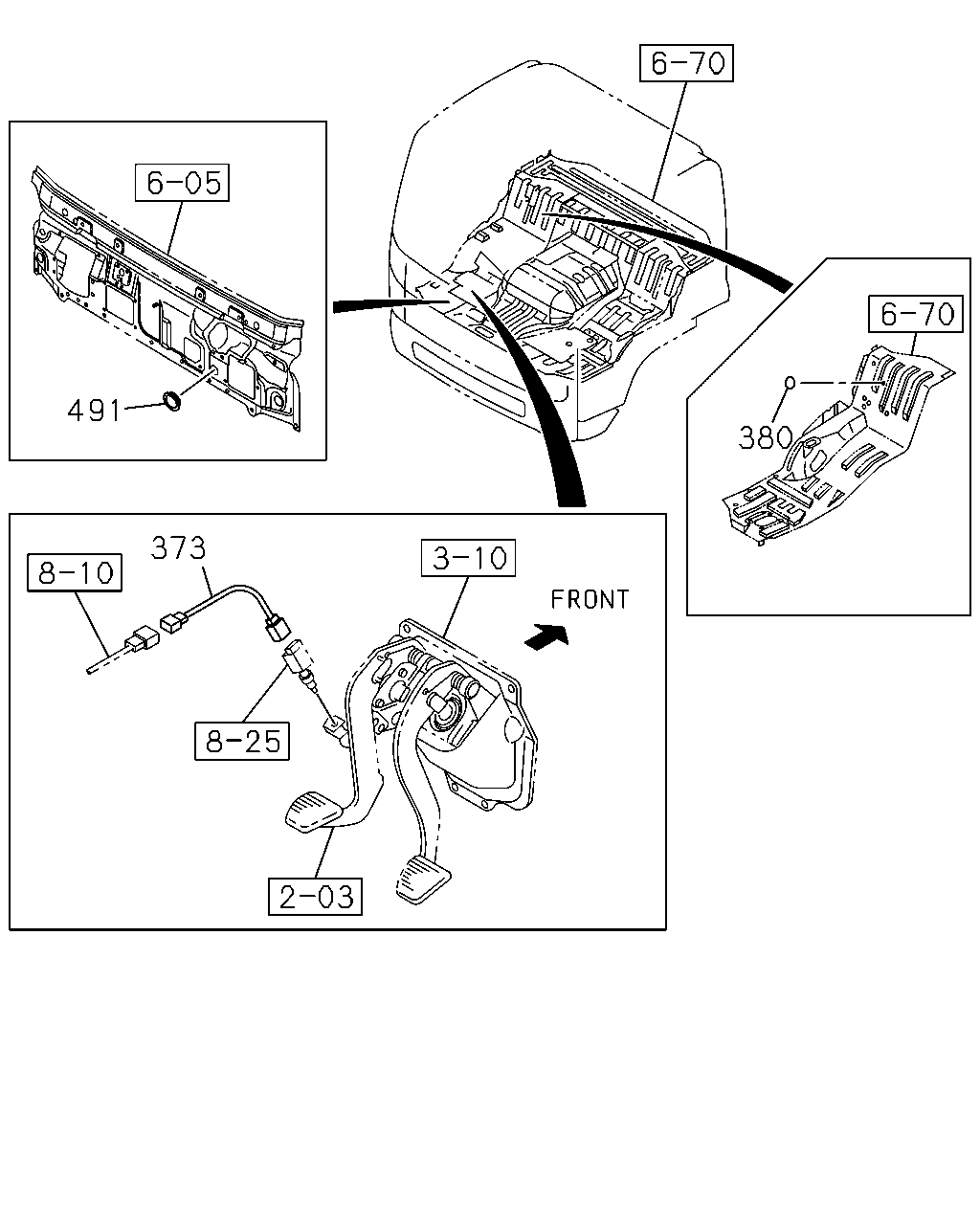

491 373 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
373	HARNESS; CLU SWITCH	8-98059-419-2	01	1	1304-	●	●
380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1304-	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1304-	●	●

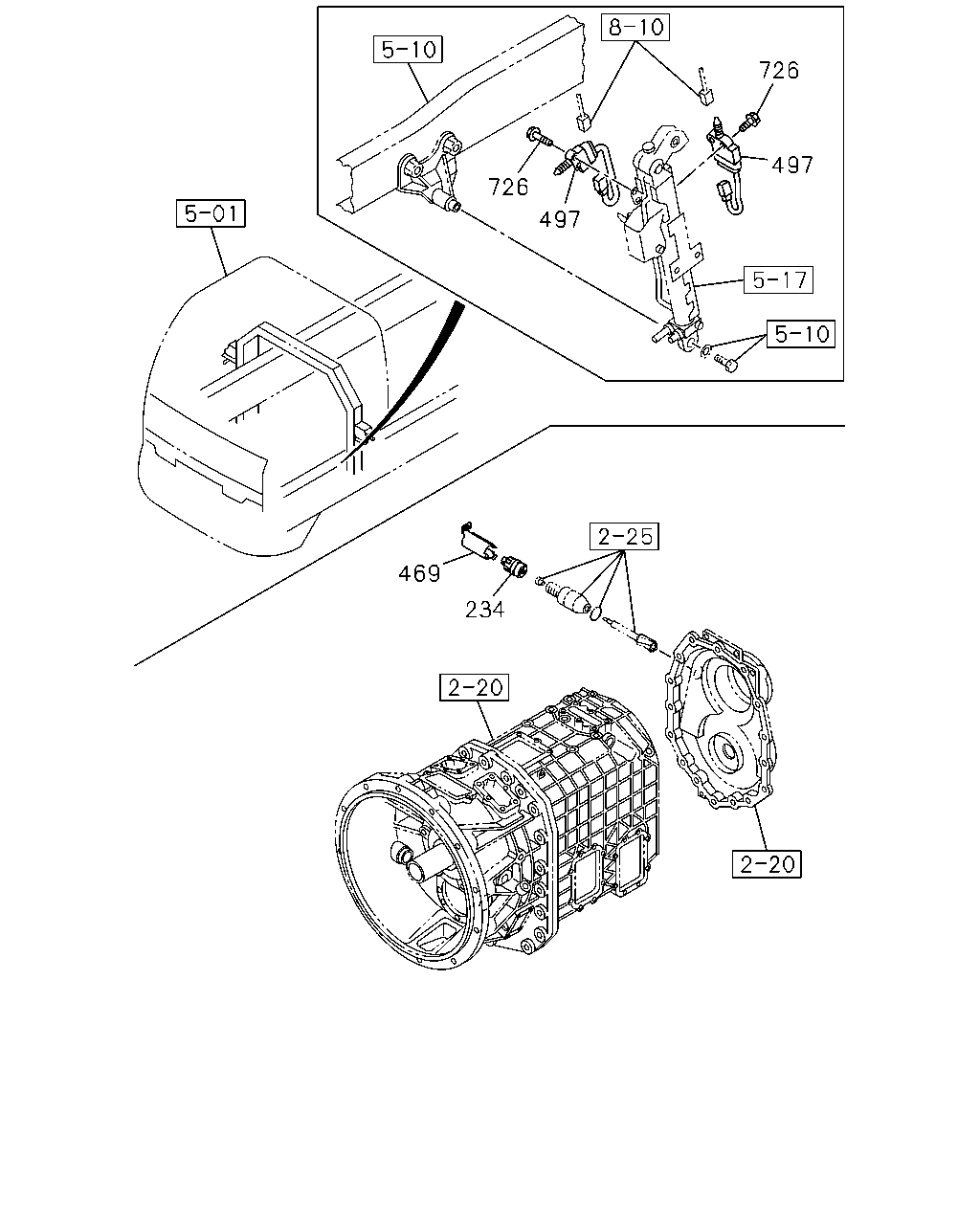

726 726 497 497 469 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
234	SENSOR; VEHICLE SPD MJT7U M/T(Y4X) 25 PULSE ALUMINUM	8-97328-058-1	01	1	1304-	●
469	PROTECTOR; SPEED SENSOR MJT7U M/T(Y4X)	8-98119-901-0	01	1	1304-	●
497	SWITCH; CAB TILT STAMP NO	1-82380-172-1	02	1	1304-	●	●
726	BOLT; SW,CAB TILT M6X25 FLANGE	0-28050-625-0	04	1	1304-	●	●
